Detect CWE-20 in Android Application

This scenario seeks to find Improper Input Validation in the APK file.

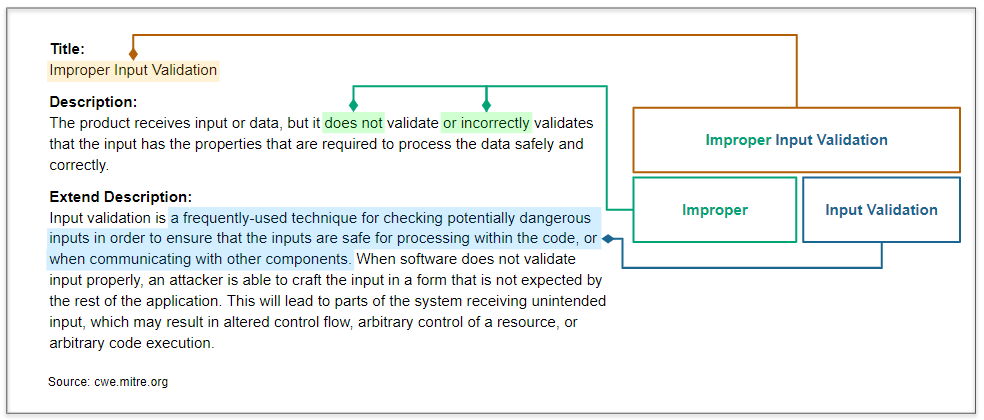

CWE-20 Improper Input Validation

We analyze the definition of CWE-20 and identify its characteristics.

See CWE-20 for more details.

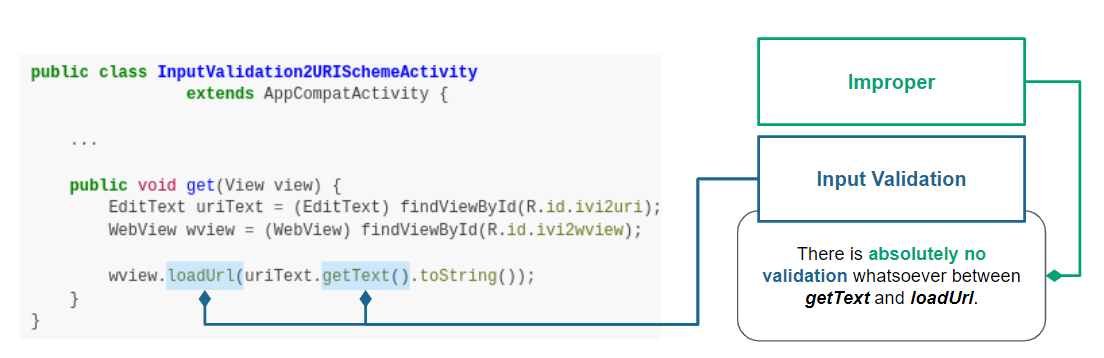

Code of CWE-20 in diva.apk

We use the diva.apk sample to explain the vulnerability code of CWE-20.

Quark Script CWE-20.py

Let’s use the above APIs to show how the Quark script finds this vulnerability.

First, we design a detection rule openUrlThatUserInput.json, to spot the behavior of opening the URL that the user inputs. Then, we use API behaviorInstance.getMethodsInArgs() to get a list of methods that the URL in loadUrl passes through. Finally, we check if any validation method is in the list. If No, the APK does not validate user input. That causes CWE-20 vulnerability.

from quark.script import runQuarkAnalysis, Rule

SAMPLE_PATH = "diva.apk"
RULE_PATH = "openUrlThatUserInput.json"

rule = Rule(RULE_PATH)
result = runQuarkAnalysis(SAMPLE_PATH, rule)

VALIDATE_METHODS = ["contains", "indexOf", "matches", "replaceAll"]

for openUrl in result.behaviorOccurList:
    calledMethods = openUrl.getMethodsInArgs()

    if not any(
        method.methodName in VALIDATE_METHODS for method in calledMethods
    ):
        print(f"CWE-20 is detected in method, {openUrl.methodCaller.fullName}")

Quark Rule: openUrlThatUserInput.json

{
    "crime": "Open the Url that user input",
    "permission": [],
    "api": [
        {
            "class": "Landroid/widget/EditText;",
            "method": "getText",
            "descriptor": "()Landroid/text/Editable;"
        },
        {
            "class": "Landroid/webkit/WebView;",
            "method": "loadUrl",
            "descriptor": "(Ljava/lang/String;)V"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python CWE-20.py
CWE-20 is detected in method, Ljakhar/aseem/diva/InputValidation2URISchemeActivity; get (Landroid/view/View;)V
