Optimize the document of Quark Script CWE-312

[JerryTasi]

Detect CWE-312 in Android Application

This scenario seeks to find cleartext storage of sensitive data in the APK file.

CWE-312: Cleartext Storage of Sensitive Information

We analyze the definition of CWE-312 and identify its characteristics.

See CWE-312 for more details.

Code of CWE-312 in ovaa.apk

We use the ovaa.apk sample to explain the vulnerability code of CWE-312.

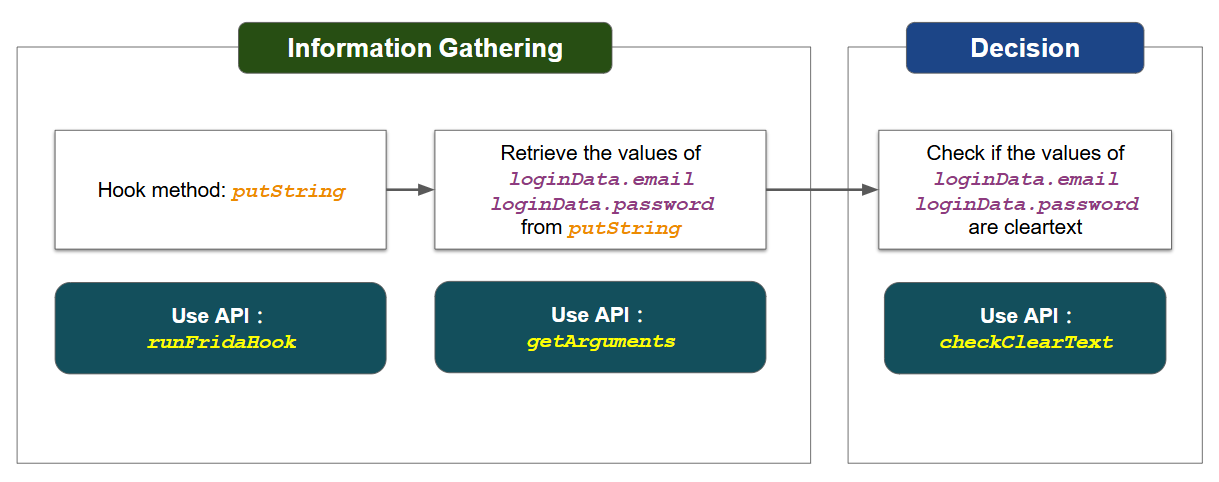

CWE-312 Detection Process Using Quark Script API

Let’s use the above APIs to show how the Quark script finds this vulnerability.

We have designed a Frida script agent.js to hook a specified method and get the arguments when the method is called. It can be found in quark-engine/quark/script/frida.

To begin with, we hook the method putString to catch its arguments. Then, we check if sensitive information like email or password is passed. Finally, we use checkClearText imported from Ares to check if the arguments are cleartext. If both YES, CWE-312 vulnerability might be caused.

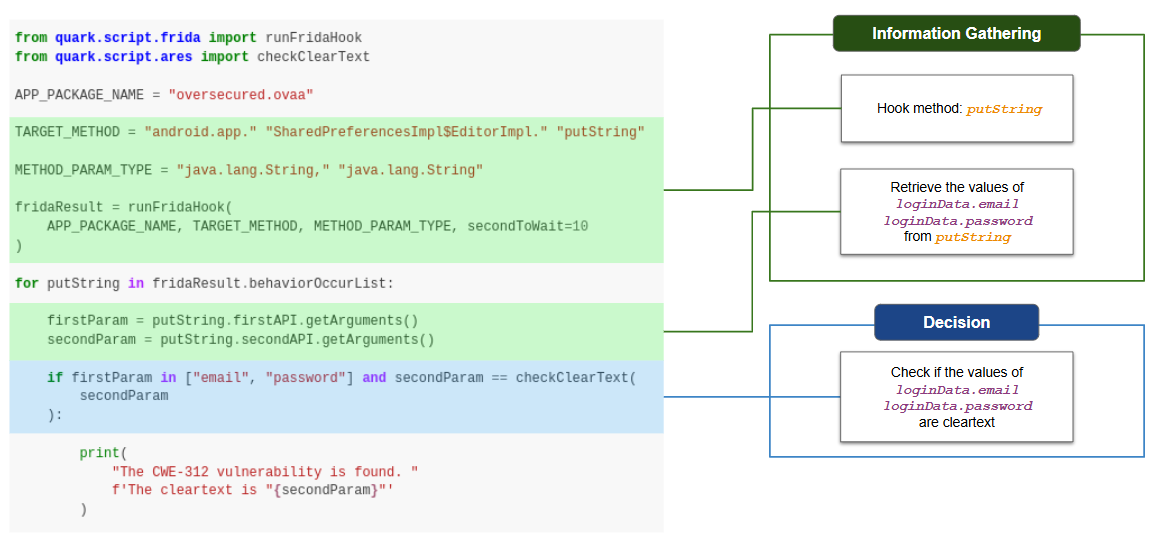

Quark Script: CWE-312.py

from quark.script.frida import runFridaHook
from quark.script.ares import checkClearText

APP_PACKAGE_NAME = "oversecured.ovaa"

TARGET_METHOD = "android.app." "SharedPreferencesImpl$EditorImpl." "putString"

METHOD_PARAM_TYPE = "java.lang.String," "java.lang.String"

fridaResult = runFridaHook(
    APP_PACKAGE_NAME, TARGET_METHOD, METHOD_PARAM_TYPE, secondToWait=10
)

for putString in fridaResult.behaviorOccurList:

    firstParam = putString.firstAPI.getArguments()
    secondParam = putString.secondAPI.getArguments()

    if firstParam in ["email", "password"] and secondParam == checkClearText(
        secondParam
    ):

        print(
            "The CWE-312 vulnerability is found. "
            f'The cleartext is "{secondParam}"'
        )

Frida Script: agent.js

// -*- coding: utf-8 -*-
// This file is part of Quark-Engine - https://github.com/quark-engine/quark-engine
// See the file 'LICENSE' for copying permission.

/*global Java, send, rpc*/
function replaceMethodImplementation(targetMethod, classAndMethodName, methodParamTypes, returnType) {
    targetMethod.implementation = function () {
        let callEvent = {
            "type": "CallCaptured",
            "identifier": [classAndMethodName, methodParamTypes, returnType],
            "paramValues": []
        };

        for (const arg of arguments) {
            callEvent["paramValues"].push((arg || "(none)").toString());
        }

        send(JSON.stringify(callEvent));
        return targetMethod.apply(this, arguments);
    };
}

function watchMethodCall(classAndMethodName, methodParamTypes) {
    if (classAndMethodName == null || methodParamTypes == null) {
        return;
    }

    const indexOfLastSeparator = classAndMethodName.lastIndexOf(".");
    const classNamePattern = classAndMethodName.substring(0, indexOfLastSeparator);
    const methodNamePattern = classAndMethodName.substring(indexOfLastSeparator + 1);

    Java.perform(() => {
        const classOfTargetMethod = Java.use(classNamePattern);
        const possibleMethods = classOfTargetMethod[`${methodNamePattern}`];

        if (typeof possibleMethods === "undefined") {
            const failedToWatchEvent = {
                "type": "FailedToWatch",
                "identifier": [classAndMethodName, methodParamTypes]
            };

            send(JSON.stringify(failedToWatchEvent));
            return;
        }

        possibleMethods.overloads.filter((possibleMethod) => {
            const paramTypesOfPossibleMethod = possibleMethod.argumentTypes.map((argument) => argument.className);
            return paramTypesOfPossibleMethod.join(",") === methodParamTypes;
        }).forEach((matchedMethod) => {
            const retType = matchedMethod.returnType.name;
            replaceMethodImplementation(matchedMethod, classAndMethodName, methodParamTypes, retType);
        }
        );

    });
}

rpc.exports["watchMethodCall"] = (classAndMethodName, methodParamTypes) => watchMethodCall(classAndMethodName, methodParamTypes);

Quark Script Result

$ python3 CWE-312.py
The CWE-312 vulnerability is found. The cleartext is "test@email.com"
The CWE-312 vulnerability is found. The cleartext is "password"
