Optimize the document of Quark Script CWE-338

[JerryTasi]

Detect CWE-338 in Android Application

This scenario seeks to find Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG).

CWE-338: Use of Cryptographically Weak Pseudo-Random Number Generator (PRNG)

We analyze the definition of CWE-338 and identify its characteristics.

See CWE-338 for more details.

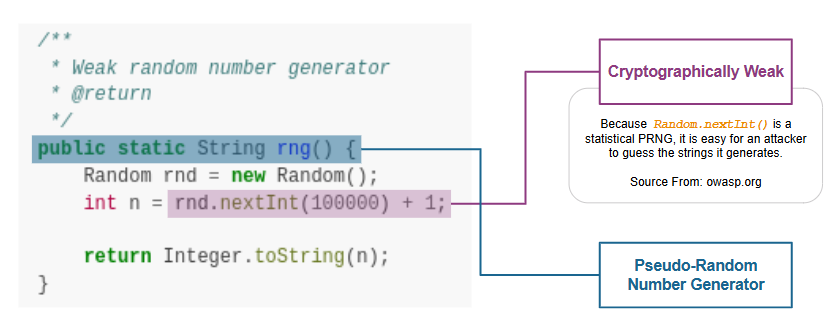

Code of CWE-338 in pivaa.apk

We use the pivaa.apk sample to explain the vulnerability code of CWE-338.

CWE-338 Detection Process Using Quark Script API

First, we design a detection rule useMethodOfPRNG.json to spot on behavior that uses Pseudo Random Number Generator (PRNG). Then, we use API methodInstance.getXrefFrom() to get the caller method of PRNG. Finally, we use some keywords such as "token", "password", and "encrypt" to check if the PRNG is for credential usage.

Quark Script CWE-338.py

from quark.script import runQuarkAnalysis, Rule

SAMPLE_PATH = "pivaa.apk"
RULE_PATH = "useMethodOfPRNG.json"

CREDENTIAL_KEYWORDS = [
    "token", "password", "account", "encrypt",
    "authentication", "authorization", "id", "key"
]

ruleInstance = Rule(RULE_PATH)
quarkResult = runQuarkAnalysis(SAMPLE_PATH, ruleInstance)

for usePRNGMethod in quarkResult.behaviorOccurList:
    for prngCaller in usePRNGMethod.methodCaller.getXrefFrom():
        if any(
            keyword in prngCaller.fullName for keyword in CREDENTIAL_KEYWORDS
        ):
            print("CWE-338 is detected in %s" % prngCaller.fullName)

Quark Rule: useMethodOfPRNG.json

{
    "crime": "Use method of PRNG",
    "permission": [],
    "api": [
        {
            "class": "Ljava/util/Random;",
            "method": "<init>",
            "descriptor": "()V"
        },
        {
            "class": "Ljava/util/Random;",
            "method": "nextInt",
            "descriptor": "(I)I"
        }
    ],
    "score": 1,
    "label": []
}

Quark Script Result

$ python CWE-338.py
CWE-338 is detected in Lcom/htbridge/pivaa/EncryptionActivity$2; onClick (Landroid/view/View;)V
