Event-driven microservices version of restaurant management from POJOs in Action
Java Shell Groovy
Latest commit a66741b Jan 1, 2017 @cer cer Added getting help
Permalink
Failed to load latest commit information.
buildSrc/src/main/groovy fixed issue #3: Add support for Eventuate Local Sep 30, 2016
common-restaurants Simplified Gradle module structure Dec 31, 2016
common-swagger Improved README.md, improved Swagger UI Oct 2, 2016
common-tests Simplified Gradle module structure Dec 31, 2016
common-web Migrated to new Eventuate Java Client Aug 29, 2016
e2e-test Simplified Gradle module structure Dec 31, 2016
gradle/wrapper Initial commit May 8, 2016
restaurants-integration-test Simplified Gradle module structure Dec 31, 2016
restaurants-service Simplified Gradle module structure Dec 31, 2016
restaurants-view-service Simplified Gradle module structure Dec 31, 2016
testutil Migrated to new Eventuate Java Client Aug 29, 2016
.gitignore Initial commit May 8, 2016
LICENSE.md Initial commit May 8, 2016
README.md Added getting help Dec 31, 2016
_build-and-test-all.sh - converted all docker-compose files to use build: rather then volume… Oct 12, 2016
build-and-test-all-eventuate-local.sh Improved README.md, improved Swagger UI Oct 2, 2016
build-and-test-all.sh fixed issue #3: Add support for Eventuate Local Sep 30, 2016
build.gradle Initial commit May 8, 2016
docker-compose-common.yml Simplified Gradle module structure Dec 31, 2016
docker-compose-eventuate-local.yml Simplified Gradle module structure Dec 31, 2016
docker-compose.yml Simplified Gradle module structure Dec 31, 2016
gradle.properties Simplified Gradle module structure Dec 31, 2016
gradlew Initial commit May 8, 2016
gradlew.bat Initial commit May 8, 2016
set-env.sh fixed issue #3: Add support for Eventuate Local Sep 30, 2016
settings.gradle Simplified Gradle module structure Dec 31, 2016
wait-for-services.sh Simplified Gradle module structure Dec 31, 2016

README.md

Restaurant management application

Food to Go is a fictitious, on-demand logistics company that delivers takeout orders from restaurants to customers. A key part of the application is the restaurant management service, which maintains a database of restaurants that can be queried for availability to deliver an order to a customer at a particular time. This version of the restaurant management service has an architecture based on microservices, event sourcing and Command Query Responsibility Segregation (CQRS). It is written in Java and uses the Eventuate Platform, Spring Boot, and Redis.

Don't forget to take a look at the other Eventuate example applications.

Got questions?

Don't hesitate to create an issue or see

Architecture

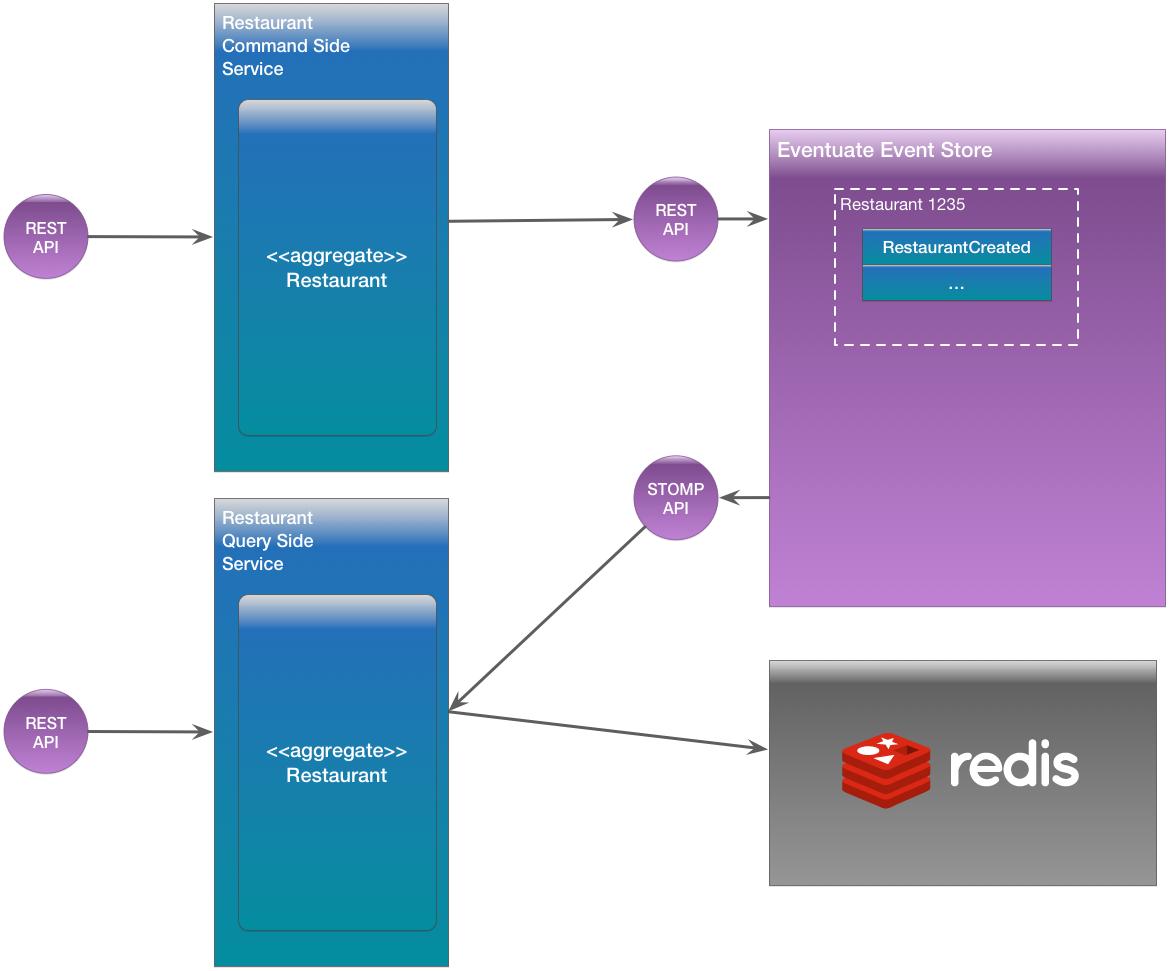

The following diagram shows the architecture of the application.

The application is built using CQRS. The command side service handles creates, updates and deletes. It defines the following REST endpoints:

  • POST /restaurant - create a restaurant
  • PUT /restaurant/id - update a restaurant
  • DELETE /restaurant/id - delete a restaurant

The command side service stores restaurants in the Eventuate event store.

The query side service handles GET requests. It subscribes to Restaurant events and maintains a denormalized representation of the restaurants in Redis for fast querying. The query side service defines the following REST endpoints:

  • GET /restaurant/id - finds a restaurant
  • GET /availablerestaurants?zipcode=xx&dayOfWeek=xx&hour=xx&minute=xx - finds restaurants that are available to deliver to the specified zip code at the specified time

About Eventuate™

The application is built using Eventuate, which is an application platform for writing transactional microservices. It provides a simple yet powerful event-driven programming model that is based on event sourcing and Command Query Responsibility Segregation (CQRS). Eventuate solves the distributed data management problems inherent in a microservice architecture. It consists of a scalable, distributed event store and client libraries for various languages and frameworks including Java, Scala, and the Spring framework.

There are two versions of Eventuate:

Building and running the application.

This is a Java 8, Gradle project. However, you do not need to install Gradle since it will be downloaded automatically. You just need to have Java 8 installed.

The details of how to build and run the services depend slightly on whether you are using Eventuate SaaS or Eventuate Local.

Building and running using Eventuate SaaS

First, must sign up to get your credentials in order to get free access to the SaaS version.

Next, build the application:

./gradlew assemble

Next, you can launch the application using Docker Compose

docker-compose up -d

Building and running using Eventuate Local

First, build the application:

./gradlew assemble -P eventuateDriver=local

Next, you can launch the application using Docker Compose

export DOCKER_HOST_IP=...
docker-compose -f docker-compose-eventuate-local.yml up -d

Note: You need to set DOCKER_HOST_IP before running Docker Compose. DOCKER_HOST_IP is the IP address of the machine running the Docker daemon. It must be an IP address or resolvable hostname. It cannot be localhost. See this guide to setting DOCKER_HOST_IP for more information.

Using the application

Finally, you can use the Swagger UI provided by the services to create, update, delete and view restaurants:

  • http://${DOCKER_HOST_IP?}:8081/swagger-ui.html - Restaurant command-side service
  • http://${DOCKER_HOST_IP?}:8082/swagger-ui.html - Restaurant query-side service

Note: DOCKER_HOST_IP is the IP address of the machine running the Docker daemon.

(Hint: best to open these URLs in separate tabs)

Got questions?

Don't hesitate to create an issue or see
