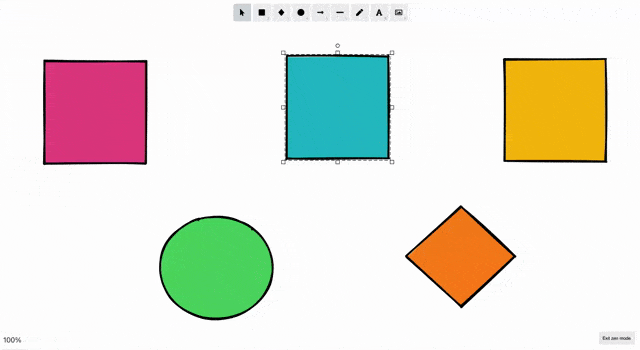

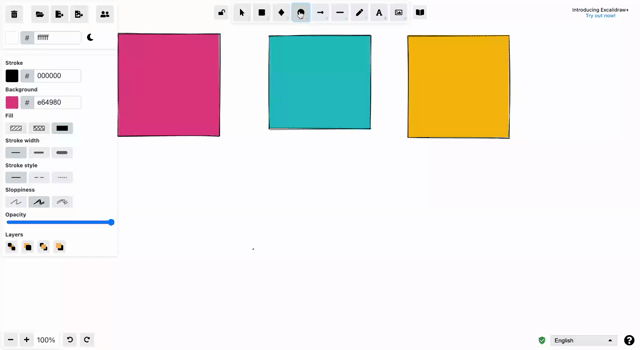

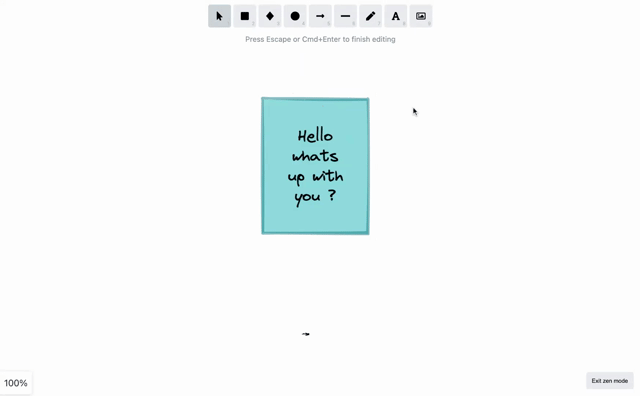

feat: bind text to shapes when pressing enter and support sticky notes 🎉

[ad1992]

for #1428, #4239, #4267 ,#4270

NOTES

• Added a field containerId to text element which refers to the container Id whenever its binded to a container
• Added boundTextElementId to the container which refers to text element id to keep the mapping for text binded to the container - rename ? using boundElements for the mapping now
• To make sure that text element is never selected when clicked, resized, selector tool used etc, I am making sure that text element is never included eg checking if text element contains containerId then don't include and similarly in getElementsAtPosition and few other places. But there would be cases where text element needs to be selected for example when exporting to png/svg, adding to library, for this I have added a flag includeBoundText to the util getSelectedElements in selection.ts
• Added originalText in text element so that whenever container is resized I can run the word wrap algo on the original text as text is what is rendered on canvas - I will check if we can just keep text as originalText as text is needed for rendering on canvas only
• The wordWrap algo is an attempt to replicate the behaviour of word-break: break-word in css. It tries to break in words where ever possible and for longer strings it keeps concatenating until width of container is reached, have added few comments in the code as well
• To optimize resizing, the width values of alphabets are cached, the caching is per character depending on the font

 { [key: FontString]: Array<number> }

where array contains the width of the characters and array index is ascii code of character. Kept it an array so its easy to calculate min width of character which I am using in resize algo, we can keep a map as well for width too and cache the min width as well
The cache is in memory, check charWidth in textElement.tsx

• To minimize the number of time wordWrap is called , I check the diff between prev container width and new container width and if it exceeds min char width then wordWrap is called.

TODOS / BUGS

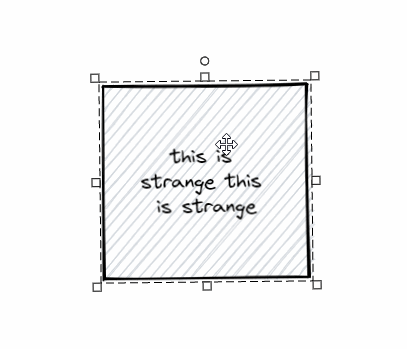

• the parent container should be selectable by clicking anywhere inside (irrespective of background fill), or at least when clicking on the text

• text should be vertically centered (as you type. Right now it gets vertically centered only after you resize the parent container)

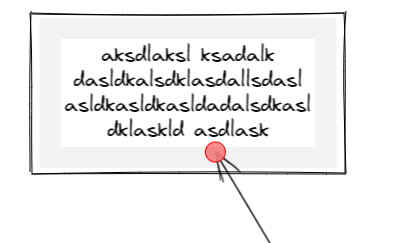

• arrow binding to text should be disabled (it already seems to be for the most part, but there's still the indicator)

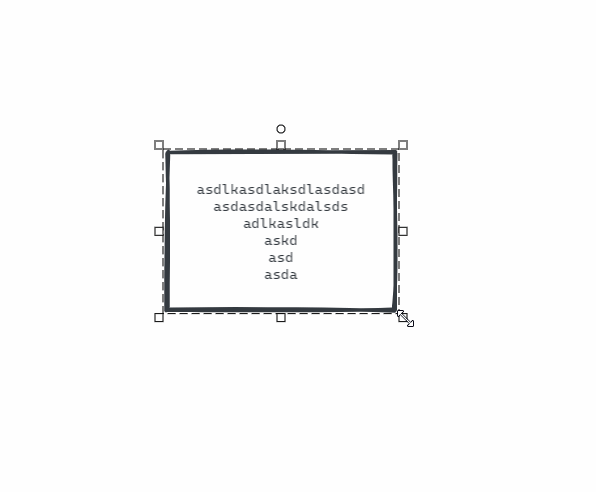

• performance aside, there seems to be an infinite loop resulting in a process freeze when you make the width of the rectangle too small. Sometimes if the state change manages to be persisted to LS before the freeze, you can't fix the issue any other way than clearing the site data from settings. So we should guard against infinite loops no matter the performance of the size calculation.

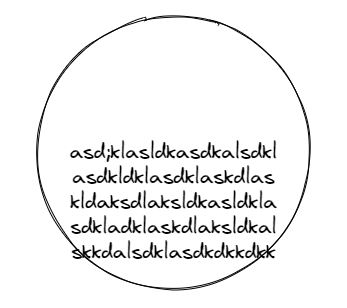

• diamond and ellipse text bounding box not correct in some cases:



  Its better now with vertical align, and user can always resize if it goes out of bounding box. We can improve this later. Checked other platforms Miro (starts hiding text as text increases which is bad), Eraser (similar to ours), Gdrive (doesnt auto increase container)

• word wrap issue which shows different words when editing vs submitted


• Word wrap not working in safari - Use word-break: break word for better support and work in safari

• word wrap algo not respecting spaces when word goes beyond width and next word start


• Update word wrap algo to break words, right now its breaking at character. This would also help in improving perf overall and also when resizing

• Calculate approx chars that could fit in a line in word wrap algo, this should significantly improve perf - probably not needed since caching works well, though I have added the util so we can use in future

• Try canvasMeasureText to see if It could improve perf. Right now there is a slight diff of 1-2 pixels in word wrap algo, which could get fixed with this. This will reduce the time by ~10 times

• For longer lines exceeding width, calculate the width of each char in order unless max width, this will optimize the perf as right now I am slicing string from end unless it fits the container which is very bad for small container where only one char could fit. This would make sure the number of runs don't exceed text length which is right now ~ ((text.length * text.length -1) /2)

• Start caching the width of each char to improve perf when resizing

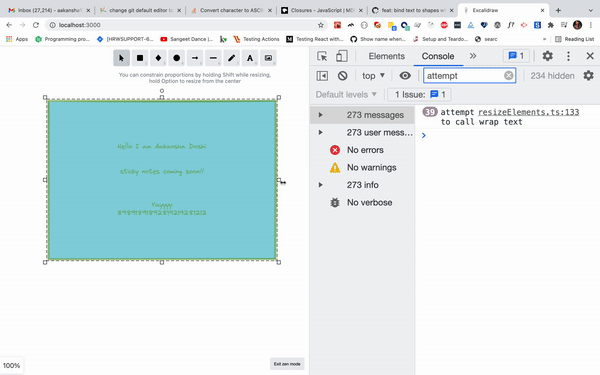

• Minimize the number of times wrapText is called when resizing to improve perf as its called very frequently even when width hasn't significantly changed which slows down resizing. We can check if width exceeded by atleast approxMinWidth before executing the algo. Notice the count of log "attempt to call wrap text(665)" vs "called wrap text(604)"

- [ ] Use same div when calculating dimensions if available as appending/removing div on every calculation will have reflow / repaint issues. This will also improve perf This does improve perf but not needed since now I am using canvas measureText

• when copying (cmd-c or alt-drag), the bound text is not copied, and gets bound to both the old and the new container at the same time. NOTE that the fix should also account for copy/pasting across instances (different browser...)

• The line height / height not getting updated once text properties are updated inside container

• Center the text when properties updated

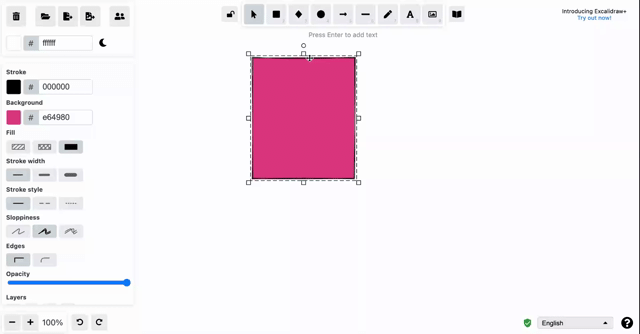

• Add a hint to "Press enter to add text" when single element selected

• When double clicked inside container, take the cursor to end of text same as what happens when enter is pressed

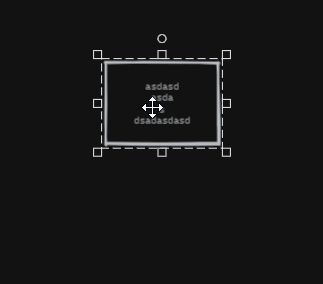

• wen you rotate a rectangle, then release and start rotating again, the rectangle rotation changes (jumps) when you grab the handle:



• Select container instead of text element when escape key is pressed and text is submitted

• Add to library doesn't add the bounded text

• Export to png/svg doesn't add bounded text

• Fix grouping when container with text element included

• Fix copy as svg/png

• Make sure resize works when multiple elements selected

• Make sure rotation works when multiple elements selected

• Disable selecting text element when using selection tool

• After rotation the container is not autoresizing

• Fix word wrap algo to break properly length hasn't exceeded width of container

• Add tests for wordWrap util

• There is a corner case where trailing spaces is not preserved as in algo its trimmed

• deleting bound text (by editing it and confirming after removing all chars) should unset the containerElement.boundTextElementId. Otherwise the container still behaves as if it has bound text.

• Adding spaces behaves weirdly with chrome only, works fine in other browsers
  - This is due to text-align:center which doesn't work well in chrome when adding spaces in chrome

• continuous spaces don't wrap to next line in css which leads to inconsistencies when text is submitted

• Support binding in images

• Text gets submitted on blur so can't update color of text by updating hex code - existing bug

• Fix the y coord when resizing from ne/nw/n

• duplicating via cmd/ctrl-D doesn't handle bound text duplication properly

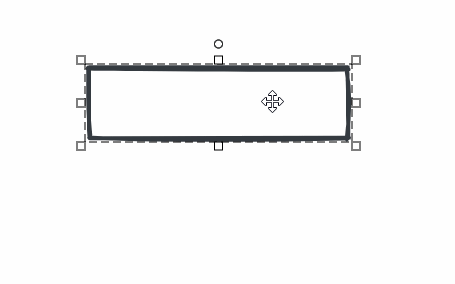

• on resize via corner handles, we should either not allow resizing to the "negative" at all, or ensure it doesn't move the opposite edge position:



• boundElements not updated properly: duplicate objects accumulate on consecutive edits.

• wysiwyg editor progressively misaligns (on new lines added) when zoomed in/out. Below, 60% zoom:


  This is an existing bug when height of text area goes beyond canvas height irrespective of zoom

• only remove last trailing space which we have added when joining words

• Fix alignment issues when text is right/left align and resizing

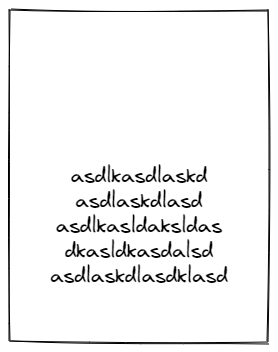

• extra newline (?) or vertical offset not calculated correctly in some cases:



[vercel]

This pull request is being automatically deployed with Vercel (learn more).
To see the status of your deployment, click below or on the icon next to each commit.

🔍 Inspect: https://vercel.com/excalidraw/excalidraw/8ouT19PSpDc98HhHEHWEGq7gmpGR
✅ Preview: https://excalidraw-git-aakansha-wrap-excalidraw.vercel.app

[ad1992]

Alright merging it 🎉
