Retrieve live NPR program information with Siri Shortcuts

For more information, please see my blog post about this shortcut.

Creating a Shortcut for Your NPR Station

All I really needed to customize Jack Wellborn's original shortcut was my NPR station's "UCSID,"which, for reference, is 5387648fe1c8335046a1d4b4. Upon installation of my What's on NPR? shortcut, you'll be prompted to specify this. Unfortunately, retrieving it via NPR's API requires special authorization, for some reason, but - since we're retrieving data from an NPR station's playback widget already configured to use the API - it's actually as easy as opening your browser's "Dev Tools" or showing on your given station's homepage. If you're unfamiliar, here's a handy guide to doing so on some popular desktop web browsers.

Honestly, though, if you're already on your iOS/iPadOS device and you're willing to install a single, free Safari Extension, I believe you'll find Web Inspector to be the single, simplest method of retrieving your station's UCSID.

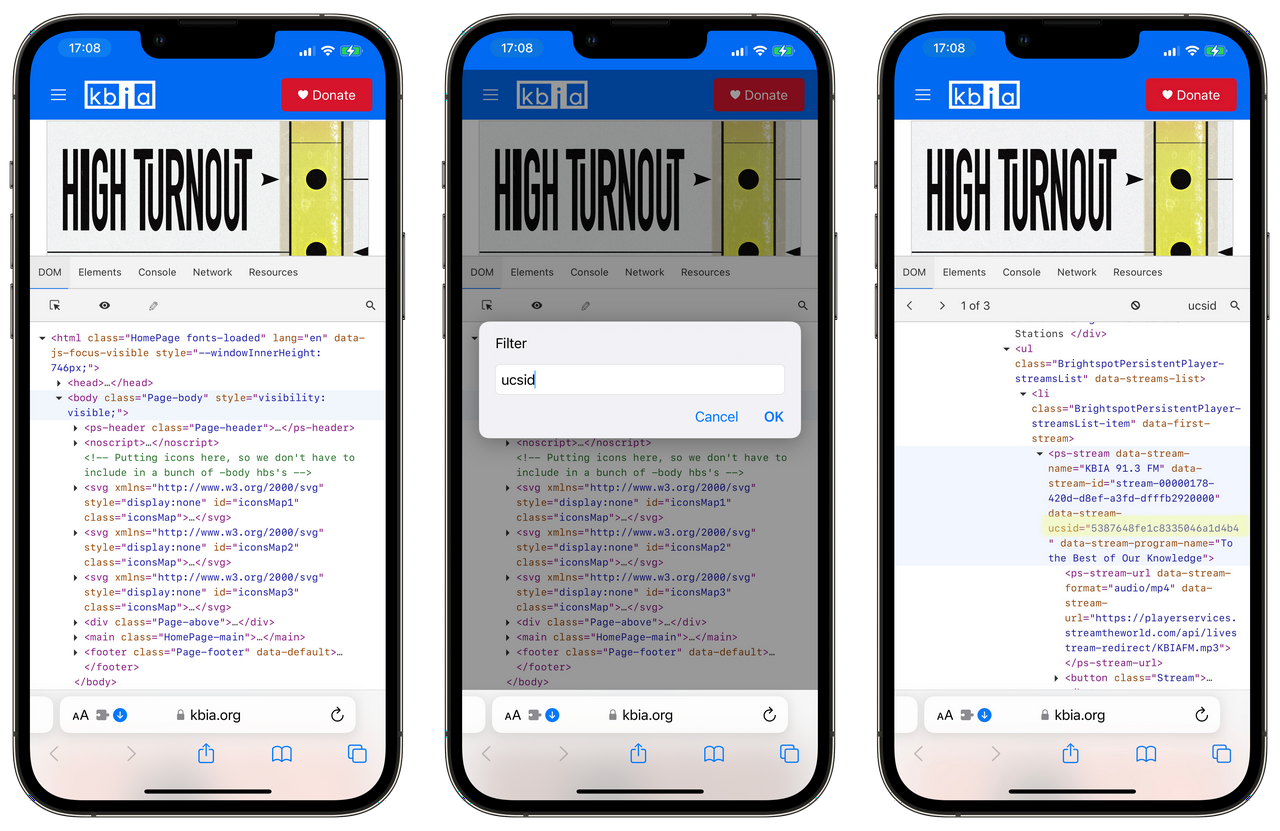

Finding your station's UCSID with Web Inspector

1. Navigate to your station's homepage (ex. kbia.org.)
2. Start playback of the live stream you'd like to query (may or may not be necessary, depending.)
3. Open Web Inspector via the Safari Extensions Menu.
4. In the DOM tab, use the search icon to filter for ucsid.
5. Your station's UCSID is the value for the data-stream-ucsid field.

Depending on how modern your station's website is (I think - I'm supposing, here,) you may or may not find this field. For reference, here is the HTML source of KBIA's webpage from which I drew in its entirety. If you're having trouble, please feel free to contact me however you wish, ideally with your preferred station's identifier/web url.

"Integration" with the Broadcasts app

Broadcasts is a very popular and highly-praised universal Apple application for internet radio streaming. By default, my What's on NPR? shortcut includes an action to begin streaming a station in Broadcasts, but it requires further configuration.

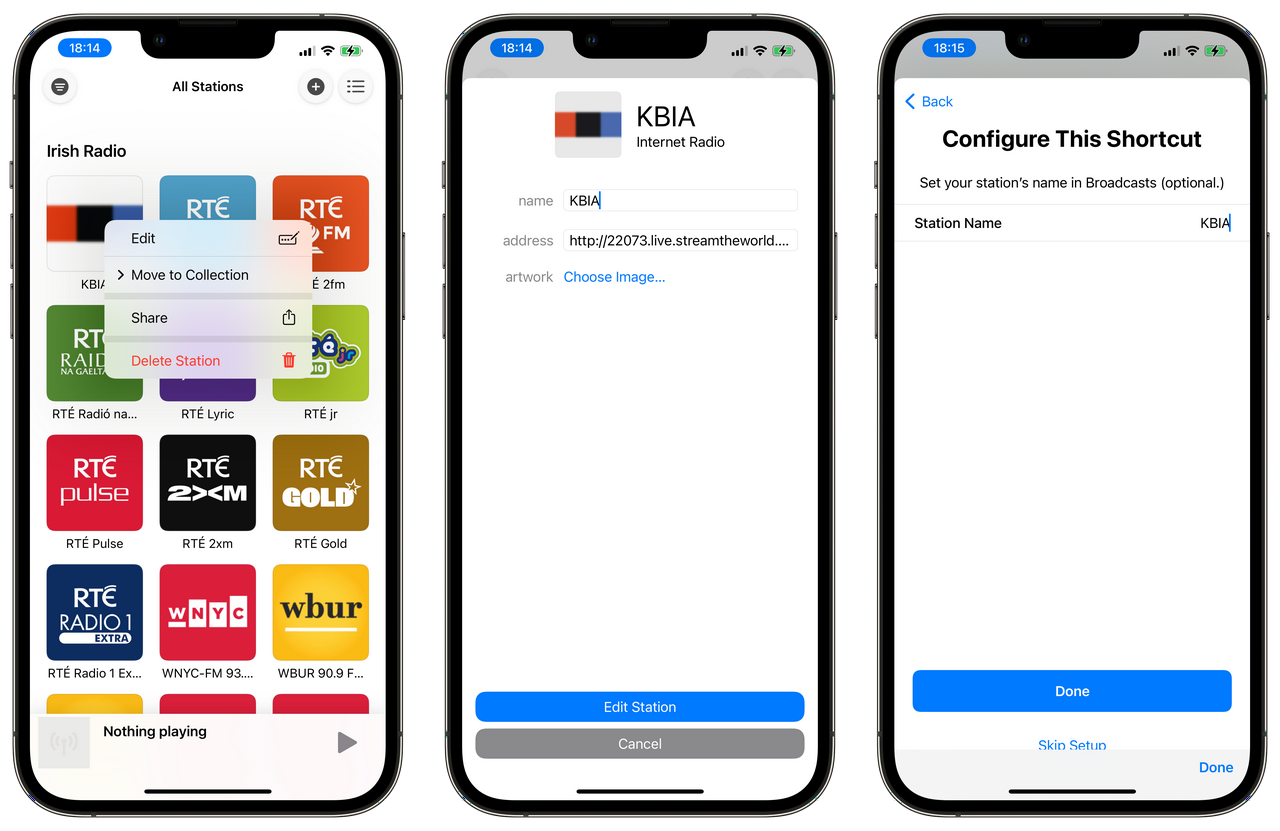

In all likelihood, a search of the Broadcasts Directory for your station's four-letter identifier should yield results. Once you've added your station to your library in Broadcasts, hold its icon (or ^ Tap) to present the context menu (shown in the screenshots embedded above) and select Edit. The exact value for the Name field in configuration menu that results must be supplied as the answer to the second configuration step of my What's on NPR? shortcut. If you do not wish to use Broadcasts, you need only delete or replace its single action in the shortcut's default configuration.

If you've followed along this far, you now have both values you're prompted for at installation of said shortcut, by default: your station's ucsid and its name in the Broadcasts app. You need only continue if you'd prefer to add options for Apple Music and/or VLC.

"Integration" with Apple Music

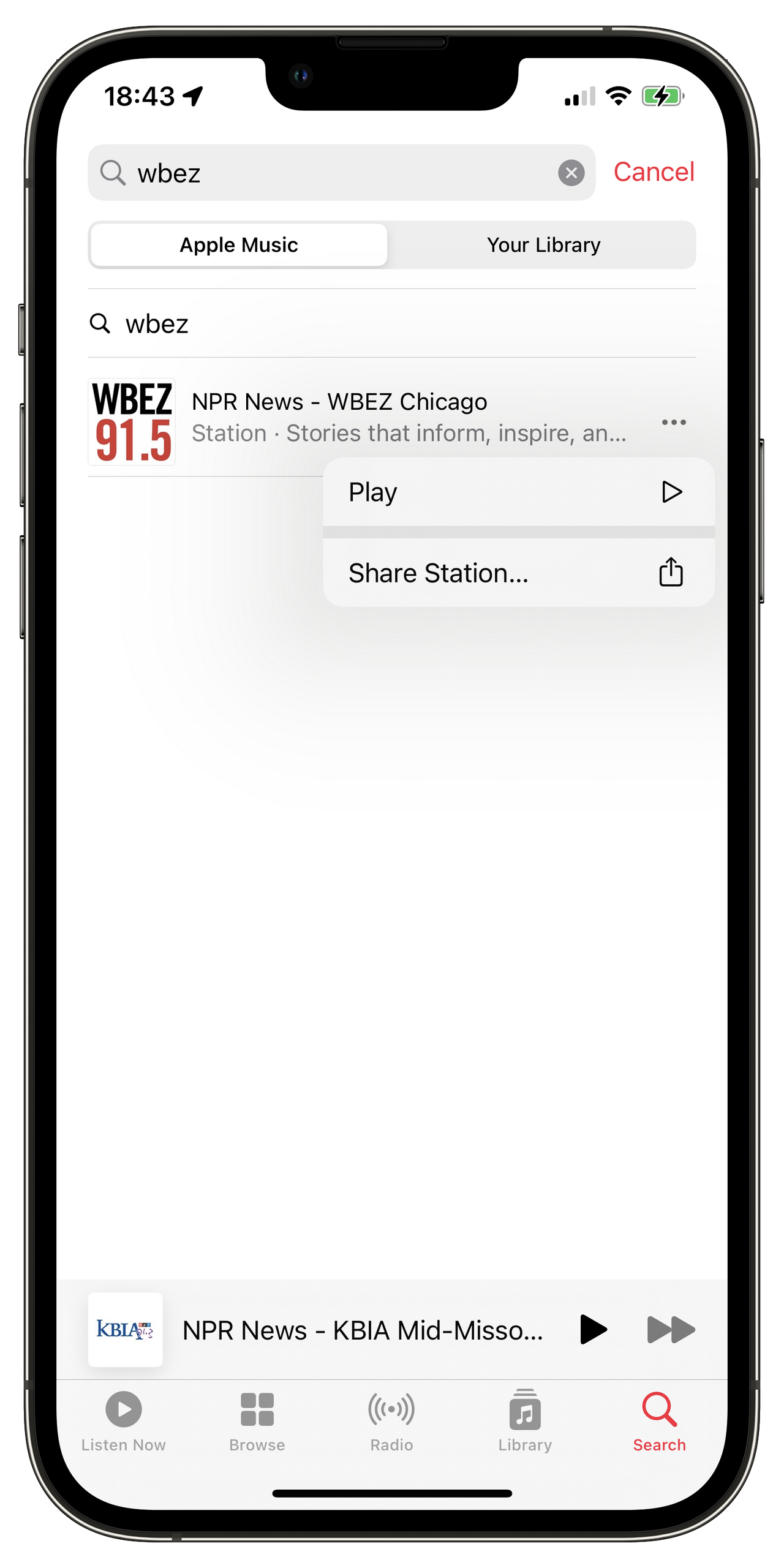

If you'd like to have a menu option to begin streaming your NPR station in Apple Music, begin by searching within the app for your station's identifier (as shown in the screenshot embedded above.) Use the triple-dot menu's Share Station option to copy its Apple Music URL. (WBEZ's, for example, is https://music.apple.com/us/station/npr-news-wbez-chicago/ra.872998937.) Replace or append to the Broadcasts option with a menu option pointing to an Open URLs action containing the resulting URL. (Refer to my What's on KBIA? shortcut to see this implemented.)

"Integration" with VLC media player

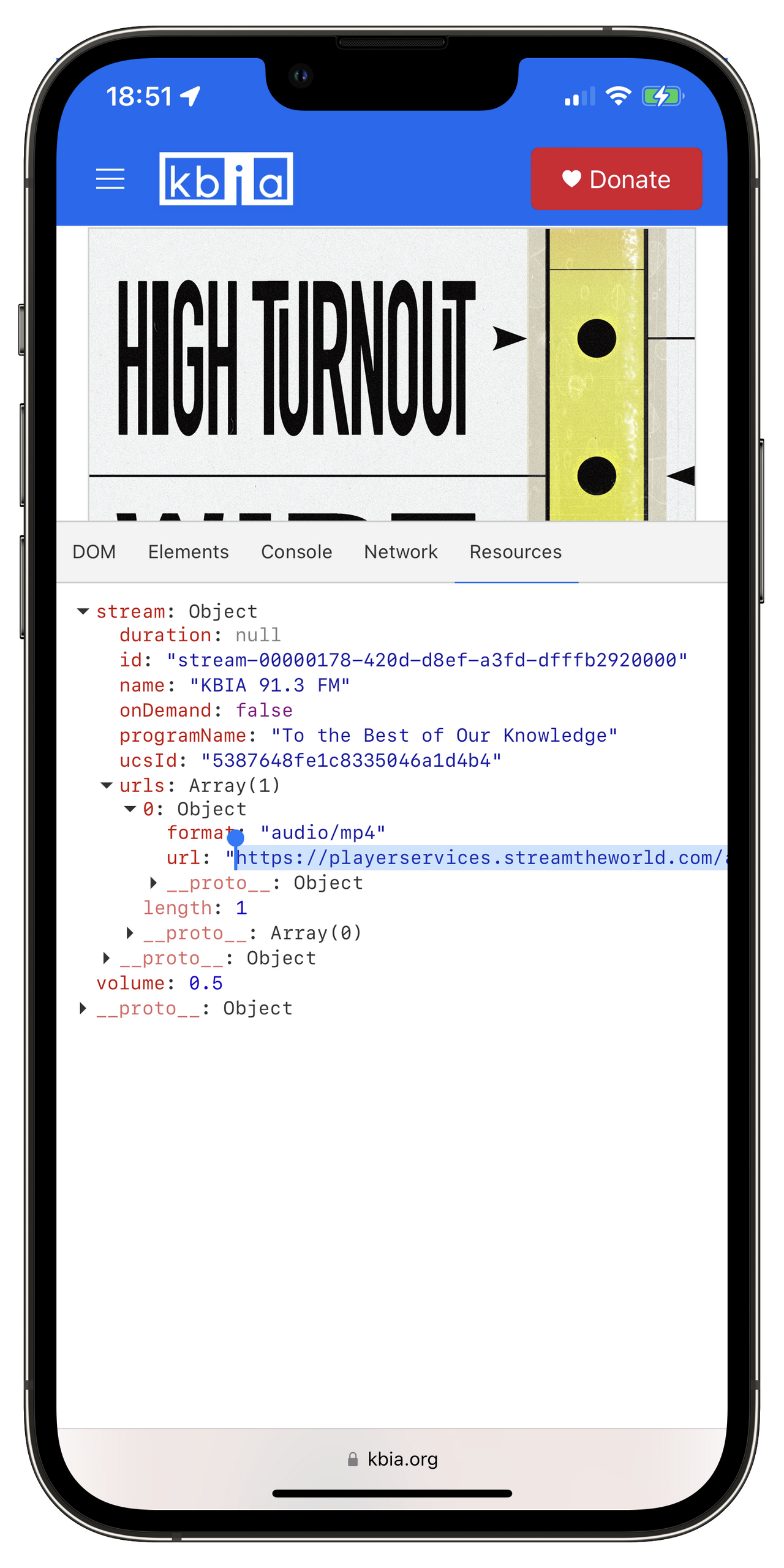

The VLC media player iOS app does not yet have its own Siri Shortcuts actions, but it does have a handy URL scheme which allows one to stream or download the contents of any raw media URL. Using Web Inspector as described above, I was able to find the raw stream URL for KBIA (https://playerservices.streamtheworld.com/api/livestream-redirect/KBIAFM.mp3) quite quickly in the Resources tab whilst streaming live.

To add an option to my shortcut to open the stream in vlc, I would add the following value in an Open URLs action:

vlc-x-callback://x-callback-url/stream?url=https://playerservices.streamtheworld.com/api/livestream-redirect/KBIAFM.mp3

[extratone]

KBIA Sample Data

{
  "status" : true,
  "nextUp" : [
    {
      "widget_config" : {
        "customized" : false,
        "custom_fields" : false,
        "episode_notes" : false,
        "host_allow" : false,
        "host_display" : false,
        "album_art" : false,
        "catalog_number" : false,
        "label" : false
      },
      "conflicts" : [
        "60bb015bc919e734e2b1c059"
      ],
      "_id" : "60bb015bc919e734e2b1c059",
      "start_time" : "16:00",
      "program_id" : "53876499e1c8335046a1d4cb",
      "start_utc" : "Sun Jun 05 2022 16:00:00 GMT-0400 (EDT)",
      "date" : "2022-06-05",
      "day" : "Sun",
      "conflict_edited" : 1444836534094,
      "fullend" : "2022-06-05 17:00",
      "end_time" : "17:00",
      "program" : {
        "hosts" : [
          {
            "name" : ""
          }
        ],
        "station_id" : "station_kbia_58",
        "program_format" : "News/Information",
        "program_link" : "http://www.npr.org/templates/rundowns/rundown.php?prgId=2",
        "parentID" : "517059399de8e95a460001ea",
        "program_id" : "53876499e1c8335046a1d4cb",
        "program_desc" : "An hour of breaking news mixed with compelling analysis, insightful commentaries, interviews, and special - sometimes quirky - features.",
        "ucs" : "5387648fe1c8335046a1d4b4",
        "national_program_id" : "5",
        "isParent" : false,
        "facebook" : "",
        "name" : "All Things Considered",
        "twitter" : ""
      },
      "end_utc" : "Sun Jun 05 2022 17:00:00 GMT-0400 (EDT)",
      "event_id" : "5387655079e9edc965cb75d8",
      "fullstart" : "2022-06-05 16:00"
    }
  ],
  "onNow" : {
    "widget_config" : {
      "customized" : false,
      "custom_fields" : false,
      "episode_notes" : false,
      "host_allow" : false,
      "host_display" : false,
      "album_art" : false,
      "catalog_number" : false,
      "label" : false
    },
    "_id" : "60bb015bc919e734e2b1c067",
    "start_time" : "15:00",
    "program_id" : "5636b8acad4228ea612923ce",
    "start_utc" : "2022-06-05T19:00:00.000Z",
    "date" : "2022-06-05",
    "day" : "Sun",
    "conflict_edited" : 1467839241304,
    "end_time" : "16:00",
    "program" : {
      "hosts" : [

      ],
      "station_id" : "",
      "program_format" : "News/Information",
      "program_link" : "",
      "parentID" : null,
      "program_id" : "5636b8acad4228ea612923ce",
      "program_desc" : "",
      "ucs" : "5387648fe1c8335046a1d4b4",
      "national_program_id" : "",
      "isParent" : false,
      "facebook" : "",
      "name" : "Reveal",
      "twitter" : ""
    },
    "end_utc" : "2022-06-05T20:00:00.000Z",
    "event_id" : "577d7309fd377abc5a585655"
  },
  "display_buy" : true,
  "affiliate" : {
    "amazon" : "kbiaorg-20",
    "itunes" : "10lJXC",
    "arkiv" : "kbia"
  },
  "settings" : {
    "times" : false
  },
  "ucs" : {
    "station" : "station_kbia_58",
    "itunes_affiliate_id" : "10lJXC",
    "_zoneInfo" : {
      "id" : "US_Central",
      "offset" : -6
    },
    "_id" : "5387648fe1c8335046a1d4b4",
    "amazon_affiliate_id" : "kbiaorg-20",
    "enable_sx_reporting" : true,
    "websitelink" : "http://www.kbia.org",
    "arkiv_affiliate_id" : "kbia",
    "ignores_dst" : false,
    "parent_station_id" : "0",
    "fullname" : "KBIA",
    "timezone" : "CST",
    "legacy" : "58",
    "name" : "kbia"
  }
}
