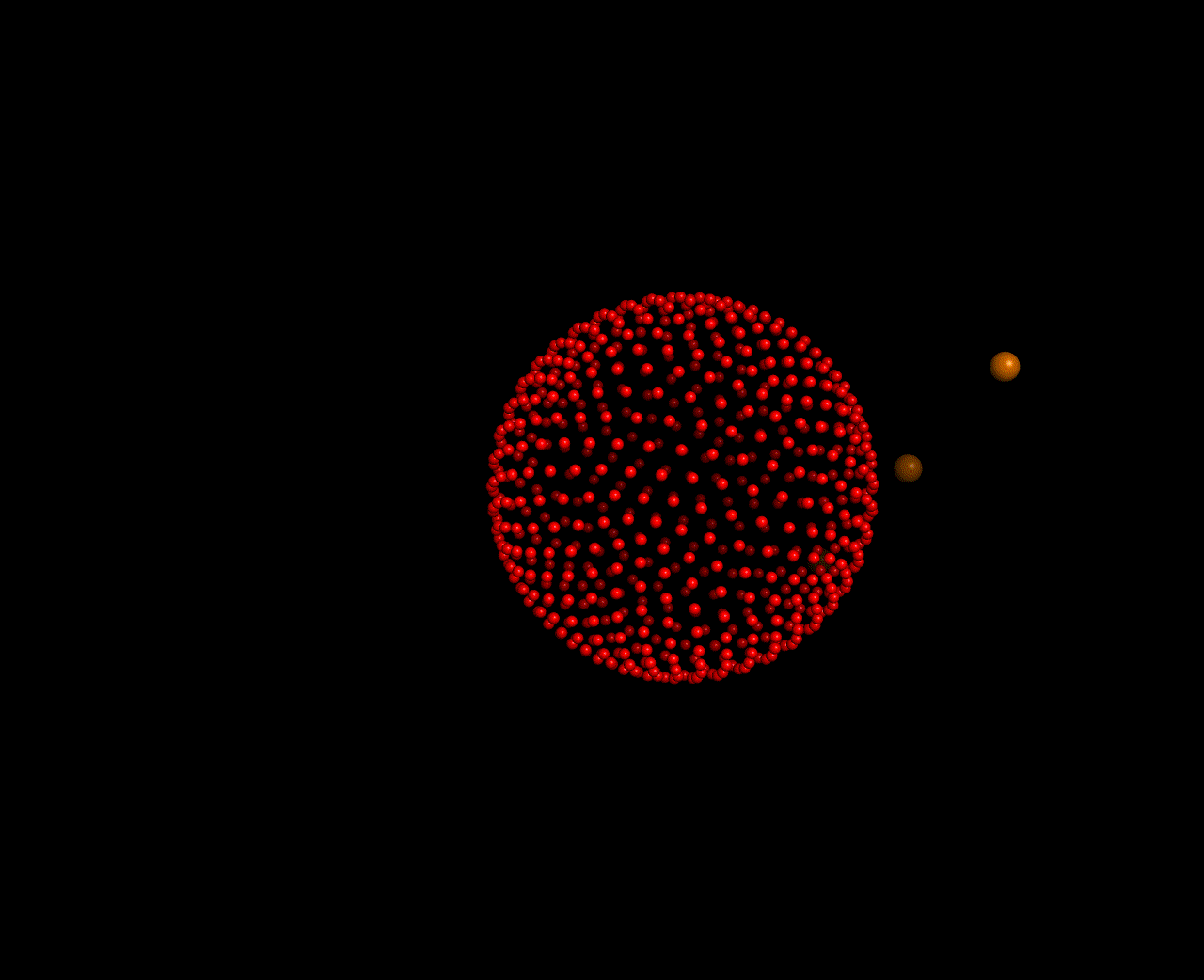

c++ package for dynamically triangulated membrane simulations.
 |
 |
 |
 |
flippy is still in active development but has the first stable release. And a full public API documentation. I am actively working on flippy and welcome pull requests and bug reports. I will also consider feature requests, but in that case, please provide a use case.
please use the support email
please create an issue.
again the issues page can be used, but be aware that new features will be slow to come.
flippy is a header-only library, so all you need to do is to download the flippy sub-folder and copy it into your project.
Or, if you prefer using a single header file, you can download the flippy.hpp header from the single_header_flippy folder.
flippy's public API is fully documented. However, if you have never used flippy before, you might want to start with the demo projects. These are located in sub-folders of the demo folder. Each sub-folder contains a readme like this one, explaining how to set up a project and what to expect.
Automatically generated code documentation over on the wiki.
If you use flippy in your research, please cite the arXiv preprint as follows:
@article{dadunashvili2023flippy,
title={flippy: User friendly and open source framework for lipid membrane simulations},
author={George Dadunashvili and Timon Idema},
year={2023},
eprint={2303.12305},
archivePrefix={arXiv},
primaryClass={cond-mat.soft}
}This is a simple example of a Monte Carlo update of a spherical triangulation in under 100 lines. The code will run for several seconds to several minutes, depending on the strength of your CPU, and will produce a biconcave shape, i.e., something resembling a red blood cell.
A detailed description of how to execute demo codes can be found in the demo/README.md file. And a detailed description of how this particular demo works can be found in the demo/biconcave_shapes_MC/README.md file.
This code saves two data files in the folder where the binary file will be executed, under the names test_run_init.json and test_run_final.json, which are full snapshots of the initial and final configurations.
This code can be found in the sub-folder demo/biconcave_shapes_MC together with a python script that visualizes the data and a simple CMake file that can be used to build the code.
//demo/biconcave_shapes_MC/main.cpp
#include <random> // needed for random displacement generation
#include <vector> // need for std::vector
#include <iostream> // needed for std::cout
#include "flippy.hpp"
double sphere_vol(double R){return 4./3. * M_PI *R*R*R;}
double sphere_area(double R){return 4. * M_PI *R*R;}
struct EnergyParameters{double kappa, K_V, K_A, V_t, A_t;};
// This is the energy function that is used by flippy's built-in updater to decide if a move was energetically favorable or not
double surface_energy([[maybe_unused]]fp::Node<double, unsigned int> const& node,
fp::Triangulation<double, unsigned int> const& trg,
EnergyParameters const& prms){
double V = trg.global_geometry().volume;
double A = trg.global_geometry().area;
double dV = V-prms.V_t;
double dA = A-prms.A_t;
double energy = prms.kappa*trg.global_geometry().unit_bending_energy +
prms.K_V*dV*dV/prms.V_t + prms.K_A*dA*dA/prms.A_t;
return energy;
}
int main(){
int n_triang = 7; // triangulation iteration number of nodes N_node=12+30*n+20*n*(n-1)/2 where n is the same as n_trng
double l_min = 2;
double R = l_min/(2*sin(asin(1./(2*sin(2.*M_PI/5.)))/(n_triang+1.))); // estimate of a typical bond length in the initial triangulation and then create a sphere such that the initial bond length is close to minimal. This formula is derived from the equidistant sub-triangulation of an icosahedron, where geodesic distances are used as a distance measure.
double l_max = 2.*l_min; // if you make l_max closer to l_min bond_flip acceptance rate will go down
double r_Verlet = 2*l_max;
EnergyParameters prms{.kappa=10 /*kBT*/,
.K_V=100 /*kBT/area*/, .K_A=1000 /*kBT/volume*/,
.V_t=0.6*sphere_vol(R), .A_t=sphere_area(R)};
double linear_displ=l_min/8.; // side length of a voxel from which the displacement of the node is drawn
int max_mc_steps=1e5; // max number of iteration steps (depending on the strength of your CPU, this should take anywhere from a couple of seconds to a couple of minutes
std::random_device random_number_generator_seed;
std::mt19937 rng(random_number_generator_seed()); // create a random number generator and seed it with the current time
// All the flippy magic is happening on the following two lines
fp::Triangulation<double, unsigned int> guv(n_triang, R, r_Verlet);
fp::MonteCarloUpdater<double, unsigned int, EnergyParameters, std::mt19937, fp::SPHERICAL_TRIANGULATION> mc_updater(guv, prms, surface_energy, rng, l_min, l_max);
fp::vec3<double> displ{}; // declaring a 3d vector (using flippy's built in vec3 type) for later use as a random direction vector
std::uniform_real_distribution<double> displ_distr(-linear_displ, linear_displ); //define a distribution from which the small displacements in x y and z directions will be drawn
guv.scale_node_coordinates(1, 1, 0.8); // squish the sphere in the z-direction to break the initial symmetry. This speeds up the convergence to a biconcave shape greatly.
fp::Json data_init = guv.make_egg_data();
fp::json_dump("test_run_init", data_init); // ATTENTION!!! this file will be saved in the same folder as the executable
std::vector<unsigned int> shuffled_ids;
shuffled_ids.reserve(guv.size());
for(auto const& node: guv.nodes()){ shuffled_ids.push_back(node.id);} //create a vector that contains all node ids. We can shuffle this vector in each MC step to iterate randomly through the nodes
for(int mc_step=0; mc_step<max_mc_steps; ++mc_step){
for (unsigned int node_id: shuffled_ids) { // we first loop through all the beads and move them
displ = {displ_distr(rng), displ_distr(rng), displ_distr(rng)};
mc_updater.move_MC_updater(guv[node_id], displ); // guv[node_id] returns the node which has id=node_id
}
std::shuffle(shuffled_ids.begin(), shuffled_ids.end(), rng); // then we shuffle the bead_ids
for (unsigned int node_id: shuffled_ids) { // then we loop through all of them again and try to flip their bonds
mc_updater.flip_MC_updater(guv[node_id]);
}
}
// MonteCarloUpdater counts the number of accepted and rejected moves, distinguishing whether a rejection occurred because of the energy or the bond length constraint.
// We can use this to print simple statistics here. For example, this will help us decide if our displacement size is too large.
std::cout<<"percentage of failed moves: "<<(mc_updater.move_back_count() + mc_updater.bond_length_move_rejection_count())/((long double)mc_updater.move_attempt_count())<<'\n';
std::cout<<"percentage of failed flips: "<<(mc_updater.flip_back_count() + mc_updater.bond_length_flip_rejection_count())/((long double)mc_updater.flip_attempt_count())<<'\n';
fp::Json data_final = guv.make_egg_data();
fp::json_dump("test_run_final", data_final); // ATTENTION!!! this file will be saved in the same folder as the executable
return 0;
}Current version
flippy's version numbers follow Semantic Versioning guidelines.
- renamed
global_geometry.dA_K2andnode.scaled_curvature_energytounit_bending_energyunit_bending_energyalso differs fromscaled_curvature_energyby a factor of0.5
- removed
debug_utilsfrom flippy. This functionality was unrelated to membrane simulations and simply offered additional printing and timing capabilities. - Printing and timing utilities were removed from the
utils.hppheader since these tools are unrelated to membrane simulations and should not be maintained together with flippy. These utilities can now be found in their own repository. - restricted
fp::indexing_numberconcept to only positive integers.
- none
- removed the default constructor from
MonteCarloUpdatersince it was implicitly deleted anyway. - changed update counters types in
MonteCarloUpdatertoo long instead of Index to avoid integer overflow. - double-check if the
stdlibdefines M_PI and define it if not. - count of moves and flips is saved in an
unsigned longvariable by theMonteCarloUpdaterto avoid overflow for even very long simulations.
- spherical triangulation
- vec3
- nodes
- debug utils/utils
- MonteCarloUpdater
- planar triangulation
- tubular triangulation
- solid bodies
- other objects that the triangulations could interact with
- force-based updater
- a utility class like MonteCarloUpdater, which uses force balance functions to update node positions
flippy is under MIT License, meaning you can do almost anything with it. For more information, read the LICENCE file.
