Openframeworks addon C++

Addon to use easily the DJ Shield for Arduino by Nootropic Design

https://nootropicdesign.com/djshield/

Specification of the DJ Shield for Arduino :

    - 5 tactile buttons, connected to digital pins 2-6
    - 3 10K linear potentiometers connected to analog pins 0,1,2. (shaft is 1/4")
    - 2 LEDs (one red, one blue) connected to analog pins 4 and 5 (analog pins can also be used as digital pins)
    - 3 ABS plastic or aluminium knobs for the potentiometers.
    - Compatible with the Arduino Uno, Duemilanove, Mega or Leonardo

Credits for the addon :

Code for Arduino from examples/communication/firmataExample

Code for DjShield : Nicolas Boillot http://www.fluate.net

Webpage for the addon : http://www.fluate.net/code/ofxArduinoDjShield

USAGE:

  • Get an Arduino Uno, Duemilanove, Mega or Leonardo http://arduino.cc/en/Main/arduinoBoardUno

  • Upload StandardFirmata on the arduino :

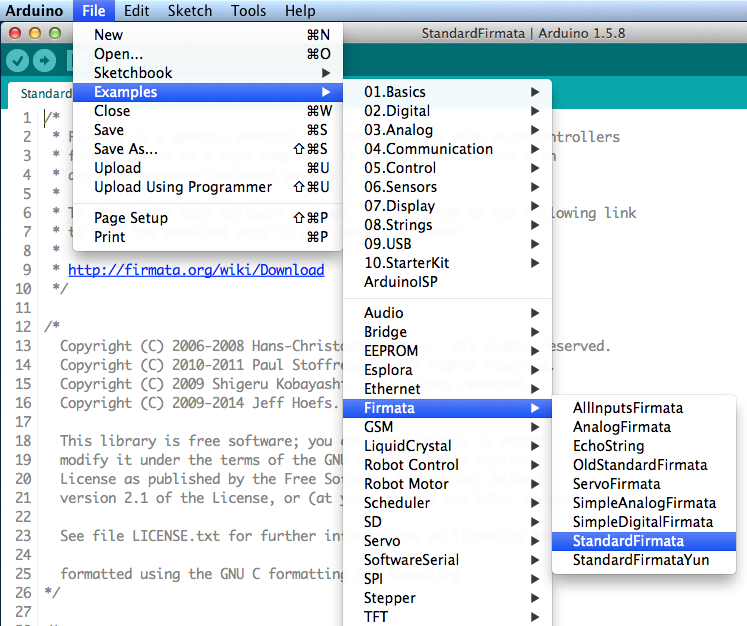

    Open Arduino app (preferably Arduino 1.0) and navigate to File -> Examples -> Firmata and open StandardFirmata. Compile and upload StandardFirmata for your board, then close the Arduino application and run the application.

    ofxArduinoDjShield

  • Get a DJ Shield for Arduino : https://nootropicdesign.com/djshield/

  • Add to your code :

in ofApp.h add :

#include "ofxArduinoDjShield.h"

and after "public:" :

ofxArduinoDjShield DjShield;

bool ArduinoUSB; // if Arduino connected to USB port

string deviceInit;

in ofApp.c add :

    - in setup() { }

       vector <ofSerialDeviceInfo> devices = (ofSerial()).getDeviceList();

for(auto & device : devices){
    if(device.getDeviceID() == 0){
        deviceInit = device.getDeviceName();
    }
}

// Here the list of 4 USB Port of the computer, change them in case..

// replace the string below with the serial port for your Arduino board
// you can get this from the Arduino application or via command line

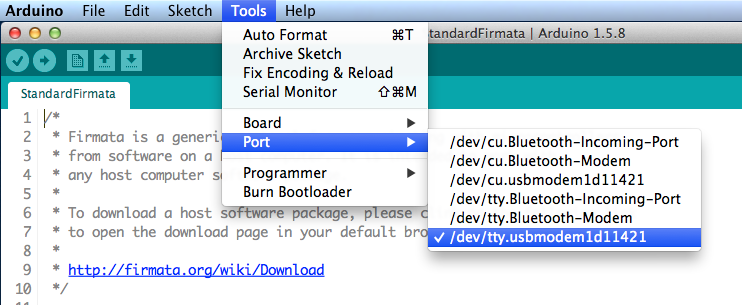

// for OSX, in your terminal type "ls /dev/tty.*" to get a list of serial devices

string ArduinoPort01 = "tty.usbmodem1411";
string ArduinoPort02 = "tty.usbmodem1d11421";
string ArduinoPort03 = "tty.usbmodem1421";
string ArduinoPort04 = "tty.usbmodem1431";

if((deviceInit == ArduinoPort01) || (deviceInit == ArduinoPort02)  || (deviceInit == ArduinoPort03)  || (deviceInit == ArduinoPort04)){
    ArduinoUSB = true;
}
else{
    ArduinoUSB = false;
}

if(ArduinoUSB){
    DjShield.setup("/dev/" + deviceInit);
}

ofxArduinoDjShield

    --------------------------------------

   - in update() {}

   if(ArduinoUSB){

    DjShield.udpate();

   // then use :

    bool DjShield.bSetupArduino // if arduino ready

    // Potentiometers A0-A2
    float DjShield.PotA0(); // native, from 0 to 1
    float DjShield.PotA1(TRUE, 0,255); // rescale from 0 to 255
    float DjShield.PotA2(TRUE, 3, 10); // rescale from 3 to 10

    // Buttons D2-D6
    bool DjShield.ButtonD2();
    bool DjShield.ButtonD3();
    bool DjShield.ButtonD4();
    bool DjShield.ButtonD5(0.5); // 0.5 s delay before next hit
    bool DjShield.ButtonD6();

    // LED  A4-A5
    DjShield.LedA4(true);
    DjShield.LedA4(false);
    DjShield.LedA5(true);
    DjShield.LedA5(false);

    }

ofxArduinoDjShield

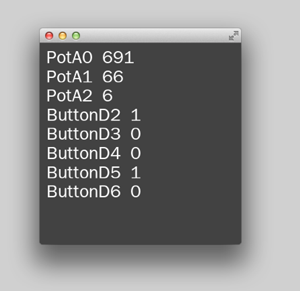

See examples for more details.

See release for OSC Bridge app : https://github.com/fluaten/ofxArduinoDjShield/releases
