Frame Machine Notation (FMN) 0.1.0

Frame's mission is to be the easiest and most intuitive way to specify and implement Finite State Machines (FSMs) - aka "Automata" - in any object-oriented language.

See Medium for articles about Frame!

FMN Syntax	Definition	Example	Gist
#	Controller	#LoggedOut
-block-	Block Section	-machine-
$	Frame State	$Begin
@	Frame Event	@
@|message| or |message|	Frame event message selector	|buttonClick|
|e1|e2|e3|	Multi-messge selector	|200|201|202|
@|>>|	Frame start message	@|>>|
@|<<|	Frame stop message	@|<<|
@|>|	Frame enter state message	@|>|
@|<|	Frame exit state message	@|<|
@[param] or [param]	Frame Event parameter attribute	@[firstName]
@^ or ^(expr)	Frame Event return attribute	^("YES!")
^	Return statement	^
->>	Change state operator	->> $Working	Change State
->	Transition operator	-> $Working	Transition

General Syntax

// this is a comment

Frame Event

Frame Events are essential to the notation and the implementation. The notation assumes three mandatory fields for a FrameEvent - (message, parameters, return value). Frame Events have a special type symbol @ that refers to the current event in scope (there is almost always only one).

The pseudocode for the implementation is:

 class FrameEvent {

   var _msg:String
   var _params:Object
   var _return:Object

   FrameEvent(msg:String, params:Object = null) {
      _msg = msg
      _params = params
   }
}

Frame Controller

A controller is a Frame machine, or automaton, that contains blocks (or sections) that define the internal structure of the machine. From an implementation standpoint, the reference architecture for implementing a Frame controller is defined as an object-oriented class, but this is for convieniece and not a requirement.

// FMN

#MyController
	-interface-
	-machine-
	-actions-
	-domain-
##  // optional

// Pseudocode implementation

class MyController {

	// -interface-
	// -machine-
	// -actions-
	// -domain-
}

Interface Block

// FMN

	-interface-                     // interface block declaration

        m1                              // no parameters or return value
        m2[param1 param2]               // typeless parameters
        m3[param1:string param2:int]    // typed parameters
        m4:boolean                      // typed return value
        m5[param4 param5:string]:int    // mixed parameters and return value
        m6 @(|6m|)                      // message alias

// Pseudocode implementation

	func m1() {
		var e = new FrameEvent("m1")
		_state(e)
	}

	func m2(param1 param2) {
		var params = { "param1":param1, "param2":param2 }
		var e = new FrameEvent("m2", params)
		_state(e)
	}

	func m3(param1:string, param2:int) {
		var params = { "param1":param1, "param2":param2 }
		var e = new FrameEvent("m3", params)
		_state(e)
	}


	func m4():boolean {
		var e = new FrameEvent("m2")
		_state(e)
		return (boolean) e._return
	}


	func m5(param4, param5:string):int {
		var params = { "param1":param1, "param2":param2 }
		var e = new FrameEvent("m2", params)
		_state(e)
		return (int) e._return
	}


	func m6() {
		var e = new FrameEvent("6m")
		_state(e)
	}



Machine Block

// FMN

	-machine-                             	// machine block declaration

	$Begin 					// $    -- token indicates state definition
		|>>| 				// |>>| -- start event selector
			-> $Working 		// ->   -- transition token
                        ^			// ^    -- return token

        $Working => $Default 			// =>   -- Dispatch operator to send event to $Default
		|>| enterWorking() ^		// |>| 	-- enter event selector
		|<| exitWorking() ^		// |<|  -- exit event selector

        $End					// $End state has no event handlers.

        $Default				// $Default parent state or "mode"
		|<<| -> $End ^			// |<<|  -- stop event selector token

// Pseudocode Implementation

    	// -machine-

	func Begin(e:FrameEvent) {		// $Begin
		if (e._msg == ">>") {		// |>>|
		    _transition(Working)	// -> $Working
		    return			// ^
		}
	}

	func Working(e:FrameEvent) {		// $Working
		if (e._msg == ">") {		// |>|
		    enterWorking()		// enterWorking()
		    return			// ^
		}
		if (e._msg == "<") {		// |<|
		    exitWorking()		// exitWorking()
		    return			// ^
		}

		Default(e)			// $Working => $Default
	}

	func End(e:FrameEvent) {		// $End
	}

	func Default(e:FrameEvent) {		// $Default
		if (e._msg == "<<") {		// |<<|
		    _transition(End)		// -> $End
		    return			// ^
		}
	}

	//-- machinery and mechanisms --//

   	var _state(e:FrameEvent) = Begin	// initialize start state

	func _transition(newState:FrameState) {
		_state(new FrameEvent("<"))	// send exit event
		_state = newState		// change state
		_state(new FrameEvent(">"))	// send enter event
	}

States and Event Handlers

// FMN

	$Working
		|>>| startMachine() ^		// start machine event
		|<<| stopMachine() ^		// stop machine event
		|>| enterState() ^		// enter state event
		|<| exitState() ^		// exit state event
		|e1| processE1(@[x] @[y]) ^	// packed param passing
		|e2|[x y] processE2(x y) ^	// unpacked param passing


// Pseudocode Implementation

	func Working(e:FrameEvent) {		// $Working
		if (e._msg == ">>") {		// |>|
		    	startMachine()		// startMachine()
		    	return			// ^
		}
		if (e._msg == "<<") {		// |<<|
		    	stopMachine()		// stopMachine()
		    	return			// ^
		}
		if (e._msg == ">") {		// |>|
		    	enterState()		// enterState()
		    	return			// ^
		}
		if (e._msg == "<") {		// |<|
		    	exitState()		// exitState()
		    	return			// ^
		}
		if (e._msg == "e1") {		// |e1|
			processE1( 		// processE1(@[x] @[y])
				e._params['x']
			)	e._params['y']
		    	return			// ^
		}
		if (e._msg == "e2") {		// |e1|
			var x = e._params['x']	// [x y]
			var y = e._params['y']
			processE2(x,y)		// processE2(x y)
		    	return			// ^
		}
	}

Control Flow

The Frame notation for routing control flow is inspired by the C ternary operator. However it has been modified to handle a wide range of branching scenarios.

Boolean routing

The first routing syntax is for simple Boolean tests.

Boolean expressions can be enclosed in parenthesis for clarity:

// FMN

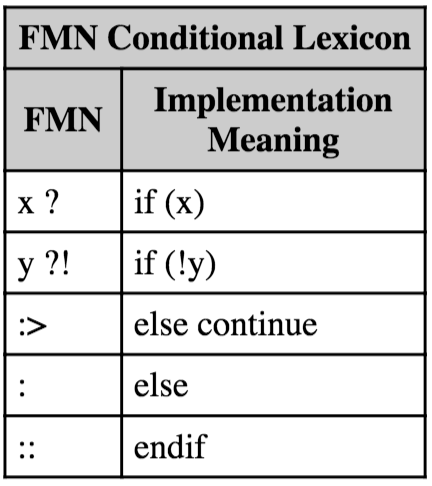

(x < 10)  ? small() :
(x > 100) ? large() :
	    justRight()
::

// Pseudocode implementation

or omitted:

// FMN

isSmall(x) ? small() :
isLarge(x) ? large() :
	     justRight()
::

// Pseudocode implementation

if (isSmall(x)) {
	small()
} else if (isLarge(x)) {
	large()
} else {
	justRight()
}

or mixed:

// FMN

(isSmall(x))  ? small() :
x > 100       ? large() :
		justRight()
::

// Pseudocode implementation

if (isSmall(x)) {
	small()
} else if (x > 100) {
	large()
} else {
	justRight()
}

Here is an example demonstrating a series of validation tests on an updated name:

// FMN

$UnvalidatedName
	|updateName|
		validateFirstName(@[firstName]) ?! alert("First Name Error") ^ :
		validateLastName(@[lastName])   ?! alert("Last Name Error") ^  :
						   -> $ValidatedName ^         ::
		^

// Pseudocode implementation

func UnvalidatedName(e:FrameEvent) {
	if (e._message == "updateName") {
		if (!validateFirstName(e._params["firstName"])) {
			alert("First Name Error")
			return
		} else if (!validateLastName(e._params["lastName"])) {
			alert("Last Name Error")
			return
		} else {
			_transition(ValidatedName)
			return
		}

		return
	}
}

Match Routing

Frame also has syntax for matching values to determine the control flow. The general syntax is:

<test_value> ?<match_type>
	/<match_value>/ <behavior>
	/<match_value>/ <behavior>
	/_/ 		<null_behavior>
	/*/ 		<default_behavior>
::

The possible match types are:

~ : match string
# : match number or range
* : match regular expression .

For instance:

// FMN

userName ?~
	/bill/ matchedBill()
	/steve/ matchedSteve()
::

// Pseudocode implementation

if (userName == "bill") {
	matchedBill()
} else if (userName == "steve") {
	matchedSteve()
}

Tests can be done for the union of matches:

// FMN

userName ?~
	/bill/steve/ matchedBillOrSteve()
::

// Pseudocode implementation

if (userName == "bill" || userName == "steve") {
	matchedBillOrSteve()
}

Two special string matches exist that can be escaped using :

/\_/ : match single underscore
/\*/ : match single star

// FMN

userName ?~
	/bill/steve/ matchedBillOrSteve()
	/_/  matchedNull()
	/\_/ matchedUnderscore()
	/\*/ matchedStar()
	/*/  matchedDefault()
::

// Pseudocode implementation

if (userName == "bill" || userName == "steve") {
	matchedBillOrSteve()
} else if (userName == null) {
	matchedNull()
} else if (userName == "_") {
	matchedUnderscore()
} else if (userName == "*") {
	matchedStar()
} else {
	matchedDefault()
}

Number matches can be on discrete values:

// FMN

x ?#
	/1/   small()
	/10/  medium()
	/100/ large()
	/*/   otherSize()
::

// Pseudocode implementation

if (x == 1) {
	small()
} else if (x == 10) {
	medium()
} else if (x == 100) {
	large()
} else {
	otherSize()
}

Frame supports number ranges through the following range operator syntax:

min..max 	// inclusive range [min, max]
min... 		// min to positive infinity [min, infinity)
...max		// negative infinity to max (-infinity, max]
min..<max 	// min up to max [min, max)
min<..max 	// after min up to max (min, max]
min<..<max 	// between min and max (min, max)

An example:

// FMN

x ?#
	/...<10/ small()   		// negative infinity to < 10
	/10..<100/ medium()		// 10 to < 100
	/100.../ large()		// 100 to positive infinity
::

// Pseudocode implementation

if (x < 10) {
	small()
} else if (10 =< x && x < 100) {
	medium()
} else if (100 =< x) {
	large()
}

Frame also can support regular expression matching, but does not currently provide a detailed specification for what flavor of regex language to use. This aspect of Frame will be more tightly defined in future versions of the notation:

animals ?*

	/dogs?/ dogOrPack()
	/cats?/ catOrCowder()
::
