sheet2graph

sheet2graph is a command developed as part of the Full-stack command commandline course at fromzerotofulsstack

Examples

Printing the spreadsheet contents

sheet2graph sales_data.csv --print-only

                                            A      B      C      D      E
1  Sales per week (Firm: Glengarry Glen Ross)    NaN    NaN    NaN    NaN
2                                    Salesman  Week1  Week2  Week3  Week4
3                                  Ricky Roma     20     15     17     11
4                                     Shelley      1      2      0      1
5                              George Aaronow      6      5      2      4
6                                   Dave Moss      8      7      8      7

Selecting data

sheet2graph sales_data.xlsx -x "a3:a6" -y "b3:b6" --print-only

                x   y
0      Ricky Roma  20
1         Shelley   1
2  George Aaronow   6
3       Dave Moss   8

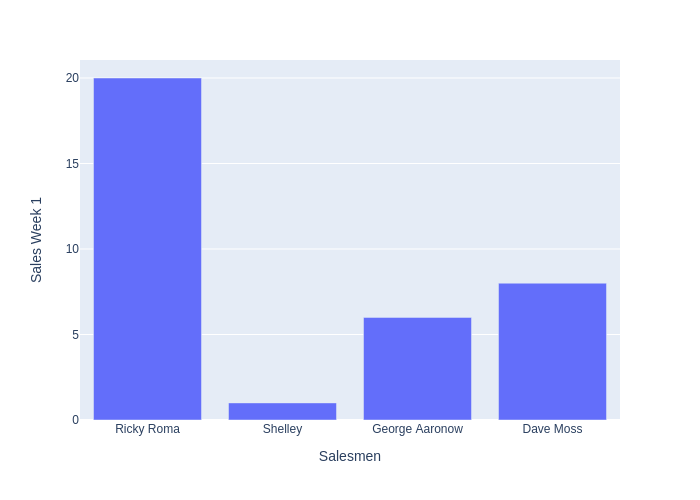

Example output graph

sheet2graph sales_data.xlsx -x "a3:a6" -y "b3:b6" --output-filename output/tests/out.png -xlabel "Salesmen" -ylabel "Sales Week 1"

Usage

usage: sheet2graph [-h] [-x [X]] [-y [Y]] [-xlabel [XLABEL]] [-ylabel [YLABEL]] [--graph-type [GRAPH_TYPE]] [--output-folder [OUTPUT_FOLDER]] [--output-filename [OUTPUT_FILENAME]]
                      [--output-format [OUTPUT_FORMAT]] [--size [SIZE]] [--print-only [PRINT_ONLY]] [--run-tests [RUN_TESTS]] [--version [PRINT_VERSION]]
                      [input_file]

Graph spreadsheet data easily Takes a spreadsheet file as input and outputs an image file (bitmap, vector) with graphs of the data contained in the file. Accepted input files are csv and
xlsx file extensions

positional arguments:
  input_file            input file (csv, xlsx)

optional arguments:
  -h, --help            show this help message and exit
  -x [X]                An expression to select the x axis. Ex. '-x A2:A6' or '-x a2,a3,a4,a5'. The range works like in a spreadsheeet, with columns being letters, and row numbers starting
                        at 1. Case-insensitive
  -y [Y]                An expression to select the y axis. Ex. '-x b2:b6' or '-x B2,B3,B4,B5'. The range works like in a spreadsheeet, with columns being letters, and row numbers starting
                        at 1. Case-insensitive
  -xlabel [XLABEL]      The label for the x axis. By default 'x'
  -ylabel [YLABEL]      The label for the y axis. By default 'y'
  --graph-type [GRAPH_TYPE], -gt [GRAPH_TYPE]
                        [bar|line|scatter]: default is bar
  --output-folder [OUTPUT_FOLDER], -of [OUTPUT_FOLDER]
                        output_folder (ending without slash): default is 'output'. Can be serveral folders. ex. 'sales/graphs'
  --output-filename [OUTPUT_FILENAME], -ofi [OUTPUT_FILENAME]
                        output_filename: default is 'output/output.png'. Overrides --output-folder,--output-format if present
  --output-format [OUTPUT_FORMAT], -ofo [OUTPUT_FORMAT]
                        [png|jpg|svg]: default is png
  --size [SIZE], -s [SIZE]
                        size: widthxheight. Default '700x500'
  --print-only [PRINT_ONLY], -p [PRINT_ONLY]
                        Prints the selected data, without generating any file output
  --run-tests [RUN_TESTS]
                        Runs all the tests (might take a while). Overloads any other option
  --version [PRINT_VERSION], -v [PRINT_VERSION]
                        Show version information
