Geoman Logo

Leaflet-Geoman

Leaflet Plugin For Creating And Editing Geometry Layers
Draw, Edit, Drag, Cut, Snap and Pin Layers
Supports Markers, CircleMarkers, Polylines, Polygons, Circles, Rectangles, LayerGroups, GeoJSON and MultiPolygons

npm version star this repo NPM Downloads NPM Downloads

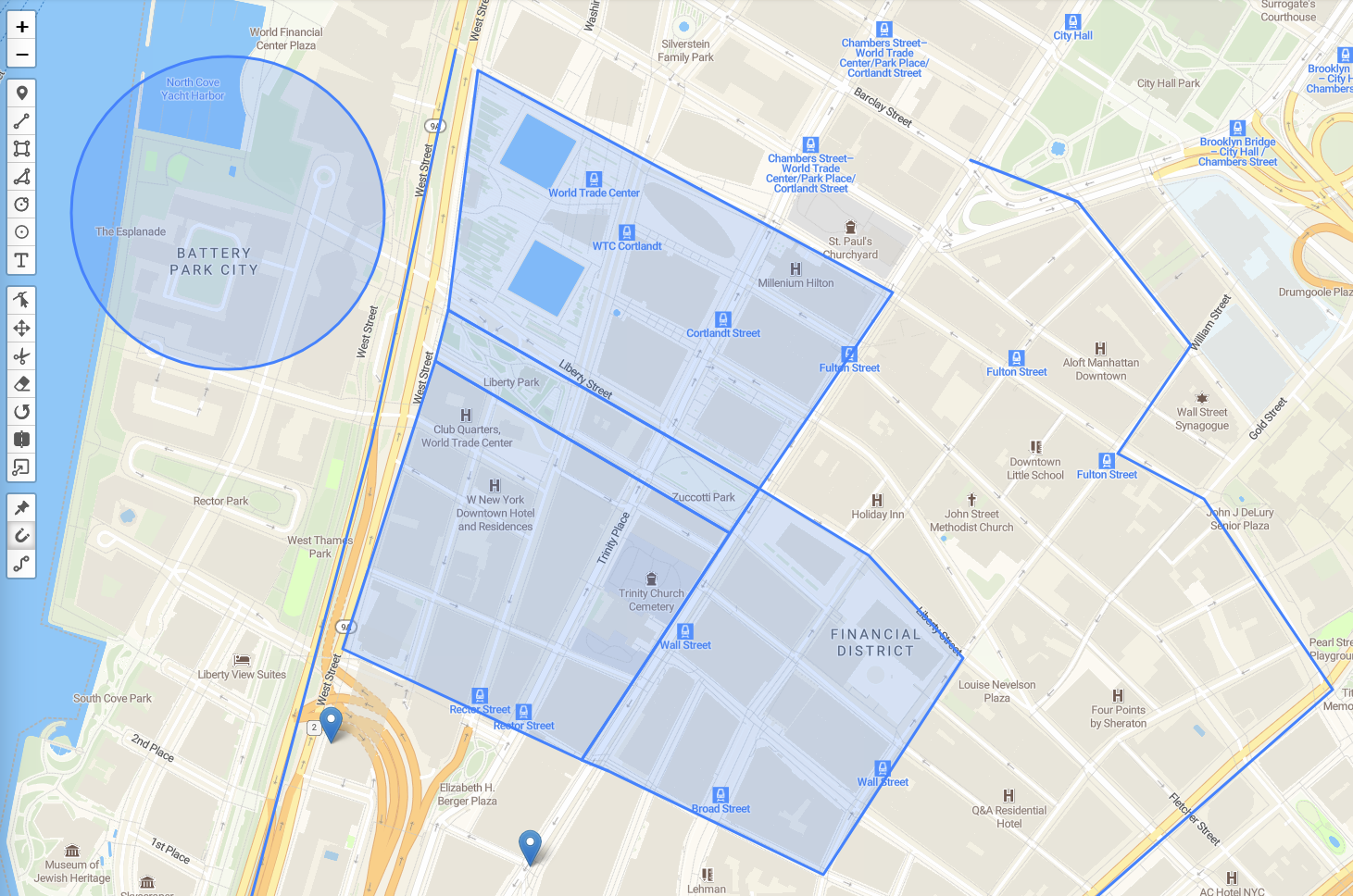

πŸ‘‰ Live Demo πŸ‘ˆ

Demo

Using Leaflet-Geoman in production?

Please consider sponsoring its development

Leaflet-Geoman Pro ⭐

Features marked with ⭐ in this documentation are available in Leaflet-Geoman Pro. Purchase Pro or get in touch

Documentation

Installation

Migrate from Leaflet.PM

npm uninstall leaflet.pm
npm i @geoman-io/leaflet-geoman-free

That's it.

Install via npm

npm i @geoman-io/leaflet-geoman-free

Install Manually

Download leaflet-geoman.css and leaflet-geoman.min.js and include them in your project.

Include via CDN

CSS

<link rel="stylesheet" href="https://unpkg.com/@geoman-io/leaflet-geoman-free@latest/dist/leaflet-geoman.css" />

JS

<script src="https://unpkg.com/@geoman-io/leaflet-geoman-free@latest/dist/leaflet-geoman.min.js"></script>

Include as ES6 Module

import '@geoman-io/leaflet-geoman-free';
import '@geoman-io/leaflet-geoman-free/dist/leaflet-geoman.css';

Getting Started

Init leaflet-geoman

Just include leaflet-geoman.min.js right after Leaflet. It initializes itself. If you want certain layers to be ignored by leaflet-geoman, pass pmIgnore: true to their options when creating them. Example:

L.marker([51.50915, -0.096112], { pmIgnore: true }).addTo(map);
Opt-In

If you want to use leaflet-geoman as opt-in, call the following function right after importing:

L.PM.initialize({ optIn: true });

All layers will be ignored by leaflet-geoman, unless you specify pmIgnore: false on a layer:

L.marker([51.50915, -0.096112], { pmIgnore: false }).addTo(map);

leaflet-geoman Toolbar

leaflet-geoman Toolbar

You can add a toolbar to the map to use leaflet-geoman features via a user interface.

// add leaflet-geoman controls with some options to the map
map.pm.addControls({
  position: 'topleft',
  drawCircle: false,
});

See the available options in the table below.

Option Default Description
position 'topleft' toolbar position, possible values are 'topleft', 'topright', 'bottomleft', 'bottomright'
drawMarker true adds button to draw markers
drawCircleMarker true adds button to draw circle markers
drawPolyline true adds button to draw rectangle
drawRectangle true adds button to draw rectangle
drawPolygon true adds button to draw polygon
drawCircle true adds button to draw circle
editMode true adds button to toggle edit mode for all layers
dragMode true adds button to toggle drag mode for all layers
cutPolygon true adds button to cut a hole in a polygon
removalMode true adds a button to remove layers
pinningOption true adds a button to toggle the Pinning Option ⭐
snappingOption true adds a button to toggle the Snapping Option ⭐

If you are wondering how e.g. the drawPolygon button will enable drawing mode with specific options, here it is: Simply set the options for the layer. The options will persist, even when the mode is enabled/disabled via the toolbar.

Example:

// make markers not snappable during marker draw
map.pm.setGlobalOptions({ snappable: false });

All available options are specified in the Drawing Mode Section below.

Drawing Mode

Use Drawing Mode on a map like this

// enable polygon drawing mode
map.pm.enableDraw('Polygon', {
  snappable: true,
  snapDistance: 20,
});

// disable drawing mode
map.pm.disableDraw('Polygon');

Currently available shapes are Marker, CircleMarker, Circle, Line, Rectangle, Polygon and Cut. You can get an array of all available shapes with:

map.pm.Draw.getShapes();

The following methods are available on map.pm:

Method Returns Description
enableDraw(shape,options) - Enable Drawing Mode with the passed shape.
disableDraw(shape) - Disable Drawing Mode. The passed shape is optional.
Draw.getShapes() Array Array of available shapes.
Draw.getActiveShape() String Returns the active shape.
globalDrawModeEnabled() Boolean Returns true if global draw mode is enabled. false when disabled.
setPathOptions(options) - Customize the style of the drawn layer.
setGlobalOptions(options) - Set drawing options.
getGlobalOptions() Object Returns the global options.
getGeomanLayers() Array Returns all Geoman layers on the map.
getGeomanDrawLayers() Array Returns all drawn Geoman layers on the map.

See the available options in the table below.

Option Default Description
snappable true enable snapping to other layers vertices for precision drawing. Can be disabled by holding the ALT key.
snapDistance 20 the distance to another vertex when a snap should happen
snapMiddle false allow snapping to the middle of a layers segments (between two vertexes)
tooltips true show helpful tooltips for your user
allowSelfIntersection true allow self intersections
templineStyle { color: 'red' }, leaflet path options for the lines between drawn vertices/markers.
hintlineStyle { color: 'red', dashArray: [5, 5] } leaflet path options for the helper line between last drawn vertex and the cursor.
cursorMarker true show a marker at the cursor
finishOn null leaflet layer event to finish the drawn shape, like 'dblclick'. Here's a list.
markerStyle { draggable: true } leaflet marker options (only for drawing markers).
editable false makes a CircleMarker editable like a Circle
hideMiddleMarkers false hide the middle Markers in edit mode from Polyline and Polygon.

You can listen to map events to hook into the drawing procedure like this:

map.on('pm:drawstart', e => {
  console.log(e);
});

Here's a list of map events you can listen to:

Event Params Description Output
pm:globaldrawmodetoggled e Fired when Drawing Mode is toggled enabled, shape, map
pm:drawstart e Called when drawing mode is enabled. Payload includes the shape type and working layer shape, workingLayer
pm:drawend e Called when drawing mode is disabled. Payload includes the shape type. shape
pm:create e Called when a shape is drawn/finished. Payload includes shape type and the drawn layer shape, layer

There are also several events for layers during draw. Register an event like this:

// listen to vertexes being added to currently drawn layer (called workingLayer)
map.on('pm:drawstart', ({ workingLayer }) => {
  workingLayer.on('pm:vertexadded', e => {
    console.log(e);
  });
});

Here's a list of layer events you can listen to:

Event Params Description Output
pm:vertexadded e Called when a new vertex is added. Payload includes the new vertex, it's marker, index, working layer and shape type shape, workingLayer, marker, latlng
pm:snapdrag e Fired during a marker move/drag. Payload includes info about involved layers and snapping calculation. shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:snap e Fired when a vertex is snapped. Payload is the same as in snapdrag shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:unsnap e Fired when a vertex is unsnapped. Payload is the same as in snapdrag shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:centerplaced e Called when the center of a circle is placed/moved. shape, workingLayer, latlng

For making the snapping to other layers selective, you can add the "snapIgnore" option to your layers to disable the snapping to them during drawing.

L.geoJSON(data,{
  snapIgnore : true
})
//This layer will be ignored by the snapping engine during drawing

Edit Mode

Let's you edit vertices of layers. Use it like this:

// enable edit mode
layer.pm.enable({
  allowSelfIntersection: false,
});

See the available options in the table below.

Option Default Description
snappable true Enable snapping to other layers vertices for precision drawing. Can be disabled by holding the ALT key.
snapDistance 20 The distance to another vertex when a snap should happen.
pinning false Pin shared vertices/markers together during edit ⭐. Details
allowSelfIntersection true Allow/Disallow self-intersections on polygons and polylines.
allowSelfIntersectionEdit false Allow/Disallow to change vertices they are connected to a intersecting line. Only working if allowSelfIntersection is true and the layer is already self-intersecting while enabling edit mode.
preventMarkerRemoval false Disable the removal of markers/vertexes via right click.
limitMarkersToCount -1 Shows only n markers closest to the cursor. Use -1 for no limit
limitMarkersToZoom -1 Shows markers when under the given zoom level ⭐
limitMarkersToViewport false Shows only markers in the viewport ⭐
limitMarkersToClick false Shows markers only after the layer was clicked ⭐

The following methods are available for layers under layer.pm:

Method Returns Description
enable(options) - Enables edit mode. The passed options are preserved, even when the mode is enabled via the Toolbar.
disable() - Disables edit mode.
toggleEdit(options) - Toggles edit mode. Passed options are preserved.
enabled() Boolean Returns true if edit mode is enabled. false when disabled.
hasSelfIntersection() Boolean Returns true is the layer has a self intersection.

You can listen to events related to editing on events like this:

// listen to when a layer is changed in edit mode
layer.on('pm:edit', e => {
  console.log(e);
});

The following events are available on a layer instance:

Event Params Description Output
pm:edit e Fired when a layer is edited. layer, shape
pm:update e Fired when edit mode is disabled and a layer is edited and its coordinates have changed. layer, shape
pm:enable e Fired when edit mode on a layer is enabled layer, shape
pm:disable e Fired when edit mode on a layer is disabled layer, shape
pm:vertexadded e Fired when a vertex is added layer, indexPath, latlng, marker, shape
pm:vertexremoved e Fired when a vertex is removed layer, indexPath, marker, shape
pm:markerdragstart e Fired when dragging of a marker which corresponds to a vertex starts layer, indexPath, markerEvent, shape
pm:markerdragend e Fired when dragging of a vertex-marker ends layer, indexPath, markerEvent, shape
pm:snapdrag e Fired during a marker move/drag. Payload includes info about involved layers and snapping calculation shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:snap e Fired when a vertex-marker is snapped to another vertex. Also fired on the marker itself. shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:unsnap e Fired when a vertex-marker is unsnapped from a vertex. Also fired on the marker itself. shape, distance, layer = workingLayer, marker, layerInteractedWith, segment, snapLatLng
pm:intersect e When allowSelfIntersection: false, this event is fired as soon as a self-intersection is detected. layer, intersection, shape
pm:centerplaced e Fired when the center of a circle is moved layer, latlng, shape

You can enable Edit Mode for all layers on a map like this:

// enable global edit mode
map.pm.toggleGlobalEditMode(options);

The following methods are available on map.pm:

Method Returns Description
enableGlobalEditMode(options) - Enables global edit mode.
disableGlobalEditMode() - Disables global edit mode.
toggleGlobalEditMode(options) - Toggles global edit mode.
globalEditModeEnabled() Boolean Returns true if global edit mode is enabled. false when disabled.

The following events are available on a map instance:

Event Params Description Output
pm:globaleditmodetoggled e Fired when Edit Mode is toggled. enabled, map

You can also listen to specific edit mode events on the map instance like this:

map.on('pm:globaleditmodetoggled', e => {
  console.log(e);
});

The event has an object with an enabled boolean and a reference to the map.

Drag Mode

// toggle drag mode like this:
map.pm.toggleGlobalDragMode();

The following methods are available on map.pm:

Method Returns Description
enableGlobalDragMode() - Enables global drag mode.
disableGlobalDragMode() - Disables global drag mode.
toggleGlobalDragMode() - Toggles global drag mode.
globalDragModeEnabled() Boolean Returns true if global drag mode is enabled. false when disabled.

The following events are available on a layer instance:

Event Params Description Output
pm:dragstart e Fired when a layer starts being dragged. layer, shape
pm:drag e Fired when a layer is dragged. layer, containerPoint,latlng, layerPoint,originalEvent, shape
pm:dragend e Fired when a layer stops being dragged. layer, shape

The following events are available on a map instance:

Event Params Description Output
pm:globaldragmodetoggled e Fired when Drag Mode is toggled. enabled, map

You can also listen to specific drag mode events on the map instance like this:

map.on('pm:globaldragmodetoggled', e => {
  console.log(e);
});

The event has an object with an enabled boolean and a reference to the map.

Removal Mode

// toggle removal mode like this:
map.pm.toggleGlobalRemovalMode();

The following methods are available on map.pm:

Method Returns Description
enableGlobalRemovalMode() - Enables global removal mode.
disableGlobalRemovalMode() - Disables global removal mode.
toggleGlobalRemovalMode() - Toggles global removal mode.
globalRemovalModeEnabled() Boolean Returns true if global removal mode is enabled. false when disabled.

The following events are available on a layer instance:

Event Params Description Output
pm:remove e Fired when a layer is removed via Removal Mode layer, shape

The following events are available on a map instance:

Event Params Description Output
pm:globalremovalmodetoggled e Fired when Removal Mode is toggled enabled, map
pm:remove e Fired when a layer is removed via Removal Mode layer, shape
layerremove e Standard Leaflet event. Fired when any layer is removed. layer

You can also listen to specific removal mode events on the map instance like this:

map.on('pm:globalremovalmodetoggled', e => {
  console.log(e);
});

The event has an object with an enabled boolean and a reference to the map.

Cutting Mode

cut polygon

Enable drawing for the shape "Cut" to draw a polygon that gets subtracted from all underlying polygons. This way you can create holes, cut polygons in half or remove parts of it.

Important: the cutted layer will be replaced, not updated. Listen to the pm:cut event to update your layer references in your code. The pm:cut event will provide you with the original layer and returns the resulting layer(s) that is/are added to the map as a Polygon or MultiPolygon.

// enable cutting mode
map.pm.Draw.Cut.enable({
  allowSelfIntersection: false,
});

Available options are the same as in drawing mode.

The following methods are available on map.pm:

Method Returns Description
enableGlobalCutMode(options) - Enable Cutting Mode.
disableGlobalCutMode() - Disable Cutting Mode
toggleGlobalCutMode(options) - Toggle Cutting Mode
globalCutModeEnabled() Boolean Returns true if global draw mode is enabled. false when disabled.

The following events are available on a layer instance:

Event Params Description Output
pm:cut e Fired when the layer being cut shape, layer, originalLayer
pm:edit e Fired when a layer is edited / cut layer, shape

The following events are available on a map instance:

Event Params Description Output
pm:globalcutmodetoggled e Fired when Cutting Mode is toggled enabled, map
pm:cut e Fired when any layer is being cut shape, layer, originalLayer

Options

You have many options available when drawing and editing your layers (described above). You can set the options per layer as described above, or you can set them globally for all layers. This is especially useful when you use the toolbar and can't change the options programatically.

Examples:

layer.pm.enable({ pinning: true, snappable: false })
map.pm.setGlobalOptions({ pinning: true, limitMarkersToCount: 15, limitMarkersCountGlobally: true })

The following options are available globally and apply when going into global edit mode.

Option Default Description
snappable true Enable snapping to other layers vertices for precision drawing. Can be disabled by holding the ALT key.
snapDistance 20 The distance to another vertex when a snap should happen.
pinning false Pin shared vertices/markers together during edit ⭐. Details
allowSelfIntersection true Allow/Disallow self-intersections on polygons and polylines.
preventMarkerRemoval false Disable the removal of markers/vertexes via right click.
limitMarkersToCount -1 Shows only n markers per layer closest to the cursor. Use -1 for no limit
limitMarkersCountGlobally false Activates limitMarkersToCount across layers on the entire map, not just per layer ⭐
limitMarkersToZoom -1 Shows markers when under the given zoom level ⭐
limitMarkersToViewport false Shows only markers in the viewport ⭐
limitMarkersToClick false Shows markers only after the layer was clicked ⭐
editable false Makes a CircleMarker editable like a Circle

Some details about a few more powerful options:

Snapping

Snap the dragged marker/vertex to other layers for precision drawing.

Snapping Options

Pinning ⭐

When dragging a vertex/marker, you can pin all other Markers/Vertices that have the same latlng to the dragged marker. Exclusive for Leaflet-Geoman Pro ⭐

Pinning Option

Customize

Customize Language

Change the language of user-facing copy in leaflet-geoman

map.pm.setLang('de');

Currently available languages are en, de, it, ru, ro, es, fr, pt_br, id, zh, nl, el, pl, sv and hu. To add translations to the plugin, you can add a translation file via Pull Request.

You can also provide your own custom translations.

const customTranslation = {
  tooltips: {
    placeMarker: 'Custom Marker Translation',
  },
};

map.pm.setLang('customName', customTranslation, 'en');

The 3rd parameter is the fallback language in case you only want to override a few Strings. See the english translation file for all available strings.

The following events are available on a map instance:

Event Params Description Output
pm:langchange e Fired when language is changed activeLang, oldLang, fallback, translations
Customize Style

In order to change the style of the lines during draw, pass these options to the enableDraw() function.

// optional options for line style during draw. These are the defaults
const options = {
  // the lines between coordinates/markers
  templineStyle: {
    color: 'red',
  },

  // the line from the last marker to the mouse cursor
  hintlineStyle: {
    color: 'red',
    dashArray: [5, 5],
  },
};

// enable drawing mode for shape - e.g. Poly, Line, Circle, etc
map.pm.enableDraw('Polygon', options);

To customize the style of the drawn layer with leaflet options, you can either pass the options to enableDraw:

// optional options for line style during draw. These are the defaults
const options = {
  templineStyle: {},
  hintlineStyle: {},
  pathOptions: {
    // add leaflet options for polylines/polygons
    color: 'orange',
    fillColor: 'green',
  },
};

// enable drawing mode for shape - e.g. Poly or Line
map.pm.enableDraw('Polygon', options);

or set the options generally:

map.pm.setPathOptions({
  color: 'orange',
  fillColor: 'green',
  fillOpacity: 0.4,
});

If you want to exclude shapes from receiving these path options, use the second parameter like this:

map.pm.setPathOptions({
      color: 'orange',
      fillColor: 'green',
      fillOpacity: 0.4,
    },
    {
      ignoreShapes: ['Circle', 'Rectangle']
    }
);
Customize Controls

There are 4 control blocks in the Toolbar: draw, edit, options (⭐) and custom You can disable / enable entire blocks. To display the Toolbar as one block instead of 4, use oneBlock: true.

map.pm.addControls({
     drawControls: true,
     editControls: false,
     optionsControls: true,
     customControls: true,
     oneBlock: false
 })

Reorder the buttons with

map.pm.Toolbar.changeControlOrder(['drawCircle', 'drawRectangle', 'removalMode', 'editMode']);

Receive the current order with

map.pm.Toolbar.getControlOrder();

Position

You can set different positions per block draw, edit, options⭐, custom:

Possible values are 'topleft', 'topright', 'bottomleft', 'bottomright'

map.pm.addControls({
  positions: {
    draw: 'topright',
    edit: 'topleft',
  }
});
map.pm.Toolbar.setBlockPosition('draw','topright');
map.pm.Toolbar.getBlockPositions();

Adding New/Custom Controls

// add a new custom control
map.pm.Toolbar.createCustomControl(options)
Option Default Description
name Required Name of the control
block '' block of the control. draw, edit, options⭐, custom
title '' Text showing when you hover the control
className '' CSS class with the Icon
onClick - Function fired when clicking the control
afterClick - Function fired after clicking the control
actions [ ] Action that appears as tooltip. Look under actions for more information
toggle true Control can be toggled

Inherit from an Existing Control

This effectively copies an existing control that you can customize.

// copy a rectangle and customize its name, block, title and actions
map.pm.Toolbar.copyDrawControl('Rectangle',
  {
    name:'RectangleCopy',
    block: 'custom',
    title: 'Display text on hover button',
    actions: actions
  }
);

Actions

You can add your own actions to existing or your custom buttons.

Here, we configure 3 separate actions in an array.

// creates new actions
const actions = [
  // uses the default 'cancel' action
  'cancel',

  // creates a new action that has text, no click event
  { text: 'Custom text, no click' },

  // creates a new action with text and a click event
  {
    text: 'click me',
     onClick: () => { alert('πŸ™‹β€β™‚οΈ') }
  }
]

Default actions available are: cancel, removeLastVertex, finish, finishMode.

Change actions of existing buttons:

map.pm.Toolbar.changeActionsOfControl('Rectangle', actions)

Pass actions to your custom buttons through the actions property mentioned under Inherit from an Existing Control

The following methods are available on map.pm.Toolbar:

Method Returns Description
createCustomControl(options) - To add a custom Control to the Toolbar.
copyDrawControl(instance, options) Object Creates a copy of a draw Control. Returns the drawInstance and the control.
changeActionsOfControl(name, actions) - Change the actions of an existing button.
changeControlOrder(shapes) - Change the order of the controls in the Toolbar. You can pass all shapes and Edit, Drag, Removal, Cut
getControlOrder() Array Get the current order of the controls.

Feature Requests

I'm adopting the Issue Management of lodash which means, feature requests get the "Feature Request" Label and then get closed. You can upvote existing feature requests (or create new ones). Upvotes make me see how much a feature is requested and prioritize their implementation. Please see the existing Feature Requests here and upvote if you want them to be implemented.

Developing

Clone the repository and then install all npm packages:

npm install

Compile and run dev watch version:

npm run start

Compile and run build version:

npm run prepare

Run cypress test:

npm run test

Open cypress window:

npm run cypress

Open eslint check:

npm run lint

Take a look into CONTRIBUTING

Credit

As I never built a leaflet plugin before, I looked heavily into the code of leaflet.draw to find out how to do stuff. So don't be surprised to see some familiar code.

I also took a hard look at the great L.GeometryUtil for some of my helper functions.

You can’t perform that action at this time.
