cmd/trace: Mininum mutator utilization plot window durations range is not consistent across Include options

[egorbunov]

What version of Go are you using (go version)?

$ go version
go version go1.13.4 linux/amd64

Does this issue reproduce with the latest release?

Yes

What operating system and processor architecture are you using (go env)?

go env Output

$ go env
GO111MODULE=""
GOARCH="amd64"
GOBIN=""
GOCACHE="/home/eg/.cache/go-build"
GOENV="/home/eg/.config/go/env"
GOEXE=""
GOFLAGS=""
GOHOSTARCH="amd64"
GOHOSTOS="linux"
GONOPROXY=""
GONOSUMDB=""
GOOS="linux"
GOPATH="/home/eg/go"
GOPRIVATE=""
GOPROXY="https://proxy.golang.org,direct"
GOROOT="/usr/lib/go"
GOSUMDB="sum.golang.org"
GOTMPDIR=""
GOTOOLDIR="/usr/lib/go/pkg/tool/linux_amd64"
GCCGO="gccgo"
AR="ar"
CC="gcc"
CXX="g++"
CGO_ENABLED="1"
GOMOD="/home/eg/go/src/bitbucket.org/triangleteam/resource-manager/go.mod"
CGO_CFLAGS="-g -O2"
CGO_CPPFLAGS=""
CGO_CXXFLAGS="-g -O2"
CGO_FFLAGS="-g -O2"
CGO_LDFLAGS="-g -O2"
PKG_CONFIG="pkg-config"
GOGCCFLAGS="-fPIC -m64 -pthread -fmessage-length=0 -fdebug-prefix-map=/tmp/go-build569889623=/tmp/go-build -gno-record-gcc-switches"

What did you do?

I wrote a simple code to check built in golang tracing:

package main

import (
	"os"
	"runtime"
	"runtime/trace"
	"sync"
	"time"
)

func main() {
	f, err := os.Create("trace.out")
	if err != nil {
		panic(err)
	}

	trace.Start(f)
	defer func() {
		trace.Stop()
		_ = f.Close()
	}()

	wg := sync.WaitGroup{}

	for g := 0; g < runtime.NumCPU(); g++ {
		wg.Add(1)
		go func() {
			for i := 0; i < 40; i++ {
				bs := make([]byte, 1024*1024)
				for k := range bs {
					bs[k] = byte(k % 8)
				}
				time.Sleep(50 * time.Millisecond)
			}
			wg.Done()
		}()
	}

	wg.Wait()
}

After running this program and getting trace.out file as an output I do $ go tool trace trace.out, open http://127.0.0.1:32935/mmu in the browser and look at the plots with and without STW checkbox set.

What did you expect to see?

I expect that X-axis range (min and max Window duration for which MMU function is evaluated) is the same with STW set and not set.

What did you see instead?

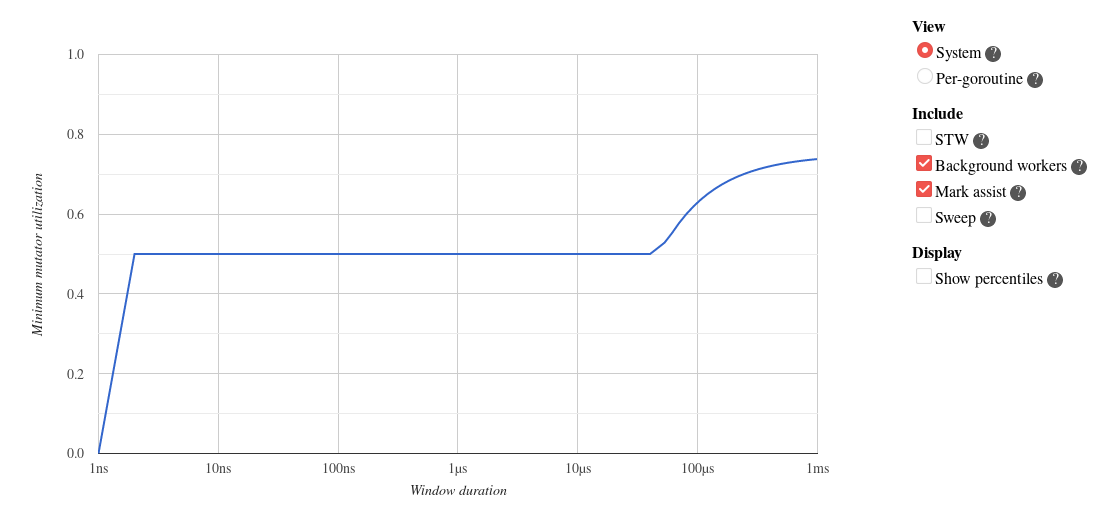

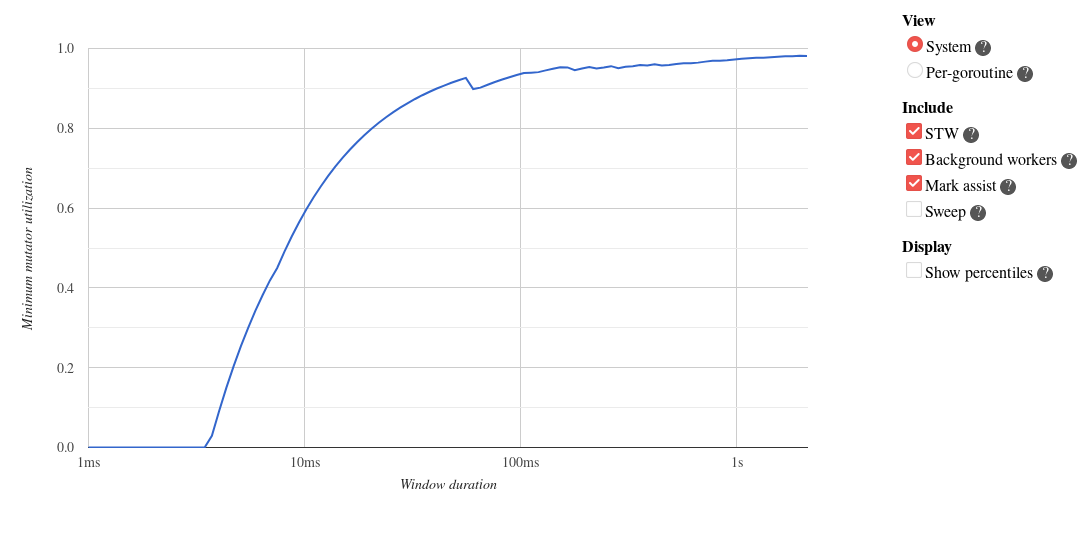

I see that with STW checkbox set the window duration range is [1ms, ~10s], and when checkbox is unset range is [1ns, 1ms].

To conclude: if I get everything correctly, such behavior makes it harder to understand how GC affects the utilization. Should we make the window duration range consistent across any set of checked options? Or maybe we should make it possible for user to configure the range.

[hyangah]

@aclements
