A toolkit to enable browser based processing of NetCDF (v3.0) files in CF (Climate Forecasting) convention with both a 2D Grid renderer and a 2D Vector renderer. Can be used to generate imagery stand-alone or with 2D mapping tools. Designed with no external dependencies and intended to be run in the browser.
-
Basic Examples Basic Examples
-
Integrated Examples vistamanifest.com
-
Related Repo Vista Manifest
No external dependencies. Simply requires a modern browser. Designed to work with NetCDF version 3.0 files in Climate Forecasting (CF) convention.
import { CFUtils, CFRender } from 'CFRender.js'; // General invocation example;
let CF = new CFRender(src, extentCache, projectionCache, longitudeWrap);
// Empty invocation example;
let CF1 = new CFRender();| Factory | Description |
|---|---|
| CFRender(src, extentCache, projectionCache, longitudeWrap) | Instantiates an object based on a NetCDF (v3.0) (in CF convention) file passed as an ArrayBuffer as the src parameter. Performs initial validation and bounds determination if possible. Returns an object that can be used for grid and vector rendering. |
| CFRender() | Instantiates an object based on an empty constructor. This method is primarily provided to be used when explicitly setting a data2DGrid that can be used for querying a previously constructed grid for cell values. This is provided as a method to not have to process an entire NetCDF file if a data2DGrid has been constructed via a prior invocation. |
| Parameter | DataType | Parameter Type | Description |
|---|---|---|---|
| src | ArrayBuffer | Required | Mandatory parameter. 'src' should be an ArrayBuffer representation of a NetCDF version 3.0 file, in CF convention, to be processed. May be loaded in the browser as an Ajax request or as a local file. This needs to be an ArrayBuffer representation of the binary NetCDF file. |
| extentCache | Array | Optional | Optional parameter to pass in a previously saved cache of the spatial extent of the NetCDF file. Refer to the Advanced Caching section below. |
| projectionCache | Object | Optional | Optional parameter to pass in a previously saved cache of the projected latitudes and longitudes within the NetCDF file. Refer to the Advanced Caching section below. |
| longitudeWrap | Boolean | Optional | Optional parameter to pass in. If evaluates to true then the X ordinates of the NetCDF file will be treated as Longitudes (almost always the case) and these longitude values will be normalised into the range 0 - 360. Further, when rendering grids, cells that span more than 180 degrees longitude will be omitted from renderings. This parameter is provided to; help work with datasets that may vary the longitude values dependent upon the query window and also to help mitigate against possible graphical artifacts occurring when rendering geodesic real world data on a 2D plane. If you are consuming data from a THREDDS TDS server, then you should also consider to set longitudeWrap along with the THREDDS dataset processing (see below). |
var CF = new CFRender(src)| Factory | Description |
|---|---|
| draw2DbasicGrid(DataVariable, DimensionFilter, XYprojectionFunction, ImageType, ImageStyle) | Returns a promise that resolves to an image. Renders a basic grid image from the current CFRender object. As a side effect, this will populate a member object called data2DGrid that can later be used for querying cell values. |
| Parameter | Datatype | Description |
|---|---|---|
| DataVariable | String | A data variable name within the NetCDF that is made up of X and Y dimensions and possibly other dimensions. This variable is the basis of the grid rendering |
| DimensionFilter | Object | A set of name/value pairs to act as the other dimension filters. Note that only a single image will be generated, so all other dimensions must be specified to enable a single grid image to be generated. If some dimensions are unbound, or set to a non-existent value, a validation error will occur. |
| XYprojectionFunction | Function | If null, then the rendered image will be unprojected and simply in the X,Y ordinate values. Passing in a projection function will allow reprojection of X,Y ordinates to a possible map projection. Note that the projection function must be written to expect an array of 2 values which will be the X ordinate and the Y ordinate unprojected. The XYprojectionFunction should then return an array of 2 values of the X,Y in projected space. Note, that common mapping libraries may provide projection functions written slightly differently (expecting different format of parameters and output), so it may be necessary to write a simple wrapper to a provided mapping projection function to work correctly here as expected. |
| ImageType | String | Either; 'svg','canvas','image','url'. Depicts the type of object to be returned by the rendering function. 'svg' will return a scalable svg element of the rendering, 'canvas' will return a canvas element of the rendering, 'image' will return a scalable img element, and 'url' will return only the image src as dataURL. Default: 'image'. Note, when using in a web worker, the only ImageType that can be used is 'url' as the other ImageType's will interact with DOM elements. See below for further details. |
| ImageStyle | Object | An optional object that can specify specific rendering style that may or may not be pertinent to the ImageType. See ImageStyle next. |
| Property | Datatype | Description |
|---|---|---|
| canvasContext | String | Applicable when a canvas is used for image generation. Ie, where the ImageType is not 'svg'. Internally, this value will be passed to the 'canvas.getContext' constructor specifying the context to be used. Currently, this is limited to one of these 3 values; either; '2d', 'webgl' or 'experimental-webgl'. The default is '2d'. |
| stroke | String or Function | Depicts the stroke color when rendering a cell. If no stroke is required, omit this property. Default: "none". If a string value is passed, that value will be used. If a function is passed, then the function will be passed the 'cellData' and the function should return an appropriate stroke value. Note that 'stroke' styling is not currently supported when using 'webgl' or 'experimental-webg' as the canvasContext. That is, if you wish to use stroke styling, switch the canvasContext to '2d' or use 'svg' as the ImageType. |
| strokeWidth | Number or Function | Depicts the width of the cell stroke (perimeter) to be rendered in pixel dimensions. Default: 0. If a numeric value is passed, that value will be used. If a function is passed, then the function will be passed the 'cellData' and the function should return an appropriate strokeWidth value. Not currently supported for 'webgl' or 'experimental-webgl'. |
| fill | String or Function | Depicts the fill color when rendering a cell. If no fill is required, then set this to "none". Default: "#000000" (black). If a string value is passed, that value will be used. If a function is passed, then the function will be passed the 'cellData' and the function should return an appropriate fill value. Please note, when using 'webgl' or 'experimental-webgl', this color must be a hex triplet, whereas when using a canvasContext of '2d' or ImageType of 'svg', this color value may be any valid HTML color string. |
| opacity | Number or Function | Depicts the opacity value when rendering a cell. If not passed, the default value is 1. If a numeric value is passed, that value will be used. If a function is passed, then the function will be passed the 'cellData' and the function should return an appropriate opacity value. |
| omit | Boolean or Function | Evaluated as a boolean expression. If evaluates to true, then the particular cell will be omitted from the rendering. Can be either a boolean value or a function. Omitting certain cells may improve the visual presentation in general and may also significantly improve image generation times (as when a cell is omitted, no further processing is performed in relation to rendering that particular cell). Default: false. |
| idealCellSize | Number | Only applicable when ImageType is; 'canvas', 'image' or 'url'. Will be the ideal cell width in pixel space (eg, pixel width or height). May be overridden if it is determined that the internal image is too large to render within the browser. Set this to higher values for higher image resolution. Set to lower values for better performance and lower image resolution. Default: 4. That means, a given cell will attempted to be rendered in a 4x4 pixel cell. For large grids, consider setting as low as 2. However, very low values may introduce artifacts into the image. Generally not necessary to change this value as the default value of 4 provides a good compromise between image quality and speed of image generation. |
| imageFormat | String | Only applicable when ImageType is; 'canvas', 'image' or 'url'. This will be used as the rendered image mime type. Eg; 'image/png', 'image/gif' or 'image/webp', etc. This is optional - if not specified, will use the browser default image rendering image type. |
| imageQuality | Number | A value between 0 and 1. If a lossy imageFormat has been specified then this may be used as lossy encoder quality option. Smaller values will result in smaller overlays but at the expense of rendering quality. |
| meridianSkip | Number | If this value is passed, when rendering cells that cross over this meridian value (longitudes), such cells will be omitted from the renderings. This is provided to be able to mitigate against potential graphical artifacts when rendering geodesic data on a 2D plane. For example, passing in a meridianSkip of 180 might be needed when rendering data that spans the whole globe on a Mollweide zero centered projection as such cells might be rendered on the back plane and otherwise cause artifacts. See below for an additional discussion. |
| eventListeners | Array of eventListener | Only applicable when ImageType is 'svg'. Allows interactive event listeners to be added to the rendered cell. |
| Array Offset | Datatype | Description |
|---|---|---|
| 0 | String | The event to be listened for. Eg, 'click','mouseover', etc. |
| 1 | Function | A function to be passed to the event listener. |
| 2 | Object | Optional data to be passed to the event listener. |

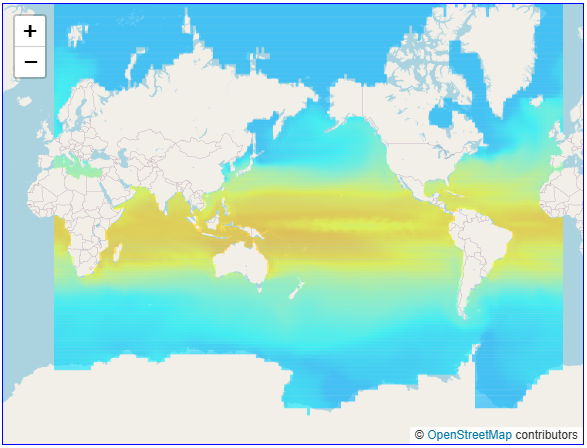

let img = await CF.draw2DbasicGrid('tos',
{"time": 1234},
SphericalProjection,
'url',
{"fill": tos_fillStyle,
"stroke": "none",
"strokeWidth": 0,
"imageFormat": "image/gif",
"imageQuality": 0.5
})Where;
- 'tos' is the data variable in the NetCDF
- The 'time' dimension of the 'tos' data variable has been bound to value; '1234'.
- 'SphericalProjection' is a provided XY projection function
- The image will be returned as a DataURL ('url')
- 'tos_fillStyle' is a provided fill function
let svgElem = await CF.draw2DbasicGrid('tos',
{"time": 1234},
SphericalProjection,
'svg',
{"fill": tos_fillStyle,
"stroke": "none",
"strokeWidth": 0,
"eventListeners": [
['mouseover',show_data,null],
['click',show_data,null],
['mouseout',clear_data,null]
]
})Where;
- 'tos' is the data variable in the NetCDF
- The 'time' dimension of the 'tos' data variable has been bound to value; '1234'.
- 'SphericalProjection' is a provided XY projection function
- The image will be returned as an SVG element ('svg')
- 'tos_fillStyle' is a provided fill function
- 'show_data' and 'clear_data' are defined functions to handle cell user events
For ImageStyle properties that support the use of a function, when invoked, the function will be passed a 'cellData' object. This object is made up of as follows;
| Property | Datatype | Description |
|---|---|---|
| dimensions | Object | An object of name/value pairs all the data variable dimensions that make up this cell. |
| value | The cell data value |
If the ImageType is set to 'svg', the paths within the generated svg element will have data attributes added. These attributes may be useful when adding eventListeners. These are added as follows;
| HTML data attribute name | Meaning/Use |
|---|---|
| data-dimension_<Variable Name> | Where "Variable Name" is the name of the NetCDF data variable. |
| data-value | The value of the cell (path) |
| Factory | Description |
|---|---|
| draw2DbasicVector(DataVariable1, DataVariable2, dataVariableMode, DimensionFilter, imageWidth, imageHeight, XYprojectionFunction, ImageType, ImageStyle) | Returns an image (svg). Renders a basic vector image from the current CFRender object. As a side effect, this will populate a member object called data2DVectors. |
| Parameter | Datatype | Description |
|---|---|---|
| DataVariable1 | String | A data variable name within the NetCDF that has X and Y dimensions and is either the vector 'u' value or the vector 'magnitude' value depending upon the DataVariableMode parameter. This is one of two data variables that make up the vector data for the rendering. |
| DataVariable2 | String | A data variable name within the NetCDF that has X and Y dimensions and is either the vector 'v' value or the vector 'direction' value depending upon the DataVariableMode parameter. This is one of two data variables that make up the vector data for the rendering. |
| DataVariableMode | Number | This parameter governs how the 2 above data variables will be interpreted. If this value is 0 (default), then DataVariable1 is assumed to be the vector 'u' value and DataVariable2 is assumed to be the vector 'v' value. If this value is 1, then DataVariable1 is assumed to be the vector 'magnitude' value and DataVariable2 is assumed to be the vector 'direction' value. |
| DimensionFilter | Object | A set of name/value pairs to act as the other dimension filters. Note that only a single image will be generated, so all other dimensions must be specified to enable a single grid image to be generated. If some dimensions are unbound, or set to a non-existent value, a validation error will occur. |
| ImageWidth | Number | A positive integer representing the physical image width to be created in pixels. Images generated will be infinitely scalable but this is the width of a non-scaled image. ImageWidth is a mandatory parameter because the vector symbols (arrows) are rendered in pixel space. |
| ImageHeight | Number | A positive integer representing the physical image height to be created in pixels. Images generated will be infinitely scalable but this is the height of a non-scaled image. ImageHeight is a mandatory parameter because the vector symbols (arrows) are rendered in pixel space. |
| XYprojectionFunction | Function | If null, then the rendered image will be unprojected and simply in the X,Y ordinate values. Passing in a projection function will allow reprojection of X,Y ordinates to a possible map projection. Note that the projection function must be written to expect an array of 2 values which will be the X ordinate and the Y ordinate unprojected. The XYprojectionFunction should then return an array of 2 values of the X,Y in projected space. Note, that common mapping libraries may provide projection functions written slightly differently (expecting different format of parameters and output), so it may be necessary to write a simple wrapper to a provided mapping projection function to work correctly here as expected. In addition, if your particular projection is not orthogonal - please refer to the ImageStyle parameter nonOrthogonalProjection which may also need to be set to true in this case. |
| ImageType | String | Currently, all returned images will be an SVG element. This parameter has no effect but is included here in case other image types are supported in the future. Defaults to 'svg'. Providing any value here has no effect - all images returned will currently be an SVG element. |
| ImageStyle | Object | An optional object that can specify specific rendering style. See ImageStyle next. |
| Property | Datatype | Description |
|---|---|---|
| symbol | String | The vector direction symbol that will be rendered to represent the average data properties of the underlying cell vector values that the symbol visually occupies. Supported values are; 'arrow', 'vane' or 'chevron'. The default value is 'arrow'. Any non-valid value will render as an 'arrow'. Note that this renderer uses these symbols to represent vector information and not a visual 'streamline' or 'particle flow' visualization. This is because, if such an arrow symbol is rendered on the map - there will be, at least 1, underlying supporting data point to substantiate the symbol rendering. That is, symbols are not rendered when there is no underlying data points. Also, if the underlying data points are sparsely populated, then symbols, too will be sparsely rendered. |
| idealArrowSize | Number | The physical pixel width (or height) that the vector symbol will be rendered. Vector symbols will occupy a n by n pixel cell. Defaults to 24. Increase or decrease this according to your preference. As a guideline, if using animation, most browsers on modern devices support upto a usable maximum of about 1000 animated elements. This may affect your choice of this value. |
| fill | String or Function | Depicts the fill color when rendering a vector symbol. Default: "#000000" (black). If a string value is passed, that value will be used. If a function is passed, then the function will be passed the 'Average cellData' and the function should return an appropriate fill value. This value may be any valid HTML color string. |
| symbolSize | Number or Function | This value represents the scaling factor or relative size of the symbol relative to the cell (idealArrowSize) it occupies. Values would typically be in the range 0 to 1. Where 0 will not be visible and 1 will fully occupy the cell. It is possible to pass in values larger than 1 but such rendered symbols will overlap adjacent symbols. Default value is 0.8. |
| opacity | Number or Function | Depicts the opacity value when rendering a symbol. If not passed, the default value is 1. If a numeric value is passed, that value will be used. If a function is passed, then the function will be passed the 'Average cellData' and the function should return an appropriate opacity value. |
| omit | Boolean or Function | Evaluated as a boolean expression. If evaluates to true, then the particular symbol will be omitted from the rendering. Can be either a boolean value or a function. Omitting certain symbols may improve the visual presentation in general and may also significantly improve image generation times (as when a symbol is omitted, no further processing is performed in relation to rendering that particular cell). Default: false. |
| omitThreshold | Number | Because omitting a symbol dependent upon a vector 'magnitude' threshold is a likely use-case for omitting symbols, this parameter is provided as an easy alternative to the omit parameter. If the 'Average cellData' magnitude value is less than this parameter value, then the symbol for that cell will be omitted from the generated image. |
| rotationOffset | Number | Because vector data (wind in particular) may be that of the origin, it may be useful to apply a rotational change to the vectors being displayed. Such a rotational offset is applied prior to projecting the data values (if an XYProjectionFunction has been provided). Defaults to 180 - which means that vectors (wind vectors) are rendered in the direction of flow rather than the direction of where they originate. |
| animateDuration | Number or Function | By default, vector symbols are not animated. If a positive number is provided, then symbols will have a basic animation applied in that they pass along their axis for the length of the Arrow size. If there are multiple data cells for a given symbol, then the symbol may also have a rotational axis applied (curved path) for the average angular change over the data cells. This value is the number of seconds an animation will be applied to a symbol. The animation will repeat indefinitely. Best results are possibly in the range of about 0.5 to 5 seconds. |
| disableAngularRotation | Boolean | This parameter is only applicable if symbols are being animated (ie, the above styling parameter animateDuration is a positive number). If this parameter evaluates to a true expression, then the animation of the symbols will be of a straight path (and will not be curved). Default: false. |
| disableOpacityEasing | Boolean | This parameter is only applicable if symbols are being animated (ie, the above styling parameter animateDuration is a positive number). By default, the opacity of animated symbols fades in and out as the symbol passes through its animation. This easing is applied for the same duration of the animation and gives a more subtle general rendering of the arrow symbols path. If you desire to disable this opacity easing, to give a more distinct or bold animation, then set this parameter to an expression that will evaluate to true. Default: false. |
| nonOrthogonalProjection | Boolean | This parameter only has effect if an XYprojectionFunction parameter is in use. To save compute cycles, it is assumed that XYprojectionFunction will create a rendering where North is vertically upward, South is vertically downward, East is displayed horizontally to the right and West is displayed horizontally to the Left. However, this assumption is not necessarily valid for an arbitrary XYprojectionFunction. If you know these assumptions are not valid (eg, such as a Mollweide projection for example), then set this parameter to true. If you are not sure about your projection function, then set this value to true. Setting to true will simply interpolate the projection function to ascertain vector directions and uses slightly more compute complexity. Setting to false (default) uses the abovementioned assumptions and uses more simplistic compute functionality. |
| eventListeners | Array of eventListener | Allows interactive event listeners to be added to the rendered cell. |
| Array Offset | Datatype | Description |
|---|---|---|
| 0 | String | The event to be listened for. Eg, 'click','mouseover', etc. |
| 1 | Function | A function to be passed to the event listener. |
| 2 | Object | Optional data to be passed to the event listener. |
let img = CFR.draw2DbasicVector('u_wind',
'v_wind',
0,
{},
imgWidth,
imgHeight,
SphericalProjection,
'svg',
{symbol: 'vane',
fill: fillArrow,
opacity: opacityArrow,
omitThreshold: 5,
symbolSize: scaleArrow,
animateDuration: animateArrow,
idealArrowSize: 20,
"eventListeners": [
['mouseover', show_data, null],
['click', show_data, null],
]
});Where;
- The first two parameters are the 'u' and 'v' wind component and the third parameter (0) denotes this mode
- {} is an empty dimension filter
- imgWidth and imgHeight are the image width and height respectively
- 'SphericalProjection' is a provided XY projection function
- 'svg' placeholder for imageType parameter
- The icon symbol will be 'vane'
- 'fillArrow' will be a function to return a color from a passed 'Average cellData' object
- 'opacityArrow' will be a function to return an opacity value from a passed 'Average cellData' object
- 'omitThreshold' of 5 means that vectors of a magnitude less that '5' units will be omitted
- 'scaleArrow' will be a function to return a relative symbol size value from a passed 'Average cellData' object
- 'animateArrow' will be a function to return a time in seconds from a passed 'Average cellData' object
- 'idealArrowSize' of 20 means that symbols will be draw in a size 20x20 pixels.
- 'show_data' is a defined functions to handle cell (symbol) user events.
let img = CFR.draw2DbasicVector('Wind_speed_height_above_ground',
'Wind_direction_from_which_blowing_height_above_ground',
1,
{},
imgWidth,
imgHeight,
SphericalProjection,
'svg',
{symbol: 'arrow',
fill: 'black',
opacity: 0.8,
omitThreshold: 3,
idealArrowSize: 30,
symbolSize: 0.7,
animateDuration: 3,
disableOpacityEasing: true
});Where;
- The first two parameters are the 'magnitude' and 'direction' wind component and the third parameter (1) denotes this mode
- {} is an empty dimension filter
- imgWidth and imgHeight are the image width and height respectively
- 'SphericalProjection' is a provided XY projection function
- 'svg' placeholder for imageType parameter
- The icon symbol will be 'arrow'
- 'omitThreshold' of 3 means that vectors of a magnitude less that '3' units will be omitted
- 'disableOpacityEasing' means that arrows will be of a constant opacity and will not fade in and out during animation
For ImageStyle properties that support the use of a function, when invoked, the function will be passed an 'Average cellData' object. This is slightly different to a grid cell data because for vector rendering the data values of the underlying cell are averaged over the area of the symbol size. This object is made up of as follows;
| Property | Datatype | Description |
|---|---|---|
| dimensions | Object | An object of name/value pairs all the data variable dimensions that make up this cell. |
| name/value | The average cell data values (see the following Properties for a list of these). |
Specifically, the returned 'Average cellData' data name values are as follows;
| Property | Description |
|---|---|
| magnitude | Average magnitude of vectors over the symbol area. |
| pointsCount | The total number of vector data cells over the symbol area. |
| direction | Average direction of vectors over the symbol area. |
| angle | Same as direction value. |
| renderAngle | The angle that will be used for the rendering of the vector symbol. This may differ from direction for example if either or both an rotational Offset or XYprojectionFunction has been applied. |
| angularChange | Average angular rotational change of the vectors along the symbol axis over the symbol area (used to create curved arrow paths). |
| u | Average u value of vectors over the symbol area. |
| v | Average v value of vectors over the symbol area. |
The SVG paths within the generated SVG element will have dataset attributes added. These attributes may be useful when adding eventListeners. These are added as follows;
| HTML data attribute name | Meaning/Use |
|---|---|
| data-dimension_<Dimension Name> | Where "Dimension Name" is a bound NetCDF dimension. |
| data-value_<Variable Name> | The values of all of the 'Average cellData' properties (as above) |
When using projection functions, the functions should be written to accept an array of 2 ordinates (x,y) and return an array of 2 ordinates in projected space (px, py). Eg;
function myProj(coords) {
let x = coords[0];
let y = coords[1];
... Apply some projection on (x,y) resulting in (px,py)
return [px, py];
};Internal function.
Returns a 'cleansed' array of the netCDF data variable named 'name'. Here cleansed means that the array will be flattened and '_FillValue' or 'missing_value' data values will be replaced with null. Any required unpacking of the data will also be performed.
Returns an object with a collection of statistics for the numeric netCDF data variable named 'name'. Gathering variable statistics may be problematic for extremely large datasets - and may crash the browser in those cases. However, statistics may be useful to assist with composing value dependent rendering functions. The statistics returned are as follows;
| Name | Meaning |
|---|---|
| min | Minimum Value |
| max | Maximum Value |
| sum | The total of all Values |
| mean | Average Value |
| median | Median Value |
| nullCount | The total number of null values |
| count | The total number of values |
Internal function.
Internal function.
Examines X,Y Axis data of the netCDF and returns an object as follows;
| Property | Description |
|---|---|
| bbox | The extent of the X,Y Axis as a bounding box in X,Y unprojected space |
| mode | If the netCDF contained "bounds" as defined by the CF convention, for the given X,Y data variables then the bbox will be ascertained from these bounds and the returned mode will be 'definitive'. If the netCDF did not come with any bounds information for the X and Y Axis, then the bounding box (bbox) will be constructed by interpolating midpoints between subsequent X and Y values. In this case "mode" will be 'interpolated'. |
Also refer to the abovementioned 'Axes' property that may need to be manually set if the netCDF is missing 'Axis' X and Y attribute information.
Applies to Grid rendering - does not apply to Vector rendering. Will lookup a cell value for a given X and Y dimension from a grid rendering. Here, normally X would map to Longitude and Y would map to Latitude. The data variable name will need to be passed in and if there are any unbound dimensions - then a DimensionFilter must also be provided. The 'Omit' parameter accepts a function that will be passed cell values and expected to return a boolean. Omit function invocations returning true will omit those particular cells. This is provided because the cell ordinates are searched in possible projected space - and in projected space there is no certainty that cell polygons are contiguous - they could be disjoint and certain values may need to be omitted. The getCellValue function requires a data2DGrid to be available for internal querying. Such grids are constructed as a side effect of invoking draw2DbasicGrid (although a datagrid can be manually imported into an empty CFRender object - see below). This function may be useful for doing value lookups from say a map click for example.
Refer to the Advanced section for details relating to caching. This function generally does not need to be used except possibly in the context if you were to use web-workers to parallelise image rendering. This function will generate both an extentCache and a projectionCache from the given XYBounds for dimensions that have been ascertained to represent map dimensions (ie, Lon and Lat). This can be done to pregenerate caches when renderings of related grids may subsequently be done.
Using CFRender to draw grid images in web workers is now supported and is a great way to offload image generation processing from the main UI thread. However, there are some restrictions that you will need to be aware of. Firstly, the only imageType available for transferring imagery back from a web worker is; 'url'. The other imageTypes such as; 'canvas', 'image' or 'svg' need to interact with the DOM to create such HTML elements and, as such, are not suited for use within a web worker context. This also means that Web Workers cannot be used to generate vector images (as that renderer produces an SVG element). Another restriction relates to the potential transferring of related data2dGrid data grids, that are associated with imagery, to query the cell information between the main UI thread and web workers. Because functions are not serializable, data2DGrids have to be slightly modified to be able to be transferred. See, the member function; getTransferableData2DGrid method that can be used. It simply removes the 'XYprojectionFunction' component of the data grid so it can be transferred from a web worker. You will need to explicitly reassign the XYprojectionFunction (if being used) in the main UI thread prior to querying the data grid for cell information.
Because CFRender now supports NetCDF both unprojected and projected, it now populates a member object called data2DGrid as a side effect of invoking draw2DbasicGrid. This data grid is essentially a 2d array in projected space that can be queried when using the getCellValue method. Such a grid must exist in order to call 'getCellValue'. Again, this grid is automatically populated as a side effect of invoking 'draw2DbasicGrid'. The grid can be manually set using the 'setDataGrid' and even fetched using 'get2dataGrid' methods. Because data grids may potentially contain projection functions as one of their elements, there are some restrictions in transferring data grids from web workers. Note that the draw2DbasicVector populates a different data grid called; data2DVectors - and there is probably less of a requirement to interact with such a vector grid and is largely for internal use only (because there is currently no getCellValue function when it comes to querying Vector grids).
If you use CFRender in your main UI thread, there is generally no need to re-import a data2DGrid back in for cell value querying. Consider the following 2 examples;
Example 1 - drawing a grid and later querying the grid with getCellValue in the main UI thread
let CFR = new CFRender(src)
let img = await CFR.draw2DbasicGrid(variable,
null,
SphericalProjection,
'url',
{"fill": fillCell,
"opacity": opacityCell,
"omit": omitCell,
"stroke": "none",
"strokeWidth" 0
})
let v = CFR.getCellValue(variable, null, lng, lat)Example 2 - drawing a grid in one thread, exporting the data grid and querying the data grid in another thread
// Thread 1 (lets assume its a web worker)
let CFR1 = new CFRender(src)
let img = await CFR1.draw2DbasicGrid(variable,
DimensionFilter,
SphericalProjection,
'url',
{"fill": fillCell,
"opacity": opacityCell,
"omit": omitCell,
"stroke": "none",
"strokeWidth" 0
})
let grid = CFR1.getTransferableData2DGrid()
// Thread 2 - querying a previously constructed data grid
grid["XYprojectionFunction"] = SphericalProjection // Functions not serializable from web workers
let CFR2 = new CFRender()
CFR2.setdata2DGrid(grid)
let v = CFR2.getCellValue(variable, DimensionFilter, evt.latlng.lng, evt.latlng.lat, null)
// Note that in the CFR2 instance of CFRender - we only import the grid and do not reread the entire NetCDFWhere 'SphericalProjection' is a an XYprojectionFunction.
var netCDF = CF.netCDFNote, this netCDF object is slightly modified due to a naming conflict with the "header" element and has been named "headers" instead of "header". For further information on the NetCDF object, refer to NetCDFjs reference (which has been embedded into this library); https://github.com/cheminfo/netcdfjs
If your NetCDF is in Climate Forecasting (CF) convention, then generally all the Axes should be automatically determined. However, should an Axes not automatically be determined - they can be manually assigned;
CF.Axes['X'] = 'longitude'
CF.Axes['Y'] = 'latitude'Where 'longitude' and 'latitude' are X and Y dimensions ordinate variables respectively. Setting Axes manually is only necessary if this has not been defined in variable attributes 'Axis'.
Another class called 'CFUtils' is included in the CFRender.js. CFUtils contains some member functions that may assist in data dependent cell styling.
| Function | Description |
|---|---|
| linearHexColor(value, minValue, maxValue, minHexColor, maxHexColor) | For a given value that is between minValue and maxValue, a proportionally produced HTML hex color will be returned that is between minHexColor and maxHexColor. Here, value, minValue and maxValue are numeric, and minHexColor and maxHexColor are HTML hex color codes. |
| linearOpacity(value, minValue, maxValue, minOpacity, maxOpacity) | Similar to linearHexColor, this function accepts a value, minValue and maxValue and will return a proportional numeric value that is between minOpacity and maxOpacity. All parameters are numeric and default value of minOpacity is 0 and default value of maxOpacity is 1. |
| steppedHexColor(value, colorStops) | For a given value will return an interpolated hex color that falls within the provided colorStops. colorStops is an array of objects with 'value' and 'color' properties. Where value will be the stop value and color must be a hex color value. Example of a colorStops; [{"value": 0, "color": "#FF0000"},{"value": 10, "color": "#00FF00"},{"value": 30: "color": "#0000FF"}]. |
| steppedOpacity(value, opacityStops) | For a given value will return an interpolated opacity value between 0 and 1 that falls within the provided opacityStops. opacityStops is an array of objects with 'value' and 'opacity' properties. Where value will be the stop value and opacity must be a numeric value. Example of a opacityStops; [{"value": 0, "opacity": 0.1},{"value": 10, "opacity": 0.2},{"value": 30: "opacity": 0.5}]. |
| getTimeISOString(value, units) | A support function for dealing with NetCDF time "units". Value should be a time dimension variable value and units should be the NetCDF time 'units' attribute. This function will attempt to resolve the time value and units accordingly to convert to an actual legible (readable) time value for possible display purposes. As there are some heuristics involved, should the conversion fail for any reason, then the original value will simply be returned. |
Another script is included in this bundle called THREDDS_utils.js. This script contains a set of utilities to facilitate interacting with possible THREDDS TDS server responses. To use the assorted functions, it will first be necessary to transform the appropriate THREDDS server response into an XML document (eg, see DOM.parser) and then use the embedded functions. The embedded functions are designed to make it easier to work with THREDDS server responses in native javascirpt objects instead of XML. The embedded functions facilitate processing of THREDDS TDS Catalog (catalog.xml) and Subsetting (dataset.xml) responses to perform appropriate pre-processing. This may be useful, if your content is served via a THREDDS TDS server and you need to analyse/process such responses. If your NetCDF files are just served via a normal HTTP server or are local files - then the included THREDDS_utils.js will not be necessary in your case.
import { TDSCatalogParser, TDSMetadataParser } from 'THREDDS_utils.js'; let meta1 = new TDSCatalogParser(src);
let meta2 = new TDSMetadataParser(src, longitudeWrap);| Factory | Description |
|---|---|
| TDSCatalogParser(src) | Instantiates an object based on a THREDDS TDS 'catalog.xml' parsed XML src object. Will provide member objects and functions to assist in programatically querying this metadata. |
| TDSMetadataParser(src, longitudeWrap) | Instantiates an object based on THREDDS TDS NetCDF subsetting 'dataset.xml' parsed XML src object. Will provide member objects and functions to assist in programatically querying this metadata. The longitudeWrap is an optional boolean parameter. If passed as true, then any bounding box queries of this metadata will have longitude values normalised to the range of 0 - 360. The longitudeWrap parameter is provided to mitigate against graphical artificats when rendering imagery. You should use longitudeWrap in a consistent way between CFRender and THREDDS_utils if you are dealing with THREDDS server responses. |
The CFRender.js javascript script is a self contained script with no external dependencies. Embedded within this script is the NetCDF parser from Cheminfo (referenced above) that enables consumption of NetCDF files in the browser. Unfortunately, this parser can only handle NetCDF files version 3.0 at the time of publishing this app. That means, to effectively use this renderer, you may need to downgrade your input NetCDF files to version 3.0 if you are using later versions.
If you are using the Python module NetCDF4 to generate your NetCDF output files, this may be possible by specifying the NETCDF3_CLASSIC as a file format directive. Eg;
import netCDF4 as nc
# Create a new NetCDF file
nc_file = nc.Dataset('output.nc', 'w', format='NETCDF3_CLASSIC')
If you are using the THREDDS Data Server (TDS) NetCDF subset service (NCSS) to deliver your NetCDF data, you may be able to append &accept=netcdf&format=netcdf3 to a subsetting URL request string to request NetCDF files in version 3. For example;
https://<Thredds subsetting service>?var=<Variable>&accept=netcdf&format=netcdf3
Often NetCDF CF data files may contain an identical coordinate referencing system. Ie, the latitudes and longitudes of separate but related NetCDF files may be congruent or identical. The CFRender draw2DbasicGrid function will cache and reuse coordinate systems if invoked for separate time slice requests for example. However, this cache set can also be passed between separate invocations of the CFRender utility if you are dealing with multiple NetCDF files that have identical coordinate grids. Utilising caching may result in significant performance improvements of subsequent rendering of NetCDF files that have an identical coordinate system.
In essence, you might want to look in coordinate caching if the following apply to your situation;
- You have multiple NetCDF files that have an identical lat/long coordinate grid
- You will be rendering these multiple files within a web page or application
- You are using a coordinate XYprojectionFunction projection function to translate the NetCDF lat/long data to a web mapping visualisation
By passing a cache between multiple instances of CFRender, in these above circumstances, you may save on CPU overhead incurred as both part of determining the spatial extent and also reprojecting coordinates - as these will simply be fetched from the cache instead of recomputing. To use coordinate caching between 2 separate invocations of CFRender for 2 coordinate congruent data files, consider the following example. The caching components that need to be passed are; extentCache (a cache of the NetCDF spatial extent) and projectionCache (a cache of the entire coordinate system with the projection function applied).
In the following example, suppose we have 2 arrayBuffers (arrayBuffer1 and arrayBuffer2) representing 2 separate (but related) NetCDF files that have been loaded in the browser. The respective caches will be populated as a side effect of running the draw2DbasicGrid function and, as such, can be passed as follows between the 2 separate renderings. Where the latter rendering may benefit significantly in reduced rendering times (as it will not recalculate the spatial extent nor reproject the lat/longs);
var projectionCache = null;
var extentCache = null;
// Image 1
var CFR1 = new CFRender(arrayBuffer1)
let img1 = CFR1.draw2DbasicGrid(.....)
// Save the projected coordinate caches to local variables from Image 1
extentCache = CFR1.extentCache
projectionCache = CFR1.projectionCache // or; projectionCache = CFR1.getProjectionCache()
// Image 2
var CFR2 = new CFRender(arrayBuffer2, extentCache, projectionCache)
let img2 = CFR2.draw2DbasicGrid(.....)
CFRender core component is to render a NetCDF grid as a 2d planar image. When dealing with geodesic input data that spans real world coordinates, there may be graphical artifacts in imagery particularly where cell values cross longitude meridians if the imagery is in a planar projection. Such meridians are possibly likely to occur at; 0, 180 or 360 degrees longitude. By making use of either, or both, of the abovementioned longitudeWrap and meridianSkip parameters in respective components - it should generally be possible to remove such artifacts from imagery even when dealing with THREDDS server responses that may not produce consistent (wrapped) bounding boxes when imagery is being clipped in the viewport. Some experimentation may be required but it should be possible to work out how to remove artifacts when rendering geodesic full globe data on a 2d plane.
The author of CFRender acknowledges the great work behind the NetCDFjs library that has been incorporated into this CFRender toolkit. The embedded NetCDFjs library performs the heavy lifting of actually reading the passed NetCDF data. More information about the NetCDFjs library can be found here;
https://github.com/cheminfo/netcdfjs
If you are a custodian or publisher of an open data NetCDF resource - whether that be delivered via a HTTP server or a THREDDS TDS server, if your data set is truly an open dataset, then please consider adding CORS http headers to your http responses so that such resources can be consumed directly in browsers in third party contexts. For this app (CFRender) to really function in an optimal way - and facilitate development of a truly open data application - it is really vital that publishers of such open datasets add the appropriate CORS headers to their datasets when delivering over https protocol. At the time of going live with this code base - it was noted anecdotally that most public facing THREDDS TDS servers that are delivering open NetCDF data do not actually appear to have CORS enabled. This is a real shame. Please consider to add these vital CORS http headers whenever you are delivering open NetCDF datasets. Thank you.
- Need to investigate catering for later versions of NetCDF instead of only version 3.0
Harris Hudson
