Facet with geom_abline throwing errors and not working #196
Description
I am currently running into a couple errors when attempting to plot an abline for different facets. The first error involves not being able to set different slopes for different facets. The second error involves facet variables being reserved names.
Below is a reproducible example under version 0.4.0:
import plotnine as p9
import pandas as pd
df = pd.DataFrame({'list':['a','a','b','b'], 'x':[1,2,3,4], 'y':[1,2,6,8]})
df['category'] = df['list']
df_slope = pd.DataFrame({'category':['a','b'], 'intercept':[0,0], 'slope':[1,2]})
print(p9.__version__)
Plotting points with a facet works as expected:
(p9.ggplot(df, p9.aes(x='x', y='y')) +
p9.geom_point() +
p9.facet_wrap('~category'))
Attempting to plot an abline with a facet throws an error.
(p9.ggplot(df_slope, p9.aes(intercept='intercept', slope='slope')) +
p9.geom_abline() +
p9.facet_wrap('~category'))
Attempting to plot both points and an abline does not throw an error, but it doesn't take the specified slope of 2 for facet b:
(p9.ggplot(df, p9.aes(x='x', y='y')) +
p9.geom_point() +
p9.geom_abline(mapping=p9.aes(intercept='intercept', slope='slope'),
data=df_slope) +
p9.facet_wrap('~category'))
Finally, there is another error that I'm getting when the name of the facet variable is reserved. When the variable is not reserved, everything works:
(p9.ggplot(df, p9.aes(x='x', y='y')) +
p9.geom_point() +
p9.geom_abline(intercept=0, slope=1) +
p9.facet_wrap('~category'))

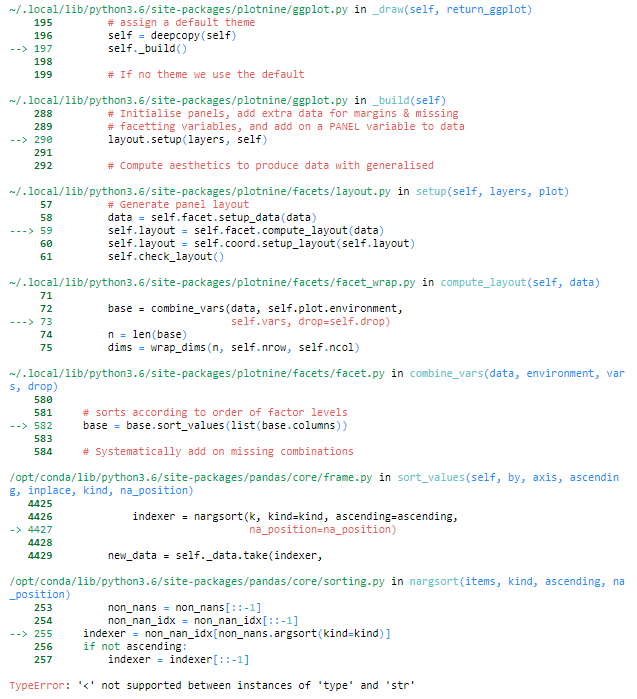

When the facet variable is reserved, I get another error:
(p9.ggplot(df, p9.aes(x='x', y='y')) +
p9.geom_point() +
p9.geom_abline(intercept=0, slope=1) +
p9.facet_wrap('~list'))
It seems like this issue has come up in the past, but it was thought to be fixed (#48).
Activity
has2k1 commentedon Sep 26, 2018
That is a bug. Here is a workaround
patrick-miller commentedon Sep 26, 2018
Thank you for the quick response, that works for both the issues.
Fixed bug in geom_abline were mapping was ignored
