This library is deprecated.
Objective-C Other
Clone or download
Fetching latest commit…
Cannot retrieve the latest commit at this time.
Failed to load latest commit information.
scifihifi-iphone @ bebdad6

Hatena Bookmark iOS SDK


Integrate Hatena Bookmark into your application. This is an Objective-C library for handling the Hatena Bookmark API and for providing a user interface.

Main Screenshot



Add the lines below to your Podfile.

platform :ios, '5.0'

pod 'HatenaBookmarkSDK'

Without CocoaPods

Clone this repository.

git clone --recursive

Copy /SDK/ directory and add dependent modules SFHFKeychainUtils to your project .


Register OAuth

Register your app information at Hatena Developer Center. This SDK needs all scope, read_public, read_private, write_public, write_private.

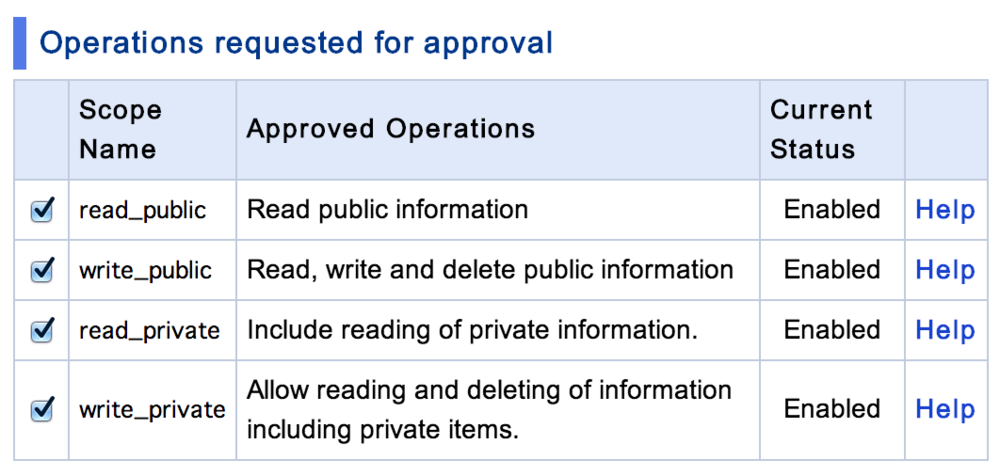

Scope Settings

After registration, you will get a consumer key and a consumer secret.

Consumer Key and Consumer Secret


At first SDK needs initialization with consumer key and secret. You should add below initalization code at application:didFinishLaunchingWithOptions: or other initalize section.

[[HTBHatenaBookmarkManager sharedManager] setConsumerKey:@"your consumer key" consumerSecret:@"your consumer secret"];


The SDK needs to login with OAuth before making a request to the API. Add authorization code your app's settings view.

[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(showWebView:) name:kHTBLoginStartNotification object:nil];

[[HTBHatenaBookmarkManager sharedManager] authorizeWithSuccess:^{

} failure:^(NSError *error) {


After making an authorization request, the SDK calls kHTBLoginStartNotification with NSURLRequest including the login page URL. You should handle the notification and request with HTBLoginWebViewController.

    [super viewDidLoad];
    [[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(showOAuthLoginView:) name:kHTBLoginStartNotification object:nil];

-(void)showOAuthLoginView:(NSNotification *)notification {
    NSURLRequest *req = (NSURLRequest *)notification.object;
    UINavigationController *navigationController = [[UINavigationController alloc] initWithNavigationBarClass:[HTBNavigationBar class] toolbarClass:nil];
    HTBLoginWebViewController *viewController = [[HTBLoginWebViewController alloc] initWithAuthorizationRequest:req];
    navigationController.viewControllers = @[viewController];
    [self presentViewController:navigationController animated:YES completion:nil];

Login Screenshot

Bookmark UI

The SDK provides two ways for integrating the Hatena Bookmark Panel UI.

  • HTBHatenaBookmarkActivity
  • HTBHatenaBookmarkViewController


UIActivity is an iOS native sharing interface, available on iOS 6 or later. This SDK provides HTBHatenaBookmarkActivity.

iPhone / iPod touch

You can present a UIActivityViewController modally on iPhone or iPod touch.

NSURL *URL = self.webView.request.URL;

// iOS 6 or later
if ([UIActivityViewController class]) {
    HTBHatenaBookmarkActivity *hateaBookmarkActivity = [[HTBHatenaBookmarkActivity alloc] init];
    UIActivityViewController *activityView = [[UIActivityViewController alloc] initWithActivityItems:@[URL]                                                                               applicationActivities:@[hateaBookmarkActivity]];
    [self presentViewController:activityView animated:YES completion:nil];

UIActivity Screenshot


Apple official document said that "on iPad, it must be presented in a popover".

NSURL *URL = self.webView.request.URL;

// iOS 6 or later
if ([UIActivityViewController class]) {
    HTBHatenaBookmarkActivity *hateaBookmarkActivity = [[HTBHatenaBookmarkActivity alloc] init];
    UIActivityViewController *activityView = [[UIActivityViewController alloc] initWithActivityItems:@[URL]                                                                               applicationActivities:@[hateaBookmarkActivity]];
    if (UI_USER_INTERFACE_IDIOM() == UIUserInterfaceIdiomPad) { // on iPad
        self.activityPopover = [[UIPopoverController alloc] initWithContentViewController:activityView];
        __weak UIPopoverController *weakPopover = self.activityPopover;
        activityView.completionHandler = ^(NSString *activityType, BOOL completed){
            // dismiss popover on activity completed.
            [weakPopover dismissPopoverAnimated:YES];
        [self.activityPopover presentPopoverFromBarButtonItem:sender

See HTBDemoViewController for detail.


You can call ViewController directly.

// iOS 5
NSURL *URL = self.webView.request.URL;
HTBHatenaBookmarkViewController *viewController = [[HTBHatenaBookmarkViewController alloc] init];
viewController.URL = URL;
[self presentViewController:viewController animated:YES completion:nil];

Build DemoApp

Clone this repository and run git submodule update --init. After that, open /DemoApp/DemoApp.xcodeproj and build.

Demo app also needs OAuth consumer secret and key. Add to [[HTBHatenaBookmarkManager sharedManager] setConsumerKey:@"your consumer key" consumerSecret:@"your consumer secret"]; in HTBDemoViewController.

Running Tests

Clone this repository and run make clean test in root directory.


  • /SDK/API/
  • HTTP request class
  • /SDK/UI/
  • Some classes related in bookmark panel UI and login
  • HTBHatenaBookmkarkManager
  • Core module
  • Handle user login information
  • Dispatch JSON response to model class


  • iOS 5.0 or later
  • ARC


  • AFNetworking
  • Version 1.x
  • Currently 2.0 is not supported because it required iOS 7 and we included renamed AFNetworking 1.x.
  • AFOAuth1Client
  • Currentry we forked and copied it as HTBAFOAuth1Client for waiting merge some pull requests.
  • SFHFKeychainUtils

Hatena Bookmark API

iOS SDK interfaces with the Hatena Bookmark API. For more details, see api docs (In Japanese).


MIT license.
