MATLAB library of gradient descent algorithms for sparse modeling: Version 1.0.2
Switch branches/tags
Nothing to show
Clone or download
Latest commit 5bf5397 Jul 1, 2018
Permalink
Failed to load latest commit information.
data Version 1.0.2 Jul 6, 2017
line_search Version 1.0.1 Apr 27, 2017
plotter Version 1.0.2 Jul 6, 2017
problem Version 1.0.2 Jul 6, 2017
sparse_gd_solver Version 1.0.2 Jul 6, 2017
sparse_gd_test Version 1.0.2 Jul 6, 2017
tool Version 1.0.2 Jul 6, 2017
.gitignore Version 1.0.0 Apr 24, 2017
LICENSE Initial commit Apr 24, 2017
README.md Version 1.0.2 Jul 2, 2018
demo.m Version 1.0.1 Apr 27, 2017
demo_lasso_cv.m Version 1.0.2 Jul 6, 2017
run_me_first.m Version 1.0.0 Apr 24, 2017

README.md

SparseGDLibrary : Sparse Gradient Descent Library in MATLAB


Authors: Hiroyuki Kasai

Last page update: July 07, 2017

Latest library version: 1.0.7 (see Release notes for more info)

Introduction

The SparseGDLibrary is a pure-Matlab library of a collection of unconstrained optimization algorithms for sparse modeling.

List of sparse gradient algorithms available in SparseGDLibrary

  • APG (Accelerated gradient descent, i.e., Nesterov AGD)
  • FISTA (Fast iterative shrinkage-thresholding algorithm)
  • CD (Coodinate descent) for Lasso and Elastic Net
  • ADMM (The alternating direction method of multipliers) for Lasso

List of line-search algorithms available in SparseGDLibrary

Supported problems

Folders and files

./                          - Top directory.
./README.md                 - This readme file.
./run_me_first.m            - The scipt that you need to run first.
./demo.m                    - Demonstration script to check and understand this package easily.
./demo_lasso_cv.m           - Demonstration script for lasso problem with cross validation.
|plotter/                   - Contains plotting tools to show convergence results and various plots.
|tool/                      - Some auxiliary tools for this project.
|problem/                   - Problem definition files to be solved.
|sparse_gd_solver/          - Contains various gradient descent optimization algorithms.
|sparse_gd_test/            - Some helpful test scripts to use this package.

First to do

Run run_me_first for path configurations.

%% First run the setup script
run_me_first;

Usage example 1 (Lasso problem)

Now, just execute demo for demonstration of this package.

%% Execute the demonstration script
demo;

The "demo.m" file contains below.

% set number of dimensions, cardinality and noise level.
n = 1280;
d = 100;
k = 15;
noise_level = 0.01;

% generate dataset
[A, b, x0, lambda] = generate_lasso_data(n, d, k, noise_level);

% define problem
problem = lasso_problem(A, b, lambda);

% perform algorithms (FISTA and ADMM)
options.w_init = zeros(n,1);
[w_fista, info_fista] = fista(problem, options);
[w_admm, info_admm] = admm_lasso(problem, options);

% plot all
% display iter vs. cost
display_graph('iter','cost', {'FISTA', 'ADMM'}, {w_fista, w_admm}, {info_fista, info_admm});
% display iter vs. l1-norm
display_graph('iter','sol_optimality_gap', {'FISTA', 'ADMM'}, {w_fista, w_admm}, {info_fista, info_admm});
  • Output results



Usage example 1: more plots

The decrease of the l1-norm of the solution according to iterations is illustrated.

display_graph('iter','l1-norm', {'FISTA', 'ADMM'}, {w_fista, w_admm}, {info_fista, info_admm}, 'linear');



The final coefficients in each position of the solution are displayed in comparisn with the ogirinal input sparse signal.

display_graph('coeff_pos','coeff_amp', {'FISTA','ADMM','Original (x0)'}, {w_fista, w_admm, x0}, {w_fista, w_admm, x0}, 'linear', 'line-with-mark', 1);
  • Output results



Usage example 2 (Lasso problem with cross-validation)

Execute demo_lasso_cv for the lasso problem with cross-validation.

% Execute the demonstration script
demo_lass_cv;

The "demo_lass_cv.m" file contains below.

function demo_lasso_cv()

% set number of dimensions, cardinality and noise level.
n = 1280;
d = 100;
k = 15;
noise_level = 0.01;

% generate dataset
[A, b, ~, ~, lambda_max] = generate_lasso_data(n, d, k, noise_level);

% set algorithms and solver (e.g., FISTA)
algorithm = {'FISTA'};

% initialize
% define parameters for cross-validation
num_cv = 10;
lambda_unit = lambda_max/num_cv;
lambda_array = 0+lambda_unit:lambda_unit:lambda_max;

% prepare arrays for solutions
W = zeros(n, num_cv);
l1_norm = zeros(num_cv,1);
aprox_err = zeros(num_cv,1);

% set options
options.w_init = zeros(n,1);

% perform cross-validations
for i=1:length(lambda_array)
    lambda = lambda_array(i);
    problem = lasso_problem(A, b, lambda);

    [W(:,i), infos] = fista(problem, options);
    l1_norm(i) = infos.reg(end);
    aprox_err(i) = infos.cost(end);
end

% plot all
% display l1-norm vs. coefficient
display_graph('l1-norm','coeffs', algorithm, l1_norm, {W}, 'linear');
% display lambda vs. coefficient
display_graph('lambda','coeffs', algorithm, lambda_array, {W}, 'linear');
% display l1-norm vs. approximation error
display_graph('l1-norm','aprox_err', algorithm, l1_norm, {aprox_err}, 'linear');

end

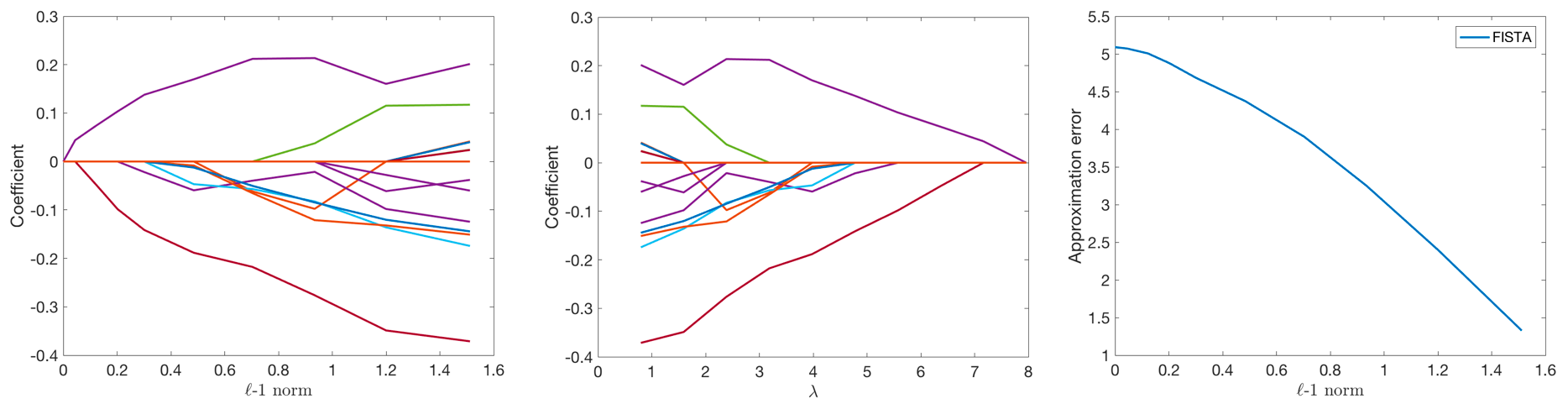

  • Output results



License

The SparseGDLibrary is free and open source for academic/research purposes (non-commercial).

Problems or questions

If you have any problems or questions, please contact the author: Hiroyuki Kasai (email: kasai at is dot uec dot ac dot jp)

Release Notes

  • Version 1.0.2 (July 07, 2017)
    • Robust PCA problem and trace norm convex clustering problem, and those related solvers and test files are added.
  • Version 1.0.1 (April 27, 2017)
    • Group lasso problem is added.
  • Version 1.0.0 (April 24, 2017)
    • Initial version.
