Inverted Space

IoT & Art!?

In this project we control LEDs from a web interface (using ESP8266 and WS2812). The applications range from air polution monitoring to simple clock, or artistic visualizations, check this repo:

https://github.com/GeorgeGally/blacklight

Made in China - 2016 (HTTC extension).

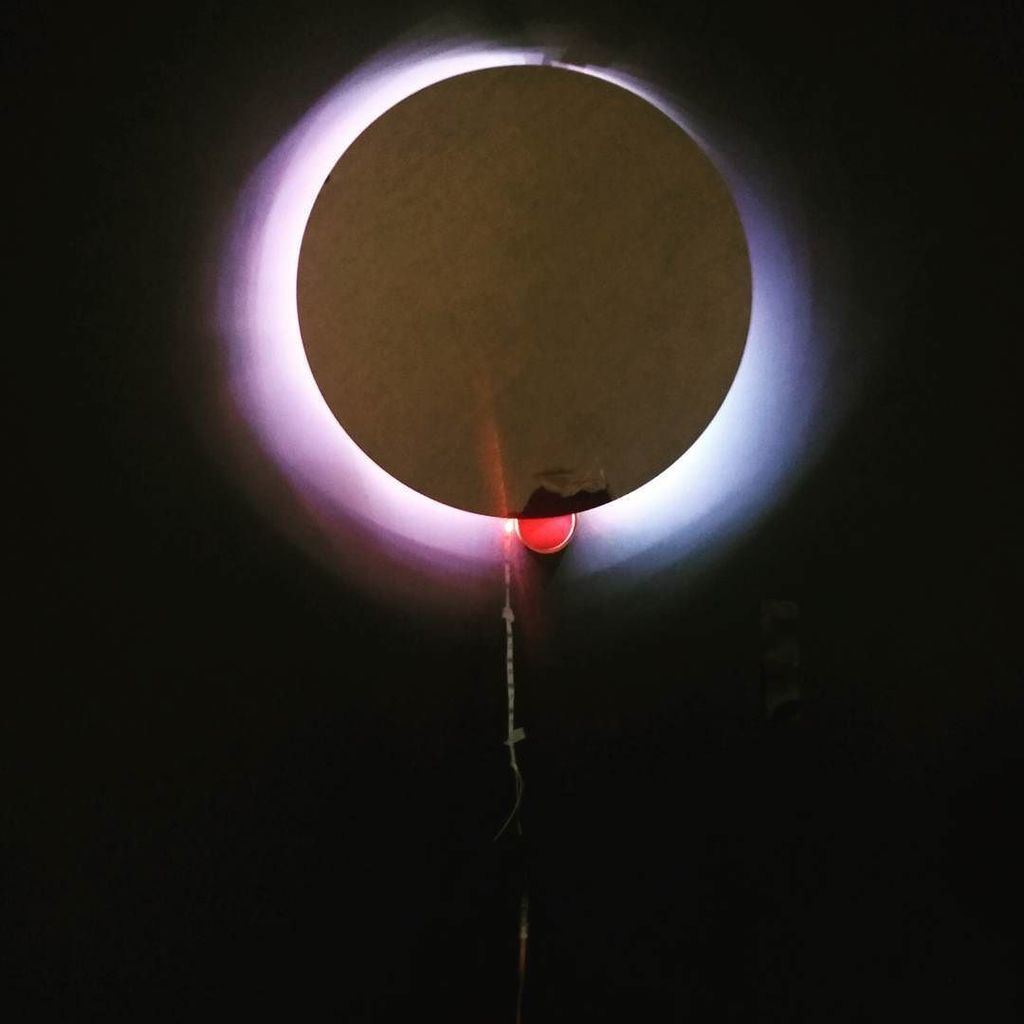

latest test

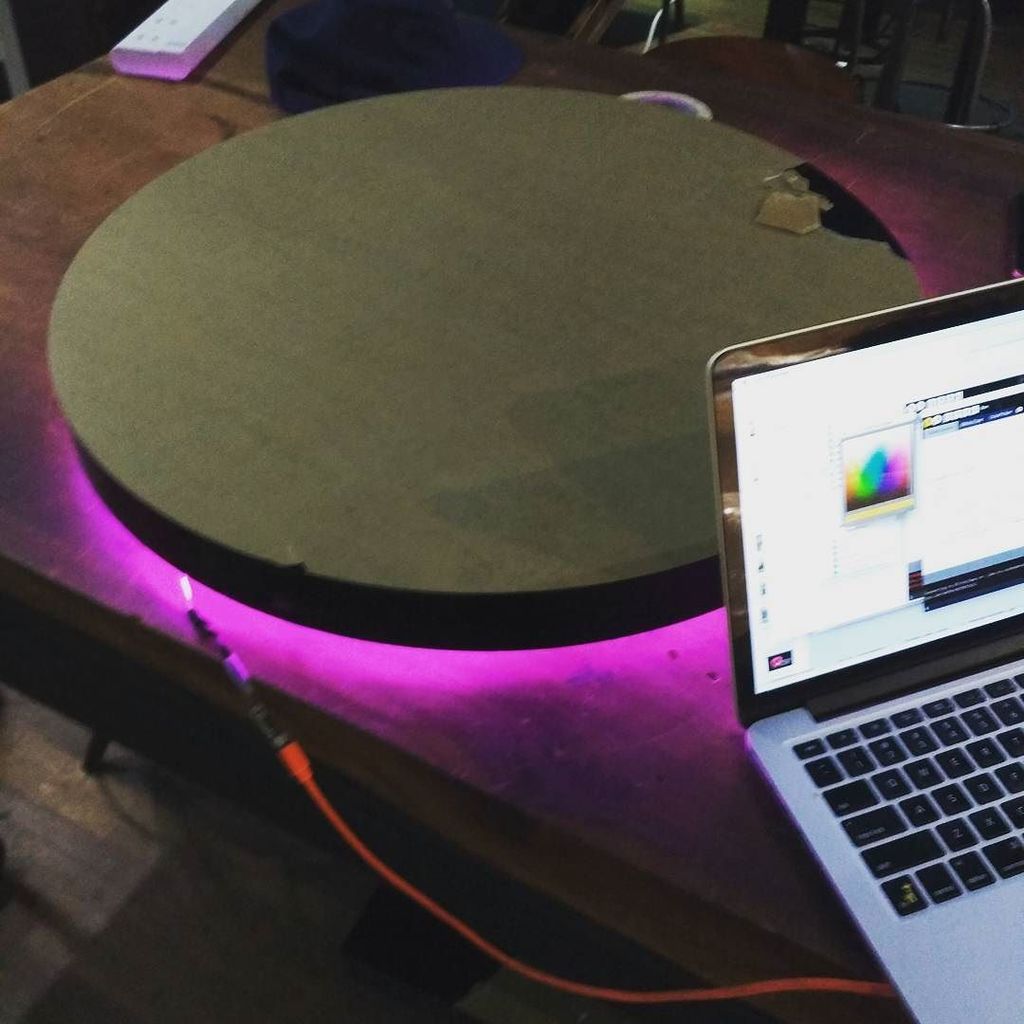

first test

Dependencies

ESP8266 Arduino:

https://github.com/esp8266/Arduino

WiFiManager - WiFi Configuration Magic:

https://github.com/tzapu/WiFiManager

Adafruit NeoPixel:

https://github.com/adafruit/Adafruit_NeoPixel

Elapsed milliseconds:

https://github.com/pfeerick/elapsedMillis

Usage

1st time:

  • program the ESP with the arduino IDE (the 1st link should have every details needed)
  • connect your phone/computer to your the wifi network called 'invertedSpace'
  • go to the following URL with your browser: http://192.168.4.1/
  • set the ESP to connect to your favorite network (set the SSID and password)

Then:

  • your phone/computer should connect back to your favorite network

  • put the following URL in your browser, the rest should be intuitive:

    http://invertedSpace.local/

Note: If you need to change the password, uncomment the follwing line in the .ino file:

wifiManager.resetSettings();

Advanced

The HTML/JS code is embedded in the arduino code, using the handleRootHTML.h header. To update it, edit index.html and use the following command to update the header:

./minify.sh

You will need html-minifier accessible with node, to install it:

npm install html-minifier -g
