htty is a console application for interacting with web servers. It’s a fun way to explore web APIs and to learn the ins and outs of HTTP.
See what’s changed lately by reading the project history.
It couldn’t be much easier.
$ gem install htty
You’ll need Ruby and RubyGems. It’s known to work well under OS X against Ruby v1.8.7, v1.9.2, v1.9.3, v2.0, v2.1, and v2.2.
- Intuitive, Tab-completed commands and command aliases
- Support for familiar HTTP methods GET, POST, PUT, and DELETE, as well as PATCH, HEAD, OPTIONS and TRACE
- Support for HTTP Secure connections and HTTP Basic Authentication
- Automatic URL-encoding of userinfo, paths, query-string parameters, and page fragments
- Transcripts, both verbose and summary
- Scripting via stdin
- Dead-simple cookie handling and redirect following
- Built-in help
The things you can do with htty are:
- Build a request — you can tweak the address, headers, cookies, and body at will
- Send the request to the server — after the request is sent, it remains unchanged in your session history
- Inspect the server’s response — you can look at the status, headers, cookies, and body in various ways
- Review history — a normal and a verbose transcript of your session are available at all times (destroyed when you quit htty)
- Reuse previous requests — you can refer to prior requests and copy them
Here are a few annotated htty session transcripts to get you started (terminal screenshots shown here are also available in textual form).
Querying a web service
This simple example shows how to explore a read-only web service with htty.
You can point htty at a complete or partial web URL. If you don’t supply a URL, http://0.0.0.0/ (port 80) will be used. You can vary the protocol scheme, userinfo, host, port, path, query string, and fragment as you wish.
The htty shell prompt shows the address of the current request.
get command is one of seven HTTP request methods supported. A concise summary of the response is shown when you issue a request.
You can follow redirects using the
follow command. No request is made until you type a request command such as

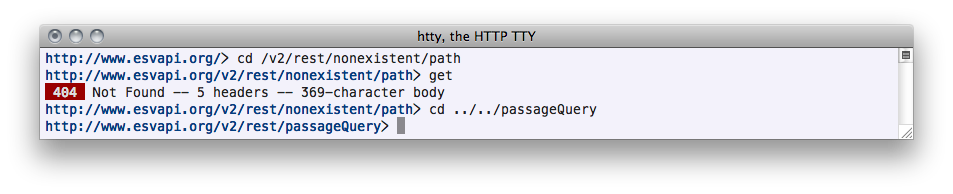

You can tweak segments of the address at will. Here we are navigating the site’s path hierarchy, which you can do with relative as well as absolute pathspecs.
Here we add query-string parameters. Notice that characters that require URL encoding are automatically URL-encoded (unless they are part of a URL-encoded expression).
body-response commands reveal the details of a response.
There was some cruft in the web service’s response (a horizontal line, a passage reference, verse numbers, a copyright stamp, and line breaks). We eliminate it by using API options provided by the web service we’re talking to.
We do a Julia Child maneuver and use the
address command to change the entire URL, rather than add individual query-string parameters one by one.
Exit your session at any time by typing
quit or hitting Ctrl-D.
Working with cookies
The next example demonstrates htty’s HTTP Secure support and cookies features, as well as how to review and revisit past requests.
The https:// scheme and port 443 imply each other, just as the http:// scheme and port 80 imply each other. If you omit the scheme or the port, it will default to the appropriate value.
Notice that when cookies are offered in a response, a bold asterisk (it looks like a cookie) appears in the response summary. The same cookie symbol appears next to the Set-Cookie header when you display response headers.
cookies-use command copies cookies out of the response into the next request. The cookie symbol appears next to the Cookie header when you display request headers.
An abbreviated history is available through the
history command. Information about requests in the history includes request method, URL, number of headers (and a cookie symbol, if cookies were sent), and the size of the body. Information about responses in the history includes response code, number of headers (and a cookie symbol, if cookies were received), and the size of the body.
Note that history contains only numbered HTTP request and response pairs, not a record of all the commands you enter.
reuse command makes a copy of the headers and body of an earlier request for you to build on.
Understanding complex HTTP conversations at a glance using history
Now we’ll look at htty’s HTTP Basic Authentication support and learn how to display unabbreviated transcripts of htty sessions.
Assume that we have the following Sinatra application listening on Sinatra’s default port, 4567.
require 'sinatra' get '/all-good' do [200, [['Set-Cookie', 'foo=bar; baz']], 'Hello World!'] end put '/huh' do [404, 'What?'] end delete '/hurl' do [500, 'Barf!'] end post '/submit-novel' do redirect '/all-good' end
This application expects GET and POST requests and responds in various contrived ways.
When you change the userinfo portion of the address, or the entire address, the appropriate HTTP Basic Authentication header is created for you automatically. Notice that characters that require URL encoding are automatically URL-encoded (unless they are part of a URL-encoded expression).
When userinfo is supplied in a request, a bold mercantile symbol ( @ ) appears next to the resulting Authorization header when you display request headers (see below).
body-set to enter body data, and terminate it by entering two consecutive blank lines, or by hitting Ctrl-D. The body will only be sent for POST and PUT requests. The appropriate Content-Length header is created for you automatically (see below).
Different response codes are rendered with colors that suggest their meaning:
- Response codes between 200 and 299 appear black on green to indicate success
- Response codes between 300 and 399 appear white on blue to indicate redirection
- Response codes between 400 and 499 appear white on red to indicate failure
- Response codes between 500 and 599 appear flashing black on yellow to indicate a server error
As with the abbreviated history demonstrated earlier, verbose history shows a numbered list of requests and the responses they elicited. All information exchanged between client and server is shown.
You can learn how to use htty commands from within htty.
help command takes an optional argument of the abbreviated or full name of a command.
Report defects and feature requests on GitHub Issues.
Your patches are welcome, and you will receive attribution here for good stuff. Fork the official htty repository and send a pull request.
After cloning the repository,
bin/setup to install dependencies. Then
rake to run the tests. You can also
bin/console to get an interactive prompt that will allow you to experiment.
To install this gem onto your local machine,
bundle exec rake install. To release a new version, update the version number in lib/htty/version.rb, and then
bundle exec rake release, which will create a Git tag for the version, push Git commits and tags, and push the .gem file to RubyGems.org.
News and information
Stay in touch with the htty project by following @get_htty on Twitter.
You can also get help in the #htty channel on Freenode.
Thanks to contributors (in alphabetical order):
- Dillon Benson (dibenso)
- Pascal Borreli (pborreli)
- Rob Dawson (ephox-rob/rojotek)
- Bo Frederiksen (bofrede)
- Johannes Gorset (jgorset)
- Gabriele Lana (gabrielelana)
- Carson McDonald (carsonmcdonald)
- Sam Nguyen (dtjm)
- Robert Pitts (rbxbx)
- Matt Sanders (nextmat)
Released under the MIT License.
