MIDI clock stability and usability improvements

[njanssen]

Hi!

I ran into an issue in the Electron version of Orca where MIDI clock messages were never processed when Orca started with no initial input MIDI device selected. After switching to the next MIDI input device with CmdOrCtrl+, (in my case selecting IAC Driver Bus 1) the MIDI message handler (Midi.receive) was not attached resulting in Orca not being notified of the clock messages received from this device.

I resolved this problem by relying on the logic in MIDI.selectInput (which sets the new input device index and MIDI message handler) in MIDI.selectNextInput when switching between input devices. I also updated the wrapping logic so index -1 (no input device) is selected when the user reached the end of the array with available input devices (Midi.inputs).

[njanssen]

Also tested these changes in the browser (Chrome), seems to work fine too 👍

[unthingable]

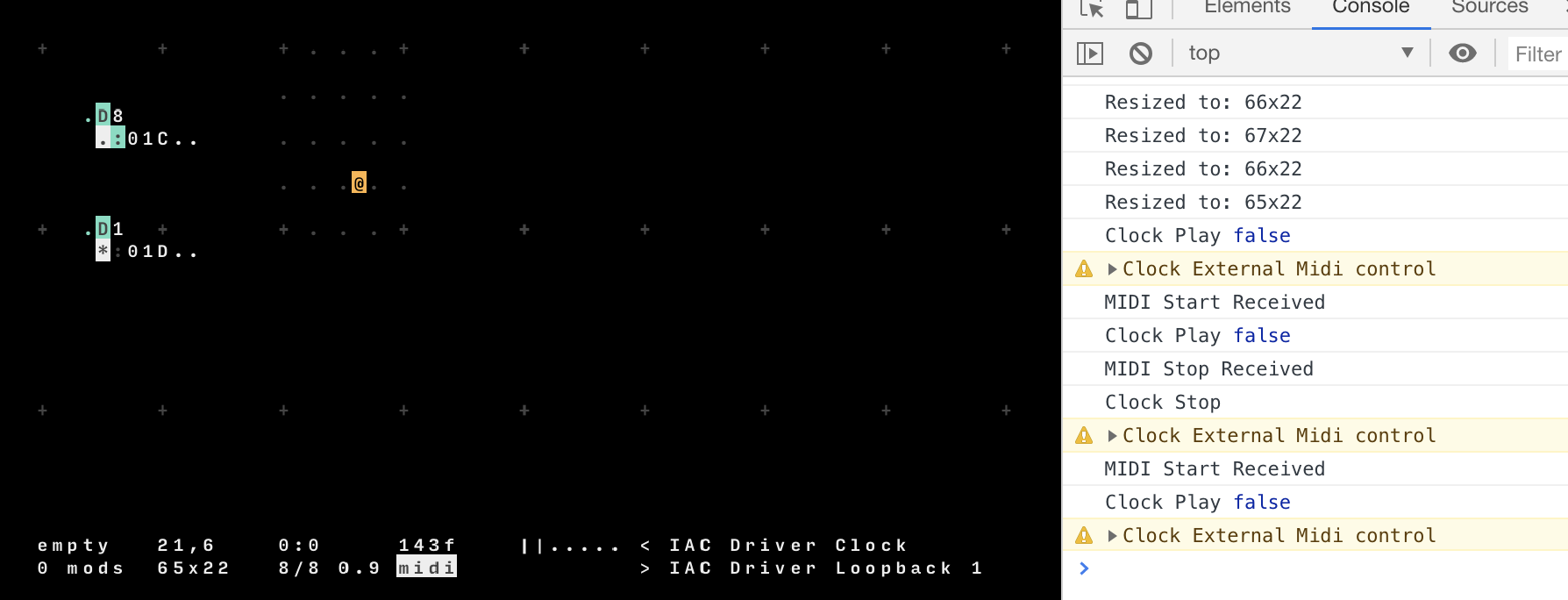

Nice! But, are you able to get the frames to advance once the clock is running and playing? I see Orca reporting received start and stop messages, but the frames are not increasing.

Looking at the code it never gets out of isPaused == true:

  this.tap = function () {
    pulse.last = performance.now()
    if (!this.isPuppet) {
      console.log('Clock', 'Puppeteering starts..')
      this.isPuppet = true
...
    }
    if (this.isPaused) { return }
... // on every 6th pulse
      client.run()

But

  this.play = function (msg = false) {
    console.log('Clock', 'Play', msg)
    if (this.isPaused === false) { return }
    if (this.isPuppet === true) { console.warn('Clock', 'External Midi control'); return }
    this.isPaused = false

[unthingable]

BTW thank you for leaving fddfba6 in the history, I was looking for an example :)

[unthingable]

Yep, when I do this it works:

--- a/desktop/sources/scripts/clock.js
+++ b/desktop/sources/scripts/clock.js
@@ -59,8 +59,8 @@ function Clock (client) {
   this.play = function (msg = false) {
     console.log('Clock', 'Play', msg)
     if (this.isPaused === false) { return }
-    if (this.isPuppet === true) { console.warn('Clock', 'External Midi control'); return }
     this.isPaused = false
+    if (this.isPuppet === true) { console.warn('Clock', 'External Midi control'); return }
     if (msg === true) { client.io.midi.sendClockStart() }
     this.setSpeed(this.speed.target, this.speed.target, true)
   }
@@ -68,8 +68,8 @@ function Clock (client) {
   this.stop = function (msg = false) {
     console.log('Clock', 'Stop')
     if (this.isPaused === true) { return }
-    if (this.isPuppet === true) { console.warn('Clock', 'External Midi control'); return }
     this.isPaused = true
+    if (this.isPuppet === true) { console.warn('Clock', 'External Midi control'); return }
     if (msg === true || client.io.midi.isClock) { client.io.midi.sendClockStop() }
     client.io.midi.allNotesOff()
     this.clearTimer()

[njanssen]

Hi @unthingable, for me the frames started advancing as soon as I sent midiClock commands. However, I now do notice that frames don't start advancing when Orca's clock is paused before starting the MIDI clock. As soon as the MIDI clock messages are received (and "Clock Puppeteering starts..") it's no longer possible to use space or MIDI start commands to unpause Orca and make the frames start advancing as you describe.

Your changes in Midi.play and Midi.stop indeed resolve this issue, because it makes it possible to resume (or pause) the clock by pressing space as you're used to when using Orca's own BPM clock. Something I did notice wasn't possible before when MIDI clock was running (thought it was by design). Besides using the keyboard, sending over MIDI start and stop messages to pause/resume Orca also work nicely after this change. I've added your change to the branch.

Thanks!

[unthingable]

Thanks! I think the behavior you were seeing initially could be because Orca starts up already running, and I was pausing mine.

This PR is just in time for this discussion: #219

[unthingable]

One minor annoyance is "clock start -> play" picks up the frame count where it left off and that is 6 times more likely to be out of sync with clock source. I think it makes more sense to reset the frame count. Giving it a try...

[unthingable]

Ok, it's a little wonky but it works:

  this.tap = function () {
    pulse.last = performance.now()
    if (!this.isPuppet) {
      console.log('Clock', 'Puppeteering starts..')
      this.isPuppet = true
      this.clearTimer()
      pulse.timer = setInterval(() => {
        if (performance.now() - pulse.last < 2000) { return }
        this.untap()
      }, 2000)
    }
    if (this.isPaused) { return }
    if (pulse.count === 0) {
      client.run()
    }
    pulse.count = (pulse.count + 1) % 6
  }

  this.play = function (msg = false) {
    console.log('Clock', 'Play', msg)
    if (this.isPaused === false) { return }
    this.isPaused = false
    if (this.isPuppet === true) {
      pulse.count = 0  // works in conjunction with `tap` advancing on 0
      this.setFrame(0)  // make sure frame aligns with pulse count for an accurate beat
      console.warn('Clock', 'External Midi control')
      return
    }
    if (msg === true) { client.io.midi.sendClockStart() }
    this.setSpeed(this.speed.target, this.speed.target, true)
  }

This assumes clock start/continue is always quantized at the source (starting on a beat), if not then there is also SPP to get an offset from. Interesting note about Bitwig's SPP implementation: when looping with SPP enabled it will send "stop" then SPP then "start" again. Without SPP it sends no stop/start, the clock just keeps going. Don't know if that's standard, haven't checked other hosts yet.

Once the clock is going steady the timing sounds internally consistent and solid. What's wonky is "start -> play" can be off by a random amount. Adjusting clock out offset at the source will bring it in sync and it will stay there until the next stop+start, then it will be off again. I wonder if this has something to do with onmidimessage scheduling, if so it could get worse when there is more MIDI data to process than just clock.

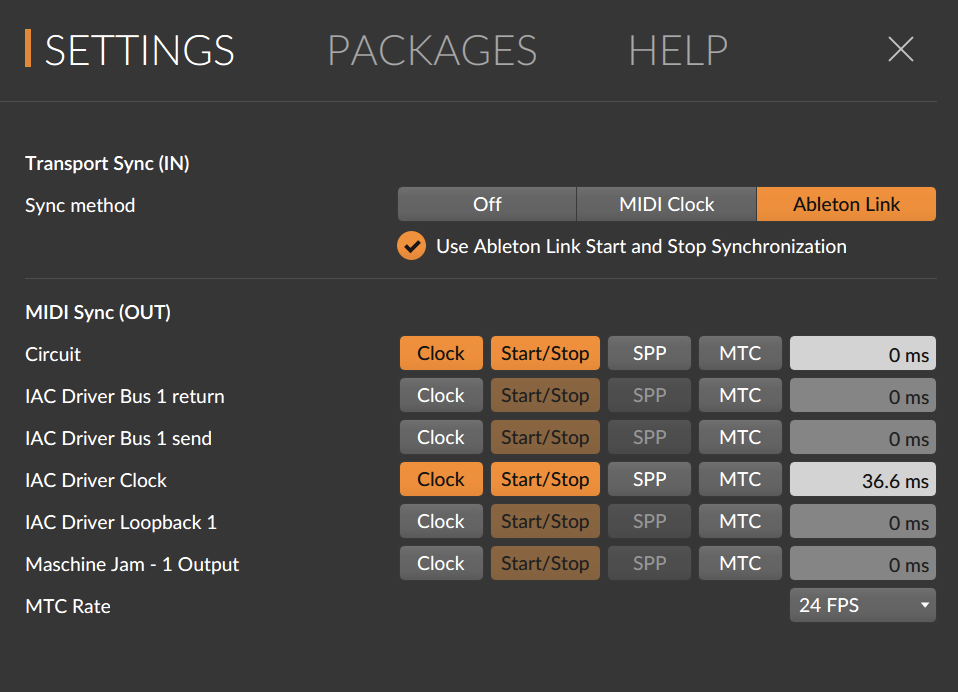

Although... playing with it a bit more, Bitwig driving Orca at 110bpm I'm getting pretty consistent results with no SPP enabled and clock out offset at 35-40ms, even after stopping and restarting Bitwig playback — the first beat in Orca is off but the rest are fine. With SPP same is true with the same but negative offset, -35 - -40ms, and the first beat will be off every time it loops. With SPP off it's pretty usable!

[unthingable]

Happy to PR the above into this branch or master.

[njanssen]

Happy to PR the above into this branch or master.

@unthingable Sounds good! It would be great to have predictable MIDI clock syncing in Orca. I'm personally using TidalCycles to send the MIDI clock messages, and I also noticed the drifting of the beat alignment. I guess creating a PR on this branch instead of master would make testing easier.

[unthingable]

@njanssen done: njanssen#1 (with an additional improvement: stopping notes while in clock slave mode)

[unthingable]

@njanssen 👋 :)

I've been playing with my version for a couple of days now, no drifting beats.

[njanssen]

@njanssen 👋 :)

I've been playing with my version for a couple of days now, no drifting beats.

Looks good! I found an issue when the user pauses/resumes Orca using space since that action will also reset the counter. I think we should fix that before we can merge in that PR.

[unthingable]

@njanssen thanks! I see your comments in my PR, will respond there.

[unthingable]

@njanssen my fixes are ready to merge, @neauoire will be testing and merging this this weekend.

Summary of incoming changes:

• Fixed: beat drift when stopping and resuming Orca
• Fixed: beat drift when (re)starting master
• Fixed: hung notes when stopping Orca while synced to external clock
• Fixed: Orca unpausing itself after external clock stops
• Changed: Orca will always sync to clock START messages by resetting frame count, even if already playing

This collaborative PR may need an updated title.

[neauoire]

I can't wait to give this a try, you're amazing u know <3

[unthingable]

For posterity, a fun mod for those wanting 16th notes without doubling the source bpm:

diff --git a/desktop/sources/scripts/clock.js b/desktop/sources/scripts/clock.js
index 95086cf..3a29be5 100644
--- a/desktop/sources/scripts/clock.js
+++ b/desktop/sources/scripts/clock.js
@@ -5,6 +5,7 @@
 function Clock (client) {
   const workerScript = 'onmessage = (e) => { setInterval(() => { postMessage(true) }, e.data)}'
   const worker = window.URL.createObjectURL(new Blob([workerScript], { type: 'text/javascript' }))
+  const pulsePerFrame = 3

   this.isPaused = true
   this.timer = null
@@ -65,7 +66,7 @@ function Clock (client) {
       if (!pulse.frame || midiStart) {  // no frames counted while paused (starting from no clock, unlikely) or triggered by MIDI clock START
         this.setFrame(0)  // make sure frame aligns with pulse count for an accurate beat
         pulse.frame = 0
-        pulse.count = 5   // by MIDI standard next pulse is the beat
+        pulse.count = pulsePerFrame - 1   // by MIDI standard next pulse is the beat
       }
     } else {
       if (msg === true) { client.io.midi.sendClockStart() }
@@ -97,7 +98,7 @@ function Clock (client) {
   }

   this.tap = function () {
-    pulse.count = (pulse.count + 1) % 6
+    pulse.count = (pulse.count + 1) % pulsePerFrame
     pulse.last = performance.now()
     if (!this.isPuppet) {
       console.log('Clock', 'Puppeteering starts..')

[neauoire]

This works wonders!
