MapDiffBot-DMM

MapDiffBot-DMM generates DMM files showing the changes in a map via GitHub's Checks API, in a convenient format with easily locatable changes.

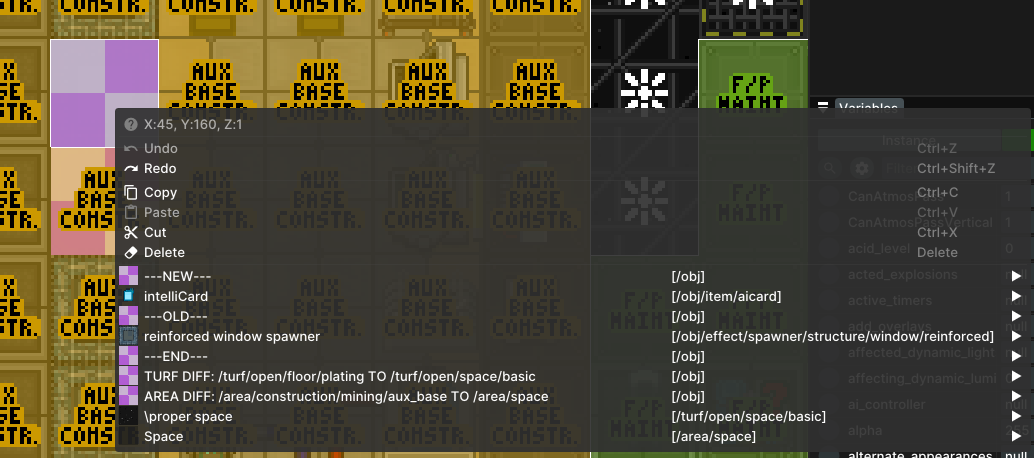

Features integration with FastDMM2 for easy in-browser full diff viewing.

Install to Repository

Diffs

Diffs can be generated directly (without using GitHub) by directly calling diff.py with files as arguments.

Example (run from a directory above the repo, with the repo folder named MapDiffBot-DMM, because python is a terrible language for modular code):

python -m MapDiffBot-DMM.diff old.dmm new.dmm diff.dmm

Configuration

Name	Description	Default
app-id	The App ID of your Github app. Listed under "About"	N/A
app-key-path	This is the path to the file containing the private key for your app. Generate one and then put it in the repo folder.	"private_key.pem"
host	Base URL to direct map downloads to (if host-dmms is enabled, it should point to this server).	N/A
dmm-url	URL path to direct map downloads to (appended to host, starts with /). Also used to listen for requests if host-dmms is enabled.	"/map-diff"
webhook-path	URL path to listen for webhook requests on (start with /)	"/webhook"
webhook-secret	Optional, webhook secret used to sign/verify requests are from GitHub, if you created one	N/A
fastdmm-host	Host for FastDMM links, in case you want to use a fork.	"https://fastdmm2.ss13.io"
host-dmms	If this server should host the DMM files from the folder it saves to and serve them.	"dmms/"
dmm-save-path	Filesystem location to save DMM files to.	true
banned-repos	List of repo paths that are not processed (format: "Owner/RepoName")	[]
threads-network	Threads dedicated to downloading maps (needs to be limited due to GitHub API usage)	7
threads-fileio	Threads dedicated to performing diffs and writing files.	20
use-gzip	Enables writing DMMs to gzipped files. Webservers can be configured to serve these directly, saving local storage and bandwith. Note that the builtin file server does not support this option.	false

Development Options

port: Port to listen to webhook requests on.

debug: Enables Flask's debug mode.

threaded: Enables Flask's threading - you definitely want this, as it allows multiple requests to be processed asynchronously.

GitHub App Setup

Go to GitHub App settings, create an app.

Add the following permissions:

• Checks: Read and write
• Contents: Read-only
• Pull requests: Read-only

Create a webhook redirecting to webhook-url on your server, with the following event subscriptions:

• Pull request

Create a client secret, save it to the server's filesystem, and set app-key to the path to the file.

Copy the App ID and put it into app-id.

Optionally, create a webhook secret, put it into webhook-secret.

Deployment

There are many options for deploying Flask applications, pick any from Flask's deployment guide.

Do note that due to how this is written, it won't work without an accessible local filesystem. Depending on your deployment, you may want to disable host-dmms, as many webservers can easily serve a folder as downloads with little configuration.

For use with mod_wsgi, a mapdiffbot-dmm.wsgi is included.

Also note that python is picky about module folder names, you should rename the folder of the downloaded copy of this repo to mapdiffbotdmm.

Example Deployment (Debian+Apache2)

# Install python and wsgi
sudo apt install python3 python3-pip libapache2-mod-wsgi-py3
# Enable wsgi for apache2
sudo a2enmod wsgi
# Create system user and /srv/mdb directory
sudo useradd -m -r -d /srv/mdb -s /usr/sbin/nologin wsgi-mdb
sudo git clone https://github.com/itsmeow/MapDiffBot-DMM -C /srv/mdb/mapdiffbotdmm
# Install required packages
sudo pip install -r /srv/mdb/mapdiffbotdmm/requirements.txt
# Set directory permissions and ownership
sudo chmod 750 /srv/mdb
sudo chown wsgi-mdb:wsgi-mdb /srv/mdb
sudo mkdir /var/www/dmms
sudo chmod 755 /var/www/dmms
sudo chown wsgi-mdb:wsgi-mdb /var/www/dmms

/etc/apache2/sites-available/mdb.conf

This assumes you already have a working SSL configuration, otherwise, just use HTTP and change the virtual host to *:80

File contents

<VirtualHost *:80>
        ServerName example.com
        RewriteEngine On
        RewriteCond %{HTTPS} !=on
        RewriteRule ^/?(.*) https://%{SERVER_NAME}/$1 [R,L]
</VirtualHost>
<VirtualHost *:443>
        ServerName example.com
        WSGIDaemonProcess MapDiffBot-DMM user=wsgi-mdb group=wsgi-mdb threads=5
        WSGIScriptAlias / /srv/mdb/mapdiffbot-dmm.wsgi
        AddHandler default-handler dmm
        <FilesMatch "\.dmm$">
                Header set Content-Disposition attachment
        </FilesMatch>
        <Location /*>
                Require all denied
        </Location>
        <Location /map-diff>
                Require all granted
                Header set Access-Control-Allow-Origin "*"
        </Location>
        <Location /webhook>
                Require all granted
        </Location>
        <Directory /srv/mdb>
                WSGIProcessGroup MapDiffBot-DMM
                WSGIApplicationGroup %{GLOBAL}
                Require all granted
        </Directory>
        Alias /map-diff/ /var/www/dmms/
        <Directory /var/www/dmms>
                Header set Access-Control-Allow-Origin "*"
                Require all granted
                Options -Indexes
        </Directory>
        ErrorLog ${APACHE_LOG_DIR}/mdb_error.log
        LogLevel info
        CustomLog ${APACHE_LOG_DIR}/mdb_access.log combined
</VirtualHost>

Run after creating config

sudo a2ensite mdb

Once done with deployment

sudo systemctl restart apache2

Check for errors

sudo tail /var/log/apache2/error.log
sudo tail /var/log/apache2/mdb_error.log

/srv/mdb

Directory Permissions

sudo chmod 750 /srv/mdb
sudo chown wsgi-mdb:wsgi-mdb /srv/mdb

rwxr-x--- wsgi-mdb wsgi-mdb

/srv/mdb/priv_key.pem

-----BEGIN RSA PRIVATE KEY-----
Your GH application privkey here
-----END RSA PRIVATE KEY-----

/srv/mdb/mapdiffbot-dmm.wsgi

#!/usr/bin/python
import sys
import logging
logging.basicConfig(stream=sys.stdout)
sys.path.insert(0, "/srv/mdb")
from mapdiffbotdmm.server import app as application

/srv/mdb/mapdiffbotdmm/config.json

{
  "name": "MapDiffBot-DMM",
  "app-id": "Your GH application ID here",
  "app-key-path": "/srv/mdb/priv_key.pem",
  "host": "https://example.com",
  "dmm-url": "/map-diff",
  "webhook-path": "/webhook",
  "webhook-secret": "Your GH application webhook secret here",
  "fastdmm-host": "https://fastdmm2.ss13.io",
  "dmm-save-path": "/var/www/dmms/",
  "host-dmms": false,
  "banned-repos": [],
  "threads-network": 7,
  "threads-fileio": 20,
  "use-gzip": false,
  "debug": false,
  "threaded": true,
  "port": 5000
}

/var/www/dmms

Directory Permissions

sudo chmod 755 /var/www/dmms
sudo chown wsgi-mdb:wsgi-mdb /var/www/dmms

rwxr-xr-x wsgi-mdb wsgi-mdb

To enable filesystem compression

Enable use-gzip in config.json.

Then, in mdb.conf, add the following (use existing blocks, just add the contents):

<Directory /var/www/dmms>
        AddEncoding gzip gz
        ForceType text/plain
        Options +Multiviews -Indexes
        SetEnv force-no-vary
        Header set Cache-Control "private"
</Directory>

Change the FilesMatch block to this:

<FilesMatch "\.(dmm|dmm\.gz)$">
        Header set Content-Disposition attachment
</FilesMatch>

Compress your existing DMM files:

find /var/www/dmms/ -type f \( -name '*.dmm'  \)
     -exec gzip {} \;
