Diwata

Diwata is a database interface for PostgreSQL with the goal of being usable, user-friendly with its basic and advanced functionality be discoverable by the user. Goal of diwata is to be a replacement of back-end admin without explicitly writing the code for it. It is content aware, and renders records as it sees fits. An attempt to create back-end to end all back-ends.

Features

• Automatic display of direct and indirect linked record
• Freeze column and freeze rows
• Infinite scrolling / loading of page on scrolling
• User friendly granular search and filter
• Diplay descriptive referred records. (ie: Instead of displaying the foreign_key value integer or uuid, display the referred records in such a way it is distinguisable by the user)
• Well integrated with the browsers, clickable tables, records and tabs can be openned in a new window and displays the data as though clicking on it.

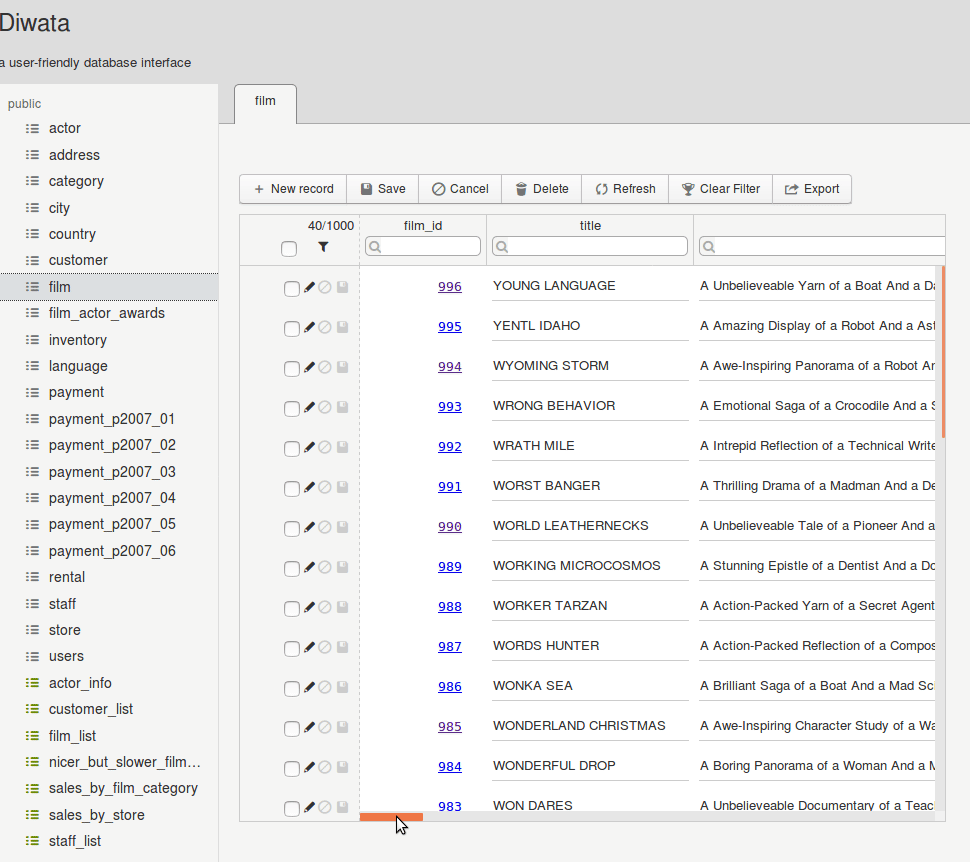

Freeze row Freeze column

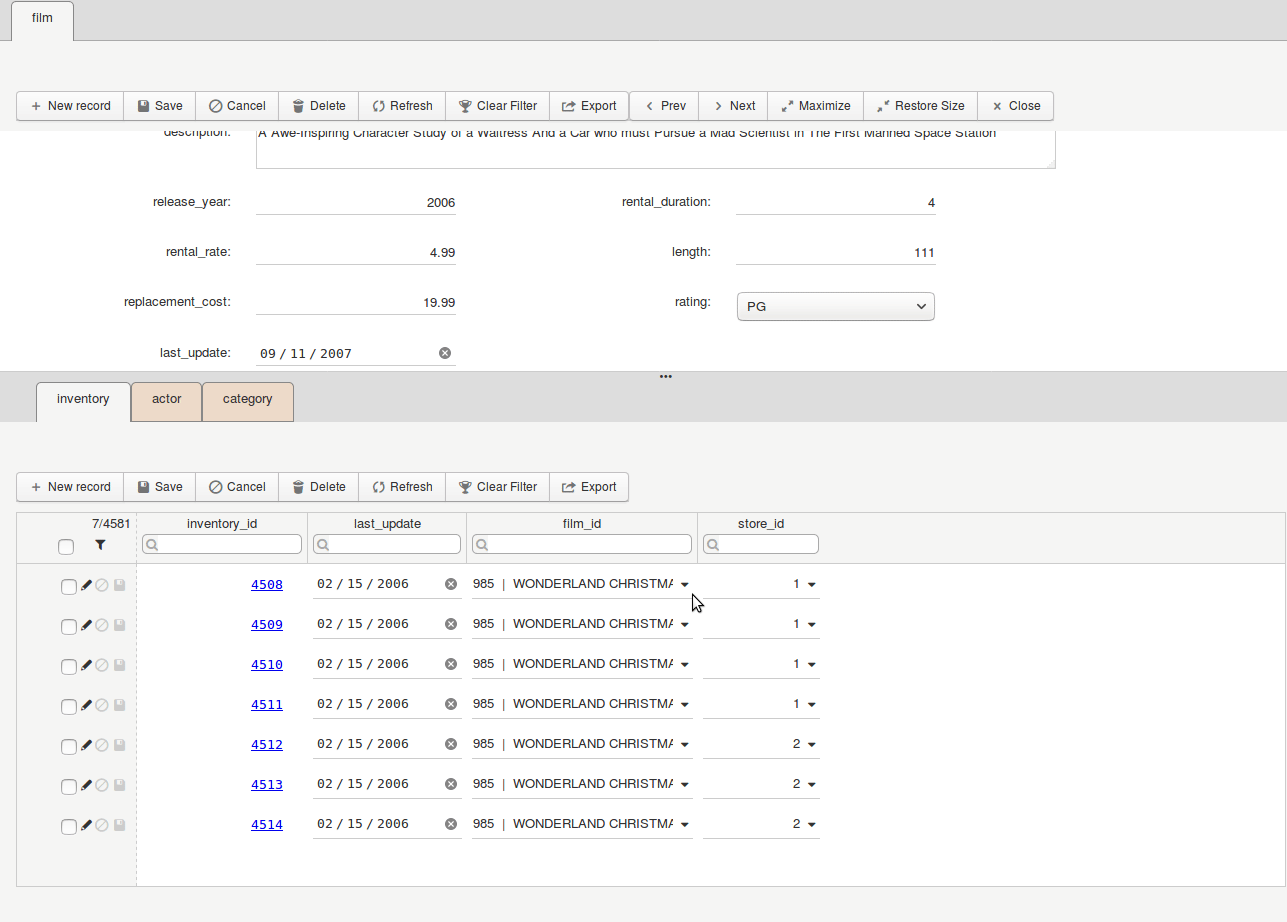

Distinguisable referred record in a dropdown

Dynamic toolbar displaying the exact information of what the button actually does

Navigating through the apps and opening other window in another browser window/tab is seamless

Binary data detected as images would be rendered as such

Demo - Sakila (films) using the sakila database example

Demo - airlines (russian) russian airlines booking database

Demo - Dota2 heroes using dota2 hero and abilities data

Quickstart

If you have an existing postgresql database, you can quickly open it using the app by:

curl https://sh.rustup.rs -sSf | sh -s -- -y --default-toolchain nightly
cargo install diwata_cli
diwata_cli --db-url postgres://user:passwd@localhost:5432/dbname -p 8000 --open

You can also open sqlite database. Download this sqlite sample db You can then open it by issuing the command

diwata_cli --db-url sqlite://sakila.db  -p 80001 --open

Build from source

Needed Dependencies

• rust nightly
• elm v0.18 ( elm installation needed npm or yarn)
• rsync ( for fast syncing files over and over )
• google-closure-compiler (optional, for release build)
• sed (search and replace app.js with app.min.js in index.html
• sakila database (for demo and testing) [1]
• build-essential (for compiling c based dependencies such as sqlite-src)

Install Dependencies

curl https://sh.rustup.rs -sSf | sh
sudo apt install rsync build-essential pkg-config
npm install -g elm@0.18
npm install -g google-closure-compiler-js

Compile and run

git clone https://github.com/ivanceras/diwata
cd diwata
git submodule update --init --recursive
rustup self update && rustup update
rustup override set nightly
cd webclient && ./compile.sh && cd ..

cargo run -p diwata -- --dburl <db_url>

Note: You need to use the latest nightly.

Specify a database ( sakila database example )

cargo run -p diwata_server -- --dburl postgres://postgres:passwd@localhost:5432/sakila -p 8000

see run.sh for the accurate content of command

Then visit http://localhost:8000/

Content Aware

Using heristic method, diwata is able to infer the content of a table.

• When it a column is a boolean it make sense to display it with a checkbox rather than just 'true' and 'false'. Dates will be rendered with a dropdown calender.
• Country lookup will be rendered with a dropdown list of country alongside their flags
• Images will be displayed in line when in grid view, and will be fully displayed when in card view
• Attachments such as pdf,xls,csv,svg,md,txt,source codes will be rendered to their corresponding document editors
• Urls are linked and clickable automatically
• Embed common web objects: youtube videos, tweets, images, map locations

Roadmap checklist:

• Infinite load-on-deman scrolling
• Meaningful dropdown lookup
• Seamless url-based navigation
• Delete records
• Update records
• Insert records
• Detail record update/insert, delete link detail records [X] Filtering and searching on has_many and indirect records for detailed record
• Undo update/delete records (upon deletion/modification, user have a grace period to undo the changes)
• Search and filter data
• Drag/Rearrange and resize columns
• Multi column sorting
• Smart delete cascade messages
• Error Handling/Error messages display
• Advanced filtering, where user can type in the logic for filtering
• Display of images and file attachments
• Interactive/dynamic record count indicator for toolbar buttons
• Loading indicators
• Page transition animation
• Search/filter on tables
• Table/Columns filtering based on privilege system.
  • Display only tables that the user has privilege
  • Display only columns that the user has privilege
  • An interface for superusers to set user privileges for each tables
• Row level security
  • When the server is configured to require user login, the user will be forced to login

Next iteration development

• Plugin and module system
• Custom validation on field
• Custom buttons for application specific functionality

Notes:

[1]: You can use sakila database dump as demo database https://github.com/ivanceras/sakila
