[JENKINS-67849] Organization folder not displayed when Jenkins is launched with a prefix (regression in 2.335)

[jenkins-infra-bot]

I've upgraded to 2.335 from 2.334, and the folder icons no longer display correctly when a JENKINS_PREFIX is included in the config, such as:

[Service]
Environment="JENKINS_PREFIX=/jenkins"

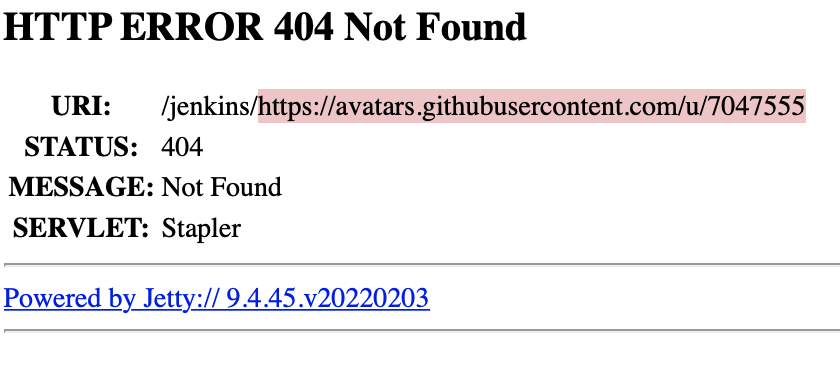

The prefix is added to the absolute URLs:

---

Originally reported by ben_gineer, imported from: Organization folder not displayed when Jenkins is launched with a prefix (regression in 2.335)

• assignee: timja
• status: Closed
• priority: Critical
• component(s): core
• label(s): regression, ux
• resolution: Fixed
• resolved: 2022-04-15T13:23:13+00:00
• votes: 6
• watchers: 9
• imported: 2025-11-24

Raw content of original issue

I've upgraded to 2.335 from 2.334, and the folder icons no longer display correctly when a JENKINS_PREFIX is included in the config, such as:

[Service]
Environment="JENKINS_PREFIX=/jenkins"


The prefix is added to the absolute URLs:



8 attachments

• Screenshot 2022-02-19 at 14.23.55.png



• Screenshot 2022-02-19 at 14.24.14.png



• Screenshot 2022-02-23 at 19.48.59.png



• Screenshot 2022-02-23 at 19.49.43.png



• Screenshot 2022-02-23 at 19.57.35.png



• jenkins-with-prefix-broken-icon-inspect-Screenshot-2022-02-23.png



• jenkins-without-prefix-unbroken-icon-inspect-Screenshot-2022-02-23.png



• screenshot-JENKINS-26823.png



[jenkins-infra-bot]

• Remote link associated with this issue:

  • [JENKINS-67849] Correct icon resolution for remote icons #6476

[jenkins-infra-bot]

markewaite:

• Original comment link
• Raw content of original comment:

  Thanks for reporting the issue!  The fix is included in PR 6286 that is planned to be included in Jenkins 2.336 Feb 22, 2022.


Thanks for reporting the issue! The fix is included in PR 6286 that is planned to be included in Jenkins 2.336 Feb 22, 2022.

[jenkins-infra-bot]

ben_gineer:

• Original comment link
• Raw content of original comment:

  I've updated to 2.336, but I still see this issue:








I've updated to 2.336, but I still see this issue:



[jenkins-infra-bot]

ben_gineer:

• Original comment link
• Raw content of original comment:

  Seems it may be related to JENKINS-67877. However, I'm running the latest version of the Bitbucket branch source plugin (757.vddedc5f2589a), but still see the prefix being prepended to the URL.

  Note this occurs on GitHub organisation icons too:




Seems it may be related to JENKINS-67877. However, I'm running the latest version of the Bitbucket branch source plugin (757.vddedc5f2589a), but still see the prefix being prepended to the URL.

Note this occurs on GitHub organisation icons too:

[jenkins-infra-bot]

notmyfault:

• Original comment link
• Raw content of original comment:

  I'm unable to replicate that on 2.336



I'm unable to replicate that on 2.336

[jenkins-infra-bot]

markewaite:

• Original comment link
• Raw content of original comment:

  Replicating the problem seems to require that --prefix=jenkins must be set on the Jenkins instance.

  Without --prefix=jenkins (display is good)



  With --prefix=jenkins (image is broken)



  I use the --prefix argument to allow me to run Jenkins at https://home.markwaite.net/jenkins/ through an nginx reverse proxy


Replicating the problem seems to require that --prefix=jenkins must be set on the Jenkins instance.

Without --prefix=jenkins (display is good)

With --prefix=jenkins (image is broken)

I use the --prefix argument to allow me to run Jenkins at https://home.markwaite.net/jenkins/ through an nginx reverse proxy

[jenkins-infra-bot]

notmyfault:

• Original comment link
• Raw content of original comment:

  Oh I see, good to know. Then this issue is a regression of 2.335 and the icon metadata validation.


Oh I see, good to know. Then this issue is a regression of 2.335 and the icon metadata validation.

[jenkins-infra-bot]

notmyfault:

• Original comment link
• Raw content of original comment:

  CC janfaracik if you don't mind revisiting this.


CC janfaracik if you don't mind revisiting this.

[jenkins-infra-bot]

cschoell:

• Original comment link
• Raw content of original comment:

  The issue still exists in 2.338 (run as war deployment to a tomcat instance)

  It renders:

  <img src="/jenkinshttps://myjenkinsinstance.de/jenkins/custom-avatar-cache/1ec36e9f1a1fb54db76fdc2a5a60b6c5.png?size=48x48" alt="Bitbucket Team/Project" width="48" tooltip="Bitbucket Team/Project" height="48" title="Bitbucket Team/Project">


  seemingly conflating context path with the full url


The issue still exists in 2.338 (run as war deployment to a tomcat instance)

It renders:

"/jenkinshttps://myjenkinsinstance.de/jenkins/custom-avatar-cache/1ec36e9f1a1fb54db76fdc2a5a60b6c5.png?size=48x48" alt="Bitbucket Team/Project" width="48" tooltip="Bitbucket Team/Project" height="48" title="Bitbucket Team/Project">

seemingly conflating context path with the full url

[jenkins-infra-bot]

ikari7789:

• Original comment link
• Raw content of original comment:

  Still seeing the issue in 2.340. Issue seems to come when the supplied URL is a fullpath vs a relative path? The default icons for disabled projects and the SVG folder icon are displaying just fine in my case, but the GitHub project/Bitbucket server icons are receiving full paths and getting the prefix prepended.


Still seeing the issue in 2.340. Issue seems to come when the supplied URL is a fullpath vs a relative path? The default icons for disabled projects and the SVG folder icon are displaying just fine in my case, but the GitHub project/Bitbucket server icons are receiving full paths and getting the prefix prepended.

[jenkins-infra-bot]

basil:

• Original comment link
• Raw content of original comment:

  As described in the comments in JENKINS-67823, this issue persists in 2.342 GitHub and Bitbucket organisations with a path prefix.


As described in the comments in JENKINS-67823, this issue persists in 2.342 GitHub and Bitbucket organisations with a path prefix.

[jenkins-infra-bot]

basil:

• Original comment link
• Raw content of original comment:

  I can reproduce the problem by installing 2.333 and all suggested plugins, including GitHub Branch Source. I then started Jenkins with --prefix=/jenkins and created a GitHub Organization Folder for a user with a custom icon. I verified that the icon displayed correctly. Then I upgraded to HEAD (commit b37ea91bf3) and get the results shown in this screenshot. Bisection shows that the bug was introduced in jenkinsci/jenkins#6186.


I can reproduce the problem by installing 2.333 and all suggested plugins, including GitHub Branch Source. I then started Jenkins with --prefix=/jenkins and created a GitHub Organization Folder for a user with a custom icon. I verified that the icon displayed correctly. Then I upgraded to HEAD (commit b37ea91) and get the results shown in this screenshot. Bisection shows that the bug was introduced in jenkinsci/jenkins#6186.

[jenkins-infra-bot]

han_geerligs:

• Original comment link
• Raw content of original comment:

  please note icon is missing as well for Gitlab organisations.

  Jenkins is in my case not launched with prefix.


please note icon is missing as well for Gitlab organisations.

Jenkins is in my case not launched with prefix.

[jenkins-infra-bot]

gulyas_istvan_netlock:

• Original comment link
• Raw content of original comment:

  I think some disorder in reopening an reclosing tasks...
  The closed task(JENKINS-67823) problem should continue here, because comment: https://issues.jenkins.io/browse/JENKINS-67823?focusedCommentId=424258&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-424258

  For the existing bug please see JENKINS-67823 history or this comment for example: https://issues.jenkins.io/browse/JENKINS-67823?focusedCommentId=423876&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-423876

  The original icon uri problem still present with or without concatenated prefix problem:


I think some disorder in reopening an reclosing tasks...
The closed task(JENKINS-67823) problem should continue here, because comment: https://issues.jenkins.io/browse/JENKINS-67823?focusedCommentId=424258&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-424258

For the existing bug please see JENKINS-67823 history or this comment for example: https://issues.jenkins.io/browse/JENKINS-67823?focusedCommentId=423876&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-423876

The original icon uri problem still present with or without concatenated prefix problem:

[jenkins-infra-bot]

basil:

• Original comment link
• Raw content of original comment:

  Jenkins is in my case not launched with prefix.

  han_geerligs Please do not comment in this ticket if your problem does not match the title of the ticket, which reads:

  Organization folder not displayed when Jenkins is launched with a prefix (regression in 2.335)

  If you are not using a prefix, please open a new ticket with steps to reproduce the issue from scratch and the labels "ux" and "regression.


Jenkins is in my case not launched with prefix.

han_geerligs Please do not comment in this ticket if your problem does not match the title of the ticket, which reads:

Organization folder not displayed when Jenkins is launched with a prefix (regression in 2.335)

If you are not using a prefix, please open a new ticket with steps to reproduce the issue from scratch and the labels "ux" and "regression.
