[JENKINS-11577] Matrix axis are not recognixed as parameter #501
Description
We want to want to create a matrix job which triggers the current another job with the current matrix parameters.
Concrete example: Our setup creation consists of two steps. The first job (prepare-setup) is to collect all the files and potentially encrypt them, the second step (setup) is to create a setup.exe. prepare-setup is a matix build with the ecryption option as its values (encrypted, unencrypted). The second job should be triggered with the encryption option as its parameter, so that we have an encryted setup (for the customers) and an unencrypted (for internal tests and debugging)

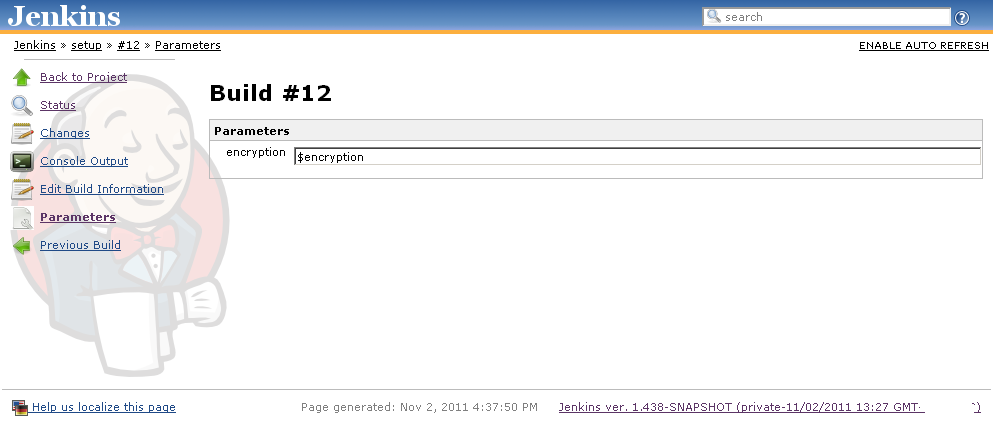

Currenty the setup job is triggered twice, both with the value "$encryption" for the encryption parameter. (see screenshot)
Originally reported by jotbepunkt, imported from: Matrix axis are not recognixed as parameter
- assignee: huybrechts
- status: Resolved
- priority: Major
- component(s): parameterized-trigger-plugin
- resolution: Fixed
- resolved: 2013-02-16T18:58:56+00:00
- votes: 2
- watchers: 7
- imported: 2025-12-07
Raw content of original issue
We want to want to create a matrix job which triggers the current another job with the current matrix parameters.
Concrete example: Our setup creation consists of two steps. The first job (prepare-setup) is to collect all the files and potentially encrypt them, the second step (setup) is to create a setup.exe. prepare-setup is a matix build with the ecryption option as its values (encrypted, unencrypted). The second job should be triggered with the encryption option as its parameter, so that we have an encryted setup (for the customers) and an unencrypted (for internal tests and debugging)
Currenty the setup job is triggered twice, both with the value "$encryption" for the encryption parameter. (see screenshot)
Activity
jenkins-infra-bot commentedon Nov 2, 2011
jotbepunkt:
Raw content of original comment:
As a workaround you can write the matrix configuration to a property file (via batch or shell script) and trigger the other job using that property file.
jenkins-infra-bot commentedon May 29, 2012
vladichko:
Raw content of original comment:
Hi,
Is there any progress on this?
jenkins-infra-bot commentedon Aug 24, 2012
cjo9900:
Raw content of original comment:
When using the predefined Parameters option the variables are expanded using the following
EnvVars env = build.getEnvironment(listener);
Properties p = new Properties();
p.load(new StringInputStream(properties));
List values = new ArrayList();
for (Map.Entry entry : p.entrySet()) {
values.add(new StringParameterValue(entry.getKey().toString(), env.expand(entry.getValue().toString())));
}
So the issues looks to be that the axis are not added to the EnvVars returned by build.getEnvironment(),
as they are added in the MatrixRun class in the getBuildVariables() function.
public Map getBuildVariables() {
{ Axis a = axes.find(e.getKey()); if (a!=null) a.addBuildVariable(e.getValue(),r); else r.put(e.getKey(), e.getValue()); }Map r = super.getBuildVariables();
// pick up user axes
AxisList axes = getParent().getParent().getAxes();
for (Map.Entry e : getParent().getCombination().entrySet())
return r;
}
so the predefined parameters also needs to Expand the build variables.
jenkins-infra-bot commentedon Aug 24, 2012
cjo9900:
Raw content of original comment:
Actually the issue is that the Dependancy is connected between the Matrix project and the and the downstream project, so when the Dependancy is called to contribute the parameters this variable is not present.
jenkins-infra-bot commentedon Feb 3, 2013
cjo9900:
Raw content of original comment:
Axis are not added as Environment variables, just as buildVariables and therefore are not present when calling getEnviroment from the build trigger.
Code to add these is at https://github.com/jenkinsci/jenkins/blob/master/core/src/main/java/hudson/matrix/MatrixRun.java#L114
but does not add the to the Environment.
jenkins-infra-bot commentedon Feb 6, 2013
cjo9900:
Raw content of original comment:
Currently the AXIS parameters are not added the environment that the parameterized trigger uses in the trigger build step.
They are missing when the plugin does build.getEnvironment()[0] as MatrixRun does not add them to this, so defaults to the ones added in AbstractBuild [1]
But they are added to the build.getBuildVariables(), as the are added in the MatrixRun [2]
So the solution might be to add these via a EnvironmentContributor [3] in the MatrixRun class.
[0]
parameterized-trigger-plugin/src/main/java/hudson/plugins/parameterizedtrigger/BuildTrigger.java
Line 59 in c04e847
[1] https://github.com/jenkinsci/jenkins/blob/master/core/src/main/java/hudson/model/AbstractBuild.java#L935
[2] https://github.com/jenkinsci/jenkins/blob/master/core/src/main/java/hudson/matrix/MatrixRun.java#L114
[3] https://github.com/jenkinsci/jenkins/blob/master/core/src/main/java/hudson/model/EnvironmentContributor.java
jenkins-infra-bot commentedon Feb 16, 2013
Raw content of original comment:
Code changed in jenkins
User: Kohsuke Kawaguchi
Path:
changelog.html
core/src/main/java/hudson/matrix/MatrixConfiguration.java
http://jenkins-ci.org/commit/jenkins/a6dddf2917c1d9ae819f86947a7ccffa2a04d728
Log:
[FIXED JENKINS-11577]
Traditionally, matrix axis values are only exposed as "build variables", and it was up to individual build steps and others to treat them equally like environment variables.
However, in practice, this distinction between environment variables vs build variables didn't serve any useful purposes, and the down side (of some plugins only expanding env vars in the ${VAR} notation and not build variables) was probably bigger than whatever benefit this distinction was supposed to bring.
In this fix, we are exposing matrix axis values also as environment variables. This will make them recognizable from plugins that only expand environment variables, such as parameterized trigger plugins as indicated in the original bug report.
This was motivated by pull request #701 but fix was made differently.
–
You received this message because you are subscribed to the Google Groups "Jenkins Commits" group.
To unsubscribe from this group and stop receiving emails from it, send an email to jenkinsci-commits+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.
jenkins-infra-bot commentedon Feb 16, 2013
Raw content of original comment:
Integrated in
jenkins_main_trunk #2282
[FIXED JENKINS-11577] (Revision a6dddf2917c1d9ae819f86947a7ccffa2a04d728)
Result = SUCCESS
kohsuke : a6dddf2917c1d9ae819f86947a7ccffa2a04d728
Files :
jenkins-infra-bot commentedon Apr 15, 2016
Raw content of original comment:
I can not access axes before SCM sync. I have a multi-configuration job where I want to define a custom workspace for the master's checkout and reuse that for the child (child workspace "."). Setting custom workspace to $BRANCH_NAME_$PLATFORM_$BUILD_TYPE results in a workspace called "$BRANCH_NAME_$PLATFORM_$BUILD_TYPE". Trying to access the axes in "Prepare an environment for this run" can not access them yet either, nor via properties or a Groovy script. Right now there is no way for me to construct the workspace name due to this. Could you please make the axes available already at that point?
