Channel initialization span#49

Merged
Aki-7 merged 1 commit intojenkinsci:mainfrom
Aki-7:channel-initialization-span
Jul 5, 2021
Merged

Channel initialization span#49
Aki-7 merged 1 commit intojenkinsci:mainfrom
Aki-7:channel-initialization-span

Conversation

@Aki-7
Copy link
Member

@Aki-7 Aki-7 commented Jun 22, 2021

close #41
ref #40

What I did

  • Enable to collect Channel Initialization Span
    • Only for JNLP inbound connection
    • Channel Initialization Span is between the first TCP handshaking begins and the org.hudson.Channel is connected
    • Contains following the child spans
      • Jnlp Endpoint Resolving Span
      • Jnlp Initialization Span
        • between the JNLP starts and org.hudson.Channel is connected or the JNLP fails
    • According to the JIRA ticket survey, unexpected Jnlp endpoint resolution causes problems, especially under the special network environment, e.g., HTTP Proxy, SSH Tunnel. And that's why I create Jnlp Endpoint Resolving Span

Limitation

Some spans are not precise enough as I only use the already-existing listener functionality in the remoting module.
To collect more spans more precisely, I'm going to create a PR for the remoting modules.

Demo

I disconnected and reconnected the agent several times to produce Channel Initialization spans.

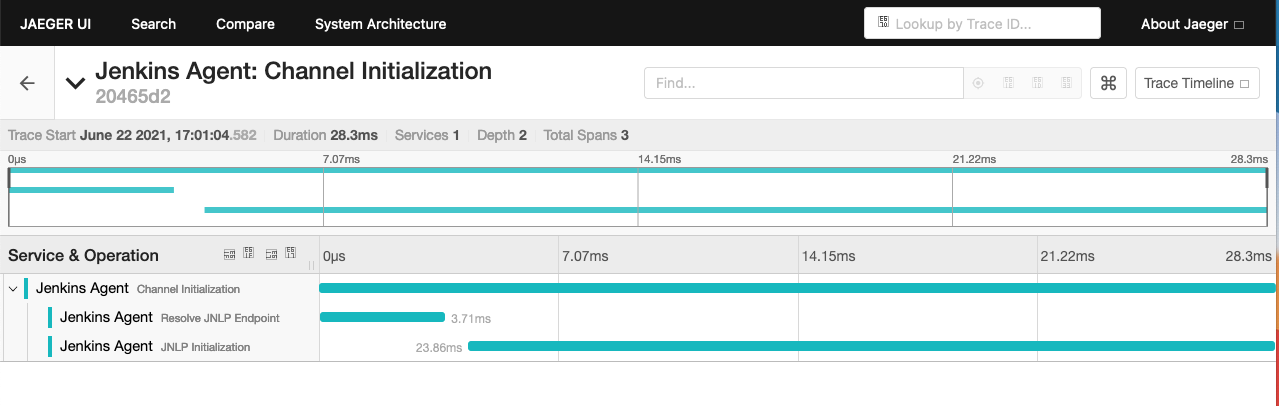

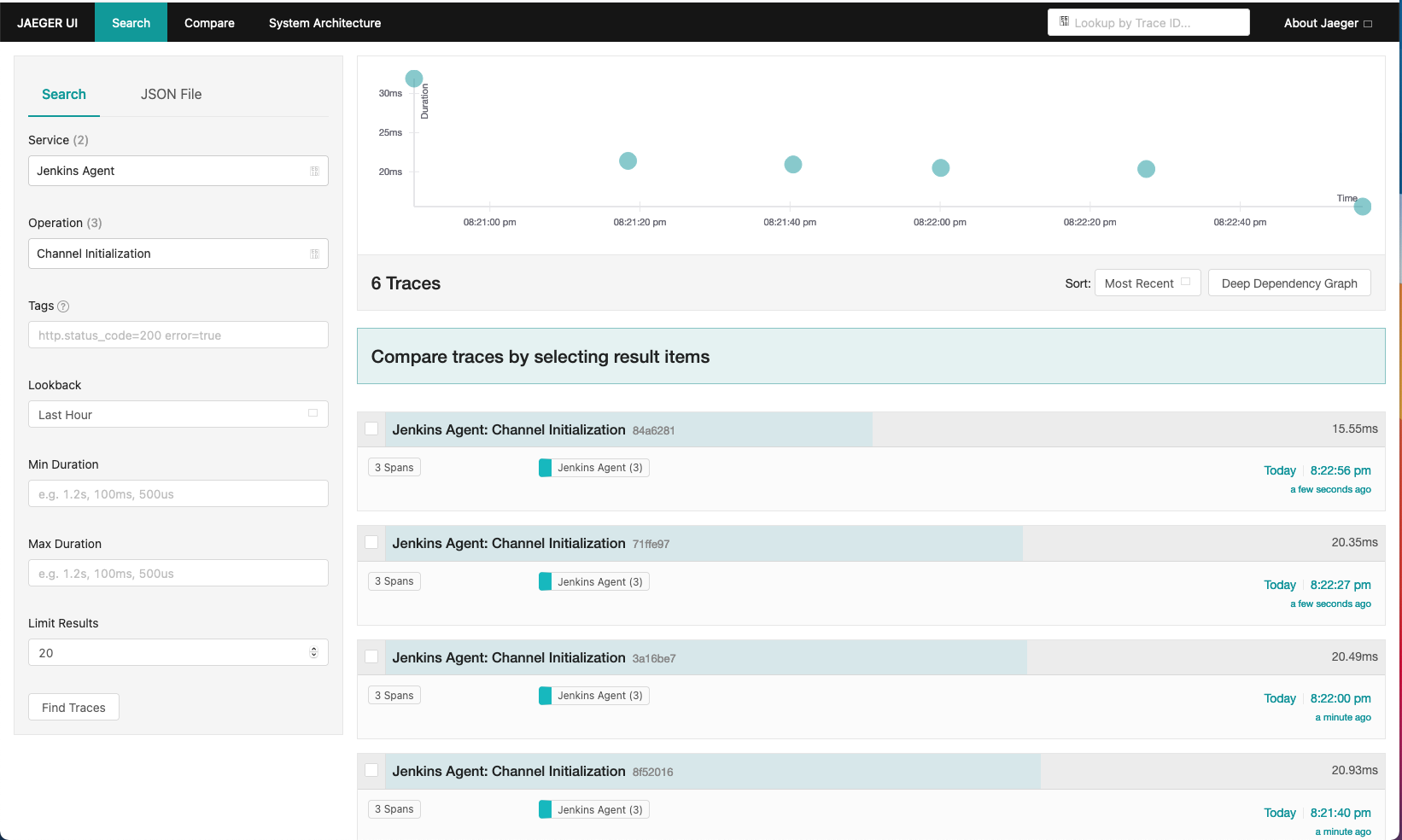

Jaeger

list

Screen Shot 2021-06-22 at 20 23 12

each span

Screen Shot 2021-06-22 at 20 14 23

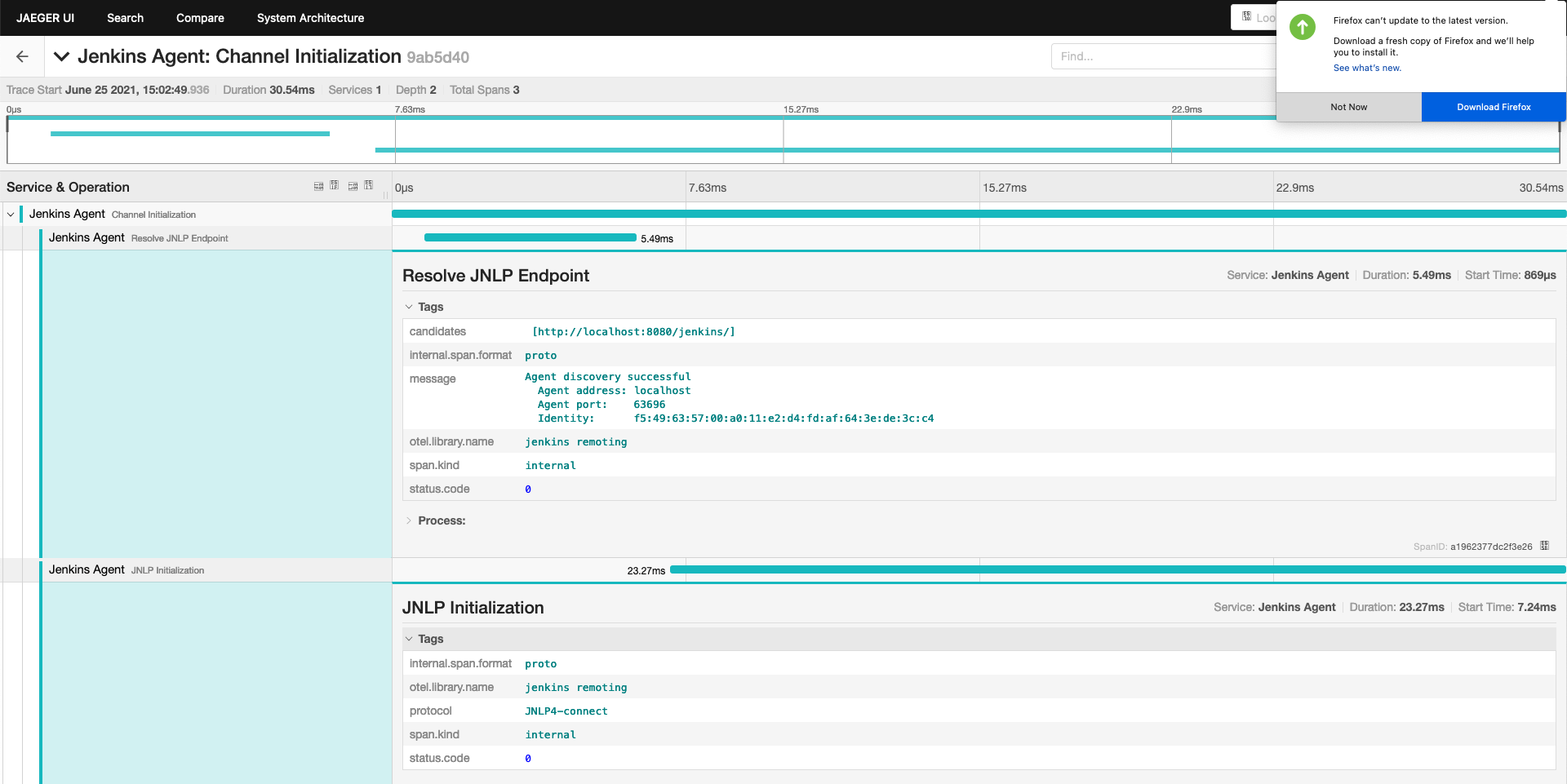

details

Protocol, port and host can be seen

Screen Shot 2021-06-25 at 15 35 53

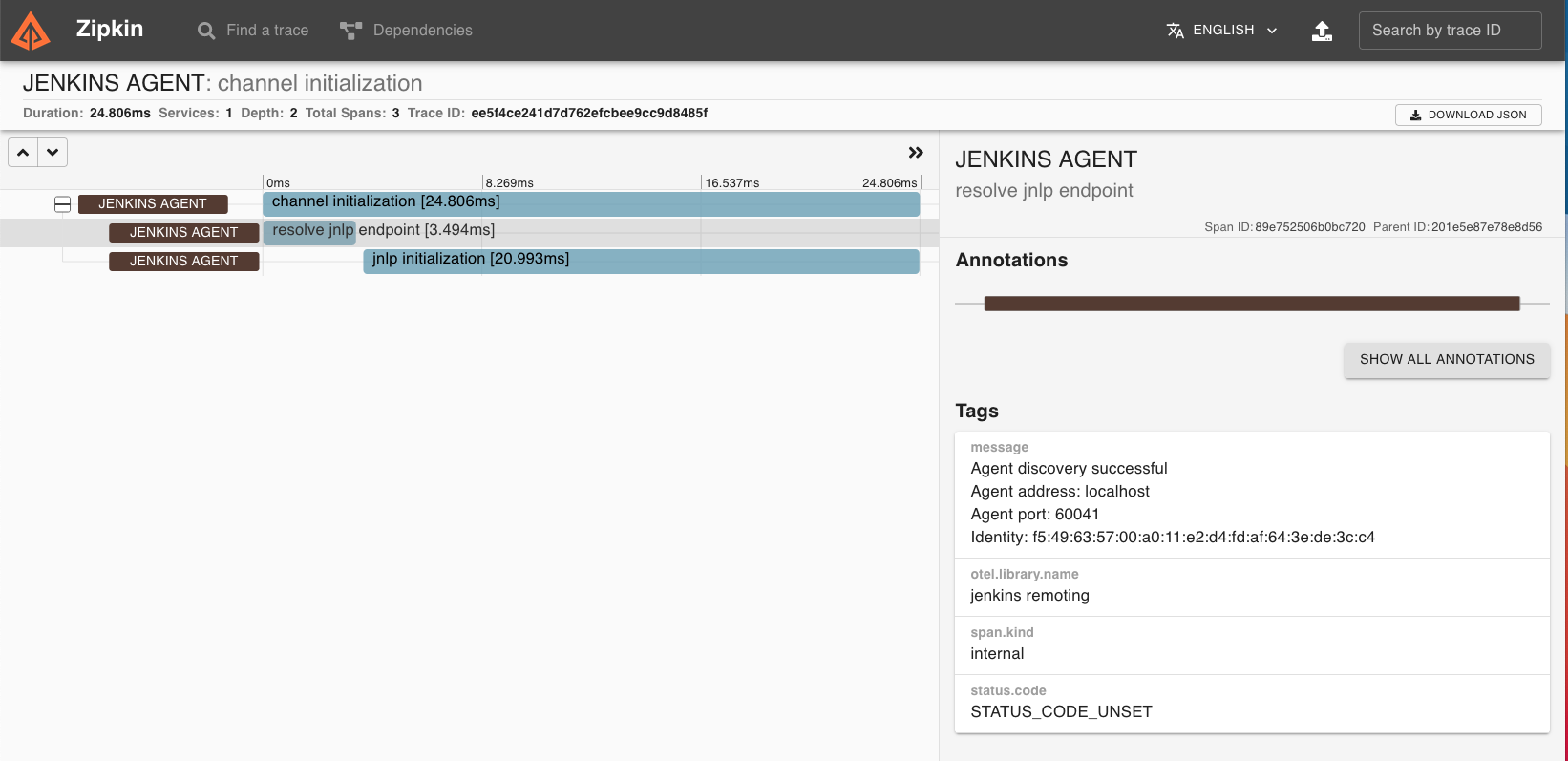

Zipkin

Screen Shot 2021-06-22 at 20 17 54

Checklist

  • Make sure you are opening from a topic/feature/bugfix branch (right side) and not your master branch!
  • Ensure that the pull request title represents the desired changelog entry
  • Please describe what you did
  • Link to relevant issues in GitHub or Jira
  • Link to relevant pull requests, esp. upstream and downstream changes
  • All follow-ups are documented as issues and-or TODO comments
  • Ensure you have provided tests - that demonstrates feature works or fixes the issue
  • Please update user documentation if needed
  • Please update developer documentation if needed

@Aki-7 Aki-7 requested a review from a team as a code owner June 22, 2021 11:24
@Aki-7 Aki-7 requested review from darshank15 and removed request for a team June 22, 2021 11:24
@Aki-7 Aki-7 force-pushed the channel-initialization-span branch from a400ebf to 236ce37 Compare June 22, 2021 11:34
@Aki-7 Aki-7 force-pushed the channel-initialization-span branch from 236ce37 to c7bcaa8 Compare June 25, 2021 06:34
@Aki-7 Aki-7 merged commit c72ebaf into jenkinsci:main Jul 5, 2021
