In this tutorial we show how a Raspberry Pi serving webpages can present live data streamed from a connected Arduino. Why? Well this project came about when I was designing an outreach project for Exeter University. We needed to present live data streams on a large public display.
We began with the following observations: Arduinos are excellent for quick hardware hacks and HTML5 technologies are ideal for fast visualisation development as there are so many free libraries. This project provides a kind of black-box setup, where strings (JSON encoded data) outputted from the Arduino are piped (via a web socket) to the browser and replies fed back.
- Setup the Pi
- Flask web server setup
- Connect the Arduino to the web socket
- Let's play pong
- Turn the Pi into an Access Point Setup (Optional)
- Raspberry Pi (preferably v3) with monitor, keyboard and mouse. Older models of the Pi will work, but if you intend to use the Pi's browser to display a page, it is worth using the latest model as it's much quicker. Also the settings may require some tinkering with other wifi adapters.
- An Arduino, any model should do, we used Nanos and Unos
- USB cable to connect the Pi and the Arduino
- Power supplies

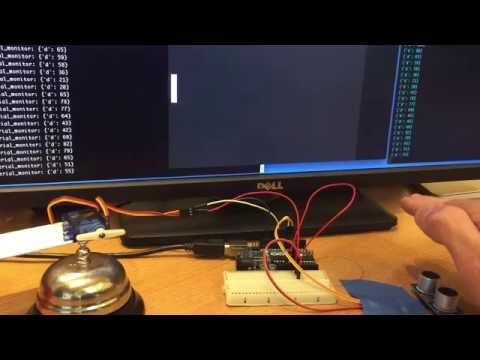

The purpose of this code and the tutorial is to give you a framework / skill set on which you can build your own project. It is not a finished article and as such elements such as error checking have been omitted in order to make the code more readable and easier to understand. This is what you will build (Click to watch):
First of all, install the latest version of Raspbian (howto: https://www.raspberrypi.org/help/videos/) and connect it to the internet.
If you choose to use a different OS then please make sure the file system is expanded to use the full capacity of the SD Card. If you have used NOOBS then skip this step, it has already been done for you.
- Open terminal and type “raspi-config”.
- Choose the “expand Filesystem” option and reboot the Pi
Next let's make sure the system is up to date.
- Launch the command line / terminal and run the following
sudo apt-get update
Check you have Python 3 and Pip installed
sudo apt-get install python3-pip
Make a new directory for the web server and move into it
mkdir ~/wwwcd ~/www
Clone the project code from github and step into the directory
git clone https://github.com/jkittley/Arduino-Websocket-Webpage.gitcd Arduino-Websocket-Webpage
Install all the library requirements
sudo pip3 install -r requirements.txt
That's it. Now we can test the web server.
sudo python3 webserver.py --prod
You should see something like this:
<flask_socketio.SocketIO object at 0x102f610f0>
* Restarting with stat
<flask_socketio.SocketIO object at 0x10388b128>
* Debugger is active!
* Debugger pin code: 661-779-075
(10072) wsgi starting up on http://0.0.0.0:80
Now the server is up and running you can open the web browser. Type localhost in the address bar and hit enter. You should see the webpage being served.
Open the terminal and move to the 'www' directory we made earlier.
cd ~/www/
Clone the project code from github and step into the directory
git clone https://github.com/jkittley/Arduino-Serial-Websocket.gitcd Arduino-Serial-Websocket
Install all the library requirements
sudo pip3 install -r requirements.txt
Now to setup the Arduino. If you don't already have the IDE installed on the Pi then run:
sudo apt-get install arduino
Open the IDE by either:
- Using the Raspberry Pi menu system > Programming > Arduino IDE
- Typing
arduino &in the terminal. The & is important, it tells the terminal to open in the background.
Connect the Arduino to the Pi via a USB cable and make sure you have the port and board type set correctly.
Open the file: arduino/testconnection/testconnection.ino in the Arduino IDE and upload it to the Arduino.
Open the serial monitor to make sure it is outputting information periodically e.g. { test: 39 }.
Close the serial monitor and run the web server
sudo ~/www/Arduino-Websocket-Webpage/webserver.py --prod
Open a new terminal window and run the serialmonitor.py script
sudo ~/www/Arduino-Serial-Websocket/serialmonitor.py- Select the Arduino's port from the list (usually /dev/ttyACM0) and hit enter.
You should now see that the serial monitor script connects to the web socket server by the webserver.py script and that it monitors the serial port and reads the Arduino.
Now switch to the web server terminal window and you should see the same data streaming in e.g. from_serial_monitor: { test: 39 }.
Finally open the web browser and open the test data page. You should see the test data stream by. Also there is a button which should send a message back to the Arduino which will toggle the LED status.
Now we have a working system, let's do something fun. Tennis anyone?
You will need:
- HC-SR04 Ultrasound Range Finder
- SG90 5v Servo
- Some wire
First connect the components as follows:
Note: SG90 wire colours may be different to those shown in the diagram. Commonly: Orange=signal, Red=Vcc and Brown=Gnd. See http://www.fatlion.com/sailplanes/servos.html for more color schemes.
Next make sure serialmonitor.py is not running, Ctrl-C to terminate.
Open the file: ~/www/Arduino-Serial-Websocket/arduino/pong/pong.ino in the Arduino IDE and upload it.
Now restart the serialmonitor.py
sudo ~/www/Arduino-Serial-Websocket/serialmonitor.py
Make sure the web server is still running and open the browser.
Select 'pong' from the main menu and see what happens. You should be able to control the left paddle by moving your hand up and down in front of the range sensor (approx 5 to 10cm). When the ball goes out of play the servo should twitch!
You may have noticed that there is another game, Snake. This game expects to control the direction of the snake. Why not try making your own Arduino script which outputs
- { "keystroke": 37 } for 'left'
- { "keystroke": 38 } for 'up'
- { "keystroke": 39 } for 'right'
- { "keystroke": 40 } for 'down'
In this section we will cover how to turn you Pi into an access point (adapted from: https://frillip.com/using-your-raspberry-pi-3-as-a-wifi-access-point-with-hostapd/). This will enable you to connect external machines to view the web page. This can be very helpful if your webpage is processor intensive. When using a Pi as a web server it is important to remember the limited resources available. Moving the processing to the browser, i.e. using javascript to do the heavy lifting, is a good idea.
First, get your Pi connected to the internet using Ethernet. It will make your life much easier later. We need to use the Wifi for the access point.
Install the two key packages required
sudo apt-get install dnsmasq hostapd
Now we need to set a static IP address for wlan0
sudo nano /etc/dhcpcd.conf- Add the following to the bottom of the file:
interface wlan0
static ip_address=172.24.1.1/24
Next we need to prevent wpa_supplicant from running and interfering with setting up wlan0 in access point mode.
sudo nano /etc/network/interfaces- Comment out the line that looks like:
allow-hotplug wlan0
iface wlan0 inet manual
wpa-conf /etc/wpa_supplicant/wpa_supplicant.conf
So it looks like this
allow-hotplug wlan0
iface wlan0 inet manual
# wpa-conf /etc/wpa_supplicant/wpa_supplicant.conf
Restart dhcpcd
sudo service dhcpcd restart
Configure HostAPD by creating a new config file.
sudo nano /etc/hostapd/hostapd.conf
Add the following to the new file. Don't forget you can open this page in the Pi's browser and copy-paste :)
# This is the name of the WiFi interface we configured above.
interface=wlan0
# Use the nl80211 driver with the brcmfmac driver.
driver=nl80211
# This is the name of the network.
ssid=Arduino-Websocket-Webpage
# Use the 2.4GHz band.
hw_mode=g
# Use channel 6.
channel=6
# Enable 802.11n.
ieee80211n=1
# Enable WMM.
wmm_enabled=1
# Enable 40MHz channels with 20ns guard interval.
ht_capab=[HT40][SHORT-GI-20][DSSS_CCK-40]
# Accept all MAC addresses.
macaddr_acl=0
# Use WPA authentication.
auth_algs=1
# Require clients to know the network name.
ignore_broadcast_ssid=0
# Use WPA2.
wpa=2
# Use a pre-shared key.
wpa_key_mgmt=WPA-PSK
# The network passphrase.
wpa_passphrase=raspberry
# Use AES, instead of TKIP.
rsn_pairwise=CCMP
Before you save, you can edit the following
- ssid - The name of your wireless network
- wpa_passphrase - The password
We can check if it's working by running
If it's all gone well thus far, you should be able to see a network with the SSID you chose on any wifi device nearby. However if you try connecting to it, you will see some output from the Pi, but it won't work as you might expect.
- Use Ctrl+C to stop it.
We also need to tell hostapd where to look for the config file when it starts up on boot
- sudo nano /etc/default/hostapd
- find the line
#DAEMON_CONF="" - replace it with
DAEMON_CONF="/etc/hostapd/hostapd.conf" - Exit and save
Next we will setup dnsmasq. Move the config file out of the way
sudo mv /etc/dnsmasq.conf /etc/dnsmasq.conf.orig
Now make a new config file
sudo nano /etc/dnsmasq.conf- paste the following into the file
# Use interface wlan0
interface=wlan0
# Bind to the interface to make sure we aren't sending things elsewhere
bind-interfaces
# Forward al domains to local webserver
address=/#/172.24.1.1
# Assign IP addresses between 172.24.1.50 and 172.24.1.150 with a 12 hour lease time
dhcp-range=172.24.1.50,172.24.1.150,12h
One of the last things that we need to do before we send traffic anywhere is to enable packet forwarding.
sudo nano /etc/sysctl.conf- remove the # from the beginning of the line containing net.ipv4.ip_forward=1
- save and reboot it:
sudo sh -c "echo 1 > /proc/sys/net/ipv4/ip_forward"
Start the services
sudo service hostapd startsudo service dnsmasq start
Finally reboot the Pi
sudo reboot
Start the web server running
- Open terminal and type:
sudo python3 ~/www/Arduino-Websocket-Webpage/webserver.py —prod
Now you should be able to connect to the Pi via WiFi. Navigate to http://game.console in the browser and you should see the website.
This tutorials origin. Dr Anne Le Brocq, a glaciologist at Exeter University, wanted a way to explain the seabed scanning technologies used in Antarctica to school children. Together we conceived and built the Ocean Scan project. Click to watch the video on Youtube.
