+title: "Improving the Quality of Service on Travis CI"
+layout: post
+created_at: thu jul 28 15:55:26 cest 2012
+permalink: blog/2012-07-27-improving-the-quality-of-service-on-travis-ci
+author: Mathias Meyer
+twitter: roidrage
+---
+The growth of Travis CI has been tremendous over the last year. We've seen lots
+of projects adopt it as their continuous integration platform, and we couldn't
+be more thrilled about that.
+
+Along the way, we discovered pain points in the Travis architecture and in the
+way the platform handles fairness in builds. Big projects with big build
+matrices tend to cause our queues to clog up and make other projects wait until
+they're fully done.
+
+With bigger projects tending to have longer builds, that caused a bit of worry
+with lots of smaller projects that had to wait in the queue for the bigger
+projects to build.
+
+We've been pondering for quite a while how we could solve this problem and
+introduce more fairness into the system, allowing smaller projects to build
+quickly and giving all projects a fair share of build resources on Travis CI.
+
+We're introducing a limit on the number of concurrent builds that every project
+can run on Travis CI. So far, we've immediately queued a project's entire build
+matrix onto our queue, ready to be picked up by a worker. That's one of the
+basic reasons why big projects with big matrices tend to make smaller projects
+wait. It's a first-in-first-out queue, so they'll patiently wait until all of
+the builds are done and it's their turn.
+
+With the new logic in place, one project can run five concurrent builds. As soon
+as one is done we'll automatically push the next. If we have capacity and a
+project still has five builds running we'll push another project on the worker
+queue. That way, we ensure that a certain level of fairness allows all projects
+to build as quickly as possible while making sure that a small number of
+projects can't fill up the queues for everyone.
+
+We're aware that this might cause builds for projects with bigger build matrices
+to take a bit longer, but we think the overall fairness introduced by this
+change makes Travis a place that's evenly shared by the community.
+
+We'll be watching how that change works out in production, and fine tune the
+number of concurrent builds if necessary. The number five is something we chose
+based on the overall fairness and the build capacity we have available but it's
+not written in stone. We've also been thinking about taking into account the
+general runtime of builds for a particular project and be smarter about
+scheduling by giving projects with faster test ways a head start. But that's
+just off the top of our heads for now, we'll keep an eye on how things are going
+with the current change in place.
+
+### Technicalities
+
+Now that we've looked at the fairness side of things, let's look at the
+technical side of things.
+
+So far, we've pushed builds immediately onto our RabbitMQ queue as they come in.
+This had the advantage that they'd be popped off in the order they arrived in
+Travis, and we wouldn't have to worry about scheduling.
+
+But it also meant that our queues would have to be kept in sync with the
+database. Should we lose the jobs queued in RabbitMQ for some reason, we had to
+manually queue them. With the new logic, the database is the single source of
+truth and jobs are only queued if there's capacity available to build them.
+
+Instead of pushing a job immediately on the queue, it's now only stored in the
+database. A job is now scheduled based on the heartbeats we receive from a
+worker. If a worker signals that he has build capacity, and we find a build
+that's ready for the worker's language queue, it gets pushed and built. Within
+that logic we embedded the limit on concurrent builds along the way. If a
+project has reached its limit, another one that's available gets pushed instead.
+
+All this has the benefit that we're starting to move into a direction where
+Travis is agnostic to the message transport used between the system's
+components. We could use ZeroMQ or simple HTTP instead, because we're doing
+simple inter-process communication instead of relying on the ordered nature of
+AMQP, because exact order is not important anymore.
+
+Another upshot of this is that we don't need to do manual requeing anymore,
+the new logic will automatically pick up any build that's ready to be built.
+
+We have several areas in Travis where order is still important currently, but we
+already have ideas on how to tackle them. We'll keep you posted on the technical
+details!
+
+On a fun side note, the changes described here were deployed earlier today.

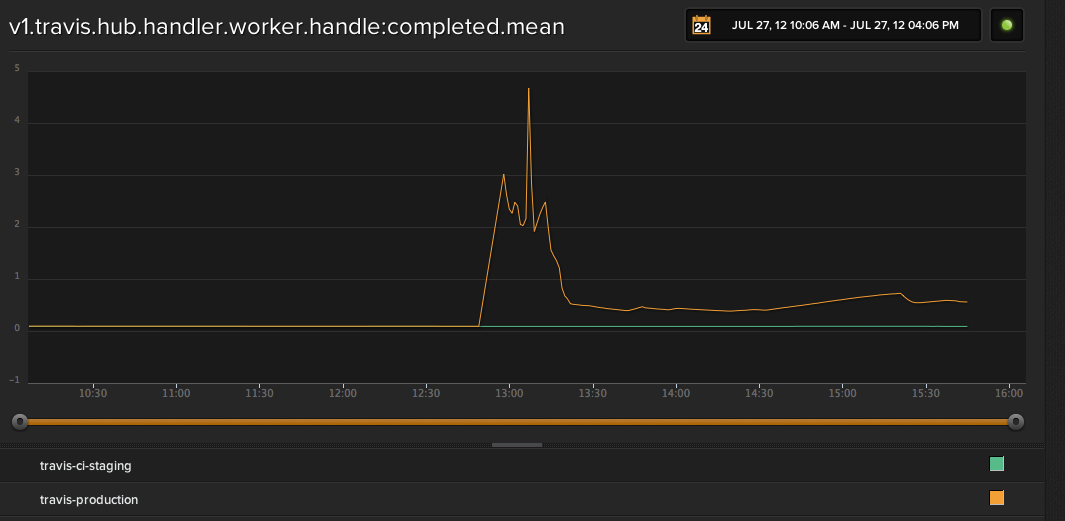

+Here's a graph of the average run time of handling worker updates went through
+the roof, middle finger style, until we added a database index:
+
+![Librato Metrics](http://s3itch.paperplanes.de/Metric_%E2%80%93_Librato_Metrics-20120727-160635.png)
+
+Today's motto:
+
+![](http://i.imgur.com/X9sEI.jpg)
+
+### The Bottom Line
+
+Introducing a quality of service level to Travis CI doesn't only introduce a
+predictable level of fairness into the community platform. It's also the
+groundwork for Travis Pro, where we put a limit on and will charge based on the
+number of concurrent builds for an organization.
