Lexer-Parser-Interpreter Project

Project Overview

The Lexer-Parser-Interpreter Project aims to tokenize the different parts of SIMPLE code in a .txt file and the parse the tokens to ensure the SIMPLE code input is a 'Valid Program' or 'Invalid Program'. When Lexer.java is passed a .txt file, it should return tokens:

• IDTOKEN - a continues String of letters and integers. An ID must have a letter at the beginning of the String.
• INTTOKEN - a continuous String of exclusively integers.
• ASSNMTTOKEN - an assignment operator, =.
• PLUSTOKEN - an addition operator, +.
• EOFTOKEN - a -, signalling the End Of File.

Lexer.java should be able to output the above as Tokens, extrapolated from the .txt file, with an EOFTOKEN - at the end of every tokenized .txt file.

When Parser.java is passed a .txt file, it should ouput:

Valid Program

or

ERROR: [Type of Error & what the program was expecting], line where error is found
Invalid Program

Last, but not least, ByteCodeInterpreter.java interprets the bytecode that Parser generates, and changes memory accordingly. For example, if we have the following .txt file:

plain.txt

x = 5
y = x + 6

Parser will produce the following bytecode:

[1, 5, 2, 0, 0, 0, 1, 6, 2, 1]

Then, the ByteCodeInterpreter will step-in and interpret the bytecode and change the memory according to the bytecode commands and operands. The memeory would look like:

[5, 11, 0, 0, 0, 0, 0, 0, 0, 0, 0]

(the default size of memory is 10, but this is able to be adjust to any desire size).

How to Deploy Lexer.java

Prerequisites

• Ensure that you have Java installed on your machine. You can check if Java is installed by running:

 java -version

To run the Lexer.java program on your local machine, follow these steps:

1. Clone the Repository:

   • Open your terminal and run the following command to clone the repository:

   git clone https://github.com/usf-cs514/lexer-parser-interpreter-joshvasquezr.git
   - ```
   - Navigate into the project repository
   ```bash
   cd lexer-parser-interpreter-joshvasquezr

2. Compile the Code

   • Use the following command to compile the Java files:

   javac src/Token.java src/Lexer.java

3. Run Lexer.java

   • To run the program use the following command:

   java -cp src Lexer test.txt

4. Change .txt file

   • If you want to use Lexer.java to parse another file, simply substitute your file name for test in test.txt.

To run the Parser.java program on your local machine, follow these similar, but different, steps:

1. Follow steps 1 and 2 for Lexer.java and clone the repository AND navigate to the project repository on your machine
2. Compile the Code
   • Use the following command to compile the Java files:

   javac src/Token.java src/Lexer.java src/Parser.java src/idTable.java

3. Run Parser.java
   • To run the program use the following command:

   java -cp src Parser test.txt

4. Change .txt file
   • If you want to use Parser.java to validate another file, simply substitute your file name for test in test.txt.

To run the ByteCodeInterpreter.java program on your local machine, follow these similar, but different, steps:

1. Again, follow steps 1 and 2 for Lexer.java and clone the repository AND navigate to the project repository on your machine
2. Compile the Code
   • Use the following command to compile the Java files:

   javac src/Token.java src/Lexer.java src/Parser.java src/idTable.java src/ByteCodeInterpreter.java

3. Run Parser.java
   • To run the program use the following command:

   java -cp src ByteCodeInterpreter test.txt

4. Change .txt file
   • If you want to use ByteCodeInterpreter.java to interpret another file, simply substitute your file name for test in test.txt.

Development Process

1. Lexer.java

   This project was a fun challenge. Adding in new elements such as ArrayList<> data types, continuing to practice Object-Oriented Programming principles, and figuring out how to parse and tokenize text from a .txt files. This project required an understanding of each method: getIdentifier(), getInteger(), getNextToken(), and getAllTokens(). I will briefly describe my thought process behind each method...

   • getAllTokens() - returns a ListArray<Tokens>. It retrieves each Token from the file by calling the getNextToken() method.
   • getNextToken() - based on what character the global variable index is at, it will determine whether the Next Token will be an ID, INT, =, +, or - and return that Token.
     • the logical implementation was simple. If the current character is a letter, call getIdentifier(). If the current character is an integer, call getInteger(). If the current character is an = or +, return the appropriate Token albeit ASSMNTTOKEN or PLUSTOKEN. Or finally, if all Tokens have been identified, return the EOFTOKEN.
   • getInteger() - this will return a String of integers. In SIMPLE, an integer can ONLY be a continuous String of integers. No spaces, no special symbols, no letters.
     • since we know our current index holds an integer, thanks to the getNextToken() logic, all I need to do is check that as long as the current character is an integer, I can keep appending it onto the sbToken StringBuilder I initialized. However, once my current character is no longer an integer I will return the contents of sbToken in String form.
   • getIdentifier() - not quite as exclusive as getInteger(), this will return a String that can be a mix of letters and integers. However, its only requirement is that the ID (or Identifier) MUST start with a letter. After the first character, it must be a continuous String of letters or integers. Again, no spaces, no special symbols.
     • Again, thanks to getNextToken()'s logic, I know the current character is a letter, so all I need to check for is if the current character is either a letter or an integer. If it is, I will simply append the current character to sbToken. Otherwise, I will return the contents of sbToken back to getNextToken().

   Two occurrences made this project slightly harder than I had anticipated.

   1. The first, was my mistake. I started coding the logic to getIdentifier() and getInteger() before I fully understood the function of Lexer.java, and more specifically, before I understood the roles of getNextToken() and getAllTokens(). This caused me to write the code for getIdentifier() and getInteger() as returning ALL POSSIBLE ID's and int's with one call of getIdentifier() or getInteger(). The nice part is that the logic for both methods only needed to be simplified.
   2. The second, was my difficulty with adding the EOFTOKEN as the last Token of the list of Tokens getAllTokens() would return. The difficulty was two-fold. I would either get the correct EOFTOKEN for the testExpectingIdOrInt2.txt and testWhitespace.txt or all the rest of the files except those previous two. If I was able to get an EOFTOKEN at the end of the rest of the files, I would have two EOFTOKENS at the end of testWhitespace and testExpectingIdOrInt2.txt.
      • Solution to EOFTOKEN problem: I simply added an if statement within the while loop in getAllTokens(). This if statement checked to see if the ListArray<Tokens> already had an EOFTOKEN in it. If it did, it would simply break the while loop and return the ListArray<Tokens>. However, if EOFTOKEN was not in the ListArray, then it would append a new Token(EOFTOKEN, " -") to the ListArray<Tokens>.

2. Parser.java

   This project built upon the base of Lexer.java by adding the functionality of validating a program's code. The primary principles I used in this project were: getter() methods, private and public modifiers for data members, Object- Oriented Programming prinicples, ArrayList and HashMapdata structures. I was able to gain a better understanding of how OOP offers offers cross-class functionality. Within the Parser.java class, I used the following methods: parseProgram(), parseAssignment(), parseIdentifier(), parseAssignmentOp(), parseExpression, and getNextToken(). Within idTable.java, I used the following methods: idTable() as my constructor, getAddress(), add(), and toString(). Finally Token.java, was updated to contain three getter() methods; getType(), getValue(), and getLine(). I will also briefly describe my thought process and the structure of my code:

   • parseProgram() - uses a while loop to loop through each new expression with an assignment declaration
     • i.e. x = 3 + 1 z = 2
       • it will loop through x = 3 + 1 and then z = 2
   • parseAssignment() - checks for correct structuring of new assignment / expression. First, an identifier is expected and parseIdentifier() is called, then an Assignment Operator is expected so parseAssignmentOp() is called, then the contents of the Expression are expected so parseExpression() is called. If the program is not in that order, then an ERROR is thrown.
   • parseExpression() - goes through each token following the assignment operator, and checks that they're in a logically correct order.
     • Valid Program: x = 1 + 2 + 3
     • Invalid Program: x = 1 ++3 + y

3. ByteCodeInterpreter.java

   The goal of this project was to interpret our already tokenized and validated .txt file. I will describe how I went about doing this.

   • Step one, create bytecode based off of the .txt file fed to the Parser. This was done by creating an ArrayList<Integer> bytecode data member and using the add(int x) function to add bytecode to the array. I did this by storing the value of my currentID (i.e. x = 5; currentID = x). Then when the program is in parserExpression(), if the currentToken is an identifier, it will append the LOAD command to bytecode, which is 0, and the address of currentToken found in the symbolTable. If currentToken is an integer, the program will append the LOADI command to bytecode, which is 1, and the value of currentToken. Finally, if parseExpression recognizes that a new variable will be assigned to a new expression, it will the append the STORE command to bytecode, which is 2, and the address of currentID.
   • Once, the bytecode is generated, we move onto the interpreter step. This is when ByteCodeInterpreter.java comes into the picture. Here we use the run() method to loop through the bytecode array two-by-two. We are doing this two-by-two because each command (LOAD, LOADI, STORE) is paired with an operand, be it an integer index or value. I will briefly detail each helper method for run():
     • load() - accesses the memory ArrayList to extract the value found at the specified index. Then adds it to the accumulator.
     • loadi() - directly adds the integer value to the accumulator
     • store() - checks if there's space in the memory to store another integer. If there is enough space left, it will set the specified index to the value of the accumulator and then set accumulator back to 0.

   In run() if the current index is a LOAD (or 0), then it will call load(), else if the current index is a LOADI (or 1), then it will call loadi(), else if the current index is a STORE (or 2) it will call store() and pass the necessary arguments to these methods.

Test Plan

To ensure the correctness of the Lexer, I tested it using the comprehensive set of unit tests that was provided in LexerTest.java. Each test checks if the lexer correctly tokenizes the input and handles different combinations of identifiers, integers, assignment operators, and plus signs.

1. Basic Tokenization Test:

   • Test file: test.txt
   • Description: Verifies that the lexer correctly identifies ID, INT, ASSMT, PLUS, and EOF tokens.
   • Expected resulst:
     • Lexer.java

       [ID xyz 1, ASSMT = 1, INT 33 1, ID zz12 1, ASSMT = 1, INT 99 1, PLUS + 1, INT 88 1, PLUS + 1, ID xyz 1, EOF - 1]

     • Parser.java

     Valid Program

     • ByteCodeInterpreter.java

     Valid Program
     Symbol Table: {xyz=0, zz12=1}
     ByteCode: [1, 33, 2, 0, 1, 99, 1, 88, 0, 0, 2, 1]
     Memory: [33, 220, 0, 0, 0, 0, 0, 0, 0, 0]

2. Assignment Operator Test:

   • Test file: testExpectingAssignOp.txt
   • Description: Ensures that the lexer properly handles cases where assignment (=) occurs between identifiers and integers.
   • Expected results:
     • Lexer.java

     [ID x32 1, ASSMT = 1, INT 54 1, ASSMT = 1, INT 87 1, EOF - 1]

     • Parser.java

     Expecting assignment operator, line 1
     Invalid Program

     • ByteCodeInterpreter.java

     Expecting assignment operator, line 1
     Invalid Program

3. Identifier and Integer Test:

   • Test file: testExpectingIdOrInt2.txt
   • Description: This test validates that the lexer can handle a mix of identifiers and integers, especially when two consecutive integers are encountered.
   • Expected results:
     • Lexer.java

     [ID x 1, ASSMT = 1, INT 1 1, ID y 1, ASSMT = 1, INT 1 1, EOF - 2]

     • Parser.java

     Expecting identifier or add operator, line 1
     Invalid Program

     • ByteCodeInterpreter.java

     Expecting identifier or add operator, line 1
     Invalid Program

4. Multiple Plus Test:

   • Test file: testMultiplePlus.txt
   • Description: Verifies the lexer's behavior when multiple plus (+) operators appear.
   • Expected results:
     • Lexer.java

     [ID x32 1, ASSMT = 1, INT 77 1, ID yyy9 2, ASSMT = 2, ID x32 2, PLUS + 2, INT 5 2, PLUS + 2, INT 4 2, PLUS + 2, ID x32 2, EOF - 2]

     • Parser.java

     Valid Program

     • ByteCodeInterpreter.java

     Valid Program
     Symbol Table: {x32=0, yyy9=1}
     ByteCode: [1, 77, 2, 0, 0, 0, 1, 5, 1, 4, 0, 0, 2, 1]
     Memory: [77, 163, 0, 0, 0, 0, 0, 0, 0, 0]

5. Whitespace Handling Test:

   • Test file: testWhitespace.txt
   • Description: Tests how the lexer handles input with whitespace between tokens.
   • Expected results:
     • Lexer.java

     [ID x32 1, ASSMT = 1, INT 83 2, ID yzu 2, ID rt 2, ASSMT = 2, INT 2 2, EOF - 3]

     • Parser.java

     Identifier 'yzu' not defined, line 2
     Invalid Program

     • ByteCodeInterpreter.java

     Valid Program
     Symbol Table: {rt=1, x32=0}
     ByteCode: [1, 83, 2, 0, 1, 2, 2, 1]
     Memory: [83, 2, 0, 0, 0, 0, 0, 0, 0, 0]

6. Expecting Identifier Test:

   • Test file: testExpectingId2.txt
   • Description: Ensures that the lexer behaves correctly when it encounters a sequence of integers and expects an identifier.
   • Expected results:
     • Lexer.java

     [INT 32 1, ASSMT = 1, INT 54 1, EOF - 1]

     • Parser.java

     Expected identifier, line 1
     Invalid Program

     • ByteCodeInterpreter.java

     Expected identifier, line 1
     Invalid Program

7. Test Out of Bounds

   • Test file: testOutOfBounds.txt
   • Description: Ensures that the interpreter behaves correctly when encountered with a file that tries to exceed the available memory space.
   • Expected results:
     • ByteCodeInterpreter.java

       Valid Program
       Run Time Error: Address '10' out of range.
       Symbol Table: {a=0, b=1, c=2, d=3, e=4, f=5, g=6, h=7, i=8, j=9, k=10}
       ByteCode: [1, 1, 2, 0, 1, 2, 2, 1, 1, 3, 2, 2, 1, 4, 2, 3, 1, 5, 2, 4, 1, 6, 2, 5, 1, 7, 2, 6, 1, 8, 2, 7, 1, 9, 2, 8, 1, 10, 2, 9, 1, 11, 2, 10]
       Memory: [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

Each test case compares the expected token output against the actual tokenized result and fails if there is a mismatch.

Test Video

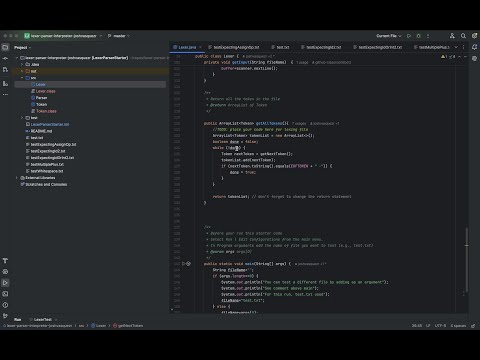

Lexer Demo Video:

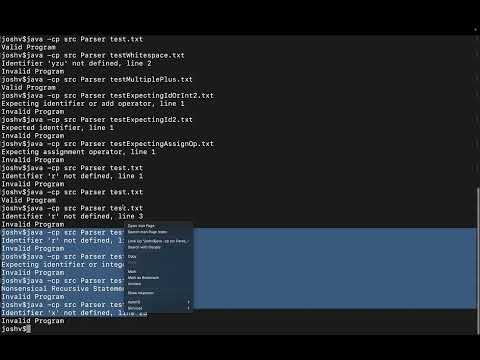

Parser Demo Video:
