Cellule

NOTE: this project has not been updated since 2008. See Grasshopper 3D for a more usable implementation of this idea.

Cellule is a fast 2D cellular pattern ( Delauney-Voronoi ) engine written in C++ and cross-platform.

The main goal was to generate interesting cellular procedural textures of infinite resolution.

Gallery

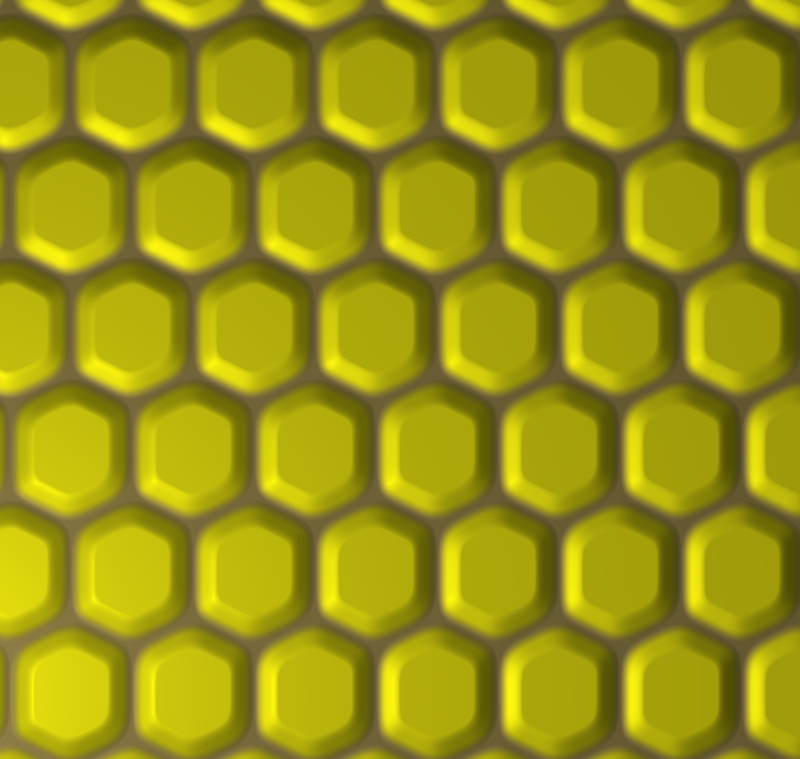

Sample 1 Sample 2 Sample 3 Sample 4 Sample 5 Sample 6 Sample 7 Sample 8 Sample 9

Implementation

The Cellule foundations library ( CelluleF ) implement the data structure which is a 2D Delauney triangulation ( the corresponding Voronoi diagram is implicit ) of a set of circles ( weighted points which give the cells of the Voronoi diagram ). Cells can be added moved deleted dynamically and efficiently. The structure can quickly return the cell enclosing a given 2D point. Manipulating thousands of cells is ok.

The executable Cellule program is a GUI to create, modify, and visualize cellular patterns.

Contour smoothing

Each pixel of a cell is textured according to the shortest distance to a voronoi edge. To be able to support arbitrary smoothness of cell contours, we build a bspline along the Voronoi edge before computing the distance.

BSpline 1 BSpline 2 BSpline 3 BSpline 4

Credit

Author: bEngo foolscreen@gmail.com

Key contributor: juliango

Licence: GNU GENERAL PUBLIC LICENSE Version 2
