breaking: add ...networkPolicy.egressAllowRules and don't allow singleuser pods to access PrivateIPv4 addresses by default

[yuvipanda]

Updated technical change summary by Erik

<hub|proxy.chp|proxy.traefik|singleuser>.networkPolicy.egressAllowRules is introduced. They are meant to help adjust the created NetworkPolicy resource rules with a few convenient true/false values. They are all set to true by default besides for the singleuser NetworkPolicy governing the user pods. Using the default configuration, user pods are no longer granted access to PrivateIPv4 addresses.

Also note that with the introduction of the egressAllowRules, the configuration to allow outbound network connections moved from .egress to .egressAllowRules. This means that if users have configured .egress previously to not be as permissive, they may experience a permission escalation by having .egressAllowRules introduced. So, for anyone configuring .egress and upgrading to version 2 of this chart can set all .egressAllowRules to false.

Original PR description

This PR enables all traffic to the internet from user pods,
but stops allowing access to the private network where other
kubernetes pods or services may be running. Meant to be a
minimally intrusive defense in depth mechanism that prevents
access to unsecured endpoints running on VMs, in the kubernetes
cluster, etc. For example, users often run Prometheus without
any kind of network protection in the same cluster as the
users, and access to prometheus can leak a lot of sensitive
user data.

https://www.wiz.io/blog/chaosdb-explained-azures-cosmos-db-vulnerability-walkthrough
shows the immense security value of restricting access to internal
network from user written code. Most software projects do not have
their authz/authn layers, and rely on network segmentation for
protection. When network segmentation fails like it does in the Azure security incident,
there is often no secondary line of defense.

Most JupyterHub users talk to the internet, but by default I think
nobody really talks to the internal network. This also only affects
network connections from user code - stuff like mounting NFS shares
are done by the kubelet, and hence are not affected. Connections
to hub infrastructure (proxy, hub, etc) are also not affected,
as they are separately allowed by other NetworkPolicy rules.
Access to http://proxy-public for user code to talk in a hub agnostic
way to services, as well as access to the full hub URL when autohttps
is used are also added in this PR.

[yuvipanda]

Thanks a lot to @consideRatio for bringing this up and engaging with this intently in 2i2c-org/infrastructure#829, and to @sgibson91 for actually coming up with the network policies.

We've been running this at 2i2c and Berkeley for a while. Inspired by the REAL BAD azure security incident https://www.wiz.io/blog/chaosdb-explained-azures-cosmos-db-vulnerability-walkthrough. jupyterhub/kubespawner#545 is the other more secure default that came out of that.

Given that the Kubespawner PR is going to go into 2.0, I'd love to get this into 2.0 as well.

[yuvipanda]

Discuss adding another rule that removes any network restriction to
anything else in the current namespace. For example, even now, you might
have to add an extra rule allowing network egress from the user pod to the
traefik component of the dask-gateway chart for dask-gateway to work (need
to verify that) - just going through the hub service is not enough. Instead of having
to figure that out on a service by service basis, we can simply enable outgoing network
access to everything else in the same namespace. This removes protection for services
without incoming networkpolicy restrictions or other means of authz in the same namespace.
A trade-off to be made between admin simplicify (NetworkPolicys are hard to debug!) vs
secure defaults. @consideRatio strongly prefers opening up this hole, I'm mildly opposed to it but
even with hole this would be a massive improvement over our current status quo. So I'm happy to
ship with that hole open by default and allow users to close it. Would love to hear your thoughts, @minrk @manics (and others?)

[consideRatio]

Thanks @yuvipanda for bringing this onwards!

Agreement clarification

Thanks to practical experience reported by @yuvipanda and the 2i2c.org tech team of using tighter egress rules, combined with some practical ideas on how to implement it - I'm now also in favor of dropping permissions to a bare minimum.

For your information, the option I deliberated on in the past were these.

1. All egress is allowed by default
2. k8s namespace local and non-local IP egress is allowed by default
3. Only non-local IP egress is allowed by default

Change requests

While I have a lot of suggestions below, it would be great as a first step to arrive at an agreement on the configuration names we go for as it can become quite messy to change multiple times given how many places we need to update things at.

• Language about restrict/permit
  As soon as there is an egress or ingress NetworkPolicy targetting a pod, its allowed egress or ingress communication drops to zero - this is the only restrictive part of a NetworkPolicy. Then, the NetworkPolicies simply add more and more permissions with various rules. I'd like our language to reflect that we grant permissions for egress or ingress specifically, rather than say that we restrict it. The act of having a network policy at all is the restriction, and then it is all about adding permissions.
• Configuration naming and planning
  • I suggest we create a section like egressAllowRules that contain for example nonLocalIPs and dnsPorts and such that toggles the predefined rules we have in addition to the custom egress rules the user can specify.
  • Decide if we should allow further configuration of these predefined allow rules, or if we go with a set of boolean on/off switches only. I suggest we go for simple boolean rules that can't be configured further.
• Technical details
  • We should match on the labels component, app, and release. Currently release is missing. We should also adopt the pattern to not hardcode these labels as done in other locations in the netpol file.

  # Example on how to render the component, app, and release labels
  # for the autohttps pod.
  {{- $_ := merge (dict "componentLabel" "autohttps") . }}
  {{- include "jupyterhub.matchLabels" $_ | nindent 14 }}

  • We should ensure that the allow rule for non-local IPs won't go ahead and allow access to the metadata server.
• Schema updates
  • The configuration schema should reflect the new configuration options.
  • We should have a tools/templates/lint-and-validate-config.yaml entry for all added config
  • We should have a jupyterhub/values.yaml entry for all added config

[consideRatio]

At this point, I'd like to reach agreement on the configuration naming and structure. Here is my initial proposal.

I'd like to ping @manics about this as well who has reasoned a lot about these network policies in the past.

Configuration proposal 1

 singleuser:
   networkPolicy:
     enabled: true
     ingress: []
+    egressAllowRules:
+      nonLocalIPs: true
+    egress: []
-    egress:
-      - to:
-          - ipBlock:
-              cidr: 0.0.0.0/0
-              except:
-                - 169.254.169.254/32
     interNamespaceAccessLabels: ignore
     allowedIngressPorts: []

I also suggest we make the dnsPorts configuration configurable alongside the nonLocalIPs, mainly because it improves comprehensibility of the setup rather than it seems to be important for end users to configure.

 singleuser:
   networkPolicy:
     enabled: true
     ingress: []
     egressAllowRules:
+      dnsPorts: true
       nonLocalIPs: true
     egress: []
     interNamespaceAccessLabels: ignore
     allowedIngressPorts: []

Related change - not needed to be part of this PR

With this structure, we can also make it clear that we have a special treatment for cloudMetadataServer. It has the IP of 169.254.169.254 which is a non-local IP but is still to be excluded by being allowed by the nonLocalIPs rule.

 singleuser:
   networkPolicy:
     enabled: true
     ingress: []
     egressAllowRules:
       dnsPorts: true
+      cloudMetadataServer: false
       nonLocalIPs: true
     egress: []
     interNamespaceAccessLabels: ignore
     allowedIngressPorts: []

[minrk]

👍 to the change. The only thing I think we need to highlight in docs is that this feature must be disabled in order to block egress more strictly, because adding a more restrictive egress policy with this in place will have no effect, since this already grants access to the outside world.

We might even want to fail if networkPolicy.egress is defined while this is true, since I can't think of a situation where that would behave as intended.

[consideRatio]

The only thing I think we need to highlight in docs is that this feature must be disabled in order to block egress more strictly, because adding a more restrictive egress policy with this in place will have no effect, since this already grants access to the outside world.

@minrk this is why I suggest a change of language where we speak of allowing instead of blocking or restricting, and a concrete suggestion on how we name our config options in #2508 (comment)

We might even want to fail if networkPolicy.egress is defined while this is true, since I can't think of a situation where that would behave as intended.

I think this is a problematic as it makes some special configuration transform the behavior of other configuration, and that is a pattern I've seen us revert many times as complexity increase. I suggest we stick to anything that is easy to describe and avoid introducing configuration that influences other configuration behavior. I think #2508 (comment) accomplishes that as well.

[minrk]

@consideRatio I think that proposal's great! Then it's a sort of 'alias' for assembling one egress rule,r athe rthan two that won't make sense together. That seems like a good way to think of it.

If we do ever have mutually exclusive config options, I do think it's reasonable to try to fail informatively rather than have undefined behavior, as long as the failure is manageable. But of course, it's ideal if we can achieve the result without creating mutually exclusive config.

[manics]

Most JupyterHub users talk to the internet, but by default I think nobody really talks to the internal network.

It's probably worth clarifying what you mean by "internal"- do you mean internal to the K8s cluster, or internal to an organisation's network?

Blocking all non-public traffic makes sense for public JupyterHubs, but I'd be surprised if it was the case for internal hubs inside an organisation's network- one of the reasons for running an internal hub is to safely give access to other (non-k8s) networked resources in an organisation.

I think defaulting to blocking non-public traffic from singleuser pods is fine as it improves security by default, though I think we've discussed this before so might be worth going back through past discussions to check if we've missed any points.

Ideally there'd be an option to block within-cluster traffic only but I don't think that's possible- instead we could add an example config showing how to correctly block internal k8s traffic whilst still allowing traffic to private IPs outside the cluster CIDR.

I prefer the *PrivateIP* making over *LocalIP*. The latter implies it refers to the Kubernetes cluster whereas it's everything on a non-public IP which could be your entire organisation!

[consideRatio]

@manics I just want to warn about using or even thinking about "blocking". We may at most "not allow" with a network policy.

Regarding local etc, my definition is what wiki call private ipv4 addresses: https://en.m.wikipedia.org/wiki/Private_network

The rule we consider, in my mind, is to allow all non-provate ipv4 adresses except the cloud metadata server ip.

[yuvipanda]

Thank you for the extremely detailed feedback, @consideRatio! I really appreciate that. I'm very much in favor of the example you had in Configuration proposal 1, and would like to get that implemented.

[yuvipanda]

Nomenclature-wise, I also prefer PrivateIPs, as the IPs we are blocking are from the RFC that defines private IP space, and calls them private IPs: https://datatracker.ietf.org/doc/html/rfc1918. Things you consider 'local' can also have public IPs - for example, most kubernetes masters are accessed via public IPs!

[consideRatio]

@yuvipanda wiee okay! Btw 100% on replacing references to "local IPs" with references to "private IPs" as that is what seems to be their common name.

Looking back at the configuration proposal 1, I wonder if we may want to include something like egressExtraAllowRules rather than just egressAllowRules for example? I like how that can also communicate that it is additional rules to the user defined egress rules.

[manics]

I think it'd be good to get cloudMetadataServer in as well, the current configuration for cloud metadata seems to confuse people.

For docs does it sound reasonable to have 4 examples based on the use-cases discussed in this issue?

1. Allow everything except private IPs
2. Allow everything except internal Kubernetes IPs (requires a placeholder since the IP range depends on the cluster)
3. Allow everything except private IPs, but allow some internal services in the same or different namespaces
4. Block everything except for an allowlist of IPs/ports (or namespaces?)

[yuvipanda]

Is there anyone else who can also help push this along? I don't want to be a blocker...

[consideRatio]

I can take this on in due time @yuvipanda, if anyone wants to go for it, please do! I'll write something here if i start doing actual work later.

[consideRatio]

@yuvipanda I'm picking up on this now!

[consideRatio]

Me and @yuvipanda spoke about this work and concluded a lot of concrete action points to take that are found acceptable to us.

Implementing the following API for all network policy resources, where the
default values are a bit different between singleuser netpol and the other
three netpol resources.

  networkPolicy:
    egressAllowRules:
      cloudMetadataServer: false
      dnsPortsPrivateIPs: true
      nonPrivateIPs: true
      privateIPs: false

We discussed the use of rules where the except clause would or wouldn't influence other rules. We concluded that for performance reasons and due to uncertainty, we should render our helm templates in a way to avoid such conflicts.

[consideRatio]

@yuvipanda I've now made a second pass on this configuration changes according to what we discussed earlier!

[yuvipanda]

Still WIP I think, but I love this! Completely approve. Comments need some updating, but otherwise ✔️

[consideRatio]

@yuvipanda and I have discussed (#2508 (comment)) how network policies work and we had a disagreement how we understood them to work. Due to that, the following test was developed. Here are the reproduction steps and a gif demonstrating the result.

    - to:
        - ipBlock:
            cidr: 0.0.0.0/0
            except:
              - 10.72.2.240/32
    # Will decommenting this rule make the netpol allow the pod to establish
    # a connection to 10.72.2.240? The answer was yes! NetworkPolicy
    # resources rules are additive like this!
    # - to:
    #     - ipBlock:
    #         cidr: 10.72.0.0/16

# Creation of a server exposing port 1080 to try connect against from the busybox
helm upgrade --install mockserver http://www.mock-server.com/mockserver-5.11.1.tgz

# Get the mockserver Pod IP:
kubectl describe pod -l app=mockserver | grep IP
IP=10.72.2.240

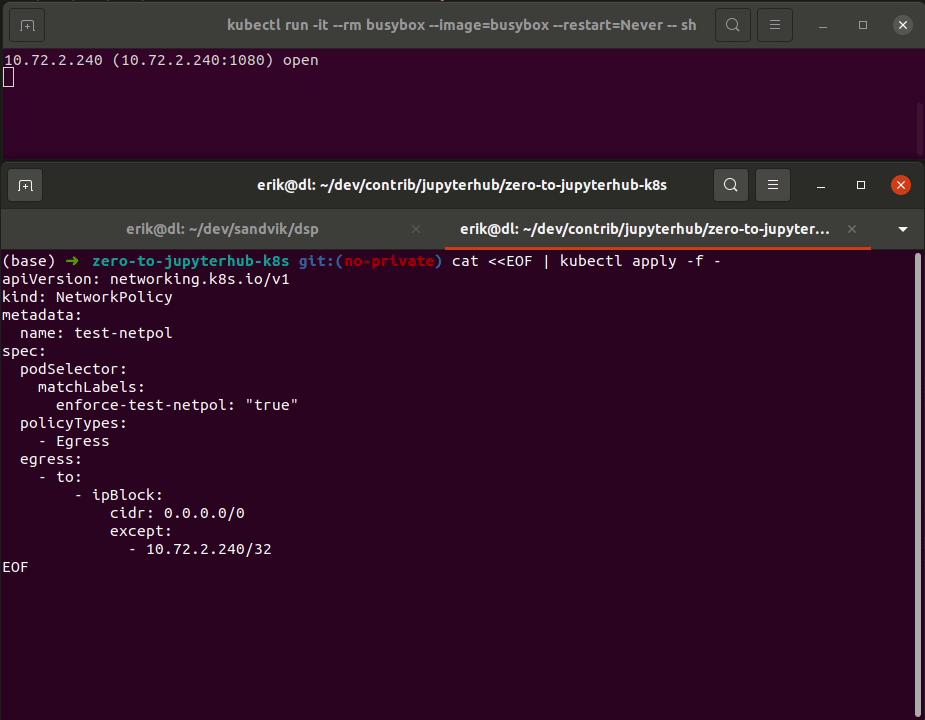

# Creation of a busybox pod (separate terminal)
kubectl run -it --rm busybox --image=busybox --restart=Never -- sh

# Run the following in the busybox pod to test the ability
# to create a connection to the webserver repeatedly
watch -tn1 "timeout 1 nc -zv 10.72.2.240 1080"

# Label the busybox pod
kubectl label pod busybox enforce-test-netpol=true

# Restrict the busybox pod to communication to anything
# besides the mockserver's ip
cat <<EOF | kubectl apply -f -
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: test-netpol
spec:
  podSelector:
    matchLabels:
      enforce-test-netpol: "true"
  policyTypes:
    - Egress
  egress:
    - to:
        - ipBlock:
            cidr: 0.0.0.0/0
            except:
              - 10.72.2.240/32
    # - to:
    #     - ipBlock:
    #         cidr: 10.72.0.0/16
EOF


# Add another rule that allows communication
# to the mockservers ip
cat <<EOF | kubectl apply -f -
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: test-netpol
spec:
  podSelector:
    matchLabels:
      enforce-test-netpol: "true"
  policyTypes:
    - Egress
  egress:
    - to:
        - ipBlock:
            cidr: 0.0.0.0/0
            except:
              - 10.72.2.240/32
    - to:
        - ipBlock:
            cidr: 10.72.0.0/16
EOF

[manics]

A couple of docs suggestions, but feel free to put them somewhere else!

[yuvipanda]

Wow, that is amazing work @consideRatio! That definitely did not match what my understanding of how network policies worked, and TIL. Thank you for putting in the effort to make that happen. I'll de-confuse myself over time :) Given this, I think it's alright to have them be mentioned multiple times - I'll admit it's confusing, but that is just how network policies seem to be.

[consideRatio]

@yuvipanda great! I'm happy to stop coalescing the rules for chart maintainability and readability, but i have no ideas about the performance impact - how concerned are you about that?

Ah you wrote on slack:

I think we should definitely remove our notes about performance - based on the results of this, I expect there is no perf difference at all

Then I'll restructure this back to be standalone rules again!

[consideRatio]

@yuvipanda @manics - i'm opinionated towards having easy logic to maintain: separated rules

Currently we have logic that coalesce rules, which leads to easier parsing of the final result.

What are you opinionated towards doing? Refactor to have separate rules or not?

I refactored it to coalesced rules motivated by potential performance, but yuvi doesnt think there id a notable difference, so then im opinionated towards separate rules for charr maintainability and comprehensibility. The final rendered ruleset will be more complicated as a netpol ruleset, but also easier to map to the chart condig that generated it: like 4/2*3/6 is 1, and 1 is easier to understand in one way, but the expression is easier to map to the configuration that led to it being 1.

[consideRatio]

@yuvipanda @manics @choldgraf this is now ready for review/merge. I think I've addressed all review comments, my own included, at this point.

[yuvipanda]

This looks awesome to me, @consideRatio! I don't wanna merge this as I opened the PR, but I think this is good to go!

[consideRatio]

Thank you @yuvipanda!! Wieee this PR merged is a big win! :)

[choldgraf]

Amazing - thanks for the persistence on this 🙂
