Fix tab_bar_background not being respected

[dmitmel]

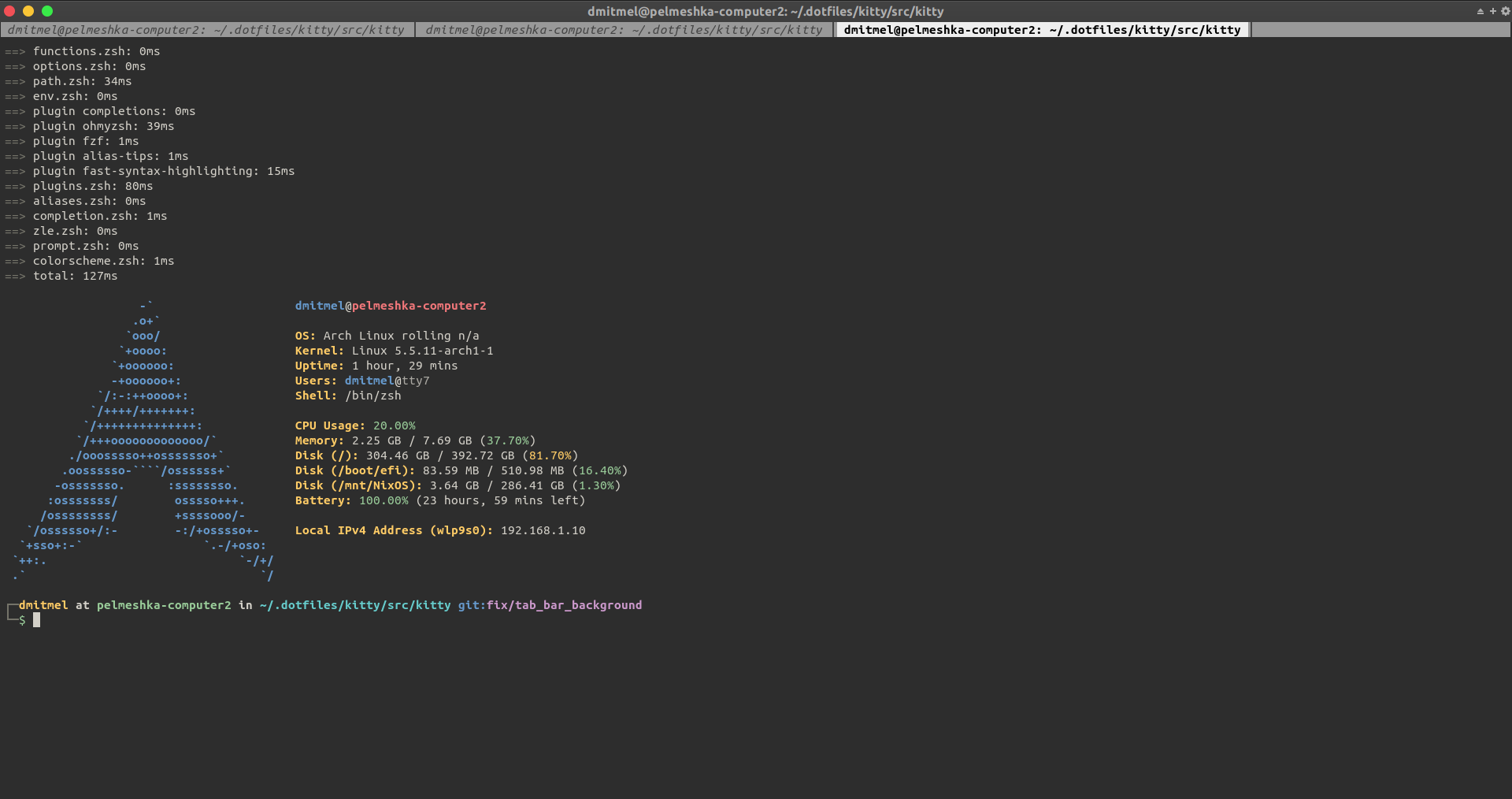

Hi! After update to v0.17.0 my tab bar changed from:

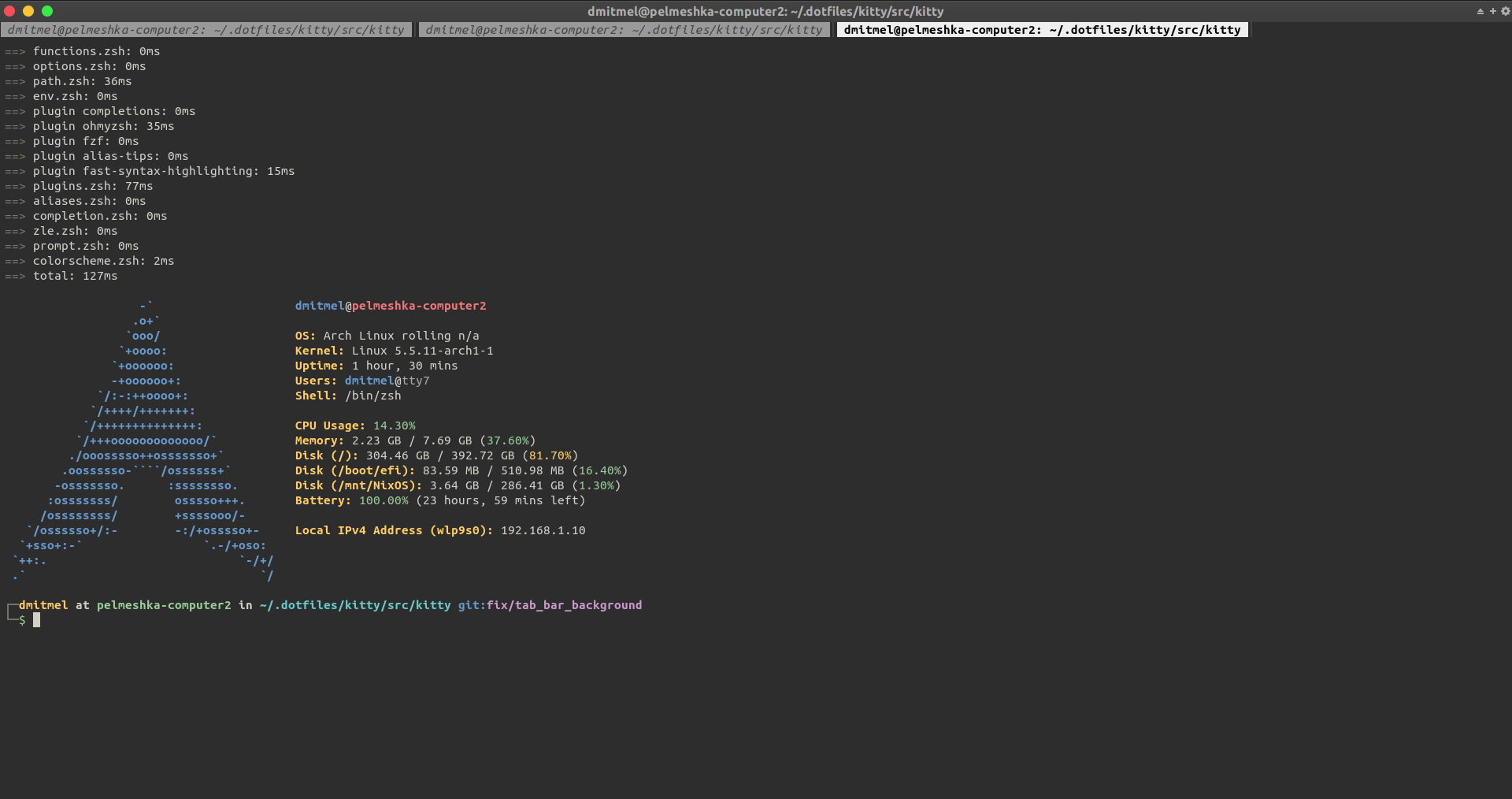

to:

By looking through the changelog I found that it was commit 0d87b8f which broke my configuration. Looks like while that commit did fix #2464, it broke powerline and separator tab bar styles. Fortunately, the fix was simple enough and now tab_bar_background is treated as specified in the documentation.

P. S. I fixed my specific configuration by copying the color from inactive_tab_background to tab_bar_background. Since my changes to tab bar rendering were insignificant (in other words: part of my config for tab bar isn't much different from the default configuration) I think that this fix is worthwhile including in the default configuration.

[dmitmel]

Your commit doesn't fix the problem. Now the tab bar looks like (with and without tab_bar_background because now it makes no difference whatsoever):

[dmitmel]

A few more screenshots:

• tab_bar_style = powerline + tab_bar_background #ff0000

• tab_bar_style = fade + tab_bar_background #ff0000


Though the powerline screenshot shows undoubtedly incorrect behavior, you might consider the fade one somewhat correct.

Is there anything wrong with my fix?

[dmitmel]

I also have to mention that I tested my changes on various tab_bar_style and tab_bar_background combinations, I can send screenshots of actual/expected behavior if necessary.

[kovidgoyal]

Your patch broke changing the colors, via patch_colors. See my latest commit

[dmitmel]

I can revert changes to patch_colors - they aren't necessary. The point is - your commit doesn't fix the problems (see screenshots).

[kovidgoyal]

No, see d9d4199

[dmitmel]

This one fixes powerline and fade, but separator doesn't look quite right yet:

I'll try to fix it as well.

[dmitmel]

Here you go:

diff --git a/kitty/tab_bar.py b/kitty/tab_bar.py
index be2866ba..c5eb6068 100644
--- a/kitty/tab_bar.py
+++ b/kitty/tab_bar.py
@@ -82,6 +82,7 @@ def draw_tab_with_separator(draw_data: DrawData, screen: Screen, tab: TabBarData
     end = screen.cursor.x
     screen.cursor.bold = screen.cursor.italic = False
     screen.cursor.fg = 0
+    screen.cursor.bg = as_rgb(color_as_int(draw_data.inactive_bg))
     screen.draw(draw_data.sep)
     screen.cursor.bg = 0
     return end

[kovidgoyal]

That was deliberate, I prefer the separator for the active tab to use the active background. Having one cell of inactive bg after the last tab if the last tab is active looks weird.

[dmitmel]

Looks weird when some tab in the middle is selected.

[kovidgoyal]

Looks OK to me, though if you want to change that, I am OK either way. make a separate PR for it, and use is_last to set the bg to inactive_tab_bg only for non-last tabs.

[dmitmel]

Nevermind. I switched to powerline mode and I hope get used to it soon.

[dmitmel]

Having thought about it, as a compromise I can either remove the last separator, similarly to powerline:

[kovidgoyal]

No last separator looks bad when the tab bar bbackground is set to something other than inactive background. Like I said, I am OK with unising inactive background for all separators except the last one.
