etcd3 client logger uses significant memory with many CRDs

[negz]

What happened?

The @crossplane project uses a lot of CRDs - in some cases almost 2,000. I do mean kind: CustomResourceDefinition here, not custom resources. We've noticed that API server memory consumption balloons when many CRDs are installed - for example with ~1,900 CRDs we see the API server using up to ~8Gi RSS.

A little profiling shows that around 1.5Gi of that memory is being used by the etcd3 client's logger.

With the Logger

With Kubernetes built from e092b6d with the CRDs at https://github.com/negz/crossplane-scale/tree/dc25bef/etoomanycrds/latest-crds loaded I'm seeing the API server using up to ~7.5GiB RSS. I see it dip to ~5.5GiB, presumably when garbage collection runs.

$ k get nodes
NAME                                   STATUS   ROLES           AGE     VERSION
e092b6d27bf-withlogger-control-plane   Ready    control-plane   9m47s   v1.25.0-alpha.3.190+e092b6d27bff00

$ k get crds|wc -l
1878

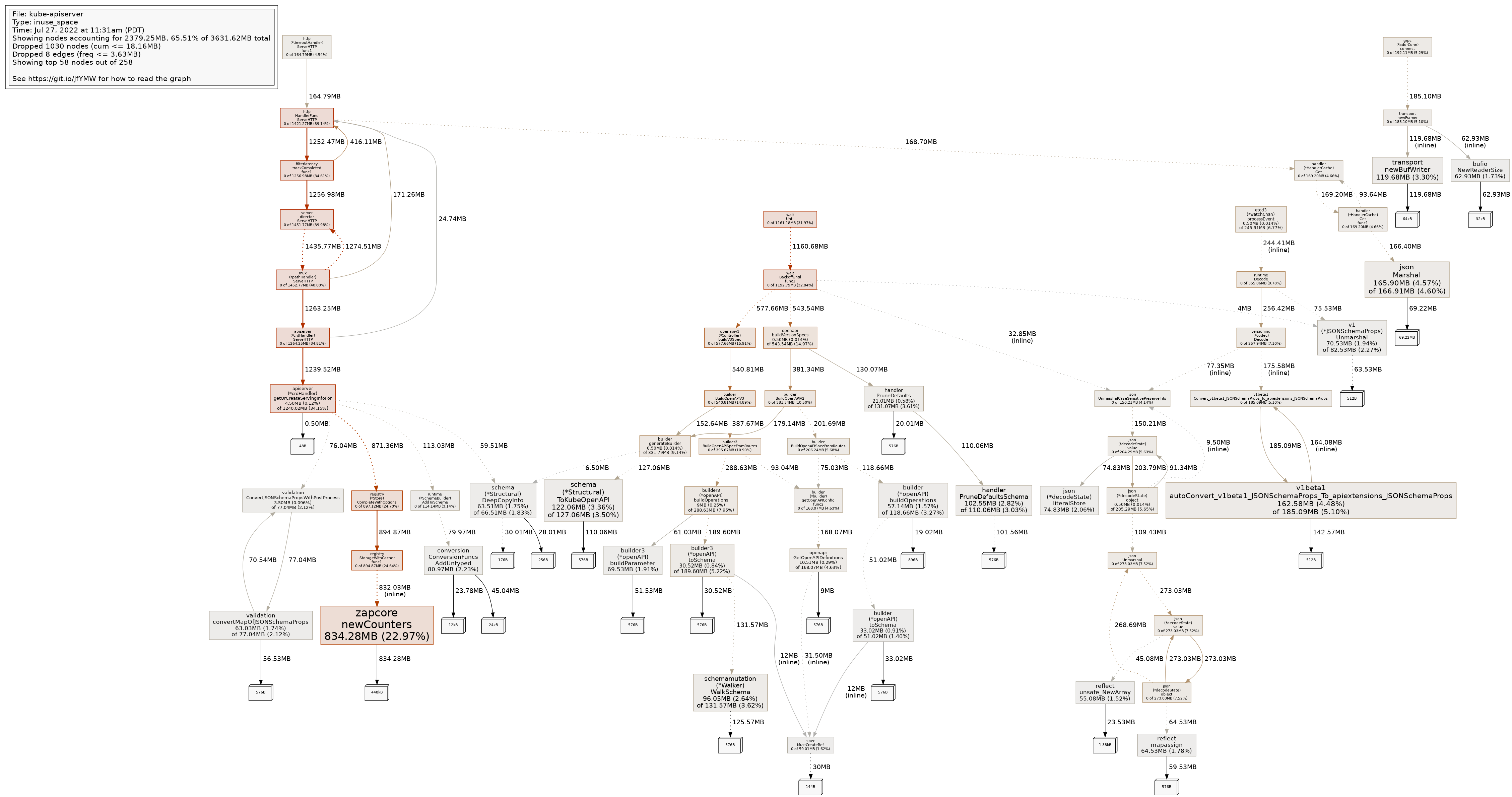

You can see zapCore.newCounters taking up a ton of memory below. Zap is the logger used by the etcd client. Note that this is a sample, so it's actually using more than the indicated ~800MiB.

Without the Logger

I'm seeing the API server using up to ~6GiB RSS. I see it dip to ~4.5GiB, presumably due to GC runs.

$ k get nodes
NAME                                      STATUS   ROLES           AGE   VERSION
e092b6d27bf-withoutlogger-control-plane   Ready    control-plane   31m   v1.25.0-alpha.3.190+e092b6d27bff00-dirty

$ k get crds|wc -l
1878

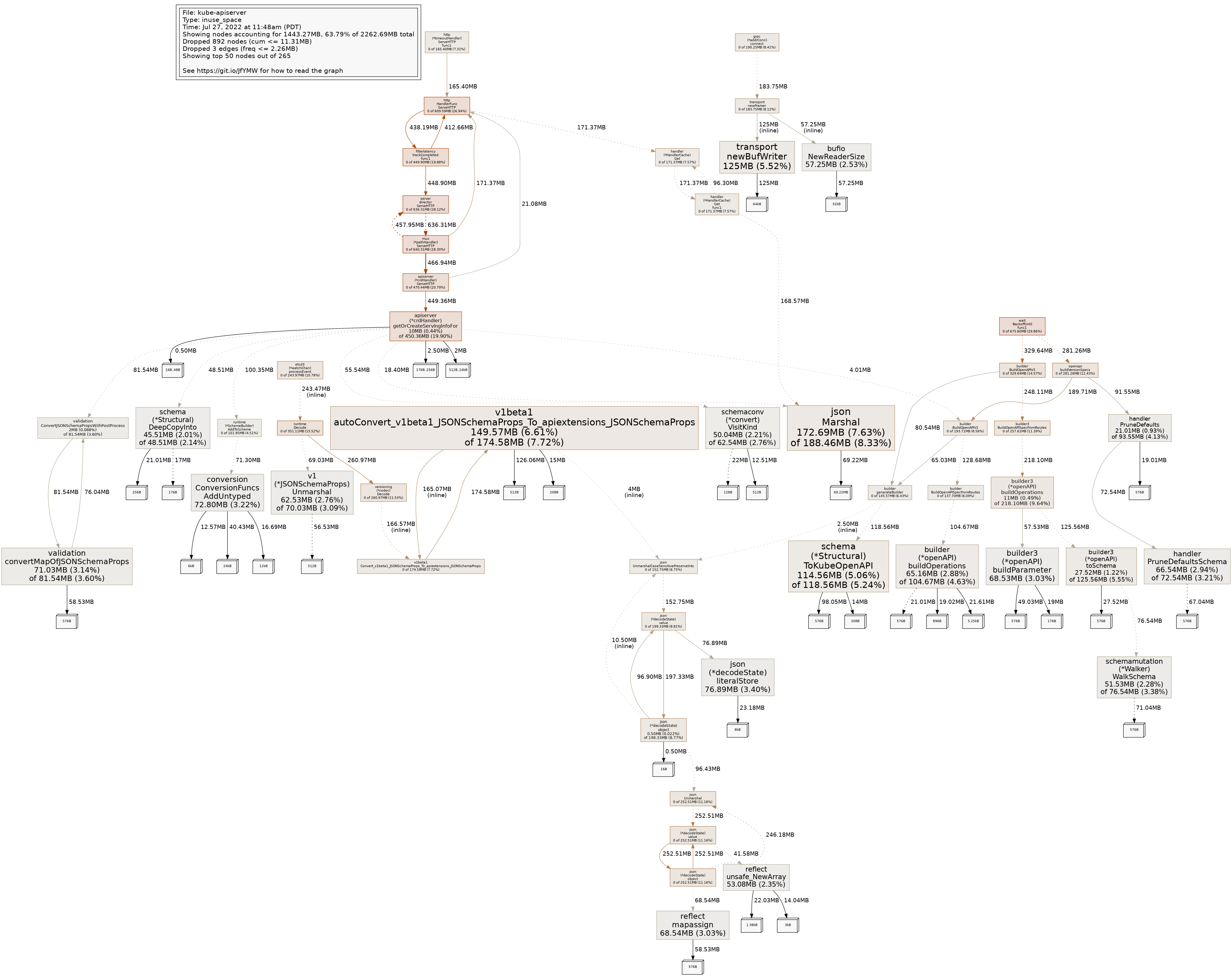

You can see zapCore.newCounters no longer appears below.

What did you expect to happen?

I would not expect a logger to be responsible for such a significant amount of the API server's memory consumption.

How can we reproduce it (as minimally and precisely as possible)?

You can get the above profile by:

1. Checking out e092b6d.
2. kind build node-image . to build a kind node.
3. kind create cluster --image kindest/node:latest to start a control plane for the above build.
4. kubectl apply -f https://raw.githubusercontent.com/negz/crossplane-scale/dc25bef/profile.yaml to allow anonymous pprof access
5. kubectl apply -f the CRDs from https://github.com/negz/crossplane-scale/tree/dc25bef/etoomanycrds/latest-crds
6. go tool pprof -png https+insecure://localhost:$(kind get kubeconfig|grep server|cut -d: -f4)/debug/pprof/heap

I used https://github.com/nicolargo/glances to see the RSS but I imagine top would show it too. See #111477 for details on how I disabled the logger to get the "without logger" numbers.

Anything else we need to know?

No response

Kubernetes version

v1.25.0-alpha.3.190+e092b6d27bff00

Cloud provider

N/A

OS version

# On Linux:
$ cat /etc/os-release
BUG_REPORT_URL="https://github.com/NixOS/nixpkgs/issues"
BUILD_ID="22.05.20220713.365e1b3"
DOCUMENTATION_URL="https://nixos.org/learn.html"
HOME_URL="https://nixos.org/"
ID=nixos
LOGO="nix-snowflake"
NAME=NixOS
PRETTY_NAME="NixOS 22.05 (Quokka)"
SUPPORT_URL="https://nixos.org/community.html"
VERSION="22.05 (Quokka)"
VERSION_CODENAME=quokka
VERSION_ID="22.05"

$ uname -a
Linux mael 5.18.7 #1-NixOS SMP Sat Jun 25 13:29:48 UTC 2022 aarch64 GNU/Linux

Install tools

`kind`

Container runtime (CRI) and version (if applicable)

Related plugins (CNI, CSI, ...) and versions (if applicable)

[negz]

/sig api-machinery

[apelisse]

Since you looked at the code, and I'd rather not spend time doing that. Any chance you can tell if it's because it's being mis-used?

[jpbetz]

This is a scale dimension where the apiserver has historically scaled poorly. With the OpenAPI discovery performance being improved it looks like this might be a hint at what the next bottleneck might be?

Any idea how many etcd clients were instantiated? I suspect it's quite a lot.

[negz]

Since you looked at the code, and I'd rather not spend time doing that. Any chance you can tell if it's because it's being mis-used?

Sadly I didn't yet look deeply past turning it off. I was slightly optimistic that we might just be able to disable it without any meaningful impact. What I do know is that the offending code seems to be on the etcd3 client end - i.e. it defaults to creating its own logger when one isn't supplied. You can see that code at https://github.com/etcd-io/etcd/blob/v3.5.4/client/pkg/logutil/zap.go#L24.

[negz]

Any idea how many etcd clients were instantiated? I suspect it's quite a lot.

I don't - will try to find out.

[jpbetz]

Any idea how many etcd clients were instantiated? I suspect it's quite a lot.

I don't - will try to find out.

The zap logs might tell you if you have the data. If my memory of the code is right, you should get 1 etcd client per CRD right now (plus some for builtin types).

[leilajal]

/triage accepted

[negz]

you should get 1 etcd client per CRD right now (plus some for builtin types).

Based on my read of the code, you're right. I see roughly:

• All of /apis is handled by a *crdHandler
• When a request comes in it gets an instance of the crd (from an informer)
• Gets serving info from a map of CRDs - if there is none it...
• Calls customresource.NewStorage which creates a genericregistry.Store
• Calls its CompleteWithOptions method
• That calls its “Decorator”, which is a genericregistry.StorageWithCacher
• That calls generic.NewRawStorage which just wraps factory.Create
• factory.Create calls newETCD3Storage which calls newETCD3Client

I'm experiencing technical difficulties getting lsof running in my kind container but /proc/pid/net confirms we have a connection to etcd per CRD:

$ k get crd|wc -l
1878

$ docker exec -it e092b6d27bf-withlogger-control-plane bash

root@e092b6d27bf-withlogger-control-plane:/# ps -C kube-apiserver
    PID TTY          TIME CMD
    493 ?        00:29:03 kube-apiserver

# With the 1,878 CRDs loaded
# Column 3 is the remote host and port per https://www.kernel.org/doc/Documentation/networking/proc_net_tcp.txt
# 0100007F:094B is hex for 127.0.0.1:2379 (the etcd client port)
root@e092b6d27bf-withlogger-control-plane:/# cat /proc/493/net/tcp|awk '{ print $3 }'|grep '0100007F:094B'|wc -l
1937

# After running kubectl delete crds --all
root@e092b6d27bf-withlogger-control-plane:/# cat /proc/493/net/tcp|awk '{ print $3 }'|grep '0100007F:094B'|wc -l
60

Note that 1,937 - 60 = 1,877 - the number of CRDs we have loaded (the 1,878 above includes the header line).
