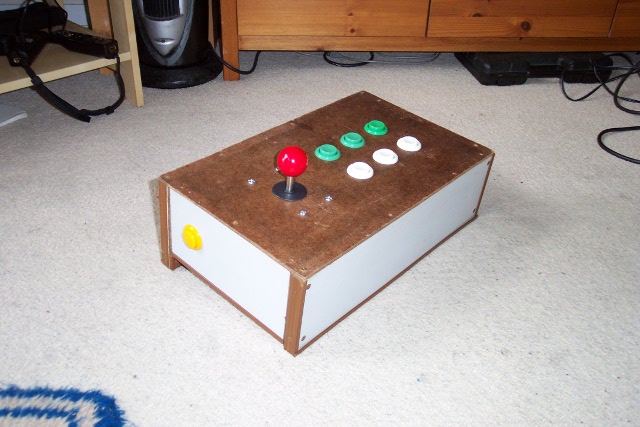

USB Arcade Joystick using a Minimus 32

This repository contains the source code for my joystick described here:

https://jamie.lentin.co.uk/embedded/arcade-joystick/

This is basically the LUFA Joystick demo, but with alterations to:

• Use custom joystick/button interfaces, rather than rely on board drivers
• Debounce buttons
• Use 8 buttons instead of 2

Building and installing

Clone the code and make sure LUFA is downloaded with:

git submodule update --init

Then edit makefile to suit your board. This is a standard LUFA makefile, MCU, ARCH, BOARD and F_CPU are particular values to pay attention to.

To build and flash to an attached chip in DFU mode (for a minmus, hold down HWB after reset):

 make && make dfu
