Use-after-free when opening a new document #645

Closed
hfiguiere opened this issue Mar 8, 2021 · 6 comments
Closed

Use-after-free when opening a new document #645

hfiguiere opened this issue Mar 8, 2021 · 6 comments
Labels

Comments

@hfiguiere
Copy link
Contributor

Describe the bug
This only happen if LeoCAD reopen the last document.

This need leocad compiled with address sanitizer. Rough patch:

diff --git a/leocad.pro b/leocad.pro
index 5b9abb49..39dcf87f 100644
--- a/leocad.pro
+++ b/leocad.pro
@@ -18,6 +18,11 @@ qtHaveModule(gamepad) {
 INCLUDEPATH += qt common
 CONFIG += precompile_header incremental c++11 force_debug_info

+linux-* {
+        QMAKE_CXXFLAGS += -fsanitize=address
+        LIBS += -fsanitize=address
+}
+
 win32 {
        RC_ICONS = resources/leocad.ico
        VERSION = 21.1.0.0

To Reproduce
Steps to reproduce the behavior:

  1. Start leocad with the last document reopened
  2. File > New
  3. Crash

Expected behavior
Shouldn't crash

Stack trace

=================================================================
==128700==ERROR: AddressSanitizer: heap-use-after-free on address 0x6120003ef6e0 at pc 0x000000760c51 bp 0x7ffc67971560 sp 0x7ffc67971558
READ of size 8 at 0x6120003ef6e0 thread T0
    #0 0x760c50 in std::vector<Image, std::allocator<Image> >::operator[](unsigned long) /usr/include/c++/10/bits/stl_vector.h:1046
    #1 0x760c50 in lcTexture::Upload(lcContext*) common/lc_texture.cpp:207
    #2 0x59c83e in lcPiecesLibrary::UploadTextures(lcContext*) common/lc_library.cpp:1555
    #3 0x6fb344 in lcScene::Draw(lcContext*) const common/lc_scene.cpp:401
    #4 0x7afb9a in lcView::OnDraw() common/lc_view.cpp:972
    #5 0x7f0114c6c08c  (/lib64/libQt5Widgets.so.5+0x20d08c)
    #6 0x7f0114c4db1d in QWidget::event(QEvent*) (/lib64/libQt5Widgets.so.5+0x1eeb1d)
    #7 0x7f0114c0cec2 in QApplicationPrivate::notify_helper(QObject*, QEvent*) (/lib64/libQt5Widgets.so.5+0x1adec2)
    #8 0x7f0113f8fbd7 in QCoreApplication::notifyInternal2(QObject*, QEvent*) (/lib64/libQt5Core.so.5+0x281bd7)
    #9 0x7f0114c45be9 in QWidgetPrivate::sendPaintEvent(QRegion const&) (/lib64/libQt5Widgets.so.5+0x1e6be9)
    #10 0x7f0114c6beee in QOpenGLWidget::resizeEvent(QResizeEvent*) (/lib64/libQt5Widgets.so.5+0x20ceee)
    #11 0x7f0114c4e573 in QWidget::event(QEvent*) (/lib64/libQt5Widgets.so.5+0x1ef573)
    #12 0x7f0114c0cec2 in QApplicationPrivate::notify_helper(QObject*, QEvent*) (/lib64/libQt5Widgets.so.5+0x1adec2)
    #13 0x7f0113f8fbd7 in QCoreApplication::notifyInternal2(QObject*, QEvent*) (/lib64/libQt5Core.so.5+0x281bd7)
    #14 0x7f0114c45b0d in QWidgetPrivate::sendPendingMoveAndResizeEvents(bool, bool) (/lib64/libQt5Widgets.so.5+0x1e6b0d)
    #15 0x7f0114c4a496 in QWidgetPrivate::show_helper() (/lib64/libQt5Widgets.so.5+0x1eb496)
    #16 0x7f0114c4d652 in QWidgetPrivate::setVisible(bool) (/lib64/libQt5Widgets.so.5+0x1ee652)
    #17 0x5e3c39 in lcMainWindow::SetCurrentModelTab(lcModel*) common/lc_mainwindow.cpp:1580
    #18 0x465632 in Project::SetActiveModel(int) common/project.cpp:155
    #19 0x54d8f9 in lcApplication::SetProject(Project*) common/lc_application.cpp:269
    #20 0x5eec61 in lcMainWindow::NewProject() common/lc_mainwindow.cpp:2293
    #21 0x5fbec7 in lcMainWindow::HandleCommand(lcCommandId) common/lc_mainwindow.cpp:2545
    #22 0x7f0113fbf3bf  (/lib64/libQt5Core.so.5+0x2b13bf)
    #23 0x7f0114c06645 in QAction::triggered(bool) (/lib64/libQt5Widgets.so.5+0x1a7645)
    #24 0x7f0114c08f30 in QAction::activate(QAction::ActionEvent) (/lib64/libQt5Widgets.so.5+0x1a9f30)
    #25 0x7f0114c09b0e in QAction::event(QEvent*) (/lib64/libQt5Widgets.so.5+0x1aab0e)
    #26 0x7f0114c0cec2 in QApplicationPrivate::notify_helper(QObject*, QEvent*) (/lib64/libQt5Widgets.so.5+0x1adec2)
    #27 0x7f0113f8fbd7 in QCoreApplication::notifyInternal2(QObject*, QEvent*) (/lib64/libQt5Core.so.5+0x281bd7)
    #28 0x7f01145dbbc1 in QShortcutMap::dispatchEvent(QKeyEvent*) (/lib64/libQt5Gui.so.5+0x190bc1)
    #29 0x7f01145dc112 in QShortcutMap::tryShortcut(QKeyEvent*) (/lib64/libQt5Gui.so.5+0x191112)
    #30 0x7f0114597cc6 in QWindowSystemInterface::handleShortcutEvent(QWindow*, unsigned long, int, QFlags<Qt::KeyboardModifier>, unsigned int, unsigned int, unsigned int, QString const&, bool, unsigned short) (/lib64/libQt5Gui.so.5+0x14ccc6)
    #31 0x7f01145af85e in QGuiApplicationPrivate::processKeyEvent(QWindowSystemInterfacePrivate::KeyEvent*) (/lib64/libQt5Gui.so.5+0x16485e)
    #32 0x7f01145948cb in QWindowSystemInterface::sendWindowSystemEvents(QFlags<QEventLoop::ProcessEventsFlag>) (/lib64/libQt5Gui.so.5+0x1498cb)
    #33 0x7f00ffcfe47d  (/lib64/libQt5XcbQpa.so.5+0x6b47d)
    #34 0x7f0112b38a9e in g_main_context_dispatch (/lib64/libglib-2.0.so.0+0x53a9e)
    #35 0x7f0112b8aa97  (/lib64/libglib-2.0.so.0+0xa5a97)
    #36 0x7f0112b35e72 in g_main_context_iteration (/lib64/libglib-2.0.so.0+0x50e72)
    #37 0x7f0113fdc6f2 in QEventDispatcherGlib::processEvents(QFlags<QEventLoop::ProcessEventsFlag>) (/lib64/libQt5Core.so.5+0x2ce6f2)
    #38 0x7f0113f8e57a in QEventLoop::exec(QFlags<QEventLoop::ProcessEventsFlag>) (/lib64/libQt5Core.so.5+0x28057a)
    #39 0x7f0113f961b3 in QCoreApplication::exec() (/lib64/libQt5Core.so.5+0x2881b3)
    #40 0x45b78d in main qt/qtmain.cpp:217
    #41 0x7f01137771e1 in __libc_start_main (/lib64/libc.so.6+0x281e1)
    #42 0x45c56d in _start (/home/hub/source/leocad/build/release/leocad+0x45c56d)

0x6120003ef6e0 is located 288 bytes inside of 320-byte region [0x6120003ef5c0,0x6120003ef700)
freed by thread T0 here:
    #0 0x7f01152e75b7 in operator delete(void*) (/lib64/libasan.so.6+0xad5b7)
    #1 0x775bb7 in lcView::DestroyResources(lcContext*) common/lc_view.cpp:342

previously allocated by thread T0 here:
    #0 0x7f01152e6bb7 in operator new(unsigned long) (/lib64/libasan.so.6+0xacbb7)
    #1 0x775b33 in lcView::CreateResources(lcContext*) common/lc_view.cpp:188

SUMMARY: AddressSanitizer: heap-use-after-free /usr/include/c++/10/bits/stl_vector.h:1046 in std::vector<Image, std::allocator<Image> >::operator[](unsigned long)
Shadow bytes around the buggy address:
  0x0c2480075e80: fa fa fa fa fa fa fa fa fd fd fd fd fd fd fd fd
  0x0c2480075e90: fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd
  0x0c2480075ea0: fd fd fd fd fd fd fd fd fd fd fd fd fa fa fa fa
  0x0c2480075eb0: fa fa fa fa fa fa fa fa fd fd fd fd fd fd fd fd
  0x0c2480075ec0: fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd
=>0x0c2480075ed0: fd fd fd fd fd fd fd fd fd fd fd fd[fd]fd fd fd
  0x0c2480075ee0: fa fa fa fa fa fa fa fa fd fd fd fd fd fd fd fd
  0x0c2480075ef0: fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd
  0x0c2480075f00: fd fd fd fd fd fd fd fd fd fd fd fd fa fa fa fa
  0x0c2480075f10: fa fa fa fa fa fa fa fa fd fd fd fd fd fd fd fd
  0x0c2480075f20: fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd fd
Shadow byte legend (one shadow byte represents 8 application bytes):
  Addressable:           00
  Partially addressable: 01 02 03 04 05 06 07
  Heap left redzone:       fa
  Freed heap region:       fd
  Stack left redzone:      f1
  Stack mid redzone:       f2
  Stack right redzone:     f3
  Stack after return:      f5
  Stack use after scope:   f8
  Global redzone:          f9
  Global init order:       f6
  Poisoned by user:        f7
  Container overflow:      fc
  Array cookie:            ac
  Intra object redzone:    bb
  ASan internal:           fe
  Left alloca redzone:     ca
  Right alloca redzone:    cb
  Shadow gap:              cc
==128700==ABORTING

Version (please complete the following information):

  • OS: Linux Fedora 33
  • LeoCAD Version: git master commit de3a3ad
@hfiguiere hfiguiere added the bug label Mar 8, 2021
@leozide
Copy link
Owner

leozide commented Mar 9, 2021

I can't repro this, some steps would be nice.

@hfiguiere
Copy link
Contributor Author

Apparently it needs a specific file to be reopened at startup.

  1. Open the attached file (inside the .zip) issue-645.zip and make sure Leocad reopen the last file at startup.
  2. Quit Leocad
  3. Start Leocad
  4. File > New
  5. it crashes.

@leozide
Copy link
Owner

leozide commented Mar 10, 2021

Doesn't happen, probably has something to do with your tab layout. Can you describe your tabs?

@hfiguiere
Copy link
Contributor Author

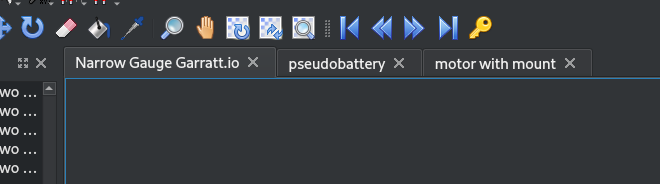

Indeed it seems it's specific to which tabs are open. With this I can reproduce:


Given that I couldn't reproduce with just "motor with mount" either.

@carnil
Copy link

carnil commented Apr 26, 2021

There seems to be a CVE id assigned to this issue, CVE-2021-31804

@trevorsandy
Copy link
Contributor

This vulnerability is corrected in v21 03. So the recommended action would be to update your installation to at least this version.
