JKind for Eclipse

Lustre Plug-in for Eclipse with JKind Analysis Support

This plug-in provides a Lustre front-end in Eclipse with syntax checking, highlighting, type checking, and other syntatic checks. The plug-in also provides a convenient way to launch JKind on a Lustre file and have the results reported back in a real-time graphical display. Excel formatted counterexamples are viewable by right-clicking on individual properties.

JKind itself is now bundled into the plug-in, so no separate installation is needed.

Quick Install

Use the update site https://raw.githubusercontent.com/agacek/jkind-xtext/master/jkind.xtext.site/site.xml

Detailed Install

  1. Download and install Eclipse.

  2. From the Eclipse "Help" menu select "Install New Software...".

install new software

  1. In the "Available Software" dialog click the "Add..." button.

add

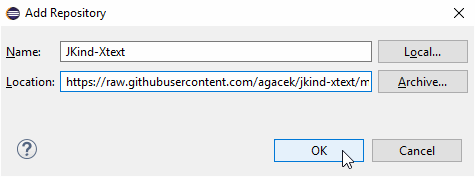

  1. In the "Add Repository" dialog enter the name JKind-Xtext and the location https://raw.githubusercontent.com/agacek/jkind-xtext/master/jkind.xtext.site/site.xml. Click "OK".

add repository

  1. In the "Available Software" dialog open the "Uncategorized" menu and select "JKind for Eclipse". Click "Next" and follow the prompts.

select jkind for eclipse

Updating

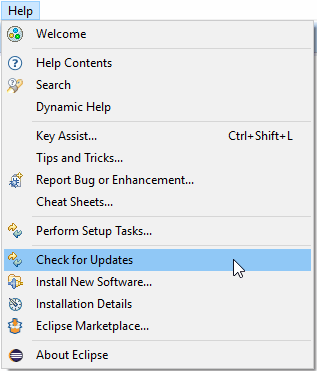

To update the plug-in, select "Check for Updates" from the Eclipse "Help" menu.

check for updates

Usage Examples

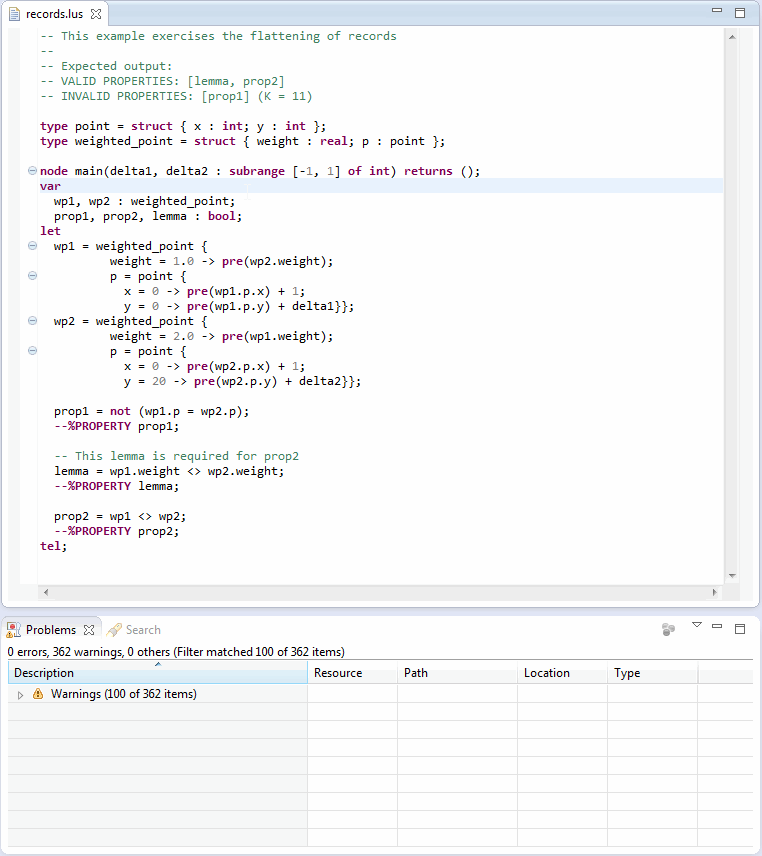

Right click in a Lustre file to run JKind and examine the results:

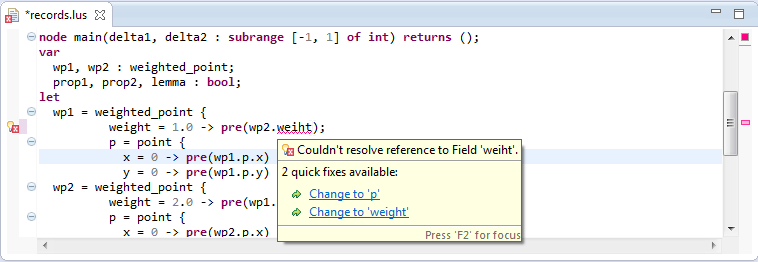

Syntax checking, type checking, and other static checks are all done on the fly:

Type error

Many other Eclipse-style features are available. For example, variables and fields can be easily renamed:

Rename Element
