edi Project Configuration for Variscite Boards

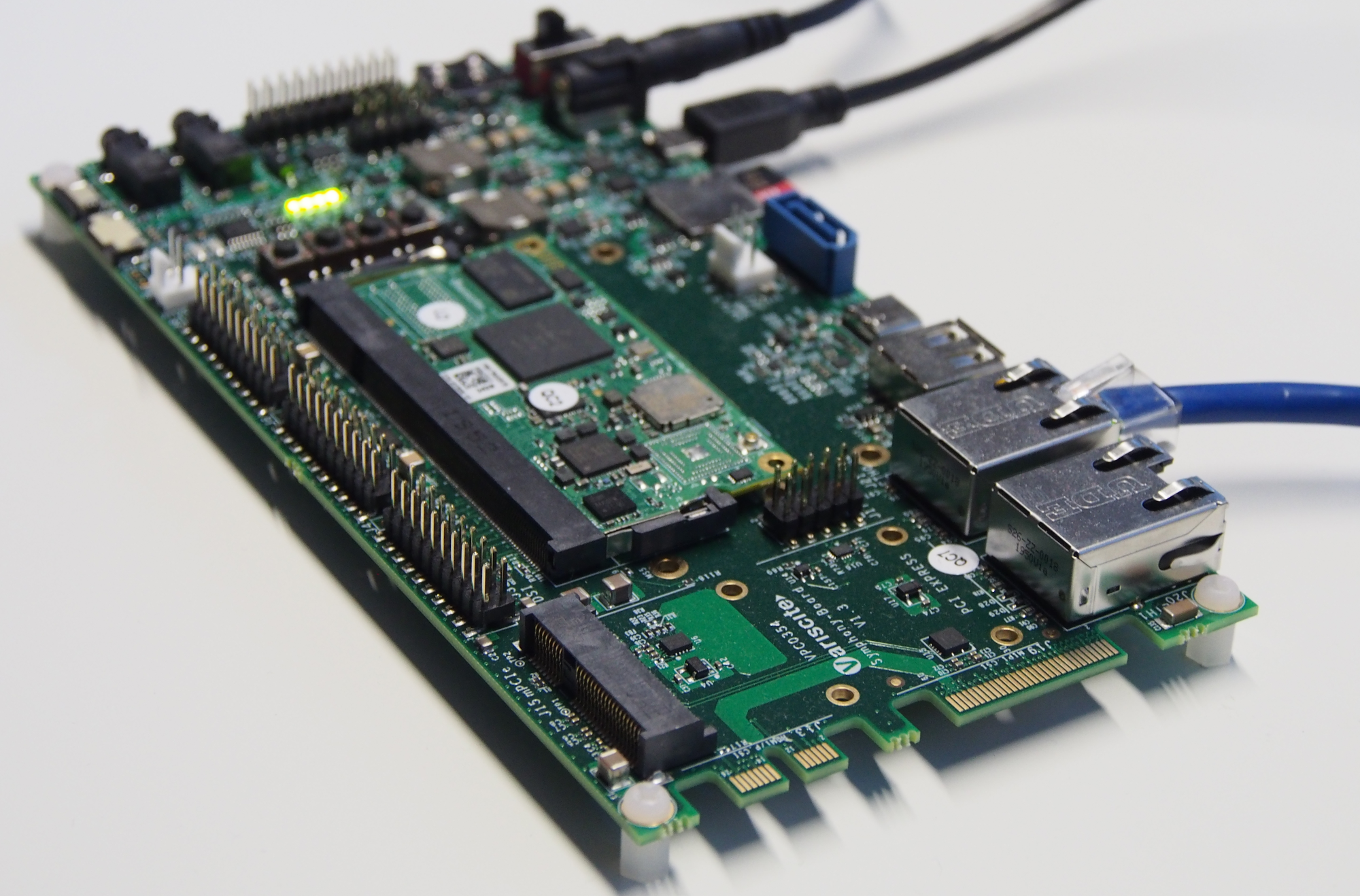

This edi project configuration currently supports the Variscite var-som-mx8m-nano on the Symphony-Board.


The master branch is currently basing upon Debian bookworm. For Debian bullseye please check out the debian_bullseye branch.


The edi configuration contained in this repository can be used to generate the following artifacts:

  • A minimal (e.g. no display, no sound) Debian bookworm arm64 (64bit) image suitable for the Variscite var-som-mx8m-nano.
  • A matching Mender update artifacts for the above configuration.
  • An LXD container with a pre-installed cross development toolchain (arm64) for C and C++.

Important Note

Please note that image generation operations require superuser privileges, and therefore you can easily break your host operating system. Therefore, make sure that you have a backup copy of your data.

Basic Usage


Prior to using this edi project configuration you have to install edi according to this instructions. Please take a careful look at the "Setting up ssh Keys" section since you will need a proper ssh key setup in order to access the container or the target device using ssh.

The image post-processing commands require some additional tools. On Ubuntu 20.04 and newer those tools can be installed as follows:

sudo apt install e2fsprogs bmap-tools mtools parted rsync zerofree python3-sphinx mender-artifact

Creating a Target Image

A target image can be created using the following command:

sudo edi -v image create var-som-mx8m-nano.yml

The resulting image can be copied to a SD card (here /dev/mmcblk0) using the following command (Please note that everything on the SD card will be erased!):

sudo bmaptool copy artifacts/var-som-mx8m-nano.img /dev/mmcblk0

If the command fails, unmount the SD card and repeat the above command.

Once you have booted the device using this SD card you can access it using ssh (the access should be granted thanks to to your ssh keys):

ssh variscite@IP_ADDRESS

The password for the user variscite is variscite (just in case you want to execute a command using sudo or login via a local terminal).

Flashing the Image to the eMMC

The same image that has been used for the SD card can also be flashed to the builtin eMMC as follows:

Copy the image to the device that has been booted from the SD card:

scp artifacts/var-som-mx8m-nano.img variscite@IP_ADDRESS:

Access the device:

ssh variscite@IP_ADDRESS

Flash the image to the eMMC (Everything on mmcblk2 will be erased!):

sudo dd if=var-som-mx8m-nano.img of=/dev/mmcblk2 bs=1M

Now you can switch the device off and toggle the "BOOT SELECT" switch from "SD" to "INT". When powering up the device again, it should boot the new image from the eMMC storage device.

Connecting to Mender

To enable over the air (OTA) updates, the generated images are configured to connect to In order to connect to your Mender tenant you have to provide your tenant token prior to building the images. The tenant token can be added to configuration/mender/mender.yml. If you do not want to add the tenant token to the version control system you can also copy configuration/mender/mender.yml to configuration/mender/mender_custom.yml and add the tenant token there.

Creating a Cross Development LXD Container

A cross development container can be created using the following command:

sudo edi -v lxc configure var-som-mx8m-nano-cross-dev-bookworm var-som-mx8m-nano-cross-dev.yml

The container can be accessed as follows (the password is ChangeMe!):

lxc exec var-som-mx8m-nano-cross-dev-bookworm -- login ${USER}

Or with ssh (Hint: retrieve IP_OF_CONTAINER with lxc list):


You can directly start to cross compile applications:

aarch64-linux-gnu-g++ ...

For your convenience, the LXD container shares the folder edi-workspace with the host operating system.

Documenting an Artifact

During the image build the documentation gets rendered to artifacts/CONFIGNAME_documentation as reStructuredText. The text files can be transformed into a nice pdf file with some additional tools that need to be installed first:

sudo apt install texlive-latex-recommended texlive-pictures texlive-latex-extra texlive-xetex latexmk

Then the pdf can be generated using the following commands:

cd artifacts/CONFIGNAME_documentation
make PDFLATEX=xelatex latexpdf
make PDFLATEX=xelatex latexpdf

More Information

For more information about the Variscite hardware please take a look at the official documentation.

For more information about this setup please read the edi documentation and this blog post.

For details about the Mender based robust update integration please refer to this blog post.

If you are curious about the U-Boot bootloader setup please take a look at this blog post.

For the kernel build instructions please check the docs folder of this project.


This repository contains an edi project configuration for Variscite system on modules (SOMs).
