You can try the example app here

To see Universal Profile Browser Extension in action with EIP-6963 support:

1. Ensure you have the Universal Profile Browser Extension and at least one more wallet extension installed in your browser
2. Run npm install
3. Run npm run build (if you make any changes or would like to ensure there are no build errors)
4. Run npm run dev to run the app locally

Previous version of this repo built by the Metamask team can be found here

NextJS Version of this same App by the Wallet Connect team can be found here

A Guide to EIP-6963 for Developers

This article will fast track your understanding of EIP-6963, answer questions about how to implement, and provide example code for those who'd like to skip the chit chat.

The Example code repo above will help you create a simple implementation of EIP-6963 for detecting multiple injected providers (browser installed wallets (Externally Owned Accounts)) using ViteJS React + TypeScript.

The crux of what we will be doing is implementing the interfaces outlined in the EIP and listening to eip6963:announceProvider events in our dapp and storing the returned providers so they can be used anywhere and at anytime in our dApp giving us the ability to distinguish between providers.

The EIP-6963 Abstract

An alternative discovery mechanism to window.ethereum for EIP-1193 providers which supports discovering multiple injected Wallet Providers in a web page using Javascript’s window events.

Before trying to understand any EIP, read and fully understand the abstract (Quoted above), motivation, and do a full read through even if there are aspects that you don't understand.

Note: If you don't understand any part, you can get further information through sites like Ethereum Magicians (EIP-6963 MIPD) where you can get additional context from the authors and the community on most EIPs.

It would also be helpful to understand EIP-1193.

Important line from the EIP-6963 abstract:

"An alternative discovery mechanism to window.ethereum for EIP-1193 providers"

Immediately this tells us that EIP-6963's Multi Injected Provider Discovery proposal aims to introduce a different approach or method for discovering and interacting with EIP-1193 providers (in this case, Ethereum wallet providers) in contrast to the existing method relying on the window.ethereum object.

Hopefully this info has helped us to frame our thinking as we progress through the EIP and start to implement this much better way of detecting and connecting to wallets.

Issues Predating EIP-6963

In Ethereum decentralized applications (dApps), wallets traditionally expose their APIs using a JavaScript object known as 'the Provider.' The initial EIP created to standardize this interface was EIP-1193, and conflicts have risen among different wallet implementations. While EIP-1193 aimed to establish a common convention, the user experience suffered due to race conditions caused by wallets injecting their providers (clobbering) window's (Ethereum Object). This has been a huge criticism of Web3 UX and its shortcomings around wallet onboarding and connection. These race conditions resulted in multiple wallet extensions enabled in the same browser having conflicts, where the last injected provider typically took precedence.

Before EIP-6963, we had an unofficial standard through EIP-1193. Before it, a common convention in Ethereum dApps was for wallets to expose their API via a JavaScript object in the web page called 'the Provider.' Historically, Provider implementations had exhibited conflicting interfaces and behaviors between wallets. EIP-1193 formalized an Ethereum Provider API to promote wallet interoperability. The API was designed to be minimal, event-driven, and agnostic of transport and RPC protocols, and easily extended by defining new RPC methods and message event types. Although it provided a common convention for wallets to expose their API, user experience still suffered as a wallet would inject its provider into your browser window (Ethereum Object), causing race conditions. Having multiple wallet extensions installed meant that the last one to inject its provider typically was the one that would be detected and available for use.

EIP-5749 attempted to solve this issue with a window.evmprovider solution, and was a step in the right direction but ultimately was not adopted by enough wallets to solve our UX issue. This is where we end up with EIP 6963 bringing a standard to propose a way of doing Multi Injected Provider Discovery.

What you need to know

As a developer, the first thing you should do in order to get familiar with EIP-6963, is to understand the initial motive, basic description, and more importantly the (TypeScript) interfaces and objects needed to implement this new approach.

Implementing EIP-6963 in a ViteJS React + TS Application

The Provider MUST implement and expose the interfaces defined in the EIP. Let's review them real quick, i have also provided links to each section of the original EIP for reference.

Provider Info

Each Wallet Provider will be announced with the following interface:

/**
 * Represents the assets needed to display a wallet
 */
interface EIP6963ProviderInfo {
  uuid: string;
  name: string;
  icon: string;
  rdns: string;
}

Provider Detail

used as a composition interface to announce a Wallet Provider and related metadata about the Wallet Provider

interface EIP6963ProviderDetail {
  info: EIP6963ProviderInfo;
  provider: EIP1193Provider;
}

Announce

The EIP6963AnnounceProviderEvent interface MUST be a CustomEvent object with a type property containing a string value of eip6963:announceProvider and a detail property with an object value of type EIP6963ProviderDetail.

// Announce Event dispatched by a Wallet
interface EIP6963AnnounceProviderEvent extends CustomEvent {
  type: "eip6963:announceProvider";
  detail: EIP6963ProviderDetail;
}

Request Events

The EIP6963RequestProviderEvent interface MUST be an Event object with a type property containing a string value of eip6963:requestProvider.

// Request Event dispatched by a DApp
interface EIP6963RequestProviderEvent extends Event {
  type: "eip6963:requestProvider";
}

With these interfaces defined for us, we can spin up a ViteJS React + TypeScript application and update the src/vite-env.d.ts with those interfaces:

vite-env.d.ts

/// <reference types="vite/client" />

interface EIP6963ProviderDetail {
  info: EIP6963ProviderInfo;
  provider: EIP1193Provider;
}

interface EIP6963ProviderInfo {
  walletId: string;
  uuid: string;
  name: string;
  icon: string;
}

interface EIP1193Provider {
  isStatus?: boolean;
  host?: string;
  path?: string;
  sendAsync?: (request: { method: string, params?: Array<unknown> }, callback: (error: Error | null, response: unknown) => void) => void
  send?: (request: { method: string, params?: Array<unknown> }, callback: (error: Error | null, response: unknown) => void) => void
  request: (request: { method: string, params?: Array<unknown> }) => Promise<unknown>
}

type EIP6963AnnounceProviderEvent = {
  detail:{
    info: EIP6963ProviderInfo,
    provider: EIP1193Provider
  }
}

We can then create a hooks directory and add the two following files:

useSyncProviders.tsx

import { useSyncExternalStore } from "react";
import { store } from "./store";

export const useSyncProviders = () =>
  useSyncExternalStore(store.subscribe, store.value, store.value);

store.tsx

declare global {
  interface WindowEventMap {
    "eip6963:announceProvider": CustomEvent;
  }
}

let providers: EIP6963ProviderDetail[] = [];

export const store = {
  value: () => providers,
  subscribe: (callback: () => void) => {
    function onAnnouncement(event: EIP6963AnnounceProviderEvent) {
      if (providers.map((p) => p.info.uuid).includes(event.detail.info.uuid))
        return;
      providers = [...providers, event.detail];
      callback();
    }
    window.addEventListener("eip6963:announceProvider", onAnnouncement);
    window.dispatchEvent(new Event("eip6963:requestProvider"));

    return () =>
      window.removeEventListener("eip6963:announceProvider", onAnnouncement);
  },
};

With this hook and store in place, we can now create a basic compnentat the following location: src/components/DiscoverWalletProviders.tsx this component will map over those discovered providers and list them using a button that handles connections to those wallets:

DiscoverWalletProviders.tsx

import { useState } from "react";
import { useSyncProviders } from "~/hooks/useSyncProviders";
import { formatAddress } from "~/utils";

export const DiscoverWalletProviders = () => {
  const [selectedWallet, setSelectedWallet] = useState<EIP6963ProviderDetail>();
  const [userAccount, setUserAccount] = useState<string>("");
  const providers = useSyncProviders();

  const handleConnect = async (providerWithInfo: EIP6963ProviderDetail) => {
    const accounts = await providerWithInfo.provider
      .request({ method: "eth_requestAccounts" })
      .catch(console.error);

    if (accounts?.[0]) {
      setSelectedWallet(providerWithInfo);
      setUserAccount(accounts?.[0]);
    }
  };

  return (
    <>
      <h2>Wallets Detected:</h2>
      <div>
        {providers.length > 0 ? (
          providers?.map((provider: EIP6963ProviderDetail) => (
            <button
              key={provider.info.uuid}
              onClick={() => handleConnect(provider)}
            >
              <img src={provider.info.icon} alt={provider.info.name} />
              <div>{provider.info.name}</div>
            </button>
          ))
        ) : (
          <div>there are no Announced Providers</div>
        )}
      </div>
      <hr />
      <h2>{userAccount ? "" : "No "}Wallet Selected</h2>
      {userAccount && (
        <div>
          <div>
            <img
              src={selectedWallet.info.icon}
              alt={selectedWallet.info.name}
            />
            <div>{selectedWallet.info.name}</div>
            <div>({formatAddress(userAccount)})</div>
          </div>
        </div>
      )}
    </>
  );
};

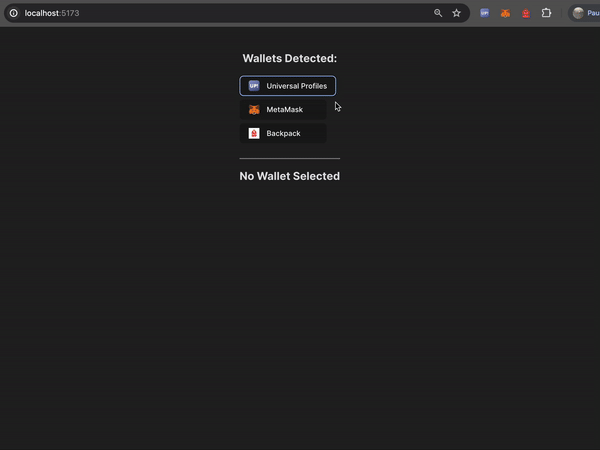

In the code above, as soon as the page is rendered we are logging the providers that we have detected. See lline 11. We can loop over these providers and create a button for each one, this button will be used to call eth_requestAccounts.

Finally we can link to this coomponent from src/App.tsx

App.tsx

import "./App.css";
import { DiscoverWalletProviders } from "~/components/DiscoverWalletProviders";

function App() {
  return (
    <>
      <DiscoverWalletProviders />
    </>
  );
}

export default App;

With these few steps we have implemented EIP-6963 into a React application utilizing the TypeScript interfaces outlined in the EIP. At a basic level, that's it.

Commitment to Standards

Incorporating EIP-6963 demonstrates our ongoing commitment to align with industry standards and best practices. This ensures that our tools and services remain at the forefront of technological advancements in the blockchain domain.

Community Support

The alternative discovery mechanism works for wallets that have implemented support for EIP-6963. This includes Universal Profile Browser Extension, MetaMask, Coinbase, Trust Wallet, OKX, and other major wallets.

See the list of wallets that support EIP-6963.

Backwards compatibility

Dapps that do not support EIP-6963 can still detect the Universal Profile Browser Extension using the window.lukso provider. However, we recommend adding support to improve the user experience for multiple installed wallets. Read more about EIP-6963 backwards compatibility.

Resources for Reading on EIP-6963

Overview of EIP-6963: A Possible Solution for Multiple Wallet Conflict EIP-6963 EIP-6963 Standardizes Your Browser Wallet Experience
