ai

Youtube video documenting the design process

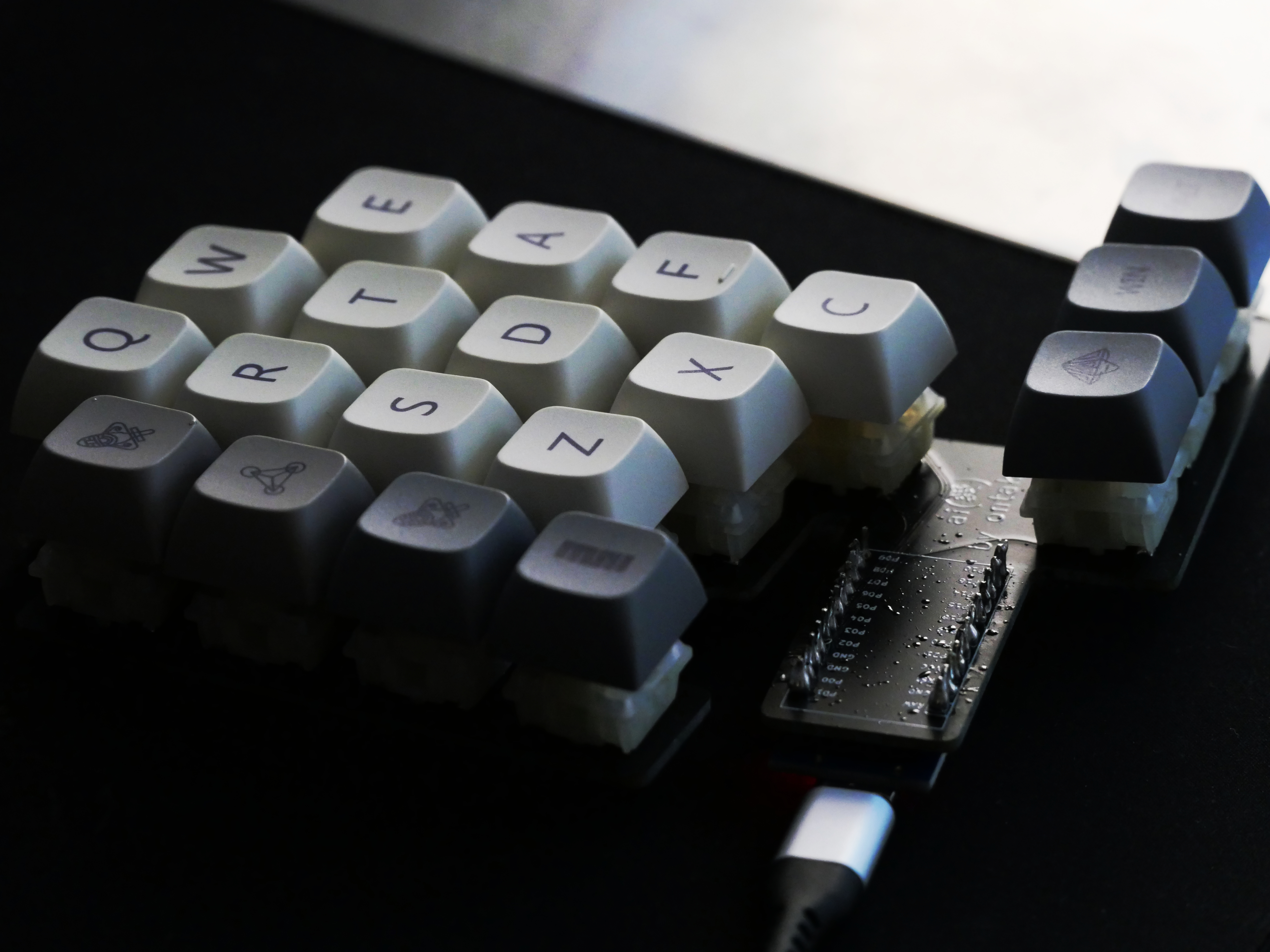

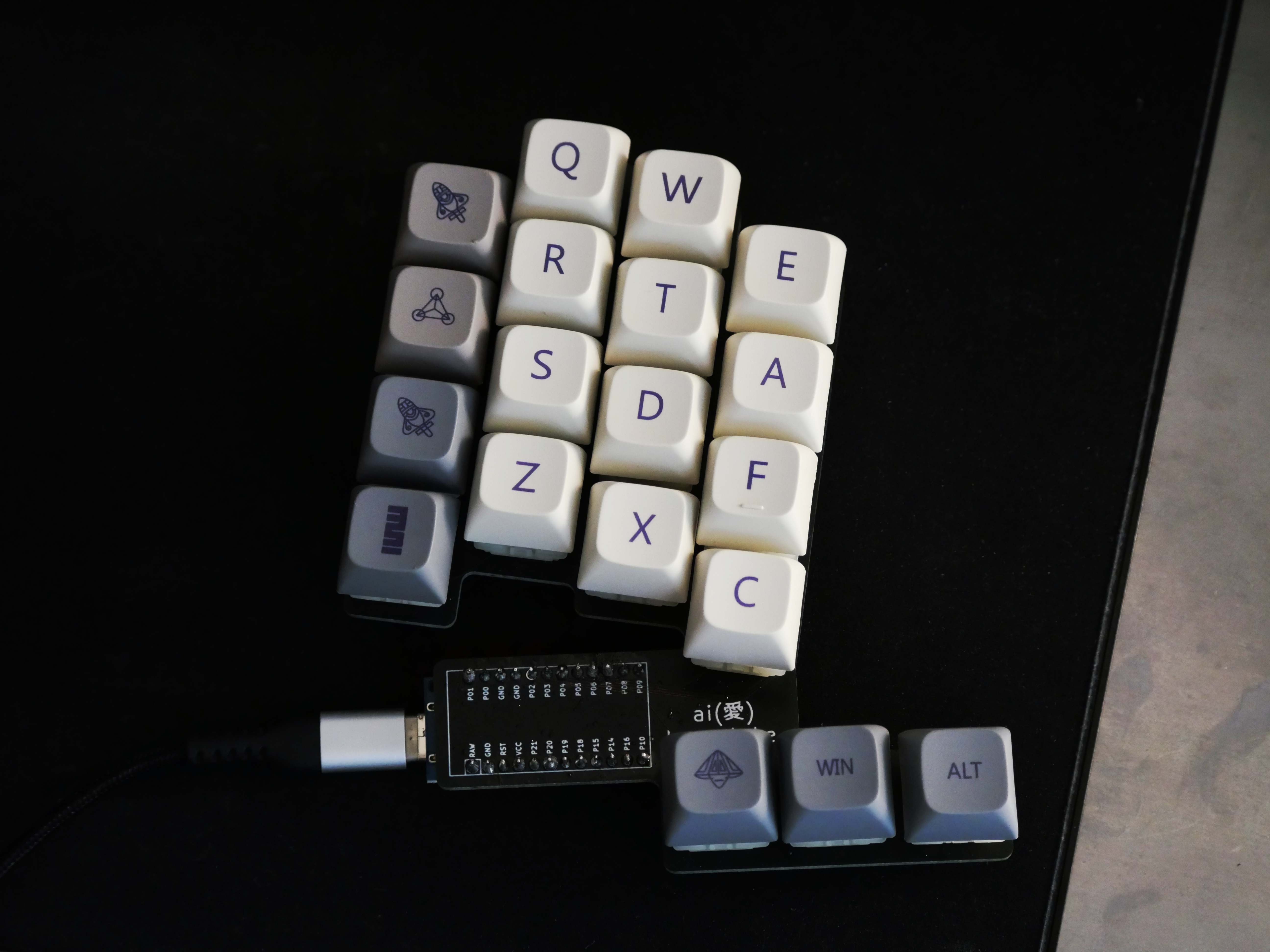

This is a small open source 5x4-1 macropad powered by QMK

• Keyboard Maintainer: Louis Dalibard

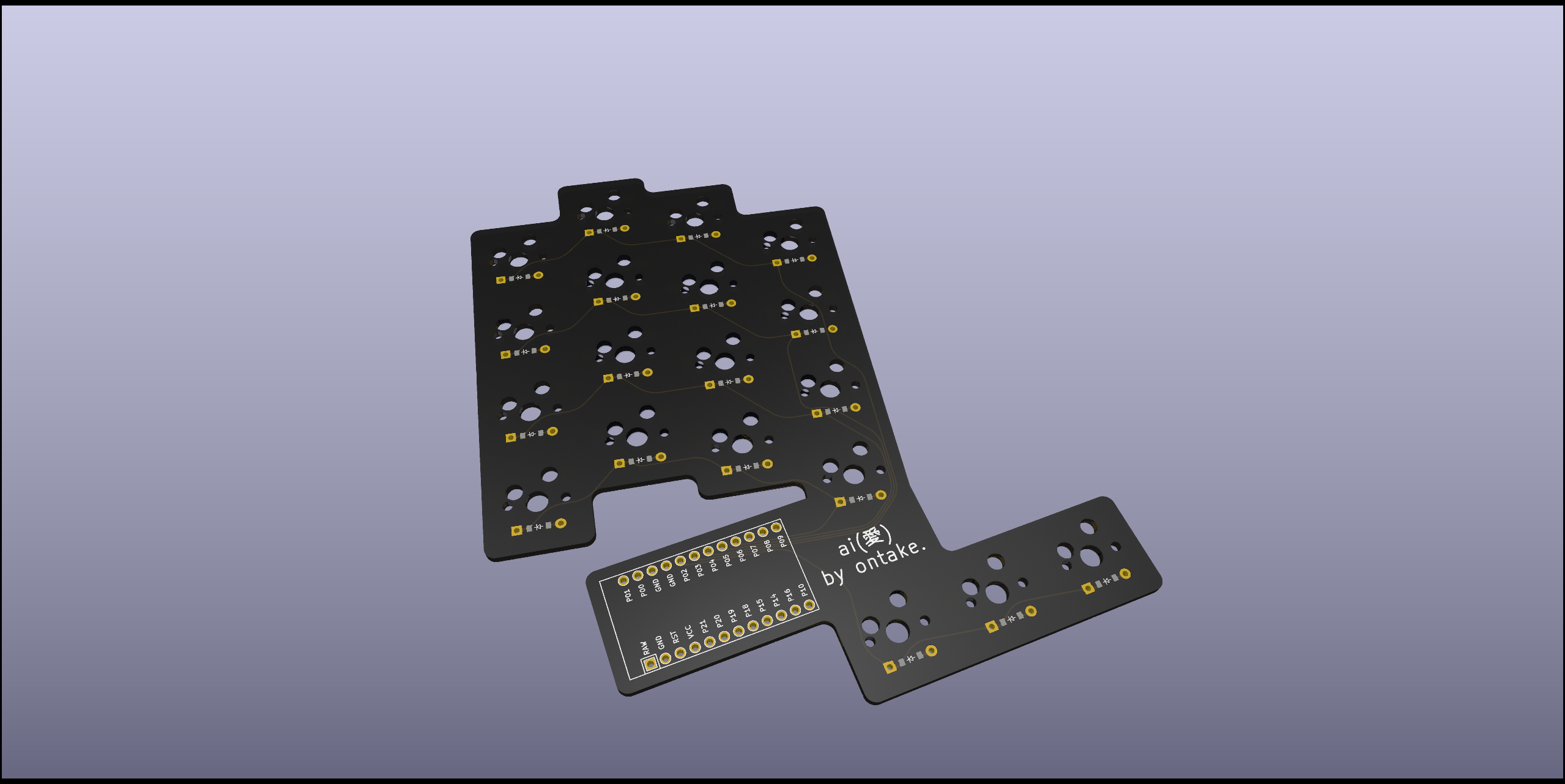

• Hardware Supported: The PCB for ai is located here: ai
• Hardware Availability: Here is a complete BOM with links to where you can find parts:
  • PCB (I personally used JLCPCB)
  • Arduino Pro Micro (Aliexpress)
  • Female pin rows (Aliexpress)
  • Gateron hotswap sockets (Aliexpress)
  • Zener diodes (Aliexpress)
  • Keyswitches (use a compatible MX switch)
  • Keycaps (Duh)

Make example for this keyboard (after setting up your build environment):

make ai:default

Flashing example for this keyboard:

make ai:default:flash

See the build environment setup and the make instructions for more information. Brand new to QMK? Start with our Complete Newbs Guide.

Bootloader

Enter the bootloader in 3 ways:

• Bootmagic reset: Hold down the key at (0,0) in the matrix (usually the top left key or Escape) and plug in the keyboard
• Physical reset button: Briefly press the button on the back of the PCB - some may have pads you must short instead
• Keycode in layout: Press the key mapped to RESET if it is available
