jimix

A modern JMX web console

Features

• Zero third-party dependencies
• Basic Web UI
• Simple REST interface (CORS enabled)
• Auto-refresh with display of value deltas
• Invoking operations and setting attributes

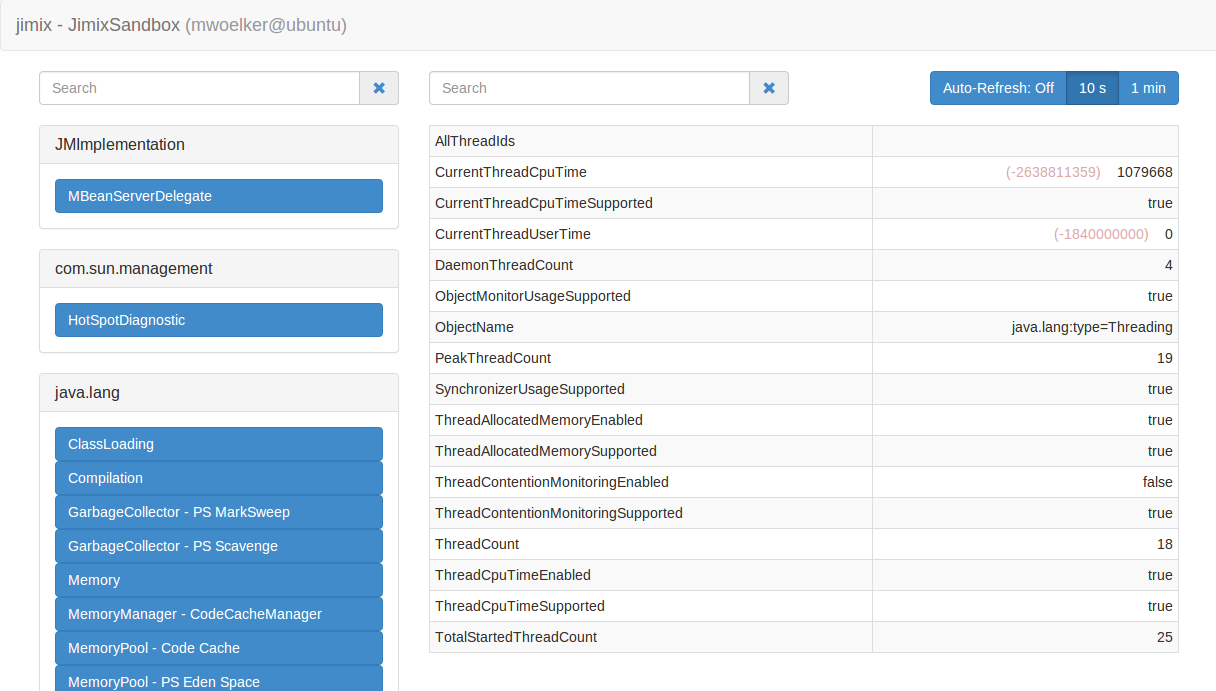

Screenshot

Changelog

1.2.1 (2014-08-19)

• (fix) core/ui: properly map NaN and infinity values to null in JSON

1.2.0 (2014-05-11)

• Initial public release

Planned features

• Adapters for all major web frameworks
• Authentication

Usage

Refer to the samples directory for detailed usage examples.

Standalone WAR

Download the standalone WAR file and drop it inside your application server.

WAR

Maven

<dependency>
    <groupId>org.woelker.jimix</groupId>
    <artifactId>jimix-servlet</artifactId>
    <version>2.1.1</version>
</dependency>

web.xml

<servlet>
    <servlet-name>jimix</servlet-name>
    <servlet-class>org.woelker.jimix.servlet.JimixServlet</servlet-class>
</servlet>

<servlet-mapping>
    <servlet-name>jimix</servlet-name>
    <url-pattern>/jimix/*</url-pattern>
</servlet-mapping>

servlet (Spring Boot)

Maven

<dependency>
    <groupId>org.woelker.jimix</groupId>
    <artifactId>jimix-servlet</artifactId>
    <version>2.1.1</version>
</dependency>

Spring Boot Application

@Bean
public ServletRegistrationBean jimixServletRegistration() {
  ServletRegistrationBean registration = new ServletRegistrationBean(new JimixServlet());
		registration.setUrlMappings(Collections.singletonList("/jimix/*"));
		return registration;
}

servlet (jetty)

Maven

<dependency>
    <groupId>org.woelker.jimix</groupId>
    <artifactId>jimix-servlet</artifactId>
    <version>2.1.1</version>
</dependency>

Jetty

Server server = new Server(8080);
ServletContextHandler context = new ServletContextHandler(ServletContextHandler.SESSIONS);
context.setContextPath("/");
server.setHandler(context);

context.addServlet(new ServletHolder(new JimixServlet()), "/jimix/*");
server.start();
server.join();

Dropwizard

Maven

<dependency>
    <groupId>org.woelker.jimix</groupId>
    <artifactId>jimix-dropwizard</artifactId>
    <version>2.1.1</version>
</dependency>

Dropwizard

@Override
public void initialize(Bootstrap<Configuration> bootstrap) {
    bootstrap.addBundle(new JimixBundle());
}

Vert.x

Maven

<dependency>
    <groupId>org.woelker.jimix</groupId>
    <artifactId>jimix-vertx</artifactId>
    <version>2.1.1</version>
</dependency>

Vert.x

Vertx vertx = new DefaultVertx();
HttpServer server = vertx.createHttpServer();

RouteMatcher routeMatcher = new RouteMatcher();

routeMatcher.allWithRegEx("/jimix(.*)", new JimixVertxHandler());

server.requestHandler(routeMatcher).listen(8080, "localhost");
