Self-supervised 3D Shape and Viewpoint Estimation from Single Images for Robotics

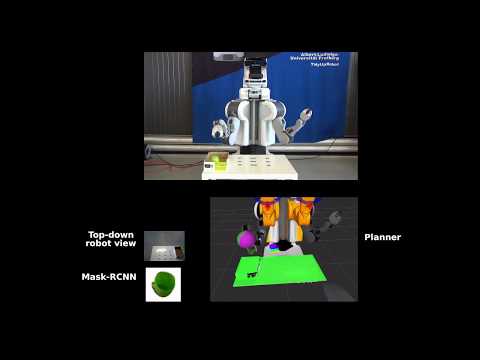

Code for deploying the self-supervised single-image 3D shape model from the IROS 2019 paper. Concretely, we showcase how using the hallucinated 3D object shapes improve the performance on the task of grasping real-world objects with a PR2 robot.

Reference

If you find the code helpful please consider citing our work.

@INPROCEEDINGS{mees19iros,
  author = {Oier Mees and Maxim Tatarchenko and Thomas Brox and Wolfram Burgard},
  title = {Self-supervised 3D Shape and Viewpoint Estimation from Single Images for Robotics},
  booktitle = {Proceedings of the International Conference on Intelligent Robots and Systems (IROS)},
  year = 2019,
  address = {Macao, China},
}

Installation

• Follow the instructions to install mask-rcnn in its own conda environment with python2.
• Install Tensorflow with conda create -n tf-gpu tensorflow-gpu==1.13.1.
• Install Robot Operating System (ROS)
• Download and extract pretrained model sh ss3d/trained_models/download_model.sh

Deployment

• First we need to detect and segment the mugs in the scene. With mask-rcnn we segment the mugs and after padding them we publish the image via ROS. You can then visualize segmentation results in Rviz under the topic /segmented_mug_rgb. We also provide a sample image to be used as input for the shape prediction network.

    conda activate caffe2_python2
    python tools/infer_simple.py --cfg configs/bbox2mask_vg/eval_sw_R101/runtest_clsbox_2_layer_mlp_nograd_R101.yaml     --output-dir /tmp/detectron-visualizations-vg3k-R101     --image-ext jpg     --thresh 0.1 --use-vg3k     --wts /home/meeso/seg_every_thing/lib/datasets/data/trained_models/33219850_model_final_coco2vg3k_seg.pkl     demo_vg3k


• Predict the 3D shape and pose given the input images with:

  conda activate tf-gpu
  python ss3d/imageTo3D.py


• Convert the numpy voxel grid to a point cloud and transform it to the robot frame rosrun mesh2cloud mesh2cloud_node

• Use your favorite object grasping pipeline on the predicted point cloud, we offer a package based on GPD at https://github.com/mees/pickAndPlace-PR2

License

For academic usage, the code is released under the GPLv3 license. For any commercial purpose, please contact the authors.
