racetrack-fitting

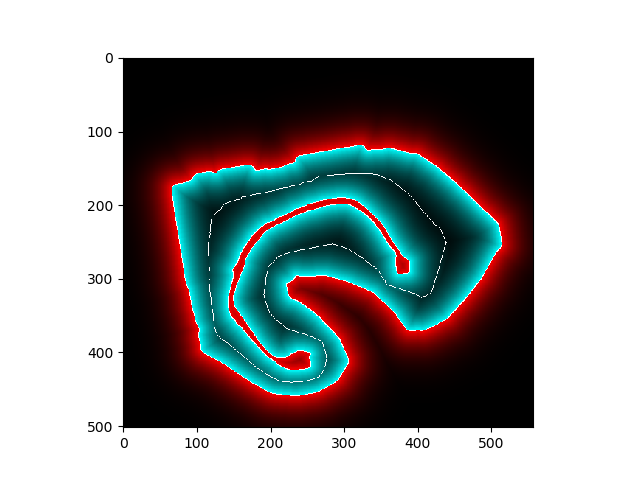

Finds a feasible centerline, walls, and a signed-distance field from SLAM output


Prerequisites

Get track image and info files from Cartographer or some other SLAM tool. The image file should be in pgm format and the info file should be in yaml format. Here is an example track pgm and yaml combination:

track.pgm


track.yaml
image: track.pgm
resolution: 0.050000
origin: [-5.659398, -4.766974, 0.000000]
negate: 0
occupied_thresh: 0.65
free_thresh: 0.196

Usage

Clone the repository and run the racetrack-fitting script:

git clone https://github.com/mlab-upenn/racetrack-fitting.git
cd racetrack-fitting
python src/fit_racetrack.py

Plots

To control the plots that are displayed, use

python fit_racetrack.py --plot_mode <0, 1, or 2>

0 shows no plots, 1 (default) shows basic plots, and 2 shows all plots

I/O

You can specify the input file paths and output directory using the command line:

python fit_racetrack.py --pgm_path <path to track image> --yaml_path <path to track info> --out_dir <path to output directory>

Subsampling Period

You can change the subsampling period as follows:

python fit_racetrack.py --subsample_period 20

This changes how sparesly the points are sampled from the centerline and wall paths

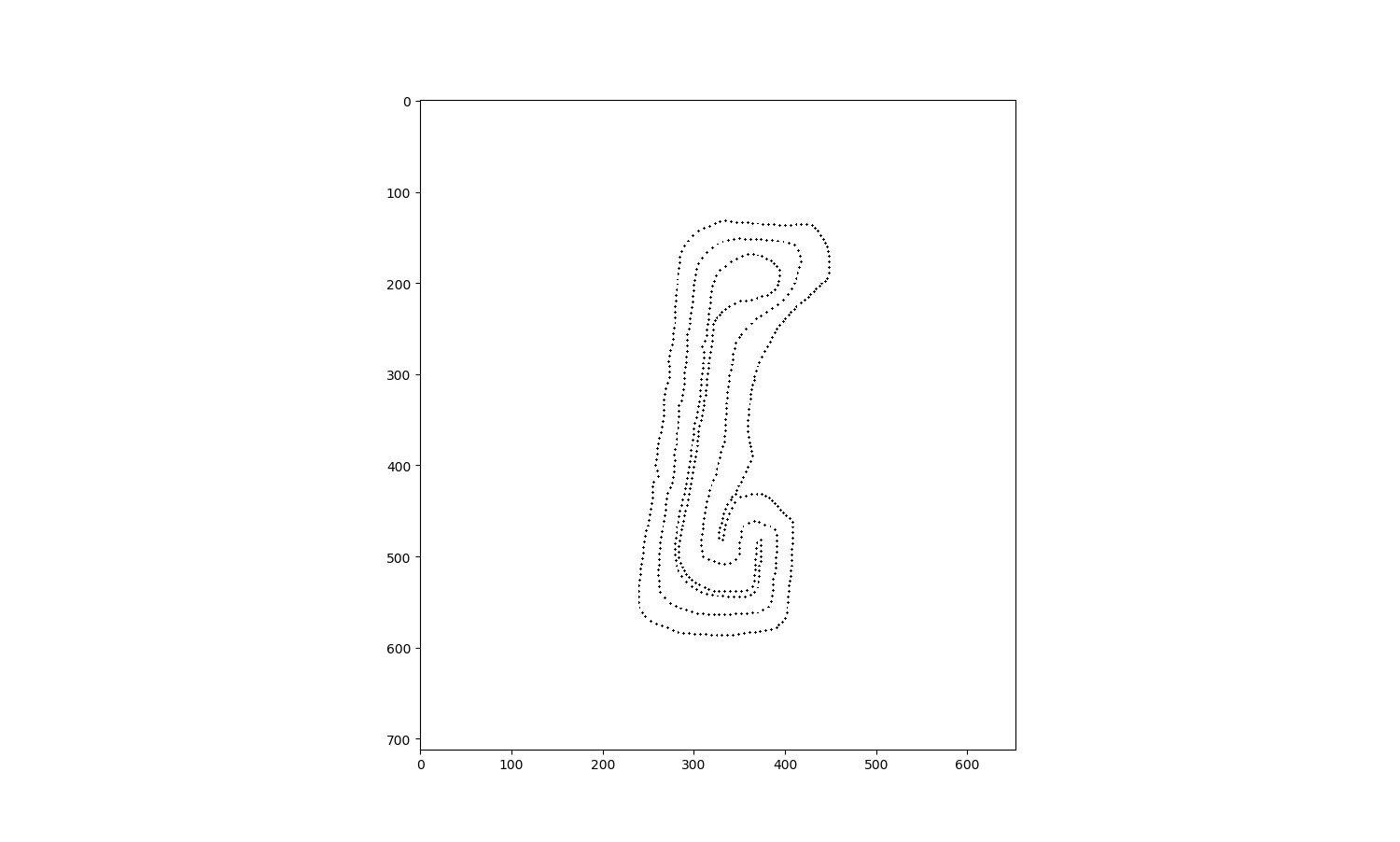

subsample_period = 6

Subsampled6

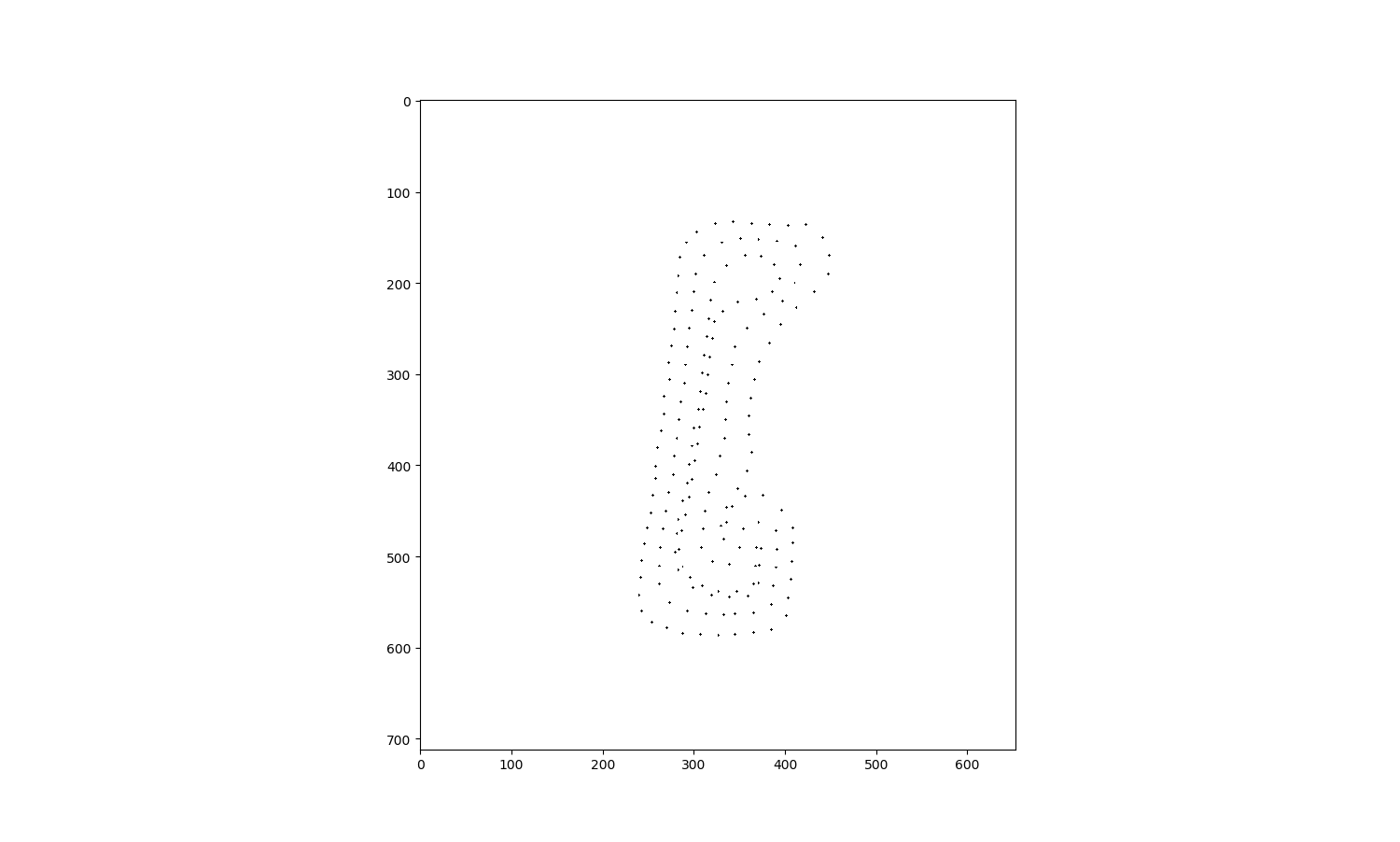

subsample_period = 20

Subsampled20

Examples

Pvc Mtl
