Supervisord Multi Server Monitoring Tool

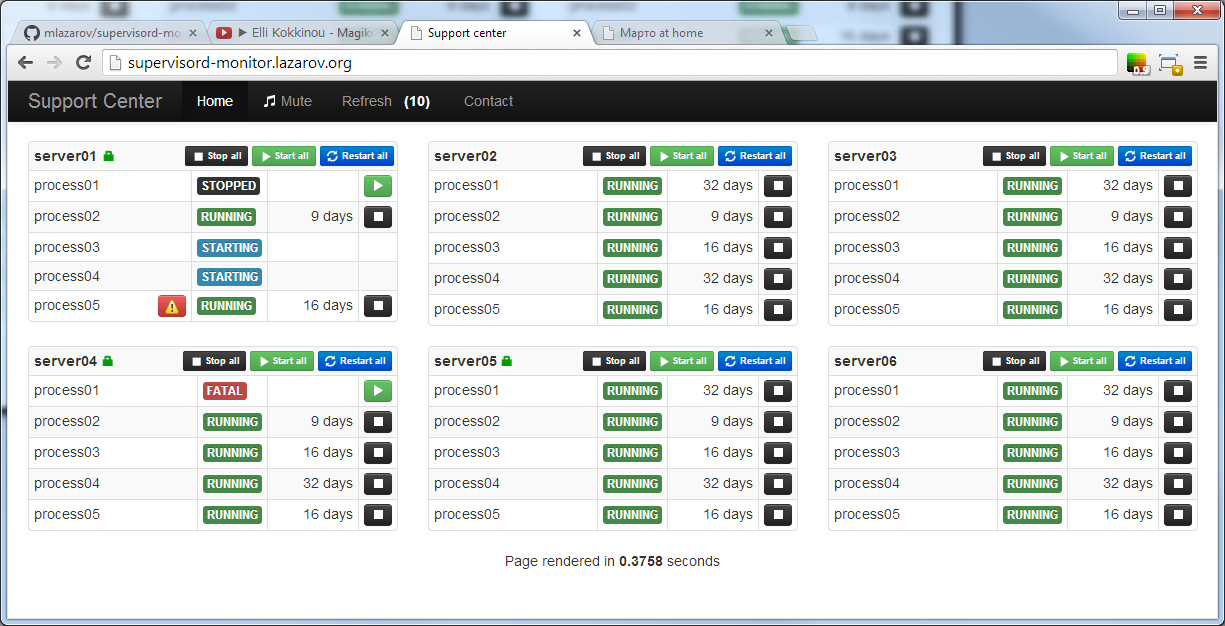

Screenshot

Features

  • Monitor unlimited supervisord servers and processes
  • Start/Stop/Restart process
  • Read stderr log
  • Start new Redmine ticket when stderr occurs
  • Sound alert when stderr occurs
  • Mute sound alerts (after some time auto resume)
  • Monitor process uptime status

Install

1.Clone supervisord-monitor to your vhost/webroot:

git clone https://github.com/mlazarov/supervisord-monitor.git

2.Copy application/config/supervisor.php.example to application/config/supervisor.php

cp supervisord-monitor/application/config/supervisor.php.example supervisord-monitor/application/config/supervisor.php

3.Enable/Uncomment inet_http_server (found in supervisord.conf) for all your supervisord servers.

[inet_http_server]
port=*:9001
username="yourusername"
password="yourpass"

Do not forget to restart supervisord service after changing supervisord.conf

4.Edit supervisord-monitor configuration file and add all your supervisord servers

vim application/config/supervisor.php

5.Configure your web server to point one of your vhosts to 'public_html' directory. 6.Open web browser and enter your vhost url.

Redmine integration

1.Open configuration file:

vim application/config/supervisor.php

2.Change this lines with your redmine url and auto assigne id:

// Path to Redmine new issue url
$config['redmine_url'] = 'http://redmine.url/path_to_new_issue_url';
// Default Redmine assigne ID
$config['redmine_assigne_id'] = '69';

Troubleshooting

Did not receive a '200 OK' response from remote server.

Having this messages in most cases means that Supervisord Monitoring tools does not have direct network access to the Supervisord RPC2 http interface. Check your firewall and network conectivity.


Did not receive a '200 OK' response from remote server. (HTTP/1.0 401 Unauthorized)

Having 401 Unauthorized means that you have connection between Supervisord Monitoring tool and Supervisord but the username or password are wrong.


UNKNOWN_METHOD

Having this message means that your supervisord service doesn't have rpc interface enabled (only for v3+ of Supervisord). To enable the rpc interface add this lines to the configuration file:

From the Supervisord Docs

In the sample config file, there is a section which is named [rpcinterface:supervisor]. By default it looks like the following:

[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

The [rpcinterface:supervisor] section must remain in the configuration for the standard setup of supervisor to work properly. If you don’t want supervisor to do anything it doesn’t already do out of the box, this is all you need to know about this type of section.

For more information go to the offitial Supervisord Configuration Docs: http://supervisord.org/configuration.html#rpcinterface-x-section-settings


The requested URL /control/ ... was not found on this server.

If you are getting this error on every action (stop, start, restart etc) most probably your web server isn't respecting the .htaccess file found in public_html directory. To test this you can add AllowOverride All config to the httpd.conf (if you are using Apache) or to add the rules from the .htaccess file to the httpd.conf file.

Thanks to

Who uses Supervisord Monitor?

EasyWpress - wordpress hosting company

If you've used Supervisord Monitor Tool send me email to martin@lazarov.bg to add your project/company to this list.

License

MIT License
