Welcome to the mmCEsim Wiki!

Note:

• This wiki is mainly for developers.
• Basic information about contributing to mmCEsim can be found at CONTRIBUTING.
• If you are the mmCEsim app user, you can find documentation, tutorial and other information at our website: https://mmcesim.org.

Project Structure

The project is configured with CMake, and the role of each folder is listed below.

• include: C++ Header Files (.h)
  • export: Header Files Concerning ALG Export
  • mmcesim: Files Needed by mmCEsim Binary
    • copy: Contents Directly Copied to Form Generated C++/Python/Matlab Code
    • tex: $\rm\LaTeX$ Files for Report Generation
• src: C++ Source Files (.cpp)
  • export: Class Implementations Corresponding to Those in include/export
• ext: 3rd Party Resources
  • astyle: Format Generated C++ Code
  • fmt: C++ String Format (Like That in C++20)
  • yaml-cpp: Parse YAML Configuration (.sim)
• test: Test Files Including CTest Configuration
• tools: Accompanying Tools (log, compose and maintain)
• doc: Documentation (Currently Empty)
• bin: Generated Binary Executable
• misc: Miscellaneous Files

Doxygen documentation is available at: https://dev.mmcesim.org.

Road Map

Configuration Files

Simulation Configuration (.sim)

The simulation configuration follows the YAML syntax.

• Documentation: https://mmcesim.org/doc/cli/config

Algorithm Design (.alg)

The algorithm design file has extension .alg, which uses our designed ALG language.

• Documentation: https://mmcesim.org/doc/alg

Workflow

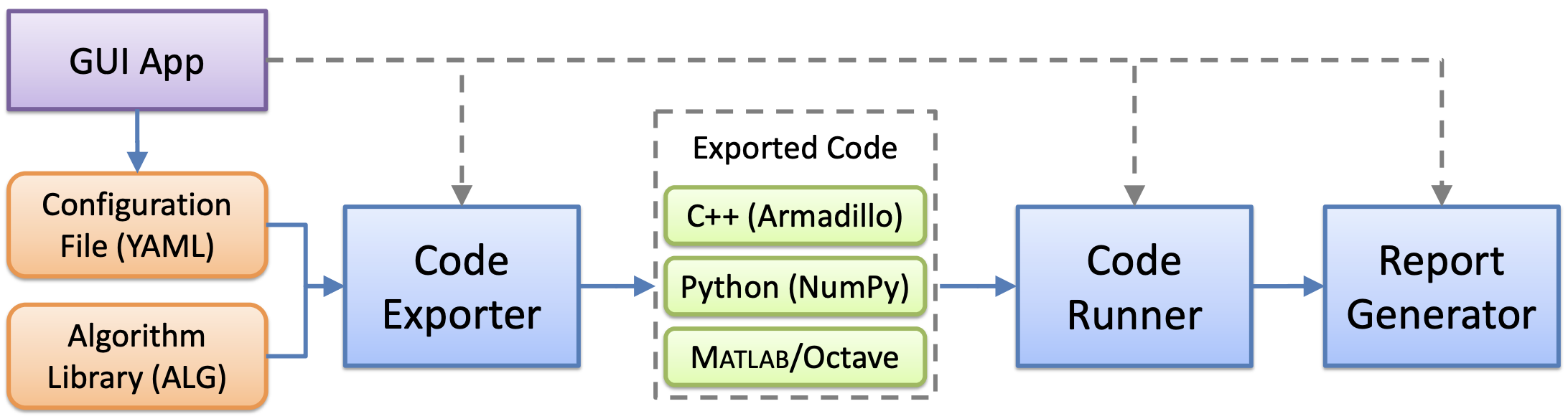

The mmCEsim workflow is shown below. We now only focus on the CLI app.
