Fcl combined collision check

[simonschmeisser]

This should speed up collision checks with FCL by not converting the RobotState to a FclCollisionManager (a BVH for example) up to four times but only once. This "conversion" includes calculating AABBs for each Link which is at least one matrix multiplication.
Also checking two optimized spatial structures against each other might be faster than doing these checks per scene object.

I would be really grateful to @captain-yoshi if you could run benchmarks to test the speed gain. Should be especially visible in case of no collisions. If you provide me with the scripts, I can also run the actual benchmarks myself.

The separation between padded collision checking for robot-scene collision and unpadded self-collisions somewhat limits the benefits of this optimization. To save it I have some more todos:

• Add parameter to use padded robot for self-collisions
• document new parameter in MIGRATION/changelog
• detect if there is actually any difference between padded and unpadded robot

[codecov]

Codecov Report

Merging #3167 (88847cc) into master (7949bd6) will decrease coverage by 0.01%.
The diff coverage is 62.17%.

@@            Coverage Diff             @@
##           master    #3167      +/-   ##
==========================================
- Coverage   62.08%   62.07%   -0.00%
==========================================
  Files         375      375
  Lines       33139    33200      +61
==========================================
+ Hits        20572    20607      +35
- Misses      12567    12593      +26

Impacted Files	Coverage Δ
...include/moveit/collision_detection/collision_env.h	100.00% <ø> (ø)
...lude/moveit/collision_detection/collision_matrix.h	100.00% <ø> (ø)
...it/planning_scene_monitor/planning_scene_monitor.h	95.46% <ø> (ø)
.../collision_detection_fcl/src/collision_env_fcl.cpp	83.80% <42.43%> (-6.20%)	⬇️
...nning_scene_monitor/src/planning_scene_monitor.cpp	66.35% <66.67%> (+0.01%)	⬆️
...eit_core/collision_detection/src/collision_env.cpp	72.40% <73.34%> (+0.21%)	⬆️
moveit_core/planning_scene/src/planning_scene.cpp	64.94% <100.00%> (+0.06%)	⬆️

Help us with your feedback. Take ten seconds to tell us how you rate us. Have a feature suggestion? Share it here.

[simonschmeisser]

Note that PlanningScene needs changes to use this new override as well due to the handling of padding there. So no need to rush with review or benchmarks, will need further work

[simonschmeisser]

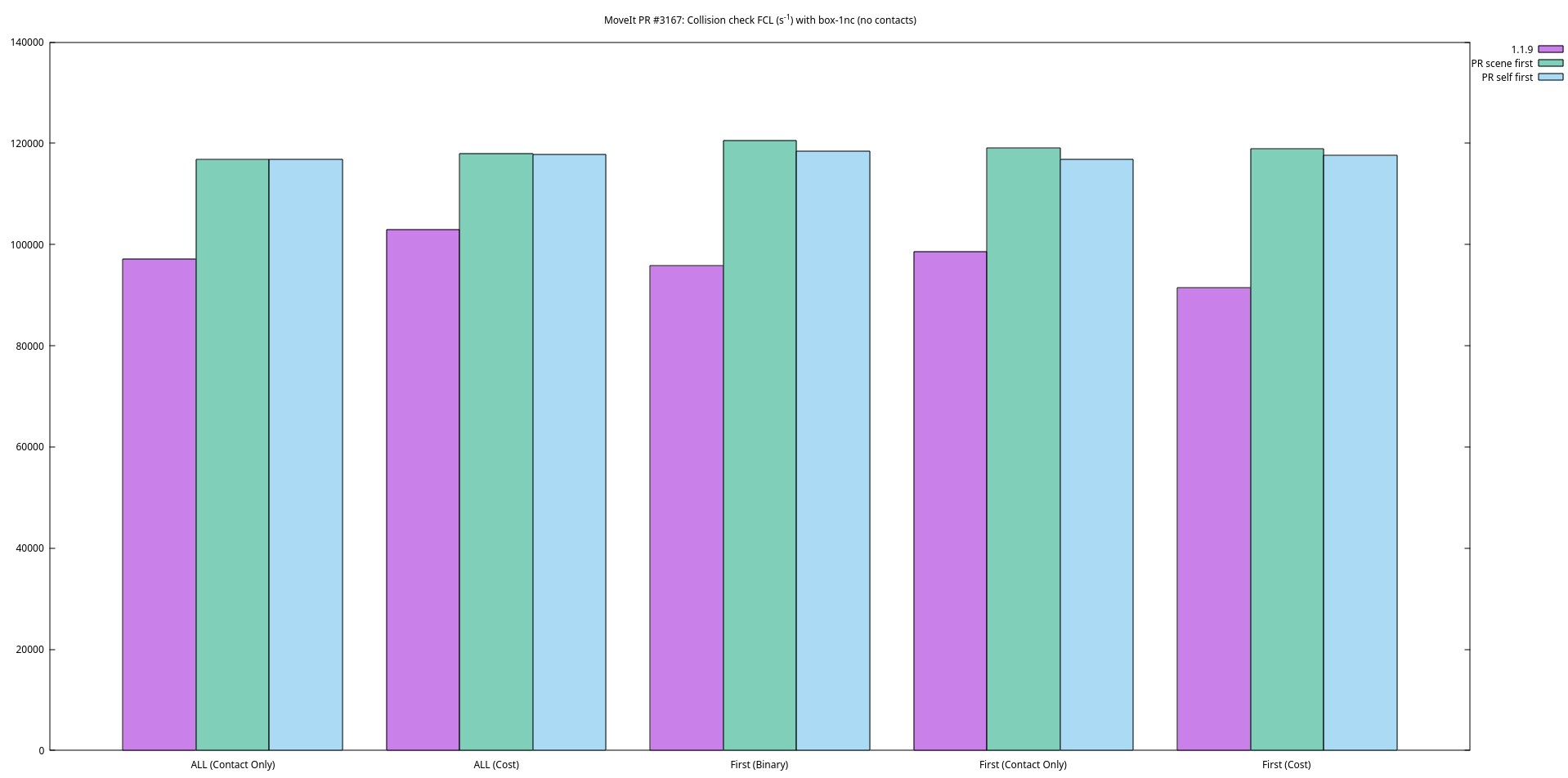

I used moveit_benchmark_suite to monitor my progress and validate my ideas. Here are two sample plots:

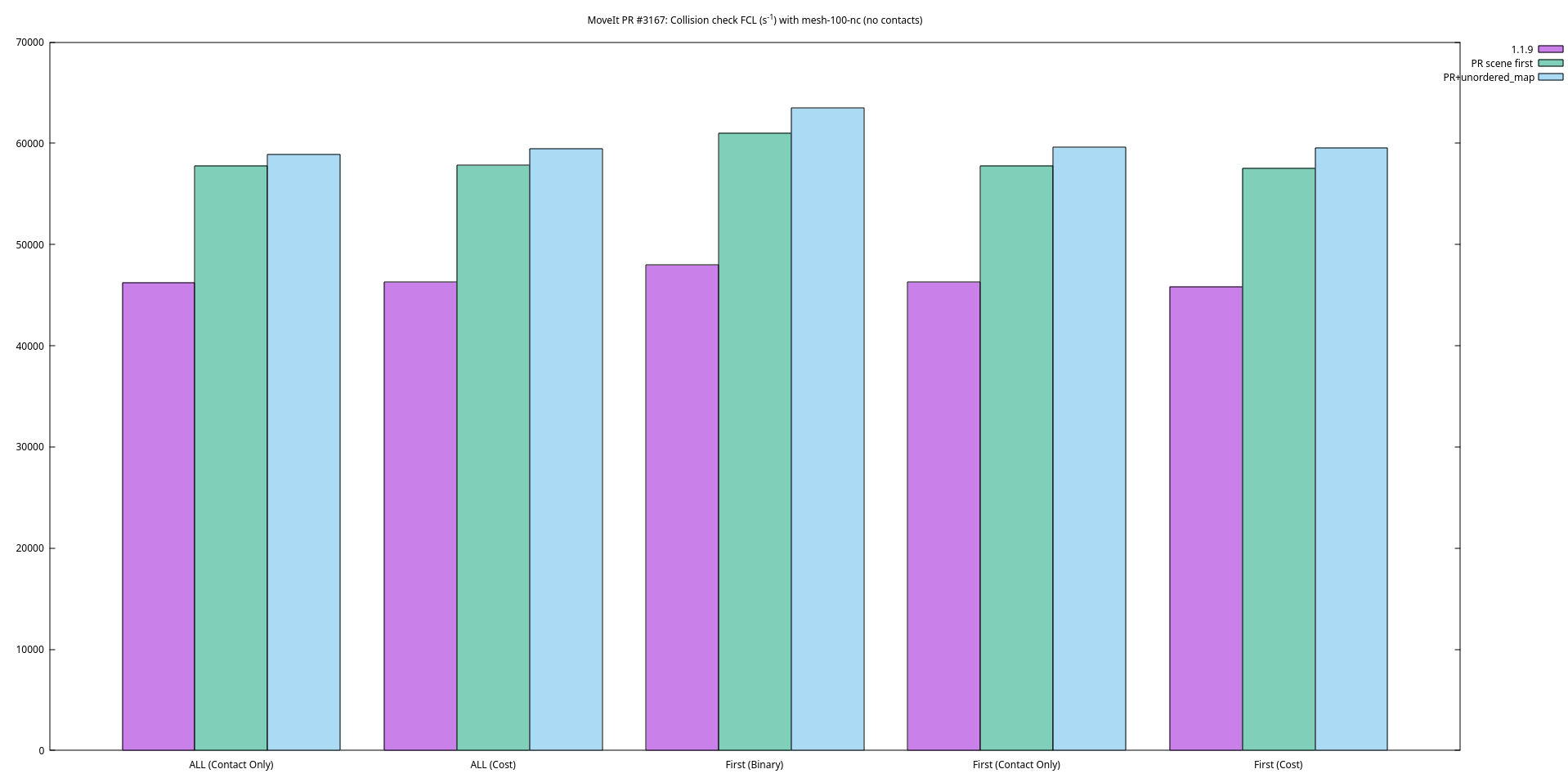

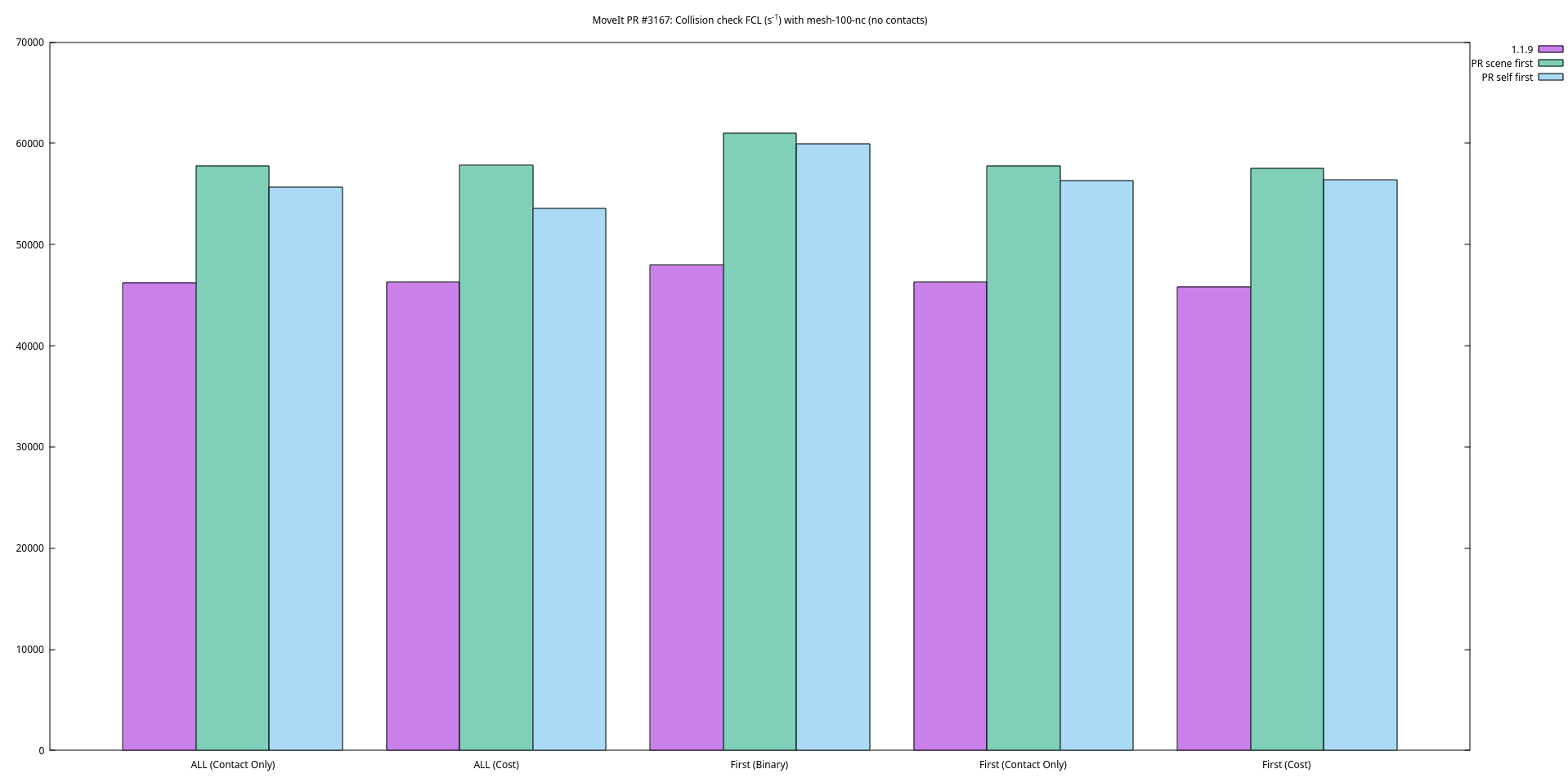

So we can see quite some improvement when there are no collisions (this uses a panda robot surrounded by 100 random meshes but none of them are colliding with the panda)

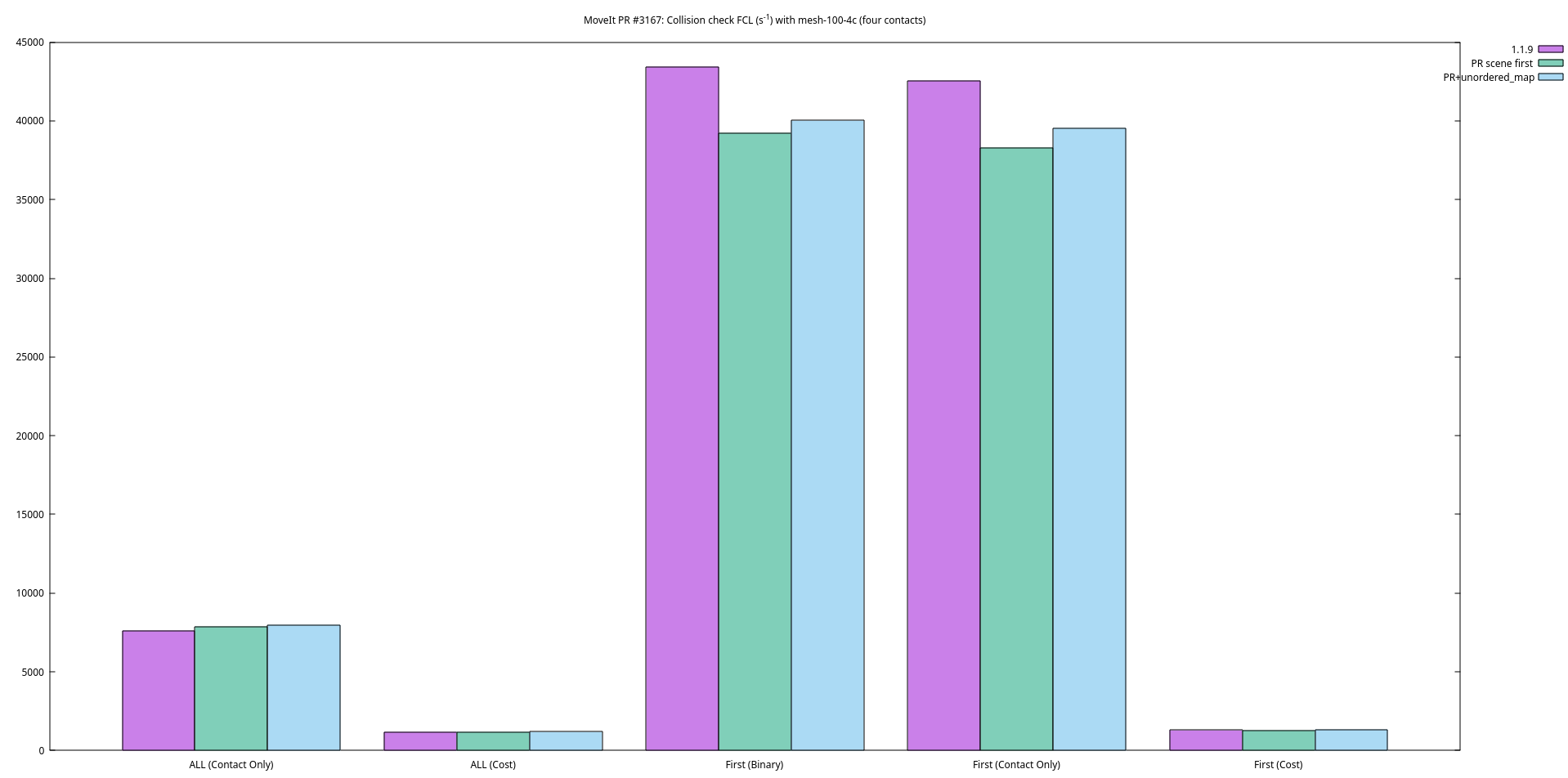

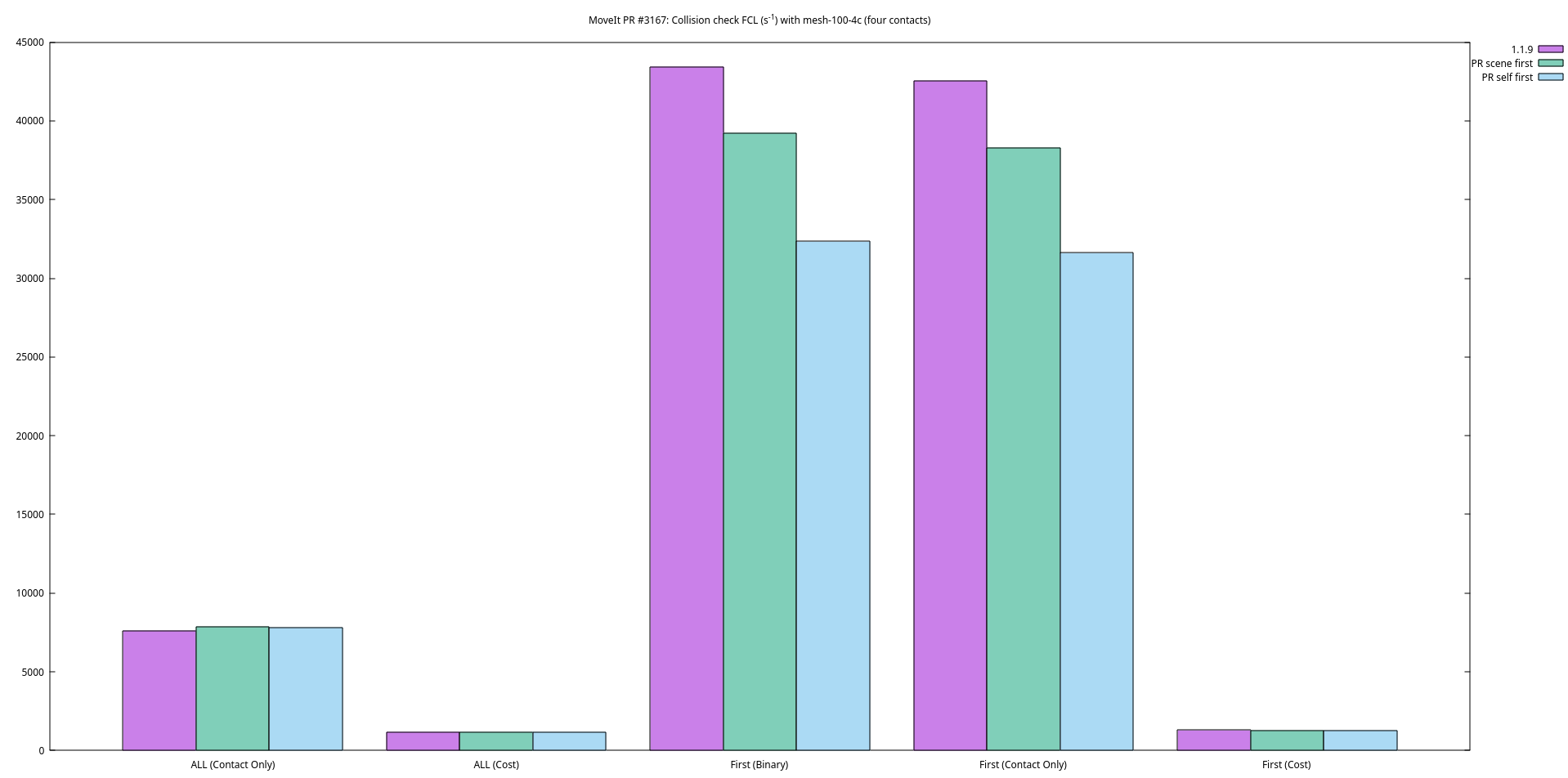

Unfortunately in the case where there are some (four) collisions, my PR performs a bit worse than MoveIt master. My hypothesis is that building up the BVH is somewhat expensive and not needed when there are collisions and the check fails fast. Master only builds it in the self-collision check which is skipped when there are collision with the scene.

In our applications we usually have the robotic cell and machinery modeled in URDF as well and I'll try to do benchmarks with such a cell as well.

For us this is already a very valuable improvement as we do way more collision checks without collisions than checks with collisions but I'll still try to figure out if I can improve on the scene collision test case as well.

[simonschmeisser]

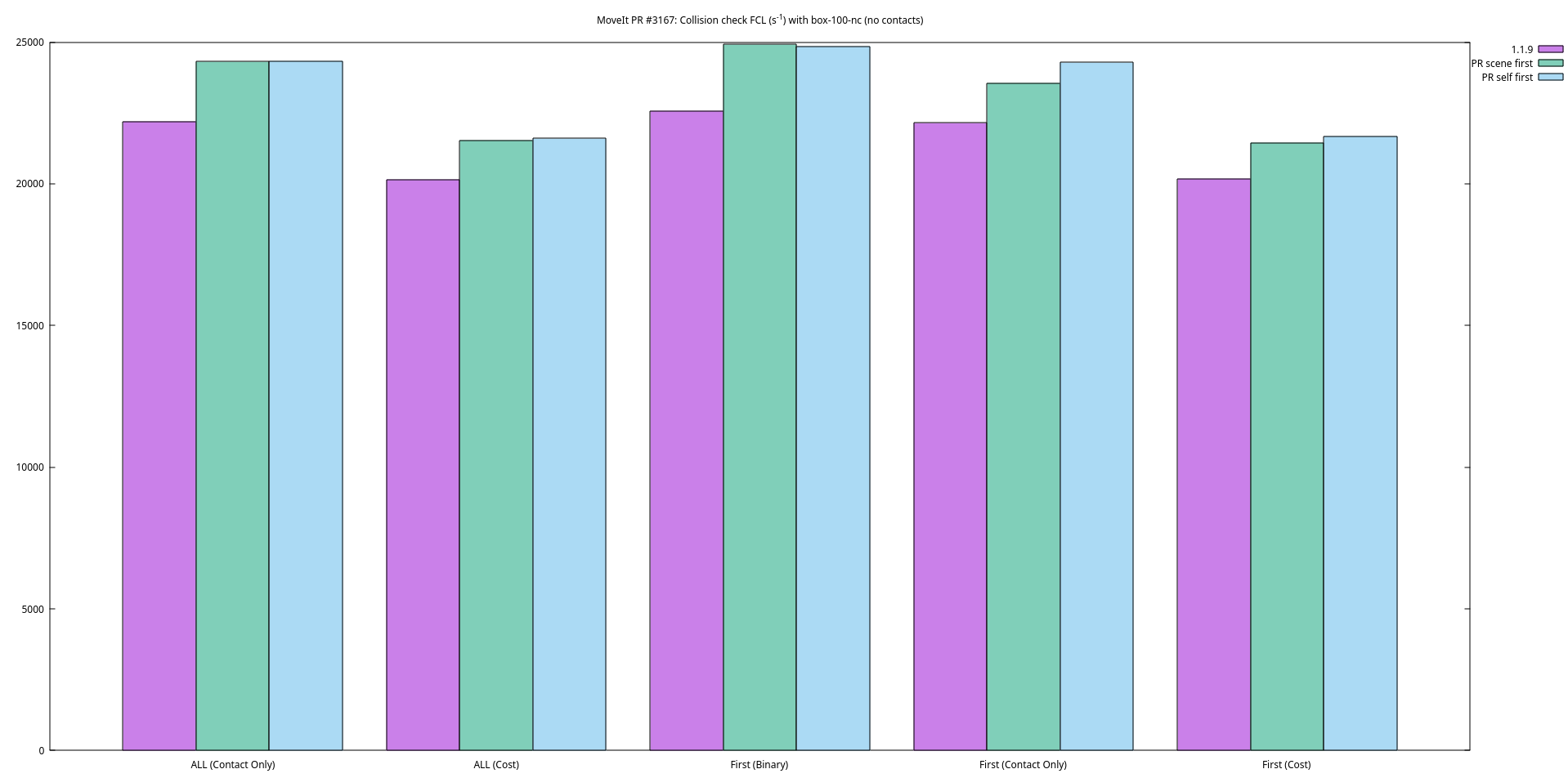

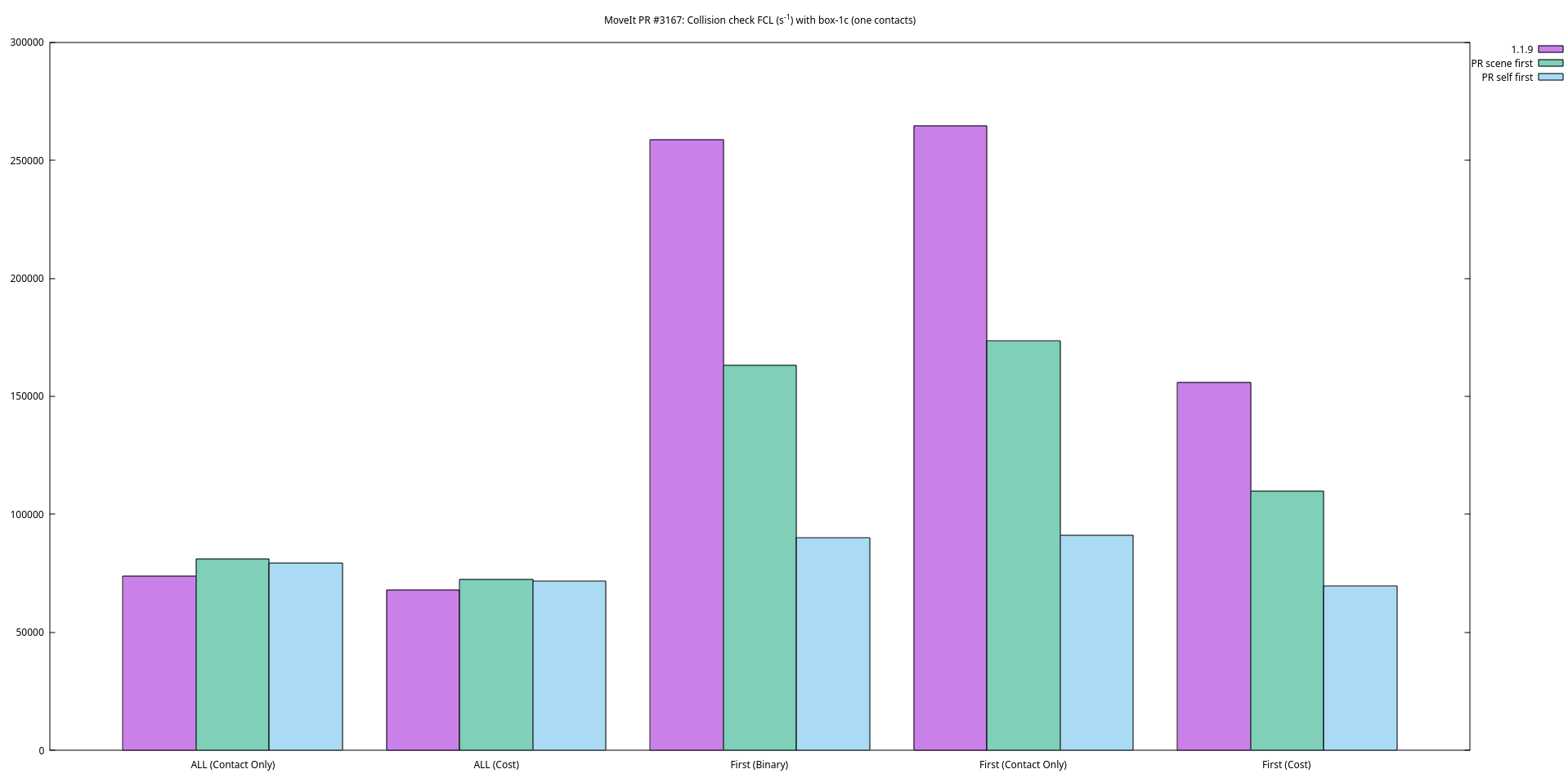

Looking at the rest of the test cases I noticed that the impact of the expensive BVH creation increases for simpler test cases (only one box) with collisions:

But if not in collision we still see the nice improvement:

Also somewhat unrelated but very surprising non-colliding collision checks with meshes seem to be more than a factor 2 cheaper than with boxes (60.000/s vs 24.000/s). I'll investigate that further as well

@Levi-Armstrong any further ideas and hints on where to improve? I found a comment in tesseract where you concluded that collisions between two BVHs / managers are slower than iterating over a list and colliding each entry with the second BVH/manager. How did you get to that conclusion?

[AndyZe]

To be honest, this looks like a small improvement in most cases. But occasionally it's a very large penalty. I'm not sure it's worth it.

[simonschmeisser]

Here is a aggregated flame graph over all the collision checks in the benchmark suite

So the main block is indeed narrow-phase collision checks which could be improved by hpp-fcl

This graph shows the same flame graph with narrow phase collision checks filtered out:

Now we can see (from left to right) some small blocks belonging mostly to string comparisons and similar in AllowedCollisionMatrix checks inside the collisionCallback, then the actual self collision check in the middle (bool fcl::detail::dynamic_AABB_tree::selfCollisionRecurse) and then the construction of the BroadPhase CollisionManager for self-collision (the representation of the robot). (Note that for scene objects the CollisionManager is already recycled and only updated when necessary)

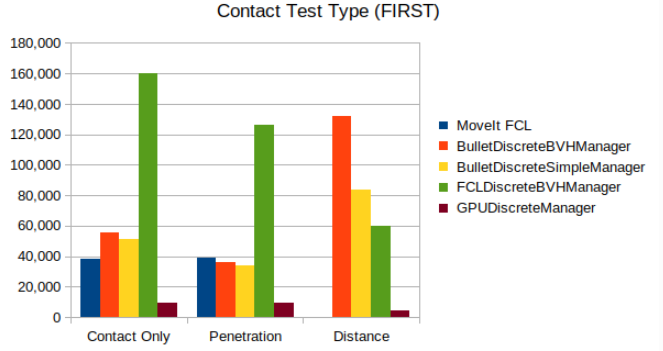

In tesseract a std::unordered_map is used instead of std::map for the ACM, but at least for these simple test cases that wouldn't make a big difference. Another difference is that tesseract recycles the CollisionManager for self-collisions and only updates whichever links changed. I'll try implementing this but it does not yet explain the huge difference in their graph.

The last block to the right is a destructor which sounds wrong, maybe it's doing too much?

[captain-yoshi]

Nice graphs !

In tesseract a std::unordered_map is used instead of std::map for the ACM, but at least for these simple test cases that wouldn't make a big difference

This makes a huge difference for tests that returns after the first collision. The framework that happens to check the object in collision first will obviously be faster. I agree for tests that checks all the collisions.

Also I think Tesseract tells FCL that it uses convex meshes and there are some optimisation done. Can we add this flag in MoveIt to tell FCL that the meshes are convex ? @v4hn

Il try adding the collision check with Tesseract in the benchmark suite (probably in October). That way we could check the graphs and @simonschmeisser could compare the flame graphs.

[simonschmeisser]

There have been long and recurring discussions about declaring meshes as convex in URDF that never lead anywhere. FCL has a different geometry type for convex meshes, I'll try what happens when I change it in general and if improvements are promising convex decomposition from bullet HACD could be used here as well like tesseract seems to do.

[v4hn]

There have been long and recurring discussions about declaring meshes as convex in URDF that never lead anywhere.

I believe the main argument for convex meshes, capsules,... was always that urdf must not be changed. I strongly hoped the situation would change at least with ros2.

[simonschmeisser]

Tesseract includes it's own URDF parsing library due to the frozen nature of urdfdom.

In unrelated news, I did the switch from std::map to std::unordered_map and got another 4% improvement for the simple AllowedCollisionMatrix in the benchmark:

[captain-yoshi]

While the 4% is nice, would that be a breaking change for the worst time complexity ?

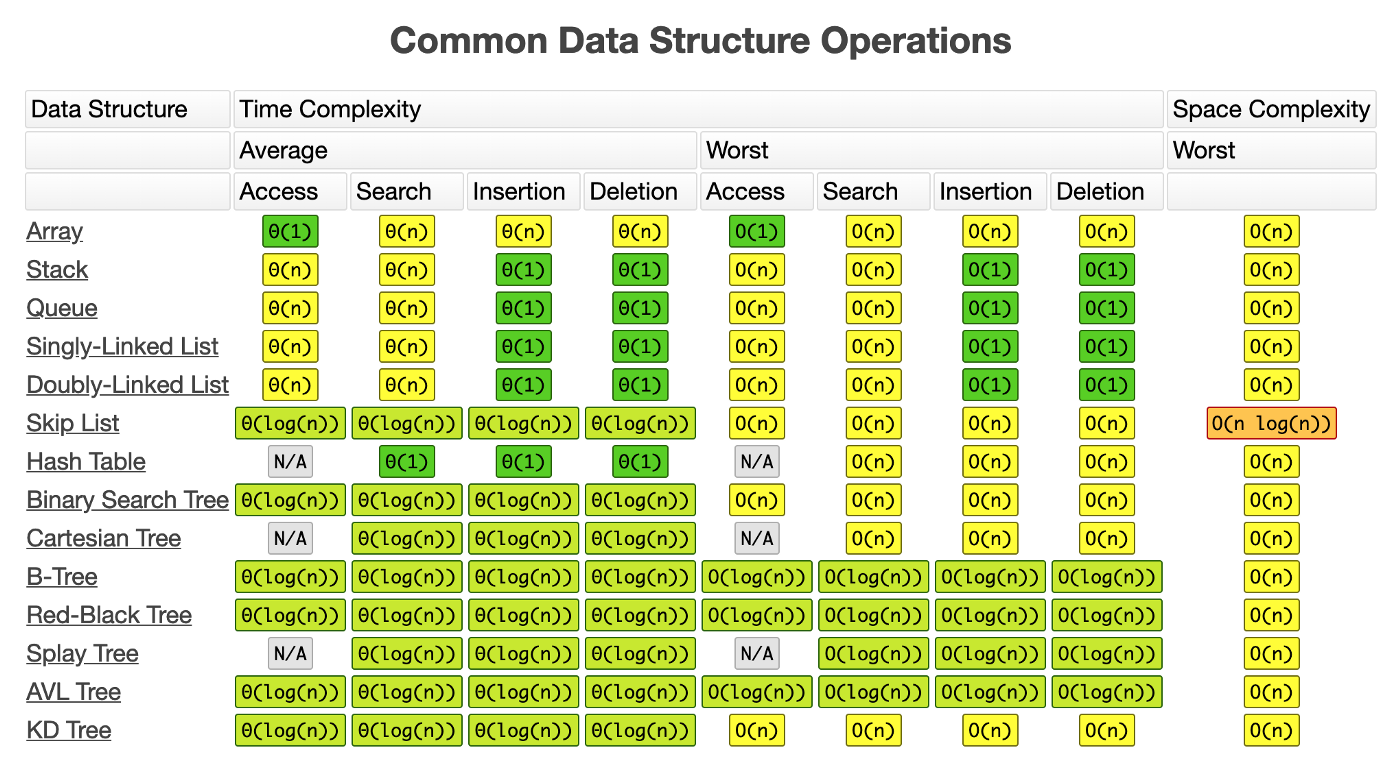

I think a std::unordered_map uses a hash table which have many downsides per this link :

Hash tables suffer from O(n) worst time complexity due to two reasons:

1. If too many elements were hashed into the same key: looking inside this key may take O(n) time.
2. Once a hash table has passed its load balance - it has to rehash [create a new bigger table, and re-insert each element to the table].

However, it is said to be O(1) average and amortized case because:

1. It is very rare that many items will be hashed to the same key [if you chose a good hash function and you don't have too big load balance.
2. The rehash operation, which is O(n), can at most happen after n/2 ops, which are all assumed O(1): Thus when you sum the average time per op, you get : (n*O(1) + O(n)) / n) = O(1)

Note because of the rehashing issue - a realtime applications and applications that need low latency - should not use a hash table as their data structure.
