human-learning

This repo contains the source for the "Human Learning con Alexa" presentation given by @ESalcedoo and myself (@mvelosop) for the NetCoreConf Barcelona 2020 conference.

Besides the code contributed by esalcedoo in this repo, you can also take a look at her AlexaEchoBot repo, that she explained, and shows more clearly the core interactions with Alexa.

Overview

This is a Proof of Concept (POC) project for a language therapist virtual assistant based on Alexa.

The assistant is currently working in Spanish, but it should be easy to adapt to any other language.

Main interaction scenario

  1. The Alexa skill is activated with "Abre Human Learning" and the assistant greets back.
  2. The assistant asks for the exercise phrase.
  3. The therapist should then set the target word or phrase with "trabajar 'target word'".
  4. The assistant then asks the patient to repeat the word and waits to hear it back.
  5. The patient pronounces the 'target word'.
  6. The assistant speaks back the text returned by the Alexa Voice Service and calculates a phonetic deviation.
  7. The assistant displays some visual feedback about the phonetic deviation.
  8. GOTO (deviation == 0 ? #2 : #4).
  • To finish say "Adiós" (goodbye) at any time. This ends the current exercise as not successful.
  • To pause say "Pausa" (pause) at any time. When resuming with "Abre Human Learning" the assistant will continue with the previous target word.
  • If Alexa times out waiting to hear the phrase, the assistant ends as if pause was requested.

The following diagram illustrates the interaction:

Architecture

This is the general architecture diagram for the solution:

Details

  • All exercises are stored in an SQL database
  • All patient utterances are also stored in the database including the phonemes using the IPA Unicode phoneme symbols.
  • The phoneme symbols are obtained with the espeak-ng program.
    • espeak-ng is running continuously as a console app, and is started as a background process.
    • The phonemes conversion is done handling the sdtin and stdout streams from espeak-ng.
    • This means the phonemes handled are not the actually pronounced phonemes, that are not returned from the Alexa Voice Service (AVS).
  • The phonetic deviation is calculated from the Levenshtein distance when comparing normalized target phonemes with utterance phonemes. (Normalization removes spaces and emphasis)
  • Bot state is using a memory backing, so it's not preserved between AppService restarts.
  • There's a linked MonitorBot that can be used to monitor the interactions with the AlexaBot through any Bot Service channel.
  • To activate the MonitorBot, type "monitor alexa" from the channel as shown next.
  • The visual feedback is currently using animated gifs (from wwwroot/media) but the echo show device doesn't support them. In the meantime use the Alexa developer portal.

Using the MonitorBot

Enabling the monitor:

Receiving utterances:

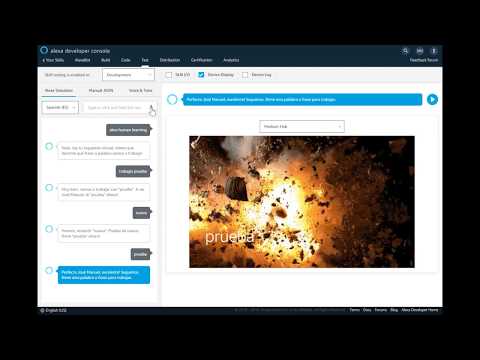

Using the Alexa Developer Portal

Deployment

For detailed deployment steps see the deployment section from the blog post: How to receive events in a Bot Framework SDK v4 Web API bot?

Use interaction model in deploy\Alexa-models\interaction-model.es.json to configure the Alexa skill. Remember to configure the skill endpoint to point to your deployed AppService plus api/alexa.
