Heap overflow in function MmsValue_decodeMmsData mms/iso_mms/server/mms_access_result.c:238 #194

Closed
@sleicasper

Description

@sleicasper

Function MmsValue_decodeMmsData has heap overflow vulnerability in file mms/iso_mms/server/mms_access_result.c.

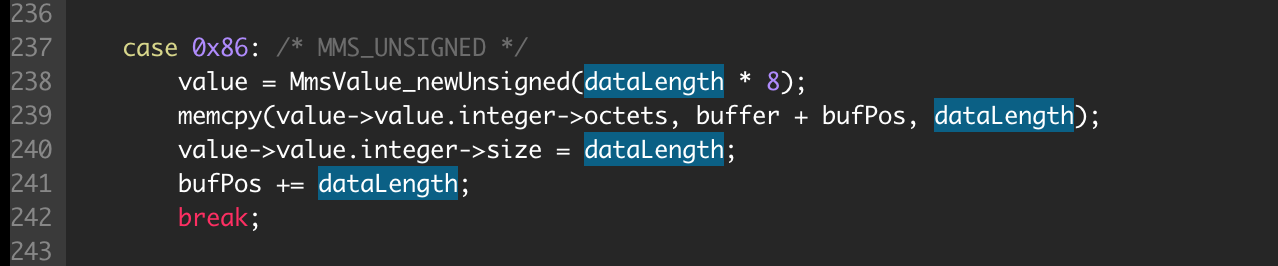

Screen Shot 2019-12-20 at 9 48 22 PM

poc:
poc.zip

steps to reproduce:

  1. compile libiec61850 with compiler flag
CFLAGS=-fsanitize=address -g
CXXFLAGS=-fsanitize=address -g
  1. compile test.c in poc.zip
  2. run: ./test < poc in gdb

result in gdb

gdb-peda$ r < poc
Starting program: /home/casper/targets/struct/libiec61850/dbg/fuzzrun/test < poc
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
=================================================================
==25413==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x602000000079 at pc 0x000000491f90 bp 0x7fffffffdb10 sp 0x7fffffffd2d8
WRITE of size 18 at 0x602000000079 thread T0
[New process 25894]
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
process 25894 is executing new program: /home/casper/fuzz/fuzzdeps/llvm9/bin/llvm-symbolizer
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
    #0 0x491f8f in __asan_memcpy /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_interceptors_memintrinsics.cc:22:3
    #1 0x7ffff7a00519 in MmsValue_decodeMmsData /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/iso_mms/server/mms_access_result.c:239:9
    #2 0x7ffff79ff9b3 in MmsValue_decodeMmsData /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/iso_mms/server/mms_access_result.c:194:38
    #3 0x4c21df in main /home/casper/targets/struct/libiec61850/dbg/../fuzzsrc/fuzzmmsdata.c:12:21
    #4 0x7ffff6969b96 in __libc_start_main /build/glibc-OTsEL5/glibc-2.27/csu/../csu/libc-start.c:310
    #5 0x41ab99 in _start (/home/casper/targets/struct/libiec61850/dbg/fuzzrun/test+0x41ab99)

0x602000000079 is located 0 bytes to the right of 9-byte region [0x602000000070,0x602000000079)
allocated by thread T0 here:
    #0 0x492c12 in calloc /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_malloc_linux.cc:154:3
    #1 0x7ffff7b6f15c in Memory_calloc /home/casper/targets/struct/libiec61850/dbg/SRC/hal/memory/lib_memory.c:59:20
    #2 0x7ffff7a25724 in Asn1PrimitiveValue_create /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/asn1/asn1_ber_primitive_value.c:35:28
    #3 0x7ffff7a29cfd in BerInteger_createInt64 /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/asn1/ber_integer.c:174:12
    #4 0x7ffff79891ac in MmsValue_newUnsigned /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/iso_mms/common/mms_value.c:1300:31
    #5 0x7ffff7a00300 in MmsValue_decodeMmsData /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/iso_mms/server/mms_access_result.c:238:17
    #6 0x7ffff79ff9b3 in MmsValue_decodeMmsData /home/casper/targets/struct/libiec61850/dbg/SRC/src/mms/iso_mms/server/mms_access_result.c:194:38
    #7 0x4c21df in main /home/casper/targets/struct/libiec61850/dbg/../fuzzsrc/fuzzmmsdata.c:12:21
    #8 0x7ffff6969b96 in __libc_start_main /build/glibc-OTsEL5/glibc-2.27/csu/../csu/libc-start.c:310

SUMMARY: AddressSanitizer: heap-buffer-overflow /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_interceptors_memintrinsics.cc:22:3 in __asan_memcpy
Shadow bytes around the buggy address:
  0x0c047fff7fb0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fc0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fd0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fe0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7ff0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
=>0x0c047fff8000: fa fa 00 00 fa fa 01 fa fa fa 00 02 fa fa 00[01]
  0x0c047fff8010: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8020: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8030: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8040: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8050: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
Shadow byte legend (one shadow byte represents 8 application bytes):
  Addressable:           00
  Partially addressable: 01 02 03 04 05 06 07
  Heap left redzone:       fa
  Freed heap region:       fd
  Stack left redzone:      f1
  Stack mid redzone:       f2
  Stack right redzone:     f3
  Stack after return:      f5
  Stack use after scope:   f8
  Global redzone:          f9
  Global init order:       f6
  Poisoned by user:        f7
  Container overflow:      fc
  Array cookie:            ac
  Intra object redzone:    bb
  ASan internal:           fe
  Left alloca redzone:     ca
  Right alloca redzone:    cb
  Shadow gap:              cc
==25413==ABORTING
[Inferior 2 (process 25894) exited normally]
