integer signedness in StringUtils_createStringFromBuffer in src/common/string_utilities.c #198

Closed
sleicasper opened this issue Dec 24, 2019 · 1 comment

Comments

@sleicasper
Copy link

StringUtils_createStringFromBuffer's second argument is size which is a signed integer. If attacker supply a negtive number like -1, StringUtils_createStringFromBuffer will try to alloc a very large buffer that is size 0xffffffff in 32bit arch or 0xffffffffffffffff in 64 bit arch. Most of the time alloc will failed then memcpy will get segment fault.

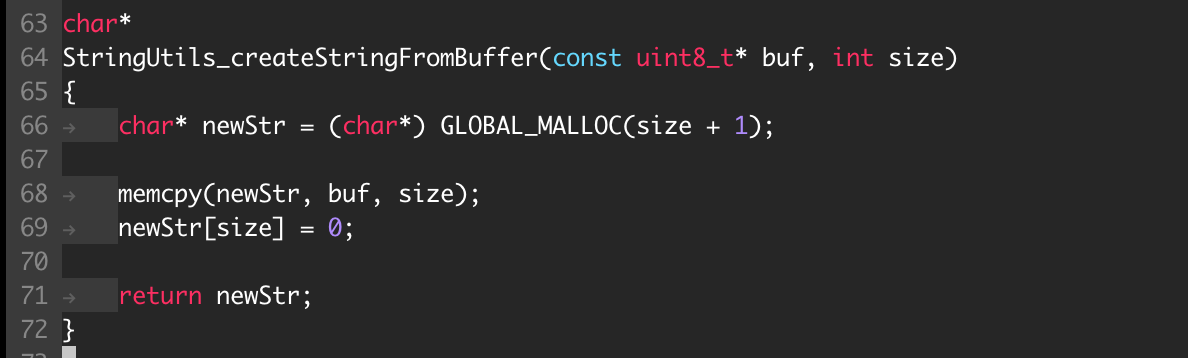

Screen Shot 2019-12-24 at 5 00 57 PM

poc:
poc.zip

gdb results:

gdb-peda$ r < /tmp/poc
Starting program: /home/casper/targets/struct/libiec61850/afl/fuzzrun/fuzzmmsdata < /tmp/poc
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
=================================================================
==1860==ERROR: AddressSanitizer: negative-size-param: (size=-1)
    #0 0x491fd7  (/home/casper/targets/struct/libiec61850/afl/fuzzrun/fuzzmmsdata+0x491fd7)
    #1 0x7ffff7839090  (/home/casper/targets/struct/libiec61850/afl/INSTALL/lib/libiec61850.so.1.4.0+0x49090)
    #2 0x7ffff787d08c  (/home/casper/targets/struct/libiec61850/afl/INSTALL/lib/libiec61850.so.1.4.0+0x8d08c)
    #3 0x7ffff7913d3b  (/home/casper/targets/struct/libiec61850/afl/INSTALL/lib/libiec61850.so.1.4.0+0x123d3b)
    #4 0x4c2377  (/home/casper/targets/struct/libiec61850/afl/fuzzrun/fuzzmmsdata+0x4c2377)
    #5 0x7ffff683fb96  (/lib/x86_64-linux-gnu/libc.so.6+0x21b96)
    #6 0x41acf9  (/home/casper/targets/struct/libiec61850/afl/fuzzrun/fuzzmmsdata+0x41acf9)

Address 0x000000f9892f is a wild pointer.
SUMMARY: AddressSanitizer: negative-size-param (/home/casper/targets/struct/libiec61850/afl/fuzzrun/fuzzmmsdata+0x491fd7)
==1860==ABORTING

Program received signal SIGABRT, Aborted.
[----------------------------------registers-----------------------------------]
RAX: 0x0
RBX: 0x705a28 --> 0x0
RCX: 0x7ffff685ce97 (<__GI_raise+199>:	mov    rcx,QWORD PTR [rsp+0x108])
RDX: 0x0
RSI: 0x7fffffffc9b0 --> 0x0
RDI: 0x2
RBP: 0x7fffffffe140 --> 0xffffffff --> 0x0
RSP: 0x7fffffffc9b0 --> 0x0
RIP: 0x7ffff685ce97 (<__GI_raise+199>:	mov    rcx,QWORD PTR [rsp+0x108])
R8 : 0x0
R9 : 0x7fffffffc9b0 --> 0x0
R10: 0x8
R11: 0x246
R12: 0x7fffffffd908 --> 0x7fffffffd918 --> 0x491fd8 (<__asan_memcpy()+344>:	lea    rcx,[rip+0x305ea9]        # 0x797e88 <_ZN11__sanitizer21common_flags_dont_useE>)
R13: 0x2
R14: 0x7fffffffcd00 --> 0x7ffff6c101ba --> 0x8b000000000000
R15: 0x797e88 --> 0x1
EFLAGS: 0x246 (carry PARITY adjust ZERO sign trap INTERRUPT direction overflow)
[-------------------------------------code-------------------------------------]
   0x7ffff685ce8b <__GI_raise+187>:	mov    edi,0x2
   0x7ffff685ce90 <__GI_raise+192>:	mov    eax,0xe
   0x7ffff685ce95 <__GI_raise+197>:	syscall
=> 0x7ffff685ce97 <__GI_raise+199>:	mov    rcx,QWORD PTR [rsp+0x108]
   0x7ffff685ce9f <__GI_raise+207>:	xor    rcx,QWORD PTR fs:0x28
   0x7ffff685cea8 <__GI_raise+216>:	mov    eax,r8d
   0x7ffff685ceab <__GI_raise+219>:	jne    0x7ffff685cecc <__GI_raise+252>
   0x7ffff685cead <__GI_raise+221>:	add    rsp,0x118
[------------------------------------stack-------------------------------------]
0000| 0x7fffffffc9b0 --> 0x0
0008| 0x7fffffffc9b8 --> 0x0
0016| 0x7fffffffc9c0 --> 0x0
0024| 0x7fffffffc9c8 --> 0x0
0032| 0x7fffffffc9d0 --> 0x0
0040| 0x7fffffffc9d8 --> 0x0
0048| 0x7fffffffc9e0 --> 0x0
0056| 0x7fffffffc9e8 --> 0x0
[------------------------------------------------------------------------------]
Legend: code, data, rodata, value
Stopped reason: SIGABRT
__GI_raise (sig=sig@entry=0x6) at ../sysdeps/unix/sysv/linux/raise.c:51
51	../sysdeps/unix/sysv/linux/raise.c: No such file or directory.
gdb-peda$ bt
#0  __GI_raise (sig=sig@entry=0x6) at ../sysdeps/unix/sysv/linux/raise.c:51
#1  0x00007ffff685e801 in __GI_abort () at abort.c:79
#2  0x00000000004b06b7 in __sanitizer::Abort() () at /tmp/final/llvm.src/projects/compiler-rt/lib/sanitizer_common/sanitizer_posix_libcdep.cc:154
#3  0x00000000004af091 in __sanitizer::Die() () at /tmp/final/llvm.src/projects/compiler-rt/lib/sanitizer_common/sanitizer_termination.cc:58
#4  0x0000000000496c19 in ~ScopedInErrorReport () at /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_report.cc:186
#5  0x0000000000497e80 in ReportStringFunctionSizeOverflow () at /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_report.cc:340
#6  0x0000000000492013 in __asan_memcpy () at /tmp/final/llvm.src/projects/compiler-rt/lib/asan/asan_interceptors_memintrinsics.cc:22
#7  0x00007ffff7839091 in StringUtils_createStringFromBuffer (buf=0x7fffffffc9b0 "", size=<optimized out>) at /home/casper/targets/struct/libiec61850/afl/SRC/src/common/string_utilities.c:68
#8  0x00007ffff787d08d in MmsValue_newStringFromByteArray (byteArray=0xf9892f "", size=0xffffffff, type=MMS_VISIBLE_STRING) at /home/casper/targets/struct/libiec61850/afl/SRC/src/mms/iso_mms/common/mms_value.c:1725
#9  MmsValue_newVisibleStringFromByteArray (byteArray=0xf9892f "", size=0xffffffff) at /home/casper/targets/struct/libiec61850/afl/SRC/src/mms/iso_mms/common/mms_value.c:1739
#10 0x00007ffff7913d3c in MmsValue_decodeMmsData (buffer=<optimized out>, bufPos=0x0, bufferLength=<optimized out>, endBufPos=<optimized out>)
    at /home/casper/targets/struct/libiec61850/afl/SRC/src/mms/iso_mms/server/mms_access_result.c:277
#11 0x00000000004c2378 in main () at ../fuzzsrc/fuzzmmsdata.c:12
#12 0x00007ffff683fb97 in __libc_start_main (main=0x4c22e0 <main>, argc=0x1, argv=0x7fffffffe3c8, init=<optimized out>, fini=<optimized out>, rtld_fini=<optimized out>, stack_end=0x7fffffffe3b8) at ../csu/libc-start.c:310
#13 0x000000000041acfa in _start ()
@mzillgith
Copy link
Contributor

Thanks for the bug report! Actually the caller has to provide valid arguments. The wrong value was caused by missing length validity checks in MmsValue_decodeMmsData. This is fixed with 6c53924.
I will also add a check if allocation fails in StringUtils_createStringFromBuffer
