GraphQL Backend API Server

GraphQL API server built with Node.js, Apollo Server v4, and Express.js. This server provides a comprehensive solution for managing NodeObjects, Actions, Triggers, Responses, and ResourceTemplates through a well-documented GraphQL interface.

Features

• Modern GraphQL Implementation using Apollo Server v4
• JWT Authentication for secure API access
• Modular Architecture for easy maintenance and scaling
• In-Memory Data Storage using JSON files

Prerequisites

• Node.js (v18.x or later)
• npm (v8.x or later)

Quick Start

Installation

git clone https://github.com/Nahidjc/graphql-backend-node.git

cd graphql-backend-node

npm install

Configuration

Create a .env file in the root directory with the following variables:

PORT=8088
JWT_SECRET=jadsdsahdfshdfasdkfaskhdfhaskfasdfh

Running the Server

npm run dev

npm start

The server will be available at:

• Main endpoint: http://localhost:8088
• GraphQL playground: http://localhost:8088/graphql

Authentication

This API uses JWT-based authentication. Include a valid Bearer token in the Authorization header:

Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpZCI6Ijk3MTI0Mzk3MTI0IiwibmFtZSI6Ik5haGlkIEhhc2FuIiwicGhvbmUiOiIwMTkxMDEyNTQyOCIsImlhdCI6MTc0NTUyNTU3MiwiZXhwIjoxNzQ4MTE3NTcyfQ.DBa90u9iDFfFqvHUKzrIPFBBGs6ZTNftdGWlSVKC0vU

API Documentation

Key Entities

• NodeObjects: Core data objects in the system
• Actions: Operations that can be performed
• Triggers: Event-driven triggers for automation
• Responses: Standardized response templates
• ResourceTemplates: Reusable resource definitions

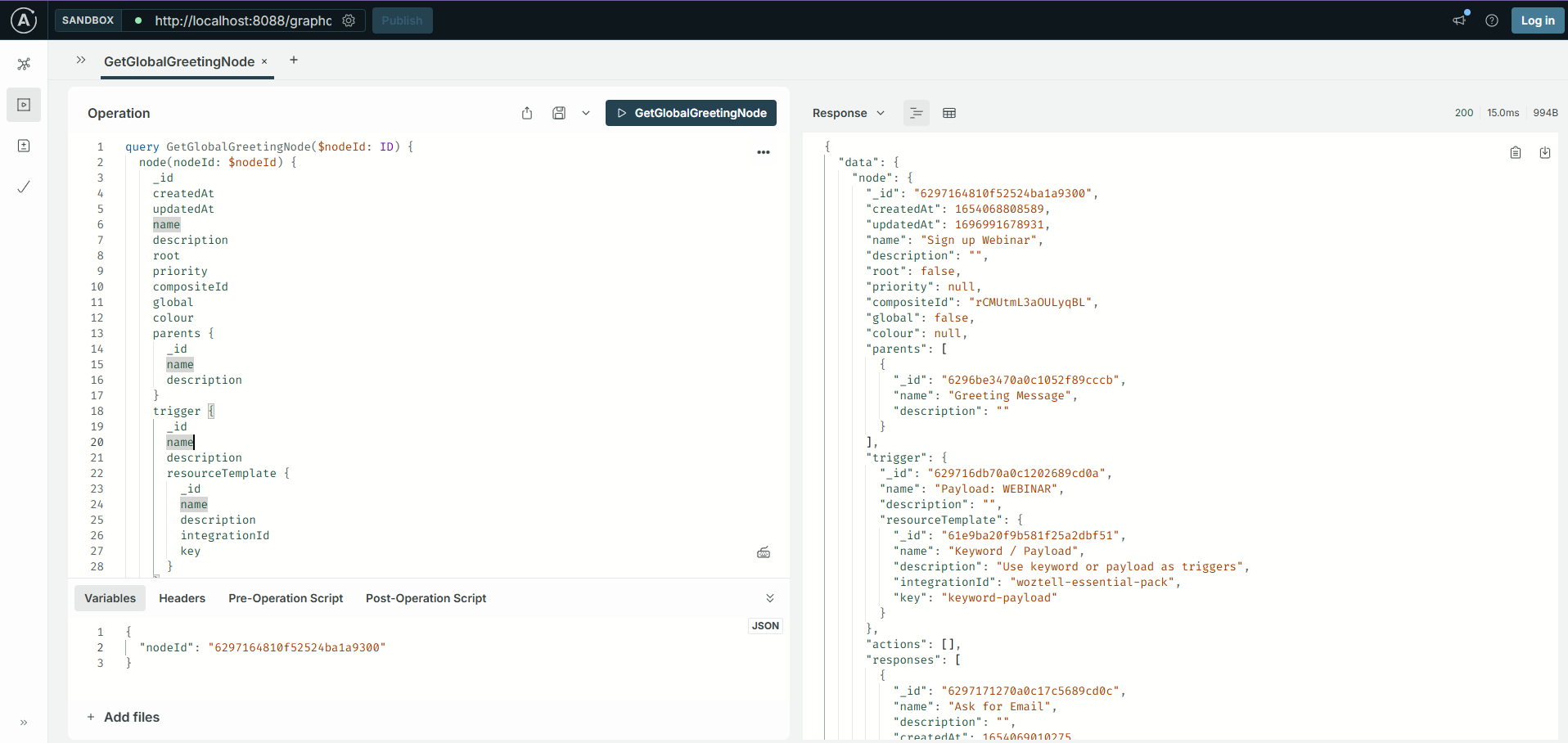

Example Queries

Example - 1

query GetGlobalGreetingNode($nodeId: ID) {
  node(nodeId: $nodeId) {
    _id
    createdAt
    updatedAt
    name
    description
    root
    priority
    compositeId
    global
    colour
    parents {
      _id
      name
      description
    }
    trigger {
      _id
      name
      description
      resourceTemplate {
        _id
        name
        description
        integrationId
        key
      }
    }
    actions {
      _id
      name
      description
      resourceTemplate {
        _id
        name
        description
        integrationId
        key
      }
    }
    responses {
      _id
      name
      description
      createdAt
      updatedAt
      platforms {
        integrationId
        build
        localeGroups {
          localeGroupId
          variations {
            name
            responses
          }
        }
      }
    }
  }
}

Respone The query

{
 "data": {
   "node": {
     "_id": "6297164810f52524ba1a9300",
     "createdAt": 1654068808589,
     "updatedAt": 1696991678931,
     "name": "Sign up Webinar",
     "description": "",
     "root": false,
     "priority": null,
     "compositeId": "rCMUtmL3aOULyqBL",
     "global": false,
     "colour": null,
     "parents": [
       {
         "_id": "6296be3470a0c1052f89cccb",
         "name": "Greeting Message",
         "description": ""
       }
     ],
     "trigger": {
       "_id": "629716db70a0c1202689cd0a",
       "name": "Payload: WEBINAR",
       "description": "",
       "resourceTemplate": {
         "_id": "61e9ba20f9b581f25a2dbf51",
         "name": "Keyword / Payload",
         "description": "Use keyword or payload as triggers",
         "integrationId": "woztell-essential-pack",
         "key": "keyword-payload"
       }
     },
     "actions": [],
     "responses": [
       {
         "_id": "6297171270a0c17c5689cd0c",
         "name": "Ask for Email",
         "description": "",
         "createdAt": 1654069010275,
         "updatedAt": null,
         "platforms": [
           {
             "integrationId": "woztell-essential-pack",
             "build": 1,
             "localeGroups": [
               {
                 "localeGroupId": null,
                 "variations": [
                   {
                     "name": "Standard",
                     "responses": [
                       {
                         "type": "TEXT",
                         "text": "Please enter your email",
                         "id": "lQRFKIwH",
                         "transform": ""
                       }
                     ]
                   }
                 ]
               }
             ]
           }
         ]
       }
     ]
   }
 }
}

License

Copyright © 2025 Nahid Hasan.
This project is licensed under the MIT License - see the LICENSE file for details.
