Power12

A compact 6 watts per channel amplifier.

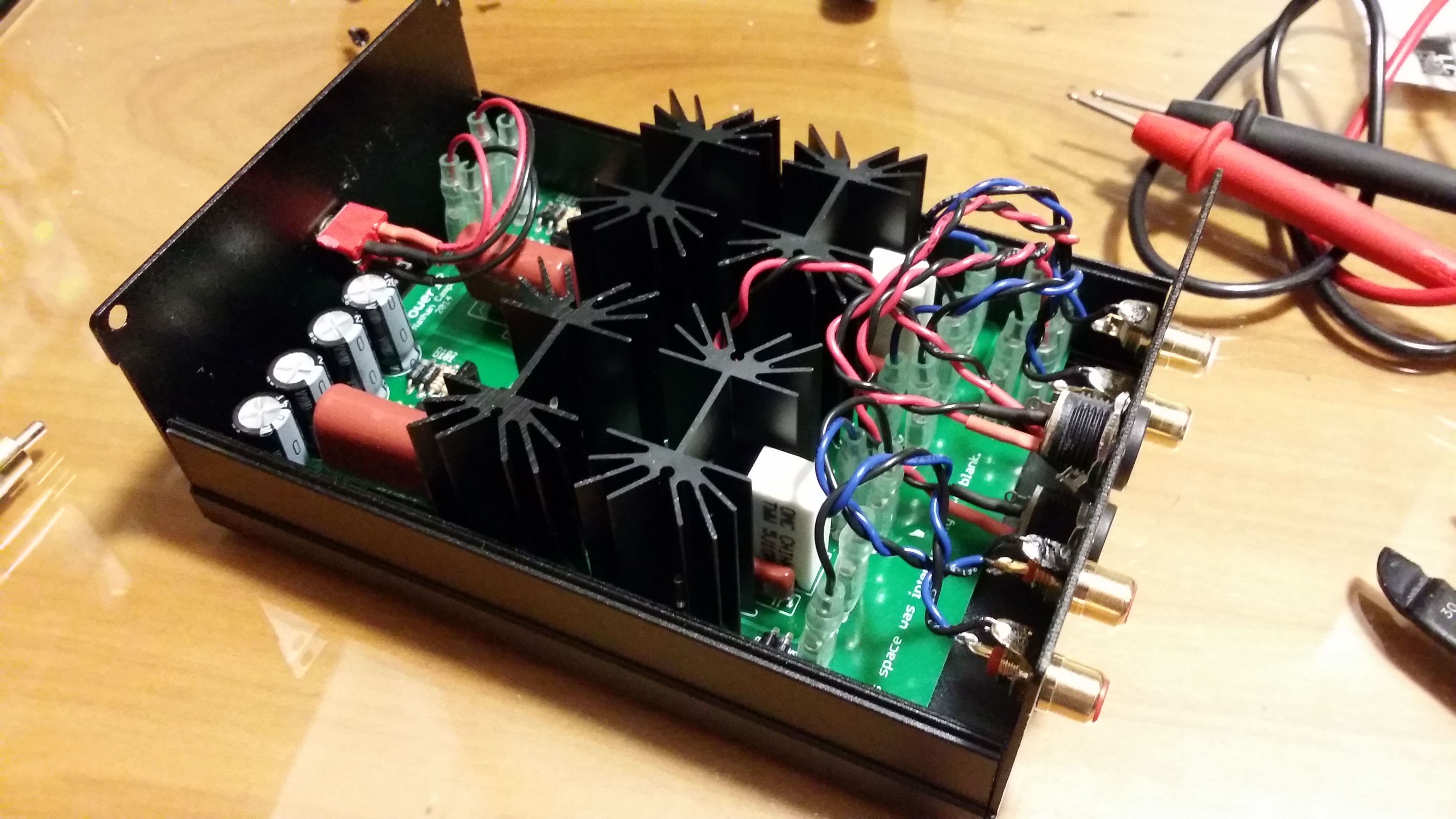

Completed

Schematic

It's a very simple discrete power amplifier with a CFP output stage.

Schematic

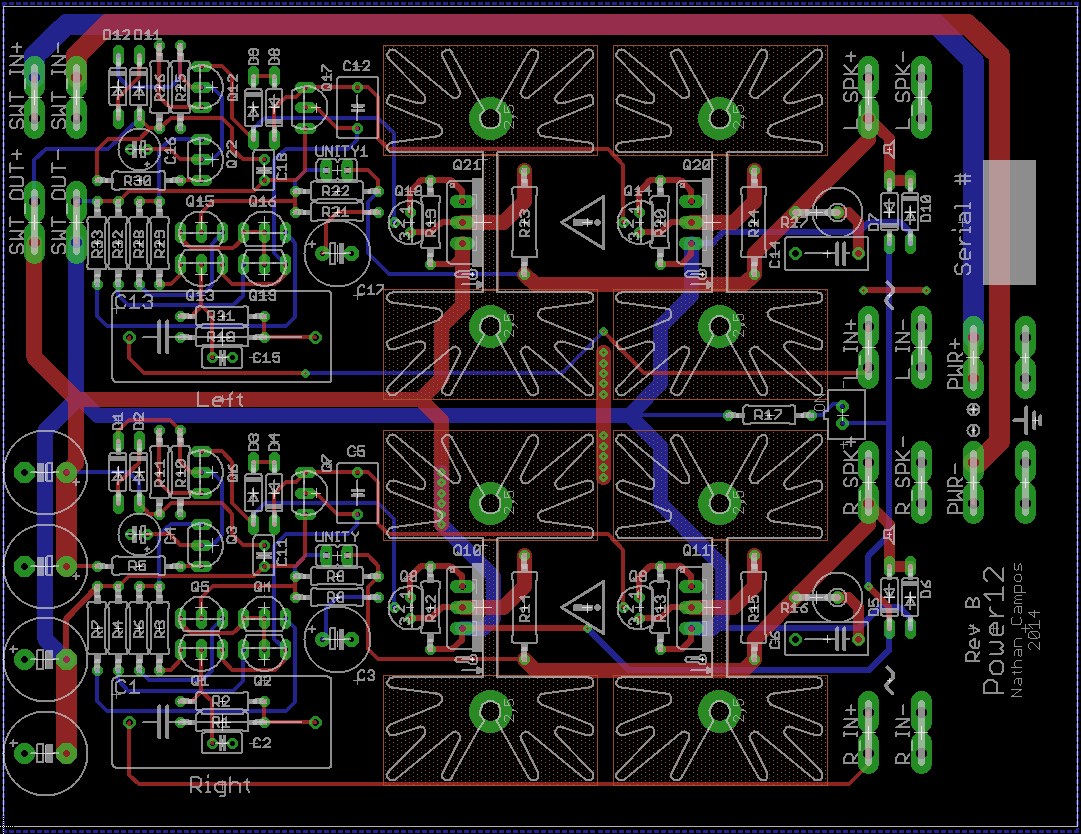

PCB Layout

Distortion

Rev A

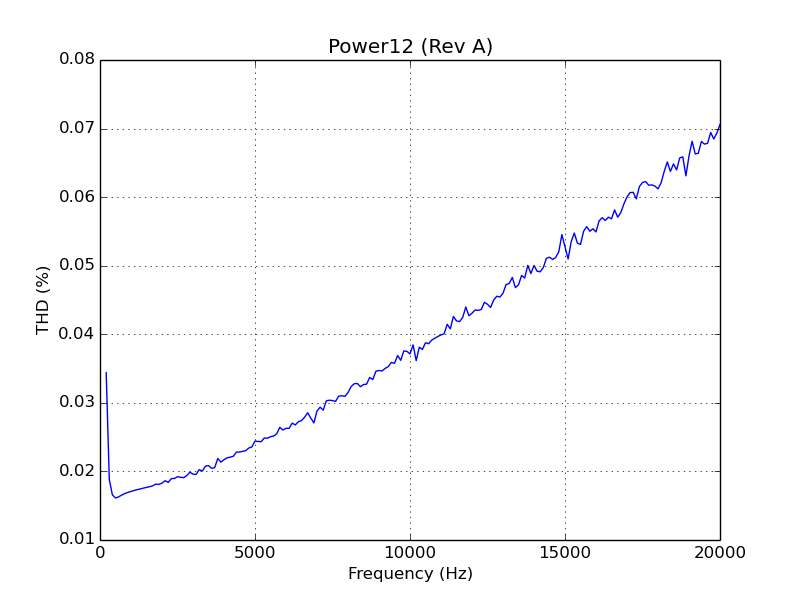

Here's the THD x Frequency plot created using plot_thd.py:

THD Plot
