r2 plugin to add MSDN documentation URLs and parameter names to imported function calls
Switch branches/tags
Nothing to show
Clone or download
Fetching latest commit…
Cannot retrieve the latest commit at this time.
Permalink
Failed to load latest commit information.
bin
tests
.gitignore
.travis.yml
README.md
msdn_parser.py
r2msdn.py
requirements.txt

README.md

R2MSDN Build Status

This radare2 plugin adds the name of the parameters for Windows imports as well as the MSDN URL where you can find the documentation for such imported function in each address where there's a call to such imports.

As of today, radare2 already adds the name of the parameters for Windows imports (although that functionality is broken right now). The r2msdn plugin is still useful in the following cases:

  • You want to add the MSDN URL right next to the import call so you can easily access its documentation
  • You want to add up to date parameter names for Windows imports. These names are kept updated given that they are retrieved dynamically through MSDN search engine. So there's no need for a DB storing them.

Usage

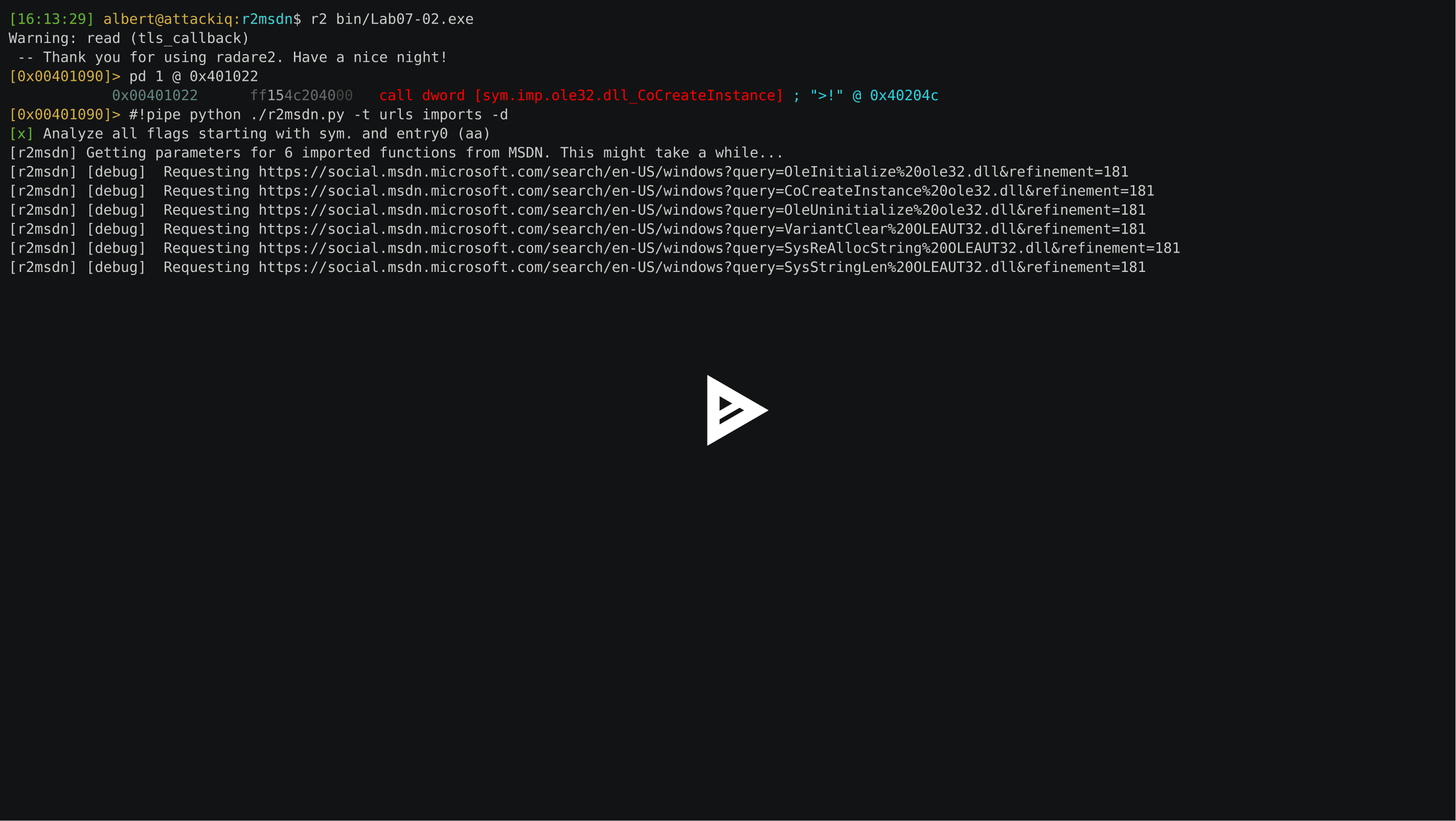

asciicast

This plugin supports a couple of parameters:

  • -b/--binary: Path of the binary. This parameter should not be used when the plugin is executed inside an r2 session.
  • -t/--type: Type of information to be added to the binary. You can pass one or many of the options. Available options: urls, imports. Pass them without commas.
  • -d/--debug: If debug logs should be printed. URLs queried and addresses where comments have been added will be printed. It can be overwhelming for large binaries.

If executed without parameters, only URLs will be added to all Windows import calls.

$ r2 <binary>
> #!pipe python ./r2msdn.py

This shows how to use the script with all parameters inside an r2 session:

$ r2 <binary>
> #!pipe python ./r2msdn.py -t urls imports -d

Requirements

Aside from the requirements specified in the requirements.txt file, you will need to install PhantomJS. Not that I want you to go through that hassle, but the guys from Microsoft decided that your hardware should be the one setting the MSDN layout up. That means we have to execute javascript through a headless browser.

You are on your own for NodeJS and PhantomJS. For python requirements, just use $ pip install -r requirements.txt.

Authors

newlog
