[NF]: Add seeds to TRK #1792

Merged
merged 7 commits into from Jun 12, 2019

Conversation

@AntoineTheb
Copy link
Contributor

commented Mar 19, 2019

Seeds can now be saved alongside their respective streamlines using the data_per_streamline dictionary of the Tractogram class, using seeds as a key. Seed return from the LocalTracker class is optional so as to prevent breaking changes to pre-existing scripts.

This solves #1791.


Example usage:

from dipy.io.streamline import TrkFile
from dipy.viz import window, actor

# Load files and data
trk = TrkFile.load(args.tractogram)
tractogram = trk.tractogram
streamlines = tractogram._streamlines
seeds = tractogram.data_per_streamline['seeds']

# Make display objects
streamlines_actor = actor.line(streamlines)
points = actor.dots(seeds, color=(1., 1., 1.))

# Add display objects to canvas
s = window.Scene()
s.add(streamlines_actor)
s.add(points)

window.show(s)

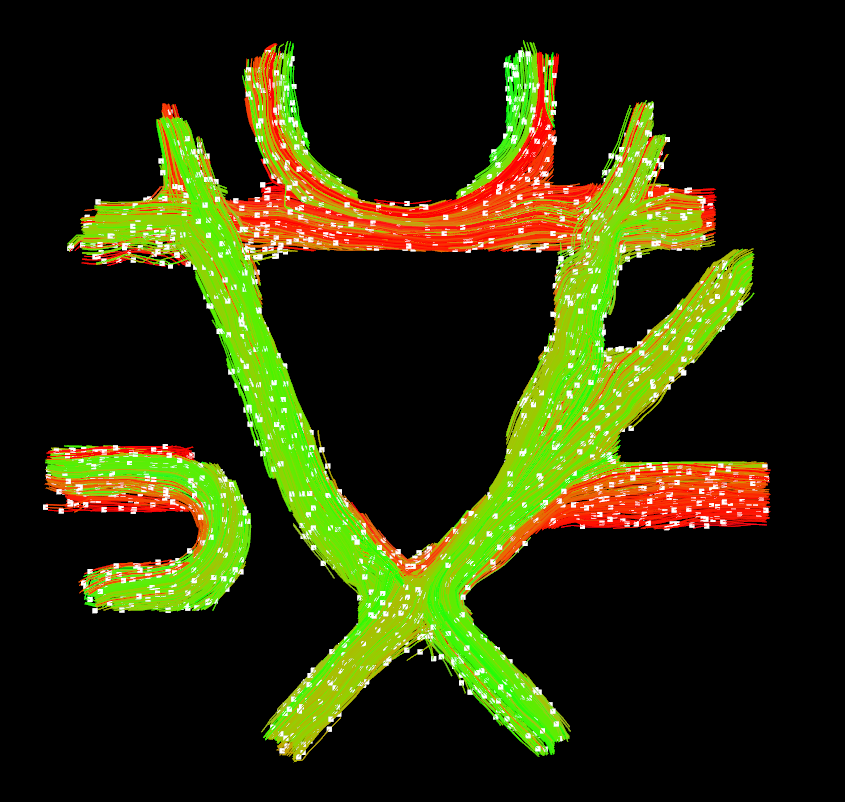

Which should output something like

@pep8speaks

This comment has been minimized.

Copy link

commented Mar 19, 2019

Hello @AntoineTheb, Thank you for updating !

Cheers ! There are no PEP8 issues in this Pull Request. 🍻

Comment last updated at 2019-05-17 20:09:29 UTC
NF: Add seeds to TRK
Seeds can now be saved alongside their respective streamlines using the
`data_per_streamline` dictionary of the Tractogram class.

@AntoineTheb AntoineTheb force-pushed the AntoineTheb:atheb/save_seeds_in_trk branch from 557cc58 to f4d9f8e Mar 20, 2019

@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented Mar 20, 2019

@skoudoro @Garyfallidis Seems like the test that failed has nothing to do with the current PR (the test is about DKI modeling). Should I raise an issue ?

@skoudoro

This comment has been minimized.

Copy link
Member

commented Mar 20, 2019

I think there is already an issue. I have just restarted the failing Travis matrix.

@codecov-io

This comment has been minimized.

Copy link

commented Mar 22, 2019

Codecov Report

Merging #1792 into master will decrease coverage by 0.68%.
The diff coverage is 93.1%.

Impacted file tree graph

@@            Coverage Diff             @@
##           master    #1792      +/-   ##
==========================================
- Coverage   84.28%   83.59%   -0.69%
==========================================
  Files         117      118       +1
  Lines       14222    14505     +283
  Branches     2245     2290      +45
==========================================
+ Hits        11987    12126     +139
- Misses       1718     1852     +134
- Partials      517      527      +10
Impacted Files Coverage Δ
dipy/workflows/tracking.py 96.34% <100%> (+0.39%) ⬆️
dipy/tracking/utils.py 88.99% <100%> (+0.13%) ⬆️
dipy/tracking/local/localtracking.py 95.87% <81.81%> (-1.88%) ⬇️
dipy/core/gradients.py 90% <0%> (-0.61%) ⬇️
dipy/workflows/flow_runner.py 100% <0%> (ø) ⬆️
dipy/pkg_info.py 28.57% <0%> (ø) ⬆️
dipy/io/pickles.py 100% <0%> (ø) ⬆️
dipy/utils/six.py 42.44% <0%> (ø)
dipy/align/imwarp.py 98.39% <0%> (ø) ⬆️
dipy/reconst/dki.py 96.82% <0%> (ø) ⬆️
... and 14 more
@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented Mar 27, 2019

@skoudoro Any update on this ? What do you think ?

@skoudoro

This comment has been minimized.

Copy link
Member

commented Mar 27, 2019

Hi @AntoineTheb,

This is definitively a nice feature! I need to play a bit with it before reviewing.

it will be good to have other people opinion too like @arokem @guaje @gabknight, ...

When you save the seeds, is the TRK file working correctly with other software like Trackvis?
It would be good to add an option on save_trk and load_trk function or to create a user-friendly load/save function

@skoudoro

This comment has been minimized.

Copy link
Member

commented Mar 27, 2019

To clarify my last sentence, we should be able to load/save the seeds without running a tracking algorithm

@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented Mar 27, 2019

Thanks ! I just checked it and everything seems normal with Trackvis. Also, it does seem like a good idea to be able to save only the seeds/save them separately. I'll get on it right way.

@skoudoro skoudoro added this to the 1.0 milestone Apr 23, 2019

@arokem

This comment has been minimized.

Copy link
Member

commented May 7, 2019

This looks like a good addition to me. +1 to adding I/O options, but that can happen on a follow-up PR.

@arokem

This comment has been minimized.

Copy link
Member

commented May 7, 2019

Looks like there are a few conflicts introduced when #1766 was merged. Could you please resolve these, @AntoineTheb ? Thanks!

@arokem
Copy link
Member

left a comment

Thanks - this is great! I had a couple more comments/questions, but they're fairly minor

dipy/tracking/utils.py Outdated Show resolved Hide resolved
dipy/tracking/utils.py Outdated Show resolved Hide resolved
Add test and fix `move_streamlines`
- Add test to make sure that seeds and streamlines are in the same space
- Change `move_streamlines` to fix awkward streamlines tuple

@AntoineTheb AntoineTheb force-pushed the AntoineTheb:atheb/save_seeds_in_trk branch from 07e9d79 to 26fee32 May 7, 2019

@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented May 8, 2019

@arokem @skoudoro Looks like a single build has failed during the CI run. Could it be possible to retry it ? Thanks !

@arokem

This comment has been minimized.

Copy link
Member

commented May 14, 2019

Hey @AntoineTheb : Is this ready to go from your point of view? Would you mind rebasing on the master branch once again?

@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented May 17, 2019

@arokem Sure, no problem ! And yes I think this is ready to go, extra features like I/O options can be added at a later time

@AntoineTheb

This comment has been minimized.

Copy link
Contributor Author

commented Jun 8, 2019

@arokem @skoudoro Any updates on this ? I think the CI errors are unrelated to this PR

@skoudoro

This comment has been minimized.

Copy link
Member

commented Jun 8, 2019

As soon as there is new PR for I/O options, I am ok with this PR

@arokem arokem merged commit 7f4bfd2 into nipy:master Jun 12, 2019

2 of 3 checks passed

continuous-integration/travis-ci/pr The Travis CI build failed
Details
Codacy/PR Quality Review Up to standards. A positive pull request.
Details
continuous-integration/appveyor/pr AppVeyor build succeeded
Details
@arokem

This comment has been minimized.

Copy link
Member

commented Jun 12, 2019

Hi @AntoineTheb : sorry for the slowness here. OHBM has been holding us back.

I think that this is ready to go. I'll post an issue about I/O and assign that to you.

1 similar comment
@arokem

This comment has been minimized.

Copy link
Member

commented Jun 12, 2019

Hi @AntoineTheb : sorry for the slowness here. OHBM has been holding us back.

I think that this is ready to go. I'll post an issue about I/O and assign that to you.
